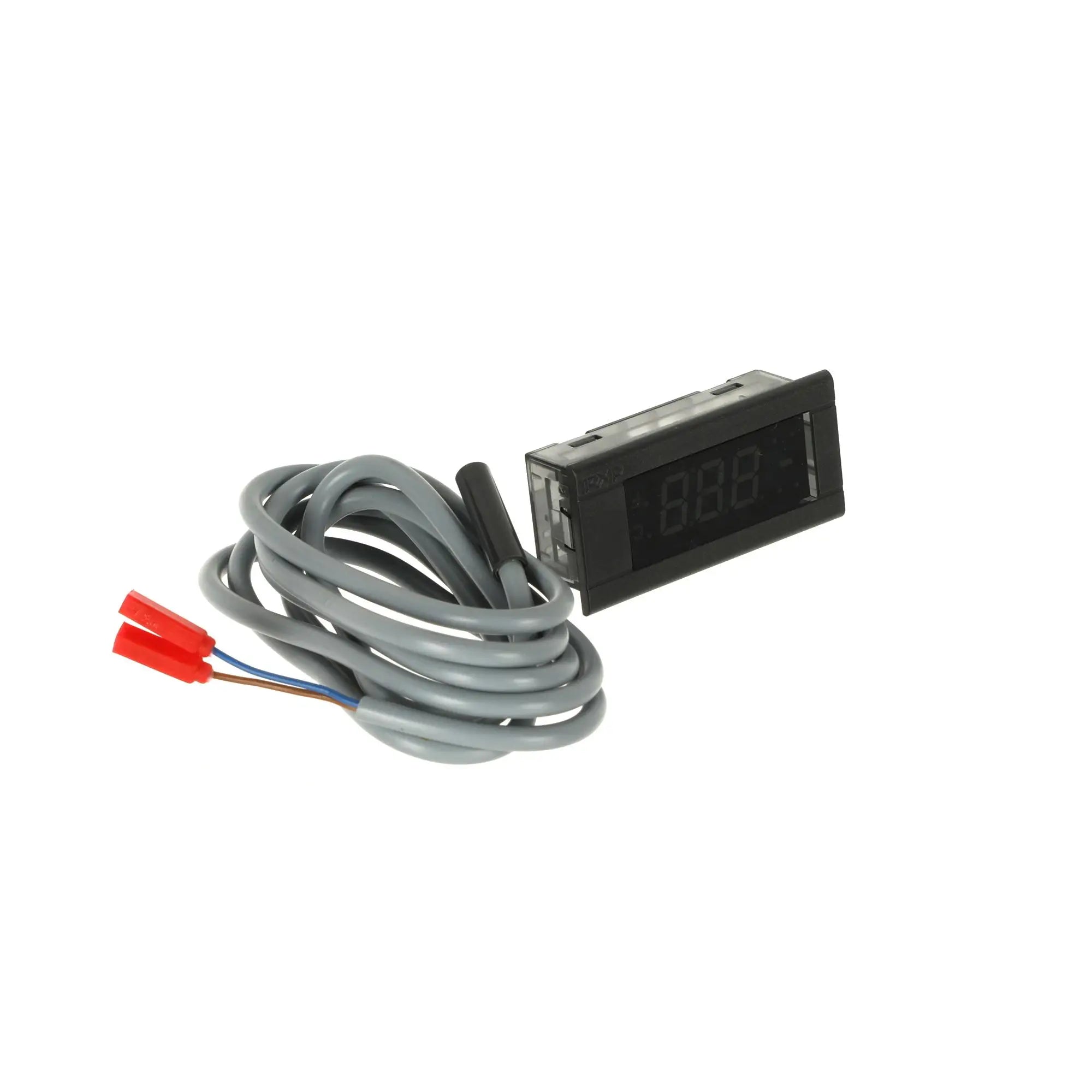

Dixell XT11S Digital Panel Thermometer 230V

The Dixell XT11S is a compact, panel-mount digital thermometer built for commercial refrigeration and catering equipment. Running on 230V AC, it delivers clear, accurate temperature readings via a bright 3-digit red LED display — making it easy to monitor conditions at a glance, even in busy kitchen or cold room environments.

Supplied complete with an NTC probe (1.5m cable), it's ready to install straight away. Min/max temperature logging means you can quickly check whether temperature limits have been breached without additional equipment.

Available models include the XT11S-5000N and XT11S-5200N.

Key Features

• Compact panel-mount design — fits standard cutouts with minimal depth
• 3-digit red LED display with decimal point for precise readout
• Min/max temperature logging for compliance and monitoring
• Wide temperature range: -40°C to +110°C (-40°F to 230°F)
• NTC probe included with 1.5m cable — no additional sensor required
• 230V AC, 50/60Hz power supply

Specifications

• Front frame: 31 mm x 64 mm
• Depth: 31 mm
• Panel cutout: approx. 59 mm x 25.5 mm
• Power: 230V AC, 50/60Hz
• Display: 3-digit red LED
• Temperature range: -40°C to +110°C (-40°F to 230°F)
• Sensor: NTC probe (1.5m cable included)

Typical Applications

• Commercial refrigeration cabinets and cold rooms
• Catering and food service equipment
• HVAC/R monitoring panels
