AC Copper Pipe Installation Kit – Custom Build for UK HVAC Systems

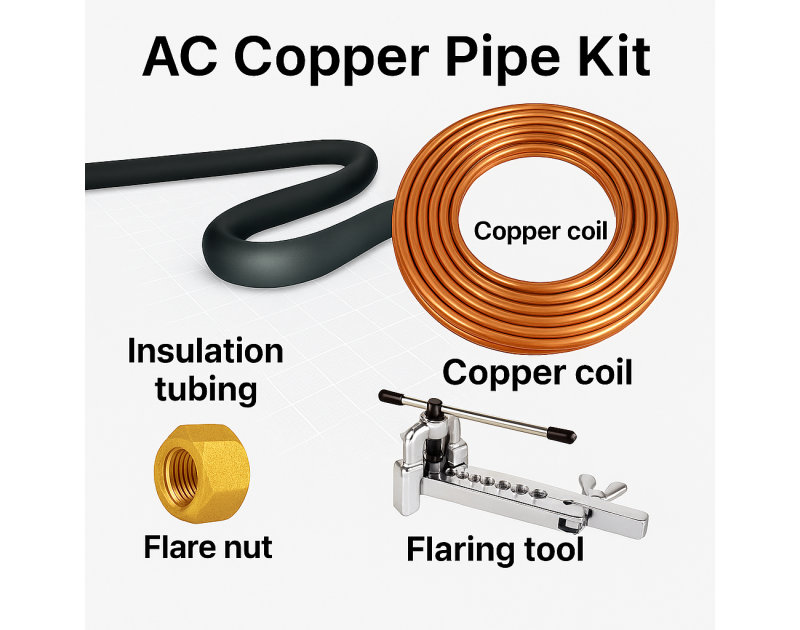

Complete, compliant, and ready-to-install copper pipe kits for UK air conditioning and refrigeration installations. Each kit includes Lawton Tubes EN 12735-1 refrigeration-grade copper tubing, brass flare nuts, Armaflex Evo closed-cell insulation, and the Mastercool 70051 imperial flaring tool.

Key Features

• Fully UK Compliant: Meets Building Regulations Part L (energy efficiency), F-Gas Regulations, and PED 2014/68/EU for pressure equipment.
• Refrigeration-Grade Copper: Lawton Tubes soft annealed coils, R220/R290 compatible, suitable for R32, R410A, and R134a systems.
• Armaflex Evo Insulation: Class 0 fire rating, low thermal conductivity (λ ≤ 0.033 W/m·K at 0°C), prevents condensation and energy loss.
• Precision Flaring: Mastercool 70051 creates perfect 45° SAE flares on 1/4" to 5/8" copper – essential for leak-free connections.
• Clean Cutting & Deburring: Use the Mastercool 70027 Mini Cutter and Mastercool Inner/Outer Reamer for burr-free, square ends.
• Custom Lengths & Sizes: Choose from 6m, 15m, or 30m coils in 1/4", 3/8", 1/2", or 5/8" OD.

Insulation Wall Thickness (Armaflex Evo)

• 1/4" pipe → 6mm wall
• 3/8" pipe → 9mm wall
• 1/2" & 5/8" pipe → 13mm wall

Why Choose This Kit?

All components are pre-matched for compatibility and performance. No guesswork – select your pipe size and length. Ideal for split system installs, VRV/VRF line sets, and commercial refrigeration. Stock held in the UK for next-day delivery.

Installation Guide

1. Cut Pipe to Length: Use the Mastercool 70027 Mini Cutter for a clean, square cut.
2. Deburr Edges: Use the Mastercool Inner/Outer Reamer to remove internal and external burrs – critical for perfect flare formation and safety.
3. Flare the Pipe: Insert pipe into Mastercool 70051 clamp (correct size yoke). Tighten until pipe is flush with top of die. Apply light oil and flare with 45° cone to SAE standard.
4. Assemble Flare Joint: Slide brass flare nut onto pipe (thread facing flare). Align with mating flare and hand-tighten, then torque to 18–20 Nm (1/4"), 35–40 Nm (3/8"), 50–55 Nm (1/2"), 65–70 Nm (5/8").
5. Install Insulation: Slide Armaflex Evo tube over pipe before final connection (if possible). After joining, slit insulation lengthwise, fit over pipe, and seal all joints and ends with Armaflex 520 adhesive. Tape with self-adhesive Armaflex tape for UV/outdoor protection.
6. Pressure Test: Use the Javac Nitrogen Pressure Testing Rig for safe, accurate testing to 40 bar (R410A) or 30 bar (R32) per BS EN 378 standards. Hold for 24 hours. Check for leaks with an electronic detector or a soap solution.
7. Evacuate & Charge: Triple evacuate to 500 microns. Charge refrigerant per the manufacturer's data plate.

Safety Precautions

• F-Gas Certification Required: Only F-Gas qualified engineers (Category I) may handle refrigerants, pressure test, or commission systems.
• PPE Mandatory: Wear safety glasses, gloves, and hearing protection when cutting, reaming, flaring, or brazing copper.
• Pressure Safety: Never exceed 40 bar during testing. Use OFN (Oxygen-Free Nitrogen) with the Javac rig, regulator, and relief valve. Depressurise fully before opening.
• Adhesive & Solvent Safety: Use Armaflex 520 adhesive in well-ventilated areas. Avoid skin contact and ignition sources (flammable).
• Sharp Edges: Always use the reamer to remove burrs – prevents injury and ensures flare quality.
• Electrical Safety: Isolate power before working near indoor/outdoor units.
• Fire Risk: Armaflex Evo is Class 0, but keep away from open flames during installation.

Kit Includes:

• Lawton Tubes Copper Pipe (EN 12735-1, refrigeration-grade, 6m/15m/30m)
• Brass Flare Nut (matched to pipe size)
• Armaflex Evo Insulation (6mm, 9mm, or 13mm wall, 2m lengths)
• Mastercool 70051 Flaring Tool (imperial, 45° SAE)

Recommended Add-Ons:

• Mastercool 70027 Mini Tube Cutter – compact and precise.
• Mastercool Inner/Outer Reamer – removes burrs for safe, perfect flares.
• Armaflex 520 Adhesive – professional joint sealing.
• Javac Nitrogen Pressure Testing Rig – compliant, safe pressure testing to BS EN 378.

Note: Copper supplied in soft coil. Insulation supplied in 2m lengths (quantity adjusted to cover full run). All items available individually on airconspares.com.
