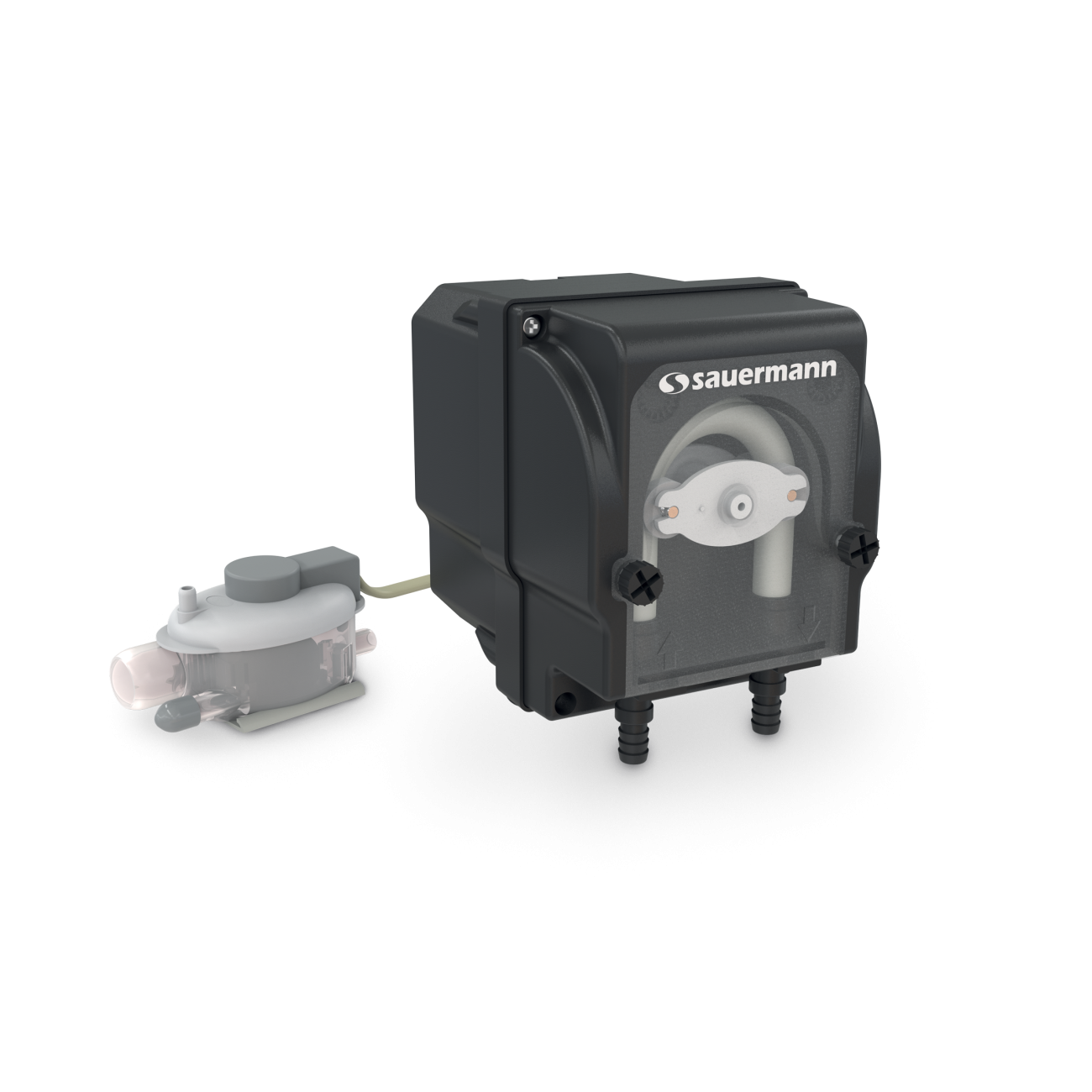

Sauermann SI-52 Peristaltic Condensate Pump for Air Conditioning Systems

Sauermann SI-52 Peristaltic Condensate Pump | SI52CE01UN23

The Sauermann SI-52 is a peristaltic condensate pump designed for all types of air conditioning units up to 8kW, including wall units, air conditioning cabinets, ceiling units, and ducted units. Controlled by a float switch with three detection levels (on, off, safety), the safety contact automatically stops the air conditioner compressor or solenoid valve to prevent condensate overflow. The SI-52 is the direct replacement for the discontinued Sauermann PE5200.

Key Features

• Peristaltic pump — quiet, vibration-free, self-priming operation
• Float switch detection — 3 levels: On (16mm), Off (11mm), Safety (19mm)
• Safety contact stops AC compressor or solenoid valve on overflow
• 12m maximum discharge head | 2m maximum suction head
• 6 L/h constant flow rate (regardless of discharge or suction head)
• IP55 protection — suitable for unventilated areas
• ≤30 dBA — quiet, vibration-free operation
• Thick, reinforced tube for longer service life
• Resistance to contaminated condensate (particles and chemicals)
• Easy-open front panel — tool-free tube replacement
• Glass fuse replaceable in one step (standard 5×20 cartridge)
• Compact: L85 × W108 × H122mm
• CE & UKCA certified | RoHS & WEEE compliant | Made in France

Technical Specifications

Kit Contents

• Peristaltic pump SI-52
• Cable 1.7m including 2 wires for power supply (P & N)
• 2 safety switch wires (1.7m)
• Easy 2-screw sliding plastic bracket
• Detection unit SI2958 (1.5m cable)
• Detection unit installation kit: vent tube int. Ø4 × L75mm, mounting rail, adhesive
• 90° connector Ø15mm × 45 × 152mm

Applications

• Wall-mounted split AC units up to 8kW
• Air conditioning cabinets
• Ceiling suspended units
• Computer room air conditioning
• Ducted systems
• Suitable for dusty or chemical environments (bakeries, hairdressers, hotels)

SI-50 vs SI-51 vs SI-52 — Which Do I Need?

Replaces PE5200

The SI-52 is the direct successor to the discontinued Sauermann PE5200. Note: replacement heads (ACC00954) and hoses (ACC00953) for the SI-50/51/52 are not backward-compatible with the older PE series.

Compatible Accessories

• ACC00954 — Replacement head for SI-50, SI-51, SI-52
• ACC00953 — Replacement hose for SI-50, SI-51, SI-52
• ACC00927 — Multi-diameter reducing adaptor (Ø15mm to Ø6mm)
• ACC00919 — 6× self-sealing fittings for Ø6mm (1/4") hose
• ACC00909 — Clear PVC hose Ø6mm (5m)
• ACC00910 — Clear PVC hose Ø6mm (50m)
• Browse all Condensate Pump Accessories

Also in the Sauermann Peristaltic Range

• Sauermann SI-50 — compressor signal detection, not for inverter/reversible
• Sauermann SI-51 — thermal probe detection, not for inverter/reversible

Frequently Asked Questions

Is the SI-52 a direct replacement for the PE5200?

Yes. The SI-52 uses float switch detection and is Sauermann's recommended direct replacement for the discontinued PE5200.

Can I use PE5200 spare parts (tubes, heads) on the SI-52?

No. The replacement heads (ACC00954) and hoses (ACC00953) for the SI-50/51/52 are not backward-compatible with the older PE series. Sauermann recommends replacing the complete unit with an SI-52.

What is the difference between the SI-52 and the SI-51?

The SI-51 uses temperature differential (thermal probe) detection and is not compatible with reversible or inverter systems. The SI-52 uses float switch detection and is compatible with a wider range of AC systems.

Does the SI-52 work on UK 230V supply?

Yes. The SI-52 runs on 230V~ 50/60Hz standard UK mains supply.

Is the SI-52 suitable for R32 systems?

Yes. The pump handles condensate water only and is refrigerant-agnostic.
