Armaflex HT Solar Pipe Insulation 2M Outdoor High Temperature UV Resistant-42mm-13mm-Wall

42mm Armaflex HT Solar Pipe Insulation 13mm Wall 2M Outdoor High-Temperature UV Resistant.

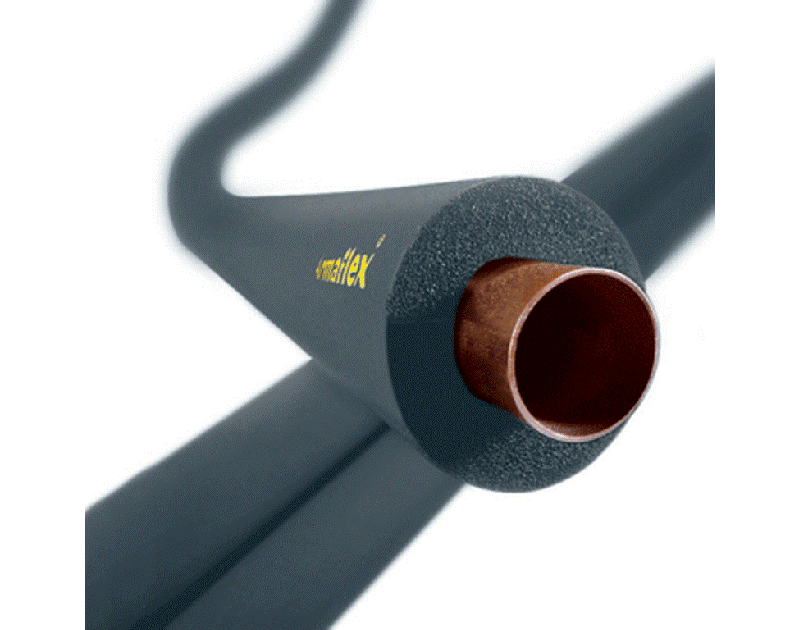

Armaflex HT Solar Pipe Insulation Lagging Sunlight and UV resistant flexible up to 150 C

There is an increasing demand for the benefits of an environmentally friendly flexible insulation material, that retains these benefits at higher temperature ranges. HT/Armaflex meets demand.

The Advantage Of Specifying HT/Armaflex

Remains flexible at high temperatures of up to +150 C and down to -50 C

UV-resistant and can be installed outside without additional protective measures
Class 1 resistance to flame spread in accordance with BS 476 Part 7 test procedure
The built-in vapour barrier prevents condensation
Improved resistance against oil
Reduced smoke development in the event of a fire
Lightweight & flexible: easy and speedy installation with low maintenance, resulting in time and cost savings
Dust, fibre and CFC free with an Ozone Depletion Potential of zero

Application Area

Thermal Insulation for pipework, vessels and ducts in solar panels including Outdoors, Motor vehicles, Hot gas lines, Steam and dual temperature lines.

Technical Product Data - HT/Armaflex

Properties	Values	Remarks
Material	Foamed EPDM Rubber
Max. Surface Temperature	+150 C	For temperatures between -50 C and -200 C, please consult our Technical Department.
Min. Surface Temperature	-50 C
Thermal Conductivity at 0 C	0.038 W/(m K)	Test according to BS 874 Part 2 1986
Thermal Conductivity at +40 C	0.042 W/(m K)
Water Vapour Permeability	Moisture Resistance Factor > 4,000	Test according to DIN 52 615
Water Absorption	0.2% by volume	Test according to ASTM C 209
Surface Spread of Flames	Class 1	Test according to BS 476 Part 7: 1997
Reaction to fire	Self-extinguishing does not drip
Noise Reduction	Sound Absorption Coefficient ISO 354:2003 - up to 0.8	Also suitable for use in the prevention of sound passage
Resistance to	Building Materials: Very Good Ozone: Very Good UV: Very Good Chemicals: Consult Product Test List
Health Aspects	Dust & Fibre Free
Other Properties	ODP zero GWP zero
Outdoor Applications	NO additional coating or painting is necessary - HT/Armaflex is UV-resistant.
