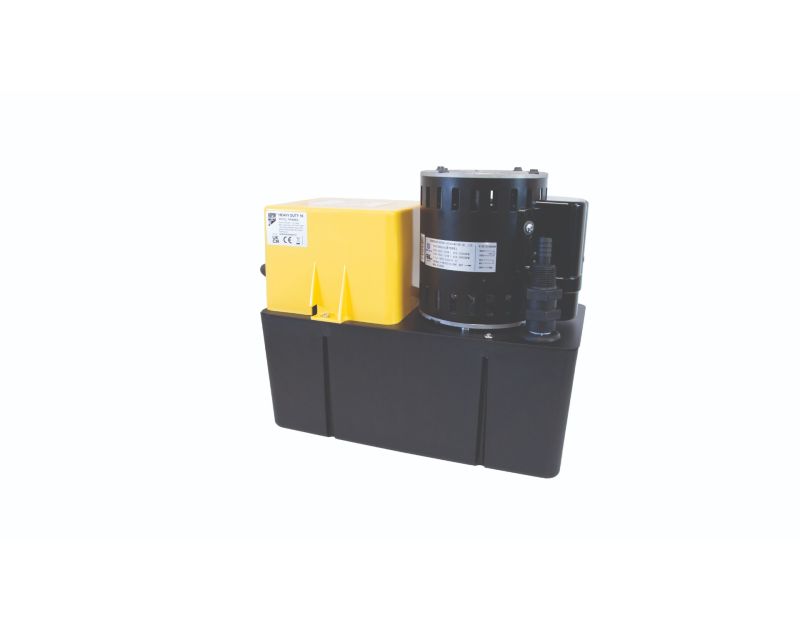

Aspen Heavy Duty 10 Tank Pump (FP2066)

The Aspen Heavy Duty 10 Tank Pump (FP2066) is a robust and efficient condensate removal pump designed for high-demand HVAC systems in commercial and industrial settings. With a 4-litre tank, 9m maximum recommended head, and a flow rate of 1070 litres per hour, it easily handles large condensate volumes. Built for durability, this pump features a non-return valve, easy installation, and a high-level safety switch, making it ideal for large refrigeration units, dehumidifiers, and air handling units up to 1460 kW (4.9m Btu/h).

Key Features

• Powerful Flow Rate: Achieves up to 1070 l/h, ensuring rapid removal of condensate in demanding applications.
• 9m Discharge Head: Discharges condensate up to 9 metres vertically (at 100 l/h), offering versatile installation options.
• Large 4-Litre Tank: Accommodates significant condensate volumes, reducing pump cycles and improving efficiency.
• Non-Return Valve: Prevents backflow, protecting the system from water damage.
• High-Level Safety Switch: Pre-wired with normally closed volt-free contacts to shut off systems or trigger alerts during pump failure, enhancing equipment protection.
• Simple Installation: Sits level on its base with a 9mm internal diameter discharge pipe, streamlining setup.
• Low Noise Operation: Produces only 48 dB(A) at 1 metre, suitable for noise-sensitive environments.

Technical Specifications

• Power Supply: 230 VAC, 50 Hz
• Operation: Non-continuous
• Class: I appliance
• Maximum Unit Output: 1460 kW (4.9m Btu/h)
• Ambient Temperature: Up to 40°C
• Water Temperature: Up to 40°C
• Inlet/Outlet: 32mm inlet, 10mm outlet
• IP Rating: IP20
• Safety Switch: 3A, normally closed volt-free contacts

Applications

The Heavy Duty 10 Tank Pump is engineered for environments with high condensate output, including:

• Large-scale refrigeration systems
• Dehumidifiers
• Air handling units (AHUs)
• Commercial and industrial HVAC installations

Its high capacity and reliable performance make it a top choice for data centres, retail refrigeration, and industrial cooling systems.

Installation Guidelines

Install the pump on a level surface, ensuring the 9mm discharge pipe is free of kinks or blockages. The internal float switch activates the pump at a preset level, discharging condensate efficiently. The safety float switch provides added security by enabling system shutdown or alerts if overflow occurs.

Reliable Performance for Your HVAC Needs

The Aspen Heavy Duty 10 Tank Pump (FP2066) combines power, reliability, and ease of installation to manage condensate in the most challenging HVAC applications. Its robust design and safety features ensure consistent performance, protecting your equipment and maintaining system efficiency. Choose this pump for dependable condensate removal in your commercial or industrial setup.

Available now at Aircon Spares, the Aspen Heavy Duty 10 Tank Pump is your solution for high-performance HVAC condensate management.
