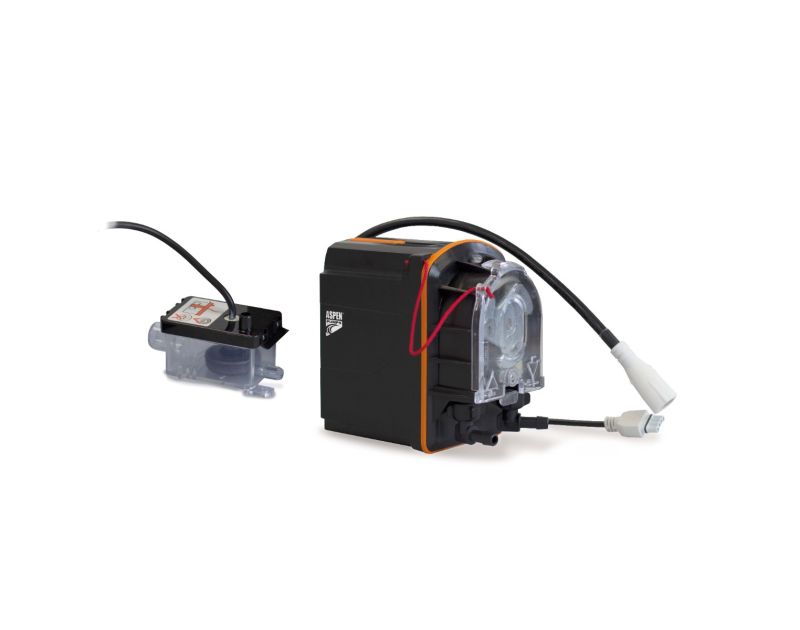

Aspen Pumps Peri Pro+ Peristaltic Pump: Advanced Condensate Pump for UK Air Conditioning Systems

Upgrade your HVAC installations with the Aspen Pumps Peri Pro+ Peristaltic Pump, the premier choice for efficient and quiet condensate removal in UK commercial and residential air conditioning setups. Designed specifically for high-performance demands, this peristaltic float pump leverages cutting-edge stepper motor technology and intelligent software control to deliver reliable operation with minimal noise and maintenance. Ideal for aircon spares and accessories, the Peri Pro+ ensures seamless condensate management for systems up to 20kW / 68,000 Btu/h, making it a must-have for professional installers seeking durability and ease of use.

Why Choose the Aspen Pumps Peri Pro+ for Your HVAC Condensate Needs?

The Peri Pro+ stands out as a superior peristaltic pump for air conditioning condensate removal, offering unmatched quietness at just 21 dB(A) measured at 1m—quieter than a whisper in your client's space. Its self-priming design eliminates airlocks, allowing for hassle-free startups even after periods of inactivity, while the built-in float switch provides automatic activation without the need for external sensors. This smart peristaltic pump minimises tube wear through precise control, extending its lifespan and reducing long-term costs for UK HVAC professionals.

Backed by an industry-leading 5-year warranty, the Peri Pro+ peristaltic pump is engineered for continuous rated operation, handling maximum water temperatures up to 40°C / 104°F with IP24 protection against splashes and dust. Whether you're fitting high wall split systems, ducted units, floor-standing AC units, or chassis-mounted equipment, this pump's flexible 6mm push-fit inlets and outlets simplify connections, and its 5A normally closed (NC) safety relay adds an extra layer of protection for peace of mind in every installation.

Key Features of the Peri Pro+ Peristaltic Condensate Pump

• Ultra-Quiet Operation: Operates at a mere 21 dB(A), ensuring minimal disturbance in noise-sensitive environments like offices, hotels, and homes.
• Smart Pumping Technology: Stepper motor with software control for optimised performance, reducing tube degradation and enhancing reliability.
• Automatic Float Switch: Built-in sensor for effortless, hands-free activation based on condensate levels.
• Self-Priming Capability: Draws fluid up to 3m suction lift without manual intervention, perfect for challenging plumbing layouts.
• Easy Installation: Includes a patented wall-mounted bracket, fixing kit, and 3m plug-and-play power/sensor cable for quick setup—plug in and go.
• Safety Features: 5A NC relay for overload protection and Class II appliance rating for user safety.
• Energy Efficient: Draws only 0.2A from a universal 110-230 VAC, 50/60Hz supply, keeping running costs low.

Technical Specifications for Optimal Performance

Engineered for precision, the Aspen Pumps Peri Pro+ delivers a maximum flow rate of 15L/h at a 12m head, with a recommended maximum head of 12m to maintain efficiency. This makes it suitable for a wide range of UK air conditioning applications, from compact split systems to larger commercial units. Here's a breakdown of the core specs:

• Power Supply: 110-230 VAC, 0.2A, 50/60Hz
• Maximum Flow Rate: 15L/h at 12m head
• Maximum Recommended Head: 12m
• Maximum Suction Lift: 3m
• Noise Level: 21 dB(A) at 1m
• Maximum Unit Output: 20kW / 68,000 Btu/h
• Maximum Water Temperature: 40°C / 104°F
• Inlet/Outlet Connections: 6mm ID push-fit
• IP Rating: IP24
• Operation Mode: Continuous
• Part Number: FP3391

Applications and Installation Guide for UK Installers

Versatile and robust, the Peri Pro+ peristaltic pump excels in diverse HVAC scenarios across the UK, including high wall split air conditioners, ducted ventilation systems, floor-standing units, and chassis-integrated setups up to 20kW capacity. Its outstanding lift capabilities—up to 12m vertical discharge—allow for flexible routing away from sensitive areas, reducing the risk of leaks or overflows in tight spaces.

Installation is straightforward for experienced aircon technicians: Mount the included bracket on a stable wall using the fixing kit, connect the 6mm tubing to the push-fit ports, and attach the 3m cable to your power source. The self-priming feature means no priming is required, and the comprehensive installation manual provides step-by-step guidance to ensure compliance with UK building regulations. For optimal performance, position the pump below the condensate tray and avoid exceeding the 40°C water temperature limit to prevent premature wear.

Benefits for Air Conditioning Professionals and End Users

Investing in the Aspen Pumps Peri Pro+ means fewer call-backs, lower maintenance demands, and happier clients thanks to its low-noise, high-reliability design. Compared to traditional impeller pumps, the peristaltic action of the Peri Pro+ uses no internal moving parts in contact with the fluid, preventing blockages from debris and extending service intervals. This translates to cost savings over time, especially in high-usage commercial environments.

As a trusted supplier of aircon spares in the UK, www.airconspares.com stocks the Peri Pro+ for immediate dispatch. Benefit from fast, nationwide delivery and expert support to keep your projects on track.

Order Your Aspen Pumps Peri Pro+ Today

Don't compromise on condensate pump quality—secure the Aspen Pumps Peri Pro+ peristaltic pump from www.airconspares.com now. With our commitment to top-tier HVAC accessories, you'll experience reliable performance backed by a 5-year warranty. Search no further for the best UK air conditioning condensate solutions.
