83272

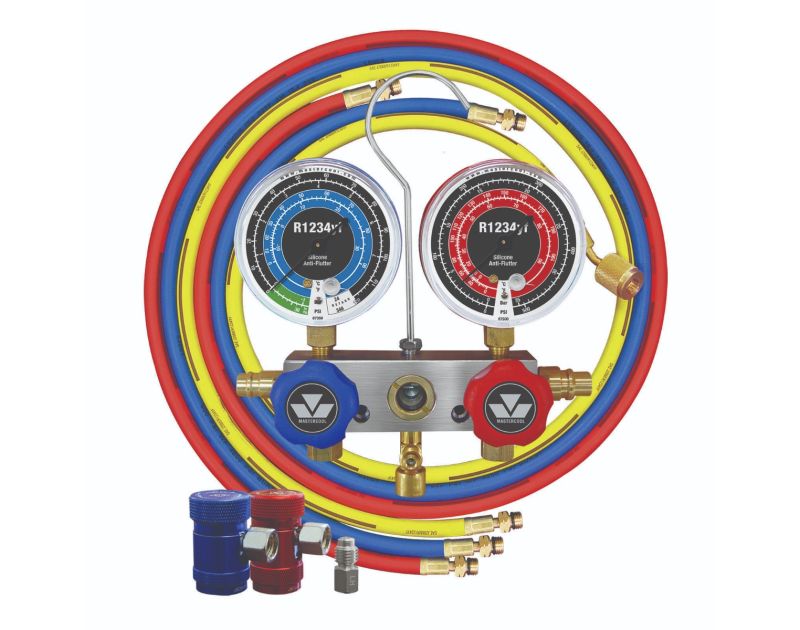

Mastercool 83272 Automotive Air Conditioning R1234YF Manifold Gauge Set

Diagnose and charge R1234yf systems with confidence using the Mastercool 2-Way Piston Valve Manifold Gauge Set. Featuring anti-flutter gauges for steady readings, easy-to-read 3.5" dials (Bar/PSI/°F/°C), and recalibratable accuracy, this set ensures precision. Its free-floating piston valves minimize O-ring wear, while the extra-large sight glass allows clear refrigerant monitoring. Includes 72" red and blue nylon barrier hoses with 12mm-M fittings and a yellow service hose (12mm fitting and 1/2 x 16 LH acme), all meeting SAE J2888, EPA, SAE, and UL standards. R1234yf couplers with extended disconnect protection comply with SAE J639 & J2888. Packaged in a robust clamshell case, it’s ideal for UK automotive A/C professionals.
Ex. VAT
£151.78
Inc. Tax
£182.14

Description

Mastercool R1234yf 2-Way Piston Valve Manifold Gauge Set (83272)

The Mastercool R1234yf 2-Way Piston Valve Manifold Gauge Set (SKU: 83272) is an essential tool for UK automotive air conditioning professionals working with R1234yf refrigerant systems. Engineered for precision, durability, and ease of use, this professional-grade manifold gauge set ensures accurate diagnostics and efficient refrigerant charging, making it a must-have for any air conditioning specialist.

Key Features

  • Anti-Flutter Gauges: Smooth needle movement for precise, vibration-free pressure readings, enhancing diagnostic reliability.
  • Large, Easy-to-Read Gauges: 3.5" gauge faces display measurements in Bar, PSI, °F, and °C, ensuring clear visibility in all conditions.
  • Recalibratable Accuracy: Gauges can be recalibrated to maintain long-term precision, saving costs on replacements.
  • Extra-Large Sight Glass: Provides clear visual checks of refrigerant flow, simplifying system diagnostics.
  • Free-Floating Piston Valves: Reduces O-ring wear, extending the lifespan of the manifold and ensuring leak-free operation.
  • Easy-Grip Knobs: Front-facing, ergonomic knobs allow for effortless operation, even with gloves.
  • SAE J2888 Compliant Manifold Block: Assembled with (3) 12 mm-F fittings, meeting stringent industry standards for safety and performance.

Included Components

  • 72" Red and Blue Nylon Barrier Hoses: Equipped with 12 mm-M fittings on both sides, compliant with SAE J2888, EPA, SAE, and UL standards for safe and reliable connections.
  • 72" Yellow Service Hose: Features a 12mm fitting on one end and a 1/2 x 16 LH acme on the other, meeting SAE J2844 standards for versatile refrigerant charging.
  • R1234yf High and Low Side Couplers: Designed with extended disconnect protection sleeves, compliant with SAE J639 and J2888, ensuring secure and safe connections to compressor service valves.
  • Durable Clamshell Packaging: Protects the manifold set during storage and transport, keeping all components organised.

Applications

Designed specifically for R1234yf refrigerant systems, this manifold gauge set is ideal for diagnosing and servicing automotive air conditioning systems. Whether you're troubleshooting low refrigerant levels, blockages, or compressor issues, the Mastercool 83272 provides clear pressure readings and reliable performance. Its robust construction and industry-compliant components make it suitable for both professional workshops and mobile A/C technicians across the UK.

Operating Instructions

System Diagnosis:

  1. Ensure service ports are clean and free of debris.
  2. Close both manifold valves completely.
  3. Connect the blue coupler to the low side service port and the red coupler to the high side service port.
  4. Start the vehicle, set the A/C to HIGH, and fan to HIGH.
  5. Observe gauge readings and refer to your automotive manual for diagnosis (e.g., low/high pressure issues indicate low charge, blockages, or compressor faults).

Charging Refrigerant:

  1. Close both manifold valves and turn on the vehicle’s A/C system.
  2. Connect the yellow hose to the manifold’s centre port and a vacuum pump (not included) to remove air.
  3. Disconnect the vacuum pump and connect the yellow hose to an R1234yf gas supply, following the refrigerant manufacturer’s instructions.
  4. Slowly open the low side valve until pressure reaches 42 psi (do not exceed to avoid compressor damage).
  5. Close the low side valve when charging is complete.

Why Choose Mastercool from Airconspares.com?

Mastercool is renowned for "World Class Quality," and the 83272 manifold gauge set is no exception. Built to meet rigorous SAE, EPA, and UL standards, this tool delivers unmatched performance for R1234yf systems. At Airconspares.com, we offer fast UK delivery, competitive pricing, and exceptional customer service to ensure you get the tools you need, when you need them.

Order your Mastercool R1234yf 2-Way Piston Valve Manifold Gauge Set today from Airconspares.com and elevate your A/C servicing capabilities!

More Information

Product NameMastercool 83272 Automotive Air Conditioning R1234YF Manifold Gauge Set
SKU83272
mpn83272
c2c BrandMastercool

Reviews

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

User Guides and Technical Downloads

83272 Instructions (378.73 kB)
