Mastercool 90066-2V-220B Air Conditioning Vacuum Pump 170 litre/min Single Stage 6 CFM

A good quality vacuum pump is an integral tool for complete service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your application.

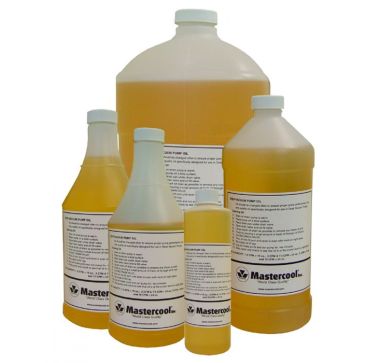

Use oil specifically refined for deep vacuum pumps. Use of oil not refined for deep vacuum pumps and/or operating with contaminated oil will void warranty. In order to make the best use of your investment, familiarize yourself with the new features and operating instructions before starting vac pump. Routine care and maintenance of your vacuum pump will give you years of reliable service. Each vacuum pump has been factory tested for cfm and micron performance. The serial number has been recorded. Complete and mail the warranty form immediately to validate your warranty. This vacuum pump has been tested at the factory and shipped with only trace amounts of oil. Oil must be added before operating! Failure to add oil will damage cartridge and void warranty!

Specifications:

• Number of Stages: 1
• Free Air Displacement: 170 lit/min, 141 lit/min
• Ultimate Vacuum: 75 Microns
• Pump Motor: 1/4 HP
• Pump Speed: 1720 RPM
• Electrical Specs: 110 V/220 V / 50/60 Hz
• Shipping Weight: 22 lbs (10.2 kg)
• Dimensions in cm: 35 x 14.3 x 26.5

* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.
