Sauermann Si-20 Mini Condensate Pump for up to 20kW AC Units
Description

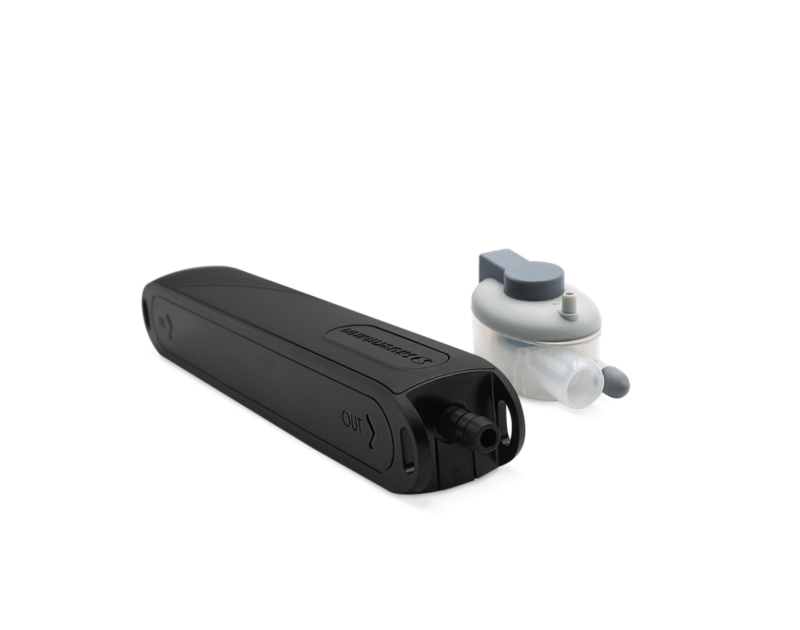

Sauermann Si-20 Mini Condensate Pump
The Sauermann Si-20 Mini Condensate Pump is a high-performance solution for efficient condensate removal in air conditioning systems. Designed for split, multisplit, and VRF units up to 20kW, this compact pump offers a slim design, exceptional performance, and quiet operation, making it ideal for UK installers and homeowners seeking reliability and ease of installation.
Key Features
- Ultra-Compact Design: Measuring 27 x 27 x 180 mm, the Si-20 fits seamlessly inside air conditioning units or lineset covers for discreet installation.
- Quiet Operation: At just 19 dBA, it delivers one of the best power-to-noise ratios for mini pumps, ensuring minimal disturbance.
- High Performance: Provides a maximum flow rate of 20 litres per hour, with a 10m discharge head (4 L/h) and 3m suction head, suitable for demanding applications.
- Patented Piston Technology: Enhances energy efficiency and ensures reliable condensate removal, even with small particles.
- Easy Installation: Comes with a complete kit including double wire clamps, tie wraps, a mounting plate, and a pre-installed anti-siphon device for straightforward setup.
- Eco-Friendly: Designed for recyclability with detachable components, compliant with RoHS and WEEE directives.
Benefits
The Sauermann Si-20 is engineered for durability in any environment, handling condensates up to 35°C and performing reliably in challenging conditions. Its detachable detection unit and flexible tube simplify maintenance and reduce vibration. Compatible with all market-standard air conditioning units, it is a versatile replacement for most mini pumps. Certified to CE, EAC, and UKCA standards, the Si-20 ensures safety and reliability for UK customers.
Technical Specifications
| Specification | Details |
|---|---|
| Max. Flow Rate | 20 L/h |
| Max. Suction Head | 3 m |
| Max. Discharge Head | 10 m (4 L/h), 14 m (0 L/h) |
| Sound Level | 19 dBA |
| Mains Supply | 230 V ~ 50 Hz, 15 W |
| Insulation Class | Double insulation |
| Detection Levels | On: 16 mm, Off: 11 mm, Safety: 19 mm |
| Safety Switch | NC 6 A resistive, 250 V |
| Thermal Protection | 115°C (auto-reset) |
| Protection Rating | IPX2 |
| Dimensions | 180 x 27 x 27 mm |
| Weight | 0.46 kg (including box) |
Kit Contents
- Piston pump with 1.5m power supply cable and 0.2m pump cable
- Detection unit with 1.5m power cable
- Clear PVC tube (Ø 6 mm, 1m) with pre-mounted Drain Safe Device
- Detection unit installation kit (rubber elbow, vent tube, mounting rail, additive)
- 3 double wire clamps and 3 tie wraps (2.5 x 200 mm)
- Attachment unit (mounting plate and rubber damper)
Applications
Designed for air conditioning units up to 20kW, the Si-20 is perfect for split, multisplit, and VRF systems. It ensures efficient condensate drainage with minimal maintenance, making it suitable for new installations and upgrades.
Why Choose Sauermann Si-20 from Airconspares.com?
At Airconspares.com, we offer premium HVAC solutions tailored to your needs. The Sauermann Si-20 combines innovative design with proven performance, supported by our commitment to fast UK delivery and exceptional customer service. Equip your air conditioning system with the Si-20 for reliable, eco-friendly condensate removal.
Order your Sauermann Si-20 Mini Condensate Pump today to ensure efficient drainage for your air conditioning system!
More Information
| Product Name | Sauermann Si-20 Mini Condensate Pump for up to 20kW AC Units |
|---|---|
| SKU | SI-20 |
| mpn | SI-20 |
| c2c Brand | Sauermann |
