Mastercool 98063-BT Bluetooth Digital Vacuum Gauge for HVAC 1-20,000 Micron

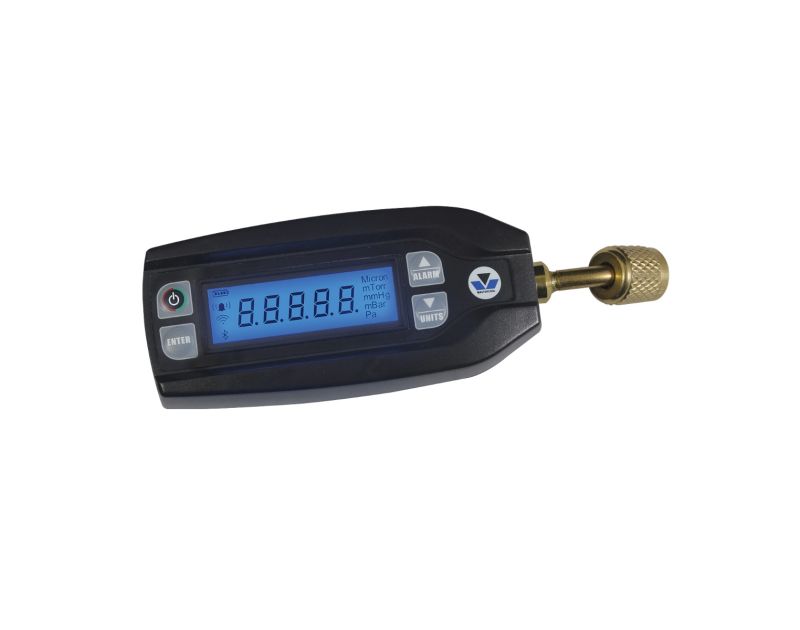

Mastercool 98063-BT Digital Vacuum Gauge with Bluetooth

The Mastercool 98063-BT Digital Vacuum Gauge with Bluetooth Wireless Technology is a cutting-edge tool for HVAC/R professionals seeking precision and efficiency. Engineered with advanced features, this compact, hand-held device ensures accurate vacuum measurements ranging from 1 to 20,000 microns, making it an essential addition to any technician’s toolkit.

Key Features

• Advanced Sensor Technology: Features a state-of-the-art glass-beaded thermistor with temperature compensation for reliable and precise readings. The chemical-resistant sensor is easy to clean, ensuring long-term durability.
• Sintered Bronze Inlet Filter: Protects the sensor from contaminants, enhancing the gauge’s longevity and performance.
• Bluetooth Connectivity: Seamlessly connects to the free Mastercool Connect app, allowing real-time monitoring and data logging on compatible smart devices for enhanced mobility and convenience.
• Vibrant Display: Equipped with a 5-digit LCD screen featuring an ultra-vibrant blue backlight, ensuring excellent readability even in low-light conditions.
• Audio and Visual Alarms: Alerts technicians when the vacuum level drops below a user-adjustable set point, improving workflow efficiency.
• Field Calibration: Allows calibration in the field for consistent accuracy, with recommended calibration around 50 microns for optimal results.
• Low Battery Indicator: A low battery icon on the LCD prompts timely battery replacement, preventing interruptions during use.

Technical Specifications

• Connection Fitting: 1/4" SAE F-FL with stem depressor
• Vacuum Units: Micron, Torr, mTorr, mmHg, mBar, Pa
• Range: 20,000 to 1 micron
• Accuracy: ±10% of reading from 10,000 to 100 microns
• Proof Pressure: 450 psi
• Operating Temperature: 0 to 45°C (32 to 120°F)
• Power: 2 AA batteries (included)
• Dimensions: 50 x 160 x 36 mm (1.9 x 6.3 x 1.4 inches)
• Auto-Off: Automatic shutdown after 10 minutes; backlight off after 3 minutes

Operational Benefits

The Mastercool 98063-BT is designed for ease of use. Connect the gauge to the HVAC/R system, power it on, and start the vacuum pump. The display counts down during warm-up and shows real-time vacuum levels, with dashes above 20,000 microns. For leak testing under high vacuum (below 1,000 microns), connect directly to the system using copper tubing and high-vacuum shut-off valves to ensure accurate results.

Repair and Maintenance

This gauge is built for durability but is also repairable, with a comprehensive parts breakdown available, including top and bottom shells, PC board, vacuum sensor, gasket, depressor, and keypad. All components are designed for easy replacement, ensuring minimal downtime.

Why Choose Mastercool 98063-BT?

Perfect for UK-based HVAC/R technicians, the Mastercool 98063-BT combines precision, durability, and modern connectivity. Its compact design, robust feature set, and Bluetooth integration make it a versatile tool for fieldwork and workshop use. Whether you’re performing routine maintenance or complex system diagnostics, this vacuum gauge delivers reliable performance every time.

Optional Accessory: 99333 1/4 FL-M x 1/4 FL-M x 1/4 FL-F Tee (sold separately)

Elevate your HVAC/R tasks with the Mastercool 98063-BT Digital Vacuum Gauge, available now at AirconSpares.com.
