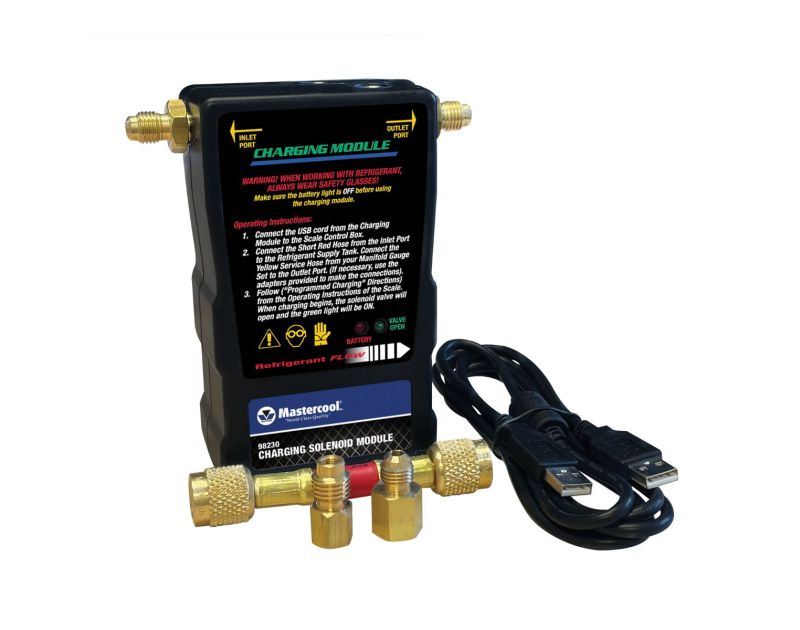

Mastercool 98230 Charging Solenoid Module

The Mastercool 98230 Charging Solenoid Module is a professional-grade tool designed to enhance the precision and efficiency of refrigerant charging for HVAC technicians. Compatible with Mastercool’s 98210-A ACCU-CHARGE II and 98211-A ACCU-CHARGE III scales, this module transforms your scale into an automated, programmable charging system, ensuring accurate refrigerant transfer to and from A/C systems.

Key Features

• Automated Charging: Works seamlessly with compatible scales to provide precise, programmable refrigerant charging, reducing manual errors.
• Universal Compatibility: Suitable for all refrigerant types, making it a versatile addition to your toolkit.
• Latching Solenoid Valve: Features a reliable latching solenoid valve with clear indicators (green for open, red for closed) to monitor refrigerant flow.
• Compact Design: Lightweight and portable, ideal for on-site HVAC work.
• Power Source: Operates on a single 9v battery, with a battery light indicator to ensure it’s off before use.
• Connections: Equipped with 1/4" x 1/4" fittings, a short red hose for tank connection, and a USB cord for scale integration.
• Adapters Included: Comes with 1/4" FL to 1/2" ACME adapters for flexible connectivity.

Operating Instructions

Using the Mastercool 98230 is straightforward, ensuring efficient workflows for professionals:

• Connect the USB cord from the charging module to the scale control box.
• Attach the short red hose from the inlet port to the refrigerant supply tank, and connect the yellow service hose from your manifold gauge set to the outlet port. Use the provided adapters if needed.
• Follow your scale's operating instructions, "Programmed Charging" directions. The solenoid valve opens when charging starts, and the green light illuminates.
• Disconnect the yellow hose from the outlet port after charging. You may leave the module on the tank as needed.

Important Safety and Maintenance Notes

The latching solenoid valve may become latched in the open position during shipment or transport due to its sensitivity to jarring. To ensure it’s in the closed position:

• Install the 9v battery and connect the USB cable between the control and charging modules.
• Press the ON/OFF button twice. If the solenoid was open, you’ll hear a "click" as it closes.
• Perform this step whenever the equipment is moved to ensure proper operation.

Safety Warning: Always wear safety goggles and avoid contact with refrigerant. Ensure the battery light is off before use to prevent mishaps.

Compliance and Warnings

This product complies with safety standards but includes a warning for users in certain regions: it may expose you to chemicals, including lead and lead compounds, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Why Choose Mastercool 98230?

Mastercool is renowned for its "World Class Quality," and the 98230 Charging Solenoid Module is no exception. Designed for durability and precision, it’s an essential tool for HVAC professionals looking to streamline refrigerant charging processes while ensuring safety and accuracy.
