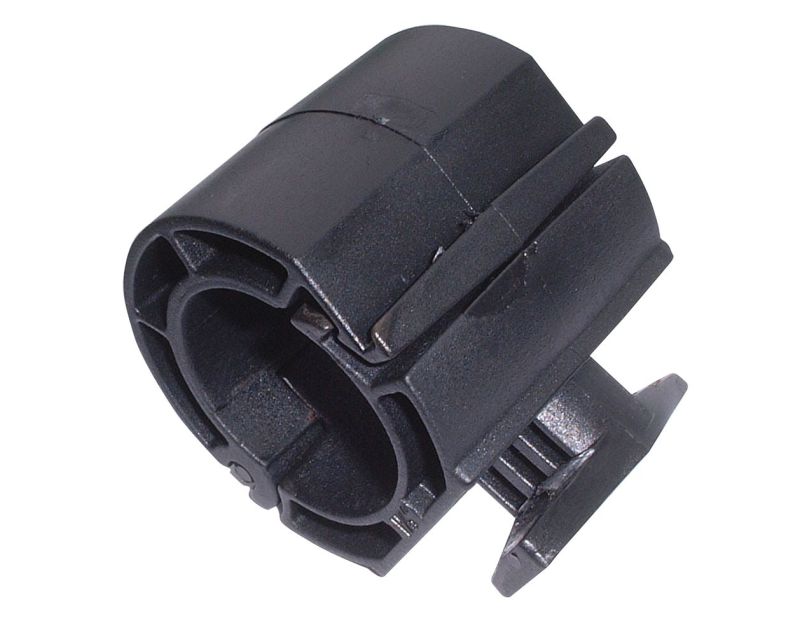

Quick Positioning Clip – Fast & Secure Pipe Support

The Quick Positioning Clip offers a simple, tool-free way to support air conditioning and refrigeration pipework securely in standard slotted channel. Available exclusively at www.airconspares.com.

How to Install – 4 Simple Steps

Follow these easy steps for quick, reliable fitting (no tools required):

1. Position the clip: Place the clip directly over the open slot in your 40 mm × 40 mm or 40 mm × 20 mm channel (unistrut-style). Align the base tabs with the channel opening and press downward to insert them into the slot.
2. Twist to lock: Rotate the clip (usually a quarter turn) so the protruding tabs engage behind the channel lips/flanges. This locks the clip firmly and securely into position – it will now sit perpendicular to the channel.
3. Insert the pipe: Push your insulated pipe (fitted with standard 9 mm wall thickness insulation) downward into the open side of the clip. The split cylindrical design opens slightly to accept the pipe and grips it snugly.
4. Final secure fit: The pipe is now fully seated and supported. The clip completely encircles the pipe, holding it stable against the channel base for excellent support, reduced vibration, and a professional finish.

Key Features & Benefits

• Tool-free twist-and-clip installation – saves time on site
• Precise fit for pipes with 9 mm insulation – no slippage
• Durable black nylon construction – strong and oil-resistant
• Helps dampen noise and vibration for quieter systems
• Maximum temperature rating: 70 °C
• Recommended maximum spacing: 1.2 m between clips

Supported Pipe Sizes (with 9 mm insulation)

• 1/4"
• 3/8"
• 1/2"
• 5/8"
• 3/4"
• 7/8"
• 1 1/8"
• 1 3/8"
• 1 5/8"

Packaging & Selection

Sold in packs of 10 clips per size. Choose your required pipe diameter from the dropdown on the product page at www.airconspares.com.

Typical Uses

Perfect for supporting:

• Condensate drain lines
• Suction lines
• Liquid lines
• Refrigerant pipework in split, multi-split, VRF/VRV, and commercial refrigeration installations across the UK

Install faster, support better, and finish professionally. Browse all sizes and add to your basket today at www.airconspares.com.
