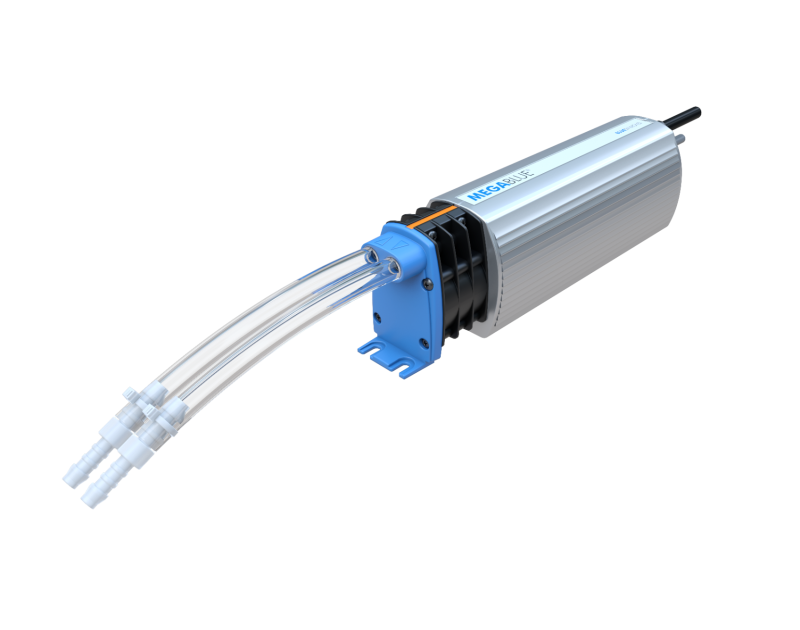

MegaBlue Condensate Pump (x87-814) - Temperature Sensing

The MegaBlue Condensate Pump (x87-814) is a high-performance, temperature-sensing condensate removal solution designed for air conditioning and refrigeration systems across the UK. Equipped with an advanced temperature sensor, this pump activates only when the system is in cooling mode, optimising efficiency and reducing energy consumption. Engineered with cutting-edge rotary diaphragm technology, it offers exceptional reliability, ultra-quiet operation, and robust performance, making it the ideal choice for professional installers working with air conditioning units ranging from 14kW to 50kW. With a powerful flow rate of 50 litres per hour, it’s built to handle demanding residential, commercial, and industrial applications.

Key Features

• Advanced Rotary Diaphragm Technology: Features a cutting-edge rotary diaphragm system, delivering whisper-quiet operation (approximately 21 dBA) and unmatched durability for long-term reliability.
• High-Capacity Performance: Pumps up to 50 litres per hour, with a maximum lift of 7 metres and a discharge head of 20 metres, ideal for high-lift and long-run applications in 14kW to 50kW air conditioning systems.
• Temperature-Sensing Efficiency: Equipped with a 2-wire temperature sensor probe that detects cooling mode, ensuring the pump operates only when condensate is produced, enhancing energy efficiency and system longevity.
• Self-Priming & Robust: Fully self-priming, eliminating manual priming, and capable of running dry without damage, reducing maintenance and extending service life.
• Advanced Debris Handling: Effortlessly pumps suspended solids, slurries, and light debris, minimising blockages and ensuring consistent performance in challenging environments.
• Fail-Safe Alarm System: Includes a built-in fail-safe alarm to alert users to potential overflow or system issues, enhancing safety and protecting equipment.
• Compact & Versatile Design: Slimline and lightweight (1.0 kg), with dimensions of 276 x 64 x 51 mm, allowing flexible mounting in any orientation up to 7 metres from the AC unit.
• 3-Year Warranty: Backed by a comprehensive 3-year warranty, ensuring confidence in the pump’s quality and performance.

Why Choose the MegaBlue (x87-814) for UK Installations?

Specifically engineered for the UK market, the MegaBlue (x87-814) temperature-sensing version is designed to meet the demands of modern air conditioning systems, particularly those with cooling capacities of 14kw to 50kw . Its 50 litres per hour flow rate ensures efficient condensate removal, even in high-humidity environments or systems with long pipe runs. The temperature sensor enhances efficiency by activating the pump only when needed, making it ideal for energy-conscious installations. The pump’s quiet operation and low-vibration design make it perfect for noise-sensitive settings, such as offices, hotels, or residential properties. Its ability to handle debris and run dry without failure reduces maintenance costs and downtime, making it a reliable choice for professionals and end-users.

Applications

The MegaBlue (x87-814) temperature-sensing version is versatile enough to handle a wide range of condensate removal needs, including:

• Wall-Mounted Air Conditioning Units: Perfect for split-system AC units in homes, offices, and retail spaces (14kW–50kW).
• Ceiling-Mounted Cassette Units: Ideal for commercial environments requiring discreet, high-capacity condensate management.
• Commercial Refrigeration Systems: Ensures reliable condensate removal in supermarkets, restaurants, and cold storage facilities.
• Heat Pump Installations: Supports efficient operation in renewable heating systems, increasingly popular in the UK.
• Retrofit & New-Build Projects: Adaptable for both upgrading existing systems and integrating into new construction.

Technical Specifications

Installation & Maintenance

The MegaBlue (x87-814) temperature-sensing version is designed for straightforward installation, with clear instructions for the temperature sensor setup. The 2-wire probe detects when the system is in cooling mode, activating the pump only when condensate is produced, which enhances efficiency and reduces wear. Its robust construction and dry-run capability minimise maintenance requirements, while the ability to handle debris reduces the need for frequent cleaning. For optimal performance, ensure the pump and sensor are installed following the guidelines, and periodically test the fail-safe alarm to confirm functionality.

Why Shop with AirconSpares.com?

At AirconSpares.com, we pride ourselves on offering high-quality HVAC components backed by expert support and fast UK delivery. The MegaBlue (x87-814) temperature-sensing version is a flagship product in our range, combining advanced technology with practical design to meet the needs of UK professionals. Our team is on hand to guide product selection, installation, and troubleshooting, ensuring your project runs smoothly from start to finish.

Order Your MegaBlue (x87-814) Today

Elevate your air conditioning or refrigeration system with the MegaBlue Condensate Pump (x87-814) temperature-sensing version, available exclusively at AirconSpares.com. With a 50 L/h flow rate, compatibility with 14kw to 50kw units, and a 3-year warranty, this pump offers unmatched reliability and efficiency. Order now to experience top-tier performance and our commitment to quality customer service.
