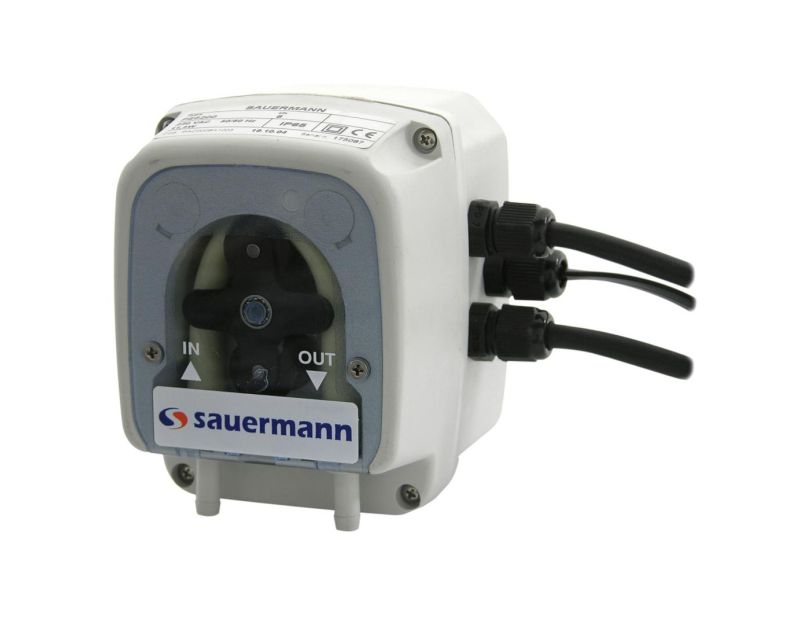

Sauermann PE 5100 Peristaltic Condensate Pump 2 Temperature Differential Sensors

£132.16 £110.13
SKU
PE5100
  • Small size
  • Large discharge head
  • Very silent operation
  • Replaceable head and tube
  • < 30dBA

Sauermann PE 5100 Peristaltic Pump Unit with 2 Thermal Sensors

Small dimensions - designed to remove heavy condensates Particularly suited to small flow requirements Operates on Temperature Differential. Applications: Wall-mounted units Single and multisplit units Console units Fan-coil units Ceiling-mounted units Cassette/ceiling suspended units Ducted units.

Applications:

  • Air conditioning units
  • Fan-coil units
  • Consoles
  • Wall split systems
  • Ceiling suspended
  • Ducted units
  • Refrigerated display and cold store cabinet
  • Evaporators

Description:

Peristaltic pumps help lift charged condensates. Among the most compact on the market, they combine silence with a practical and clever design: detachable and replaceable head and tube = optimised maintenance and cost. The PE5100 operates by detecting a 6°C temperature change via two temperature probes located in the air on and air off position. * These pumps must not operate continuously.

Benefits:

  • Small size
  • Large discharge head
  • Very silent operation
  • Replaceable head and tube
  • < 30dBA

Technical Details:

  • Max flow rate: 6 l/h
  • Max suction head: 2m
  • Max discharge head: 12m
  • Electric power: 11 W
  • Electric voltage: 230 V~ 50/60 Hz
  • Alarm contact: Nf 8 A - 250 V
  • Sound level at 3.3ft; 30 dBA
  • Protection: IP 65
  • Detection: temperature differential
  • Safety standards: CE

More Information
MPN PE5100
