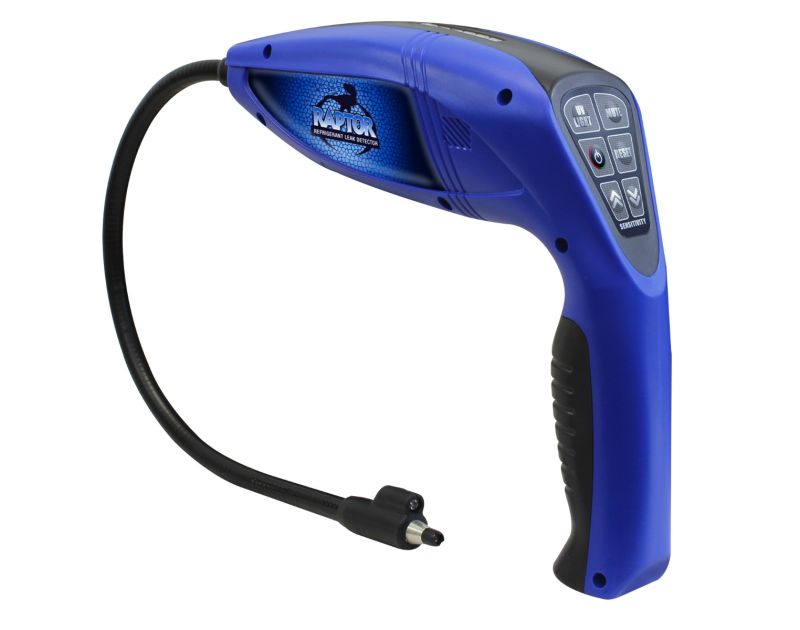

Mastercool 56200 Raptor Refrigerant Leak Detector with UV Light

The Mastercool 56200 Raptor Refrigerant Leak Detector with UV Blue Light combines advanced micro-processing technology with a high-sensitivity sensor for precise leak detection. It ensures accurate results by featuring six adjustable sensitivity levels, a variable frequency audible alarm, and a visual leak level indicator. The ultra-bright UV/Blue LED light aids in detecting leaks in systems with UV dye. Packaged with UV glasses, two "C" batteries, and a sensor tip in a durable blow-moulded case, this detector meets SAE J1627 standards for R134a, R12, and R22 refrigerants. Ideal for professional HVAC technicians.
Ex. VAT
£300.12
Inc. Tax
£360.14

Description

Mastercool 56200 Raptor Refrigerant Leak Detector with UV Blue Light

The Mastercool 56200 Raptor Refrigerant Leak Detector is a professional-grade tool designed for HVAC technicians, offering cutting-edge micro-processing technology and unparalleled accuracy in detecting refrigerant leaks. Certified to meet SAE J1627 standards for R134a, R12, and R22 refrigerants, this detector is an essential addition to any air conditioning or refrigeration maintenance toolkit.

Key Features

  • Advanced Digital Signal Micro Processor: Ensures instantaneous and precise leak detection, even in challenging environments.
  • Six Sensitivity Levels: Adjustable from low to high sensitivity, capable of detecting leaks as small as 1/10 oz per year. Defaults to Level 5 for optimal performance.
  • Visual Leak Level Indicator: Features a 15-level LED display with three colour ranges (Red, Yellow, Green) to indicate leak concentration.
  • Variable Frequency Audible Alarm: Increases in speed as the detector approaches the leak source, with a mute function for silent operation.
  • Ultra-Bright UV/Blue LED Light: Integrated into the probe for detecting leaks in systems using Ultra Violet dye, operable with the unit on or off.
  • Reset Function: Allows technicians to pinpoint leak sources by ignoring lower-concentration leaks after detection.
  • Battery Test Function: Displays battery condition on the LED display for reliable operation (uses two "C" cell batteries, included).

Operating Instructions

For best results, ensure the air conditioning or refrigeration system is turned off with a minimum gauge pressure of 50 PSI at an ambient temperature of 60°F or above. Move the sensor tip to detect leaks at 25-50 mm per second, 5 mm from the surface. The detector adjusts to contaminated or high-humidity environments with the reset function for accurate readings.

Maintenance and Safety

The sensor tip, designed for approximately 20 hours of use, can be cleaned with compressed air or alcohol and replaced as needed. The UV/Blue LED light is easily replaceable by pulling it from the socket. Always wear UV protective glasses (included) when using the UV light. The unit has a one-year warranty, covering repairs or replacements with proof of purchase, excluding batteries and sensor tips.

What's Included

  • Mastercool 56200 Raptor Refrigerant Leak Detector
  • UV Protective Glasses
  • Two "C" Cell Batteries
  • Replacement Sensor Tip
  • Durable Blow-Molded Carrying Case

Why Choose Mastercool 56200?

With its robust design, state-of-the-art features, and compliance with industry standards, the Mastercool 56200 is the go-to choice for professionals seeking reliable and efficient leak detection. Made in the USA and backed by Mastercool’s commitment to quality, this detector ensures your HVAC systems remain leak-free, saving time and costs on repairs.

Order now from AirconSpares.com and enhance your toolkit with this industry-leading refrigerant leak detector!

More Information

Product NameMastercool 56200 Raptor Refrigerant Leak Detector with UV Light
SKU56400
mpn56400
c2c BrandMastercool
