Omega Pack 2 Mini-Split Condensate Pump Kit - 20 l/h, 10 m Head

Omega Pack 2 - Mini-Split Condensate Pump

The Omega Pack 2 is a premium, ready-to-fit condensate removal solution designed specifically for wall-mounted air conditioners, available at Airconspares.com. Engineered for efficiency and ease, this all-in-one kit ensures optimal condensate drainage with a compact and elegant design, making it an ideal choice for both residential and commercial installations in the UK.

Key Features

• Advanced Technology: Equipped with Sauermann’s latest patented piston pump core, delivering a maximum flow rate of 20 l/h, a 10 m discharge head, and a maximum pressure of 14 m.
• Compact Design: With dimensions of 210 mm (L) x 61 mm (W) x 66 mm (H), the Omega Pack 2 fits discreetly under any wall-mounted air conditioner, ensuring a seamless aesthetic.
• Anti-Condensation Tank: Features a large, insulated tank to prevent condensation, maintaining performance and reliability in diverse conditions.
• Easy Installation & Maintenance: The kit includes everything needed for quick setup, including a pre-mounted “Drain Safe Device,” soft PVC tubes, power and alarm cables, screws, plugs, washers, and rislans.
• Reliable Operation: Double insulation and a robust safety switch (NF 5 A resistive – 250 V) ensure safe and dependable performance, with a maximum condensate temperature of 35 °C.
• Precise Detection: Integrated detection unit with ON (24 mm), OFF (20 mm), and SAFETY (27 mm) levels for accurate condensate management.

Technical Specifications

Max Flow Rate: 20 l/h
Max Discharge Head: 10 m
Max Pressure: 14 m
Weight: 0.67 kg
Dimensions (Pump): 210 mm x 61 mm x 66 mm
Dimensions (Packaging): 252 mm x 140 mm x 93 mm
Safety Standards: CE, EAC, UKCA
ROHS & WEEE: Compliant

Kit Contents

• 1 Omega Pack 2 with integrated piston pump, detection unit, and 0.2 m connector

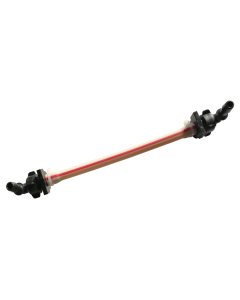

• 1 Soft transparent PVC tube (int. Ø 6 mm, 1 m length, with pre-mounted “Drain Safe Device”)
• 1 Power & alarm cable (1.5 m length with connector)
• 1 Soft PVC tube (int. Ø 15 mm, 250 mm length)
• 2 Screws, two plugs, two washers, three rislans

Available at Airconspares.com, the Omega Pack 2 combines top performance, discreet design, and hassle-free installation, making it the perfect choice for efficient condensate management in your air conditioning system.
