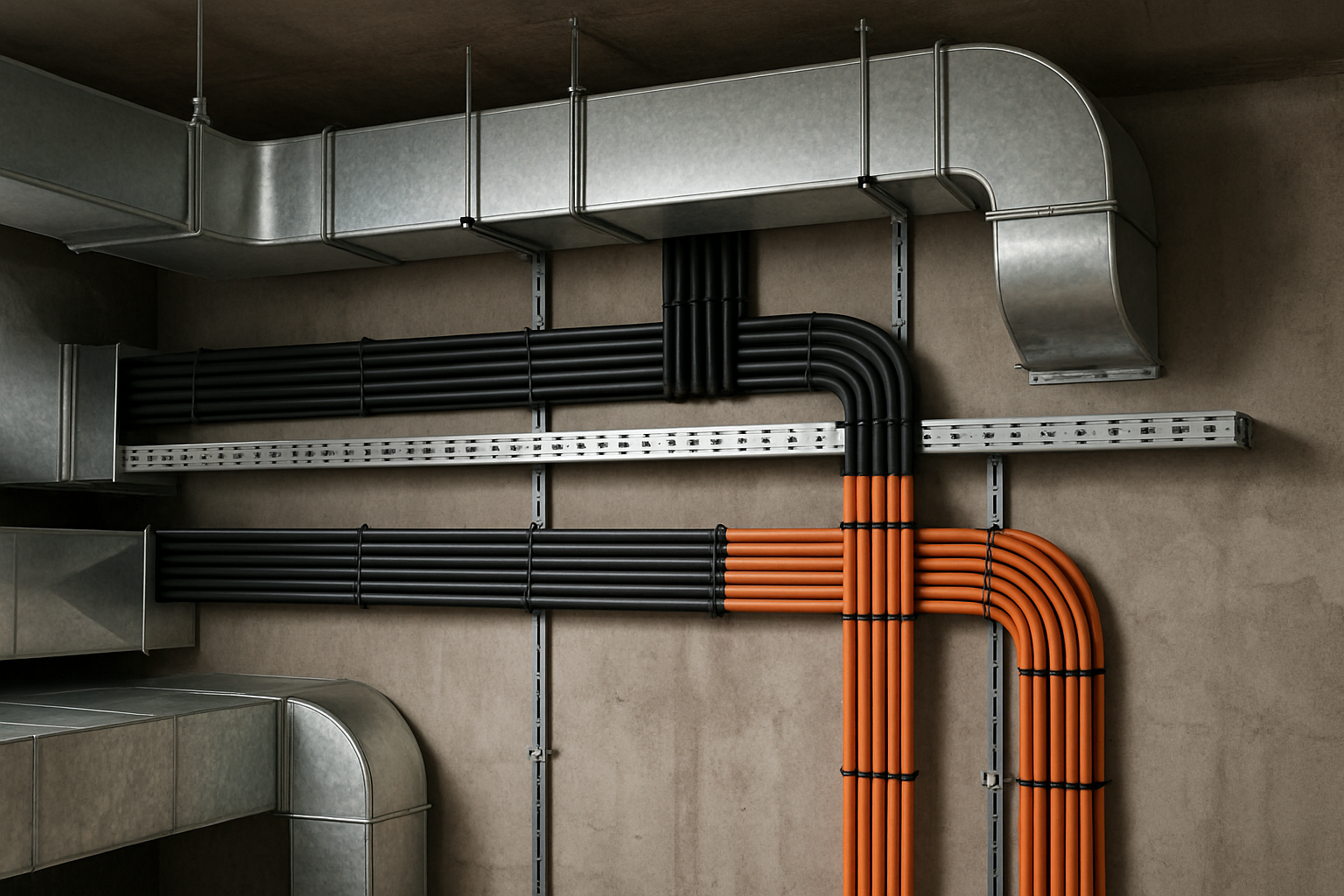

Cable Management Best Practices for Commercial HVAC Systems

Understanding Cable Management in HVAC Commercial Systems

Cable management in commercial HVAC systems represents a critical yet often overlooked aspect of professional installation and maintenance practices. Proper organisation of electrical conductors, control wiring, and communication cables directly impacts system reliability, maintenance efficiency, and operational longevity. The intricate network of cables that interconnect thermostats, sensors, actuators, and control panels requires systematic planning and execution to prevent electromagnetic interference, facilitate troubleshooting, and ensure compliance with building codes.

Commercial HVAC installations differ significantly from residential applications in terms of complexity and scale. These systems typically incorporate sophisticated building management systems (BMS), variable frequency drives (VFDs), and multiple communication protocols that demand meticulous cable routing strategies. Poor cable management practices can lead to signal degradation, increased maintenance costs, and premature system failures that compromise indoor environmental quality.

The Impact of Poor Cable Management on System Performance

Inadequate cable organisation creates cascading problems throughout commercial HVAC operations. Electromagnetic interference from improperly routed power cables can corrupt control signals, causing erratic system behaviour and false alarms. Tangled cable bundles increase labour costs during maintenance procedures, as technicians struggle to identify specific circuits or replace components efficiently. Additionally, poor cable management often results in code violations that can delay project completion and necessitate costly rework.

Temperature fluctuations and vibration in mechanical rooms pose additional challenges for cable integrity. Unsupported cables subjected to thermal cycling may experience insulation degradation, whilst loose routing allows mechanical stress that can damage conductor connections over time.

Essential Planning Strategies for Cable Infrastructure

Effective cable management begins during the design phase, where careful consideration of cable pathways, separation requirements, and future expansion needs establishes the foundation for successful installation. Professional HVAC engineers must collaborate closely with electrical contractors to develop comprehensive cable routing schemes that accommodate both current requirements and anticipated system modifications.

Load Assessment and Cable Sizing Calculations

Accurate load calculations form the cornerstone of proper cable selection and routing strategies. Commercial HVAC systems often incorporate high-current devices such as compressors, fans, and heating elements that require appropriately sized conductors to minimise voltage drop and ensure safe operation. Control circuits, conversely, utilise low-voltage cables that must be carefully separated from power conductors to prevent interference.

The diversity factor in commercial applications allows for some load reduction in cable sizing calculations, but this must be balanced against future expansion possibilities. Many successful installations incorporate oversized cable pathways to accommodate additional circuits without major modifications to existing infrastructure.

Creating Detailed Cable Schedules and Documentation

Comprehensive documentation serves as the roadmap for both installation and future maintenance activities. Cable schedules should specify conductor types, insulation ratings, pathway assignments, and termination points for every circuit within the system. This documentation becomes invaluable during troubleshooting procedures and system modifications, enabling technicians to quickly identify and access specific circuits without disrupting adjacent systems.

Installation Techniques and Best Practices

Professional installation techniques distinguish successful commercial HVAC projects from problematic systems that require frequent intervention. The physical installation of cables must consider mechanical protection, thermal effects, and accessibility requirements whilst maintaining clean, organised appearances that reflect professional workmanship.

Cable Pathway Selection and Routing Methods

Commercial installations typically utilise a combination of cable tray systems, conduit runs, and specialised HVAC cable management products. Cable trays offer excellent accessibility and heat dissipation for main distribution routes, whilst conduits provide superior mechanical protection in areas subject to physical damage. The selection between these methods depends on environmental conditions, accessibility requirements, and local code provisions.

Proper cable support intervals prevent sagging and mechanical stress that can damage conductors over time. Industry standards typically require support spacing of 1.2 to 1.8 metres for most cable types, though specific manufacturer recommendations should always supersede general guidelines. Corner radiuses must accommodate the minimum bend radius specifications for each cable type to prevent internal damage during installation.

Segregation Requirements for Different Cable Types

Electromagnetic compatibility requires careful segregation of cables carrying different signal types and voltage levels. High-voltage power conductors must maintain adequate clearance from low-voltage control and communication cables to prevent induced interference. This separation becomes particularly critical in areas with high electromagnetic fields generated by VFDs or other power electronic equipment.

Communication cables utilising different protocols may also require segregation to prevent crosstalk and signal degradation. Modern building automation systems often incorporate multiple communication standards simultaneously, necessitating careful planning to maintain signal integrity across all networks.

Tools and Materials for Professional Cable Management

Professional cable management requires specialised tools and materials designed specifically for commercial HVAC applications. Quality cable management products not only improve installation efficiency but also provide long-term reliability in demanding mechanical room environments.

Cable Management Hardware and Accessories

Commercial HVAC installations benefit from purpose-designed cable management hardware that addresses the unique requirements of mechanical systems. Adjustable cable supports accommodate the thermal movement common in HVAC applications, whilst fire-rated cable penetration systems maintain building fire barriers without compromising cable accessibility.

Labeling Systems and Identification Methods

Professional labeling systems facilitate efficient maintenance and troubleshooting throughout the system lifecycle. Durable labels capable of withstanding mechanical room environmental conditions prevent identification problems that can lead to costly mistakes during service procedures. Modern labeling systems often incorporate QR codes or other machine-readable formats that link to comprehensive system documentation.

Consistent labeling conventions across all project phases ensure that installation, commissioning, and maintenance personnel can quickly understand system organisation. Colour-coding schemes can supplement alphanumeric labels to provide immediate visual identification of different circuit types and voltage levels.

Maintenance and Troubleshooting Considerations

Well-organised cable management systems significantly reduce maintenance time and costs whilst improving troubleshooting efficiency. Accessible cable routing allows technicians to perform inspections and repairs without disturbing adjacent systems or requiring extensive disassembly procedures.

Preventive Maintenance Protocols

Regular cable inspection protocols should encompass visual examination of cable support systems, thermal imaging of electrical connections, and verification of cable labeling accuracy. These proactive measures identify potential problems before they result in system failures or safety hazards.

Environmental monitoring in cable areas helps identify conditions that may accelerate cable degradation, such as excessive temperature or humidity levels. Trending this data over time provides valuable insights into system operation and helps predict maintenance requirements.

Common Cable Management Issues and Solutions

Experienced HVAC technicians frequently encounter specific cable management problems that can be prevented through proper initial installation practices. Cable chafing against sharp edges, thermal damage from proximity to hot surfaces, and moisture ingress at penetration points represent the most common failure modes in commercial installations.

Retrofitting cable management improvements in existing systems requires careful planning to minimise disruption to ongoing operations. Phased implementation strategies allow critical systems to remain operational whilst cable organisation upgrades proceed systematically.

Compliance and Safety Standards

Commercial HVAC cable management must comply with numerous safety standards and building codes that vary by jurisdiction and application type. Understanding these requirements prevents costly rework and ensures long-term system safety and reliability.

Electrical Code Requirements and Building Standards

National and local electrical codes specify minimum requirements for cable installation methods, support spacing, and separation distances. These regulations frequently update to address new technologies and installation methods, requiring ongoing education for professional installers and designers.

Fire safety codes impose additional requirements for cable installations that traverse fire-rated assemblies or serve life safety systems. Special attention to fire-resistant cable types and approved penetration methods ensures continued code compliance throughout the building lifecycle.

What considerations apply when installing cables in existing buildings with asbestos-containing materials? Professional abatement procedures may be required before cable installation can proceed, adding significant complexity and cost to retrofit projects. Early identification of these conditions during project planning prevents schedule delays and budget overruns.

How do seismic requirements affect cable management design in earthquake-prone regions? Flexible cable routing and specialised support systems accommodate building movement during seismic events without damaging electrical connections or compromising system operation.
