HVAC Vacuum Pumps for Air Conditioning & Refrigeration

Professional-grade vacuum pumps for AC commissioning, refrigeration installation, and system evacuation. Stocked for UK engineers working with R32, R410A, R22, and A2L refrigerants.

Correct evacuation is the single most critical step in any AC or refrigeration installation. A vacuum pump that can't reach and hold below 500 microns will leave moisture and non-condensables in the system — leading to compressor failure, poor efficiency, and warranty issues. Every pump in this range is selected for field reliability, not just spec-sheet performance.

What to look for in an HVAC vacuum pump

CFM rating — match pump capacity to system size. Single-split systems typically need 3–6 CFM; multi-split and commercial systems benefit from 8 CFM+.
Ultimate vacuum depth — look for pumps rated to 15 microns or below for reliable deep evacuation.
A2L compatibility — essential for R32 systems. All A2L-rated pumps in this range are suitable for use with mildly flammable refrigerants.
Oil type — use manufacturer-recommended vacuum pump oil and change it regularly. Contaminated oil is the most common cause of poor vacuum performance.
Inlet connection — most HVAC vacuum pumps use 1/4" and 3/8" SAE flare fittings, compatible with standard manifold gauge sets.

Brands stocked

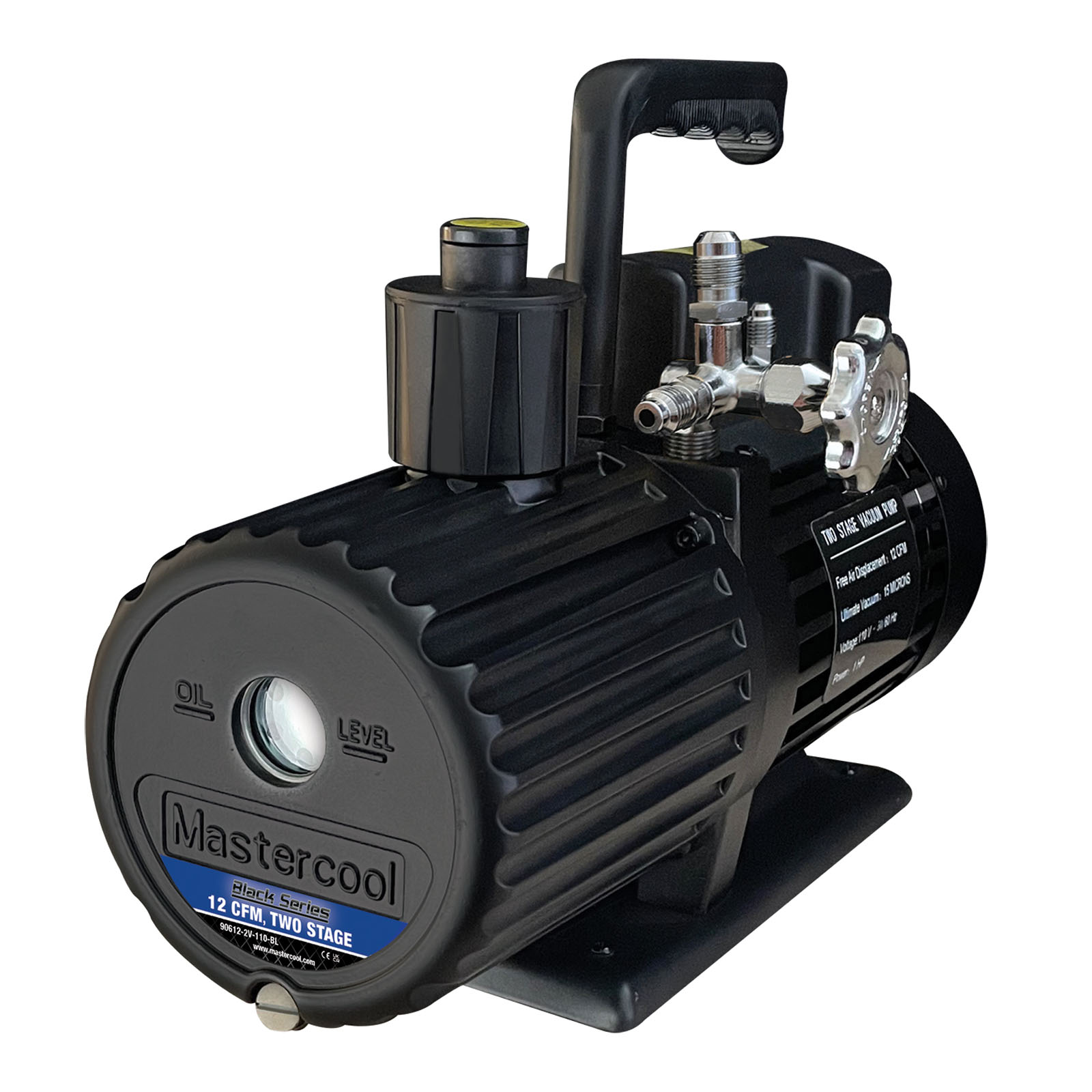

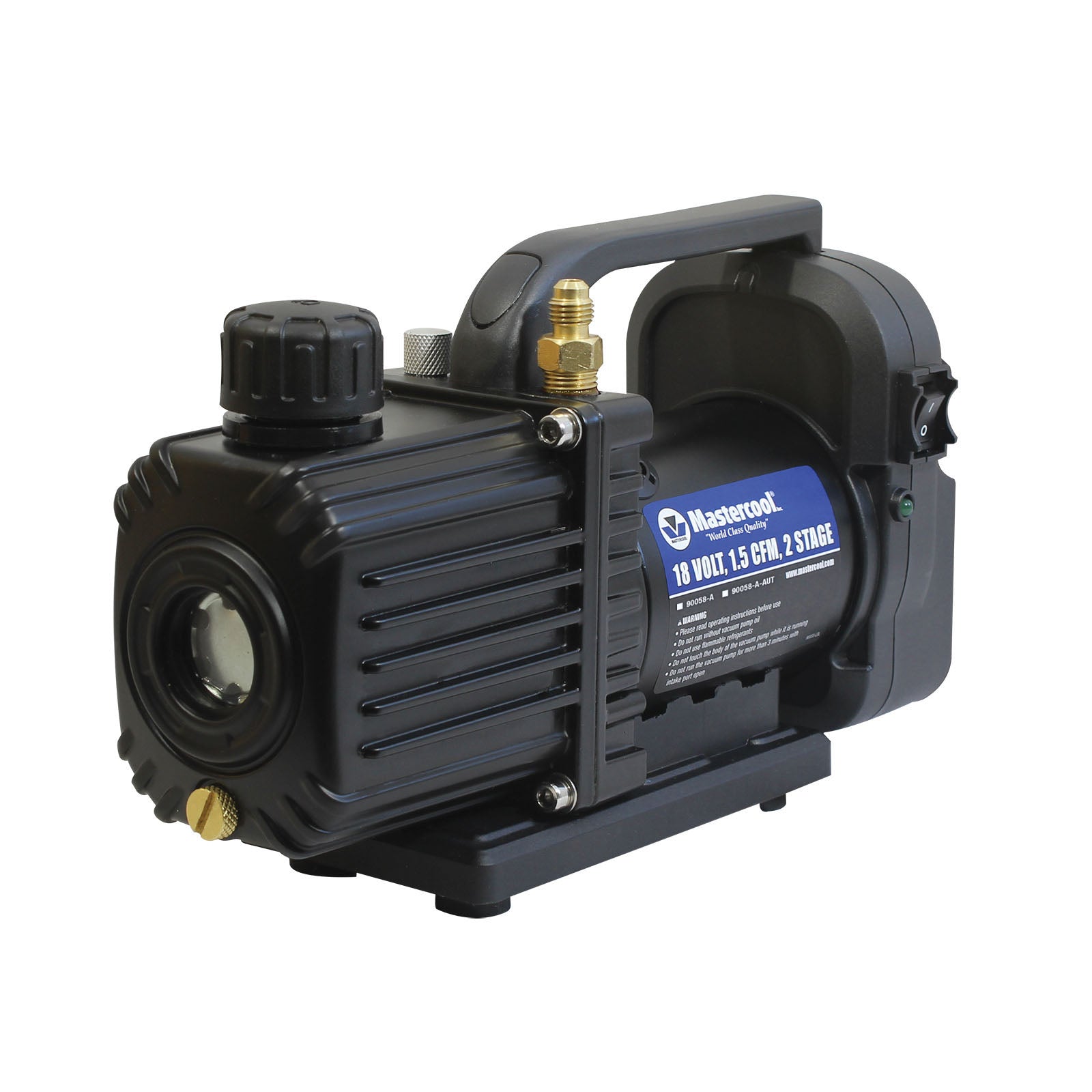

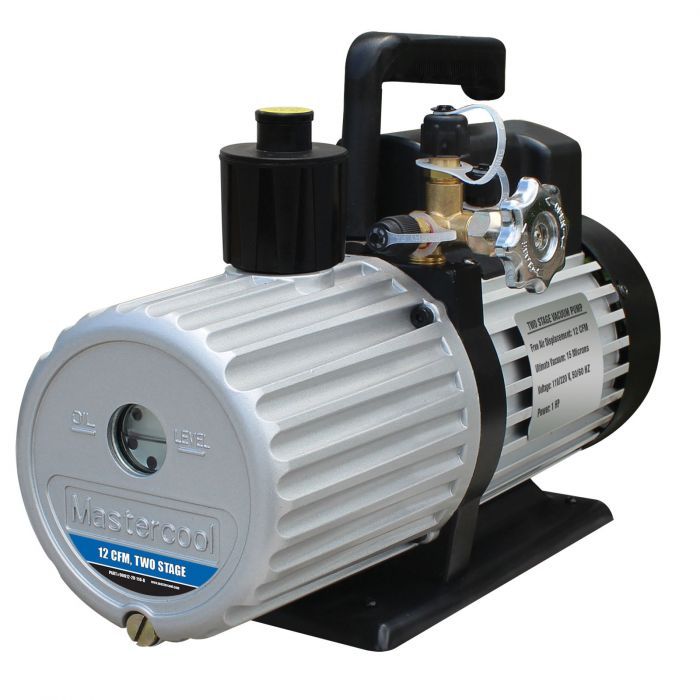

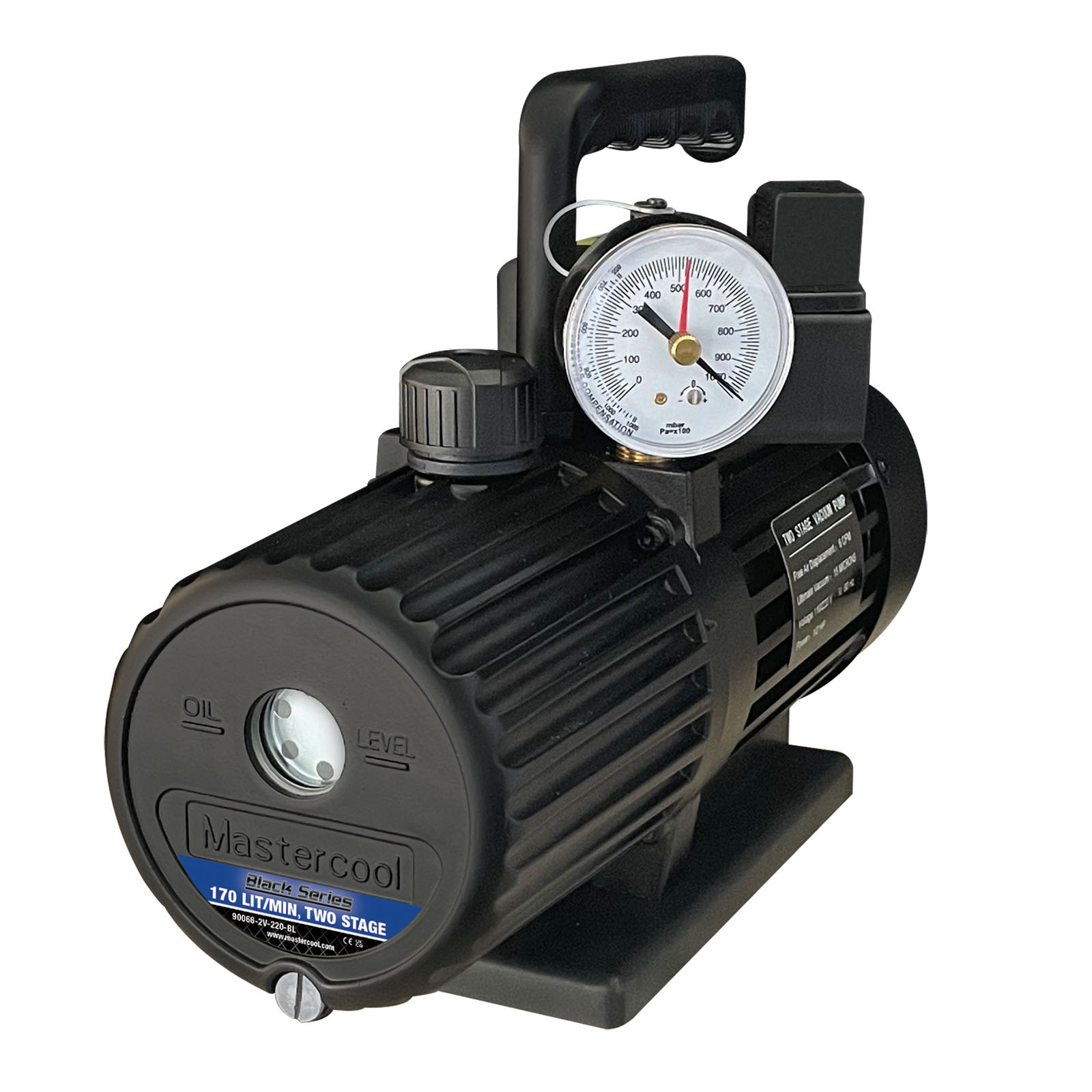

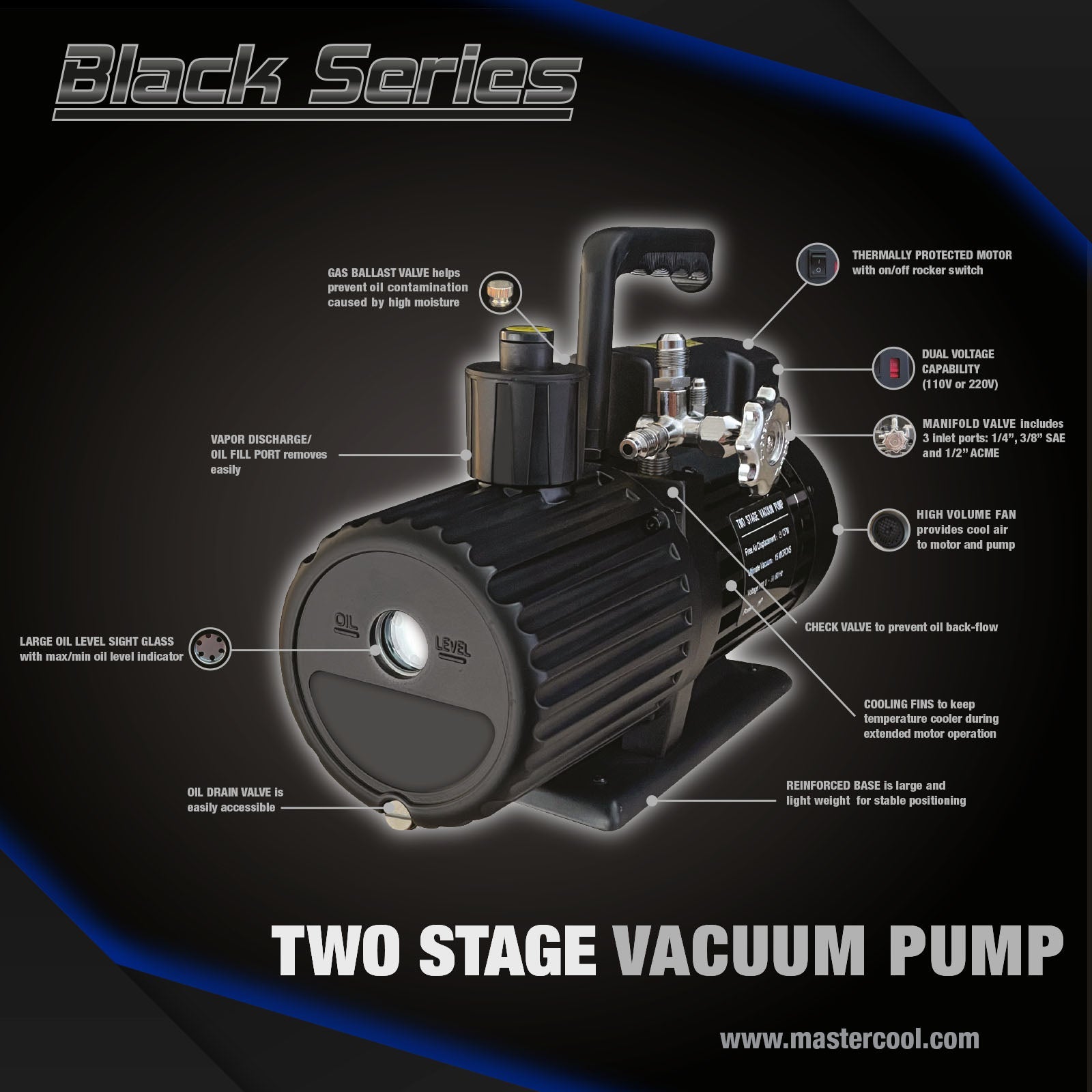

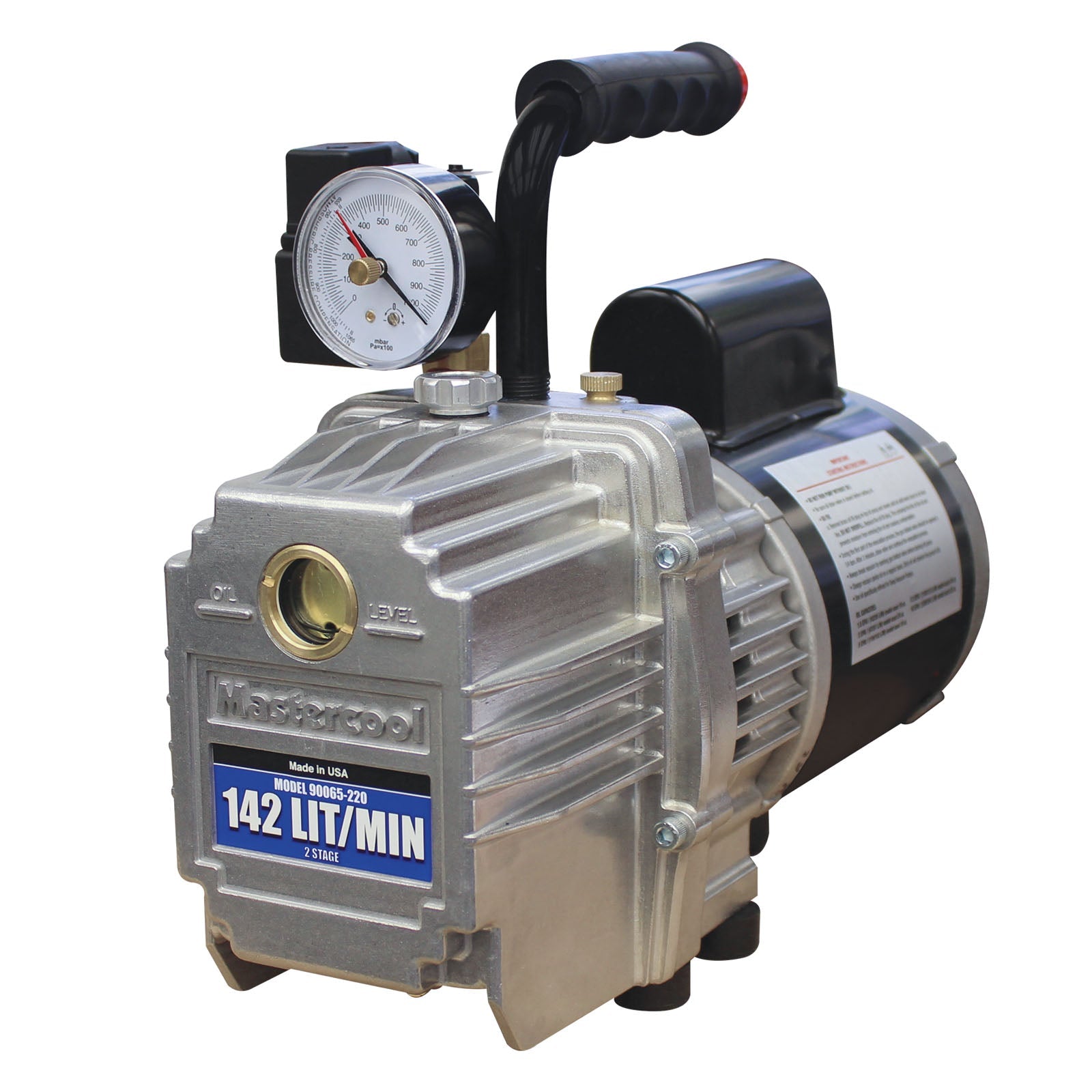

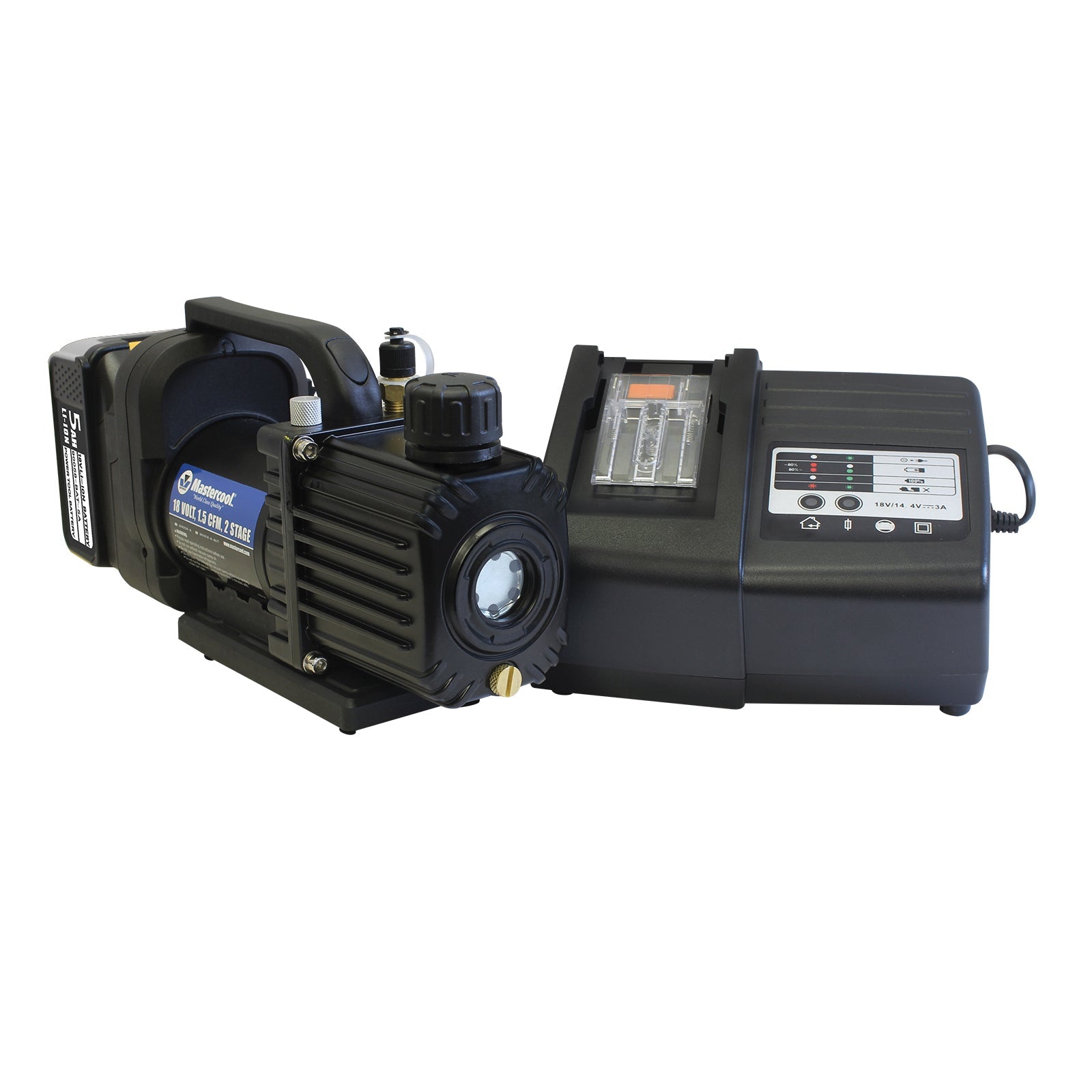

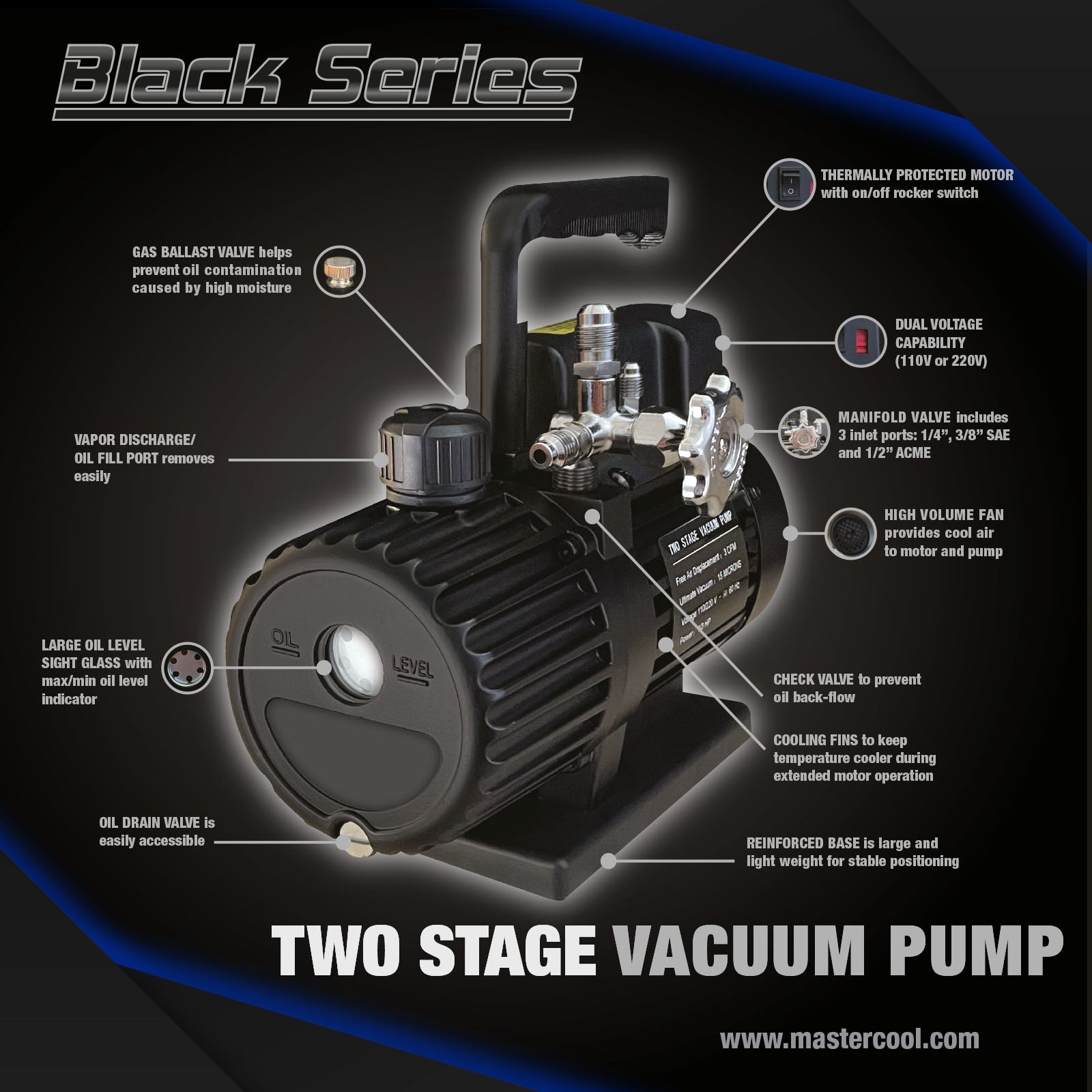

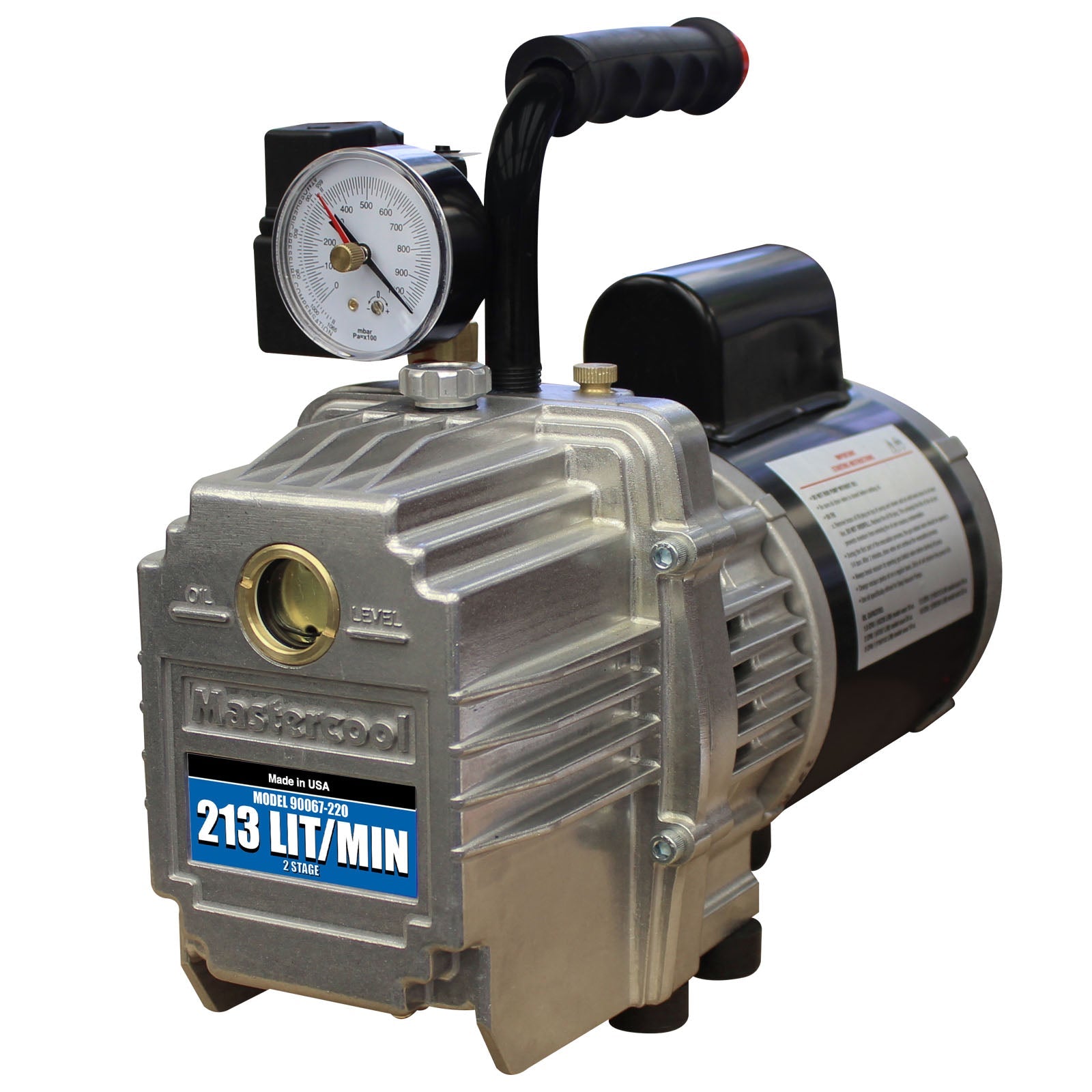

We stock Javac and Mastercool vacuum pumps — two of the most trusted names in HVAC tooling. Javac pumps are particularly well regarded for their durability in high-volume commercial environments. Mastercool offers a strong range of dual-stage pumps suited to both domestic and light commercial work.

Related tools & equipment

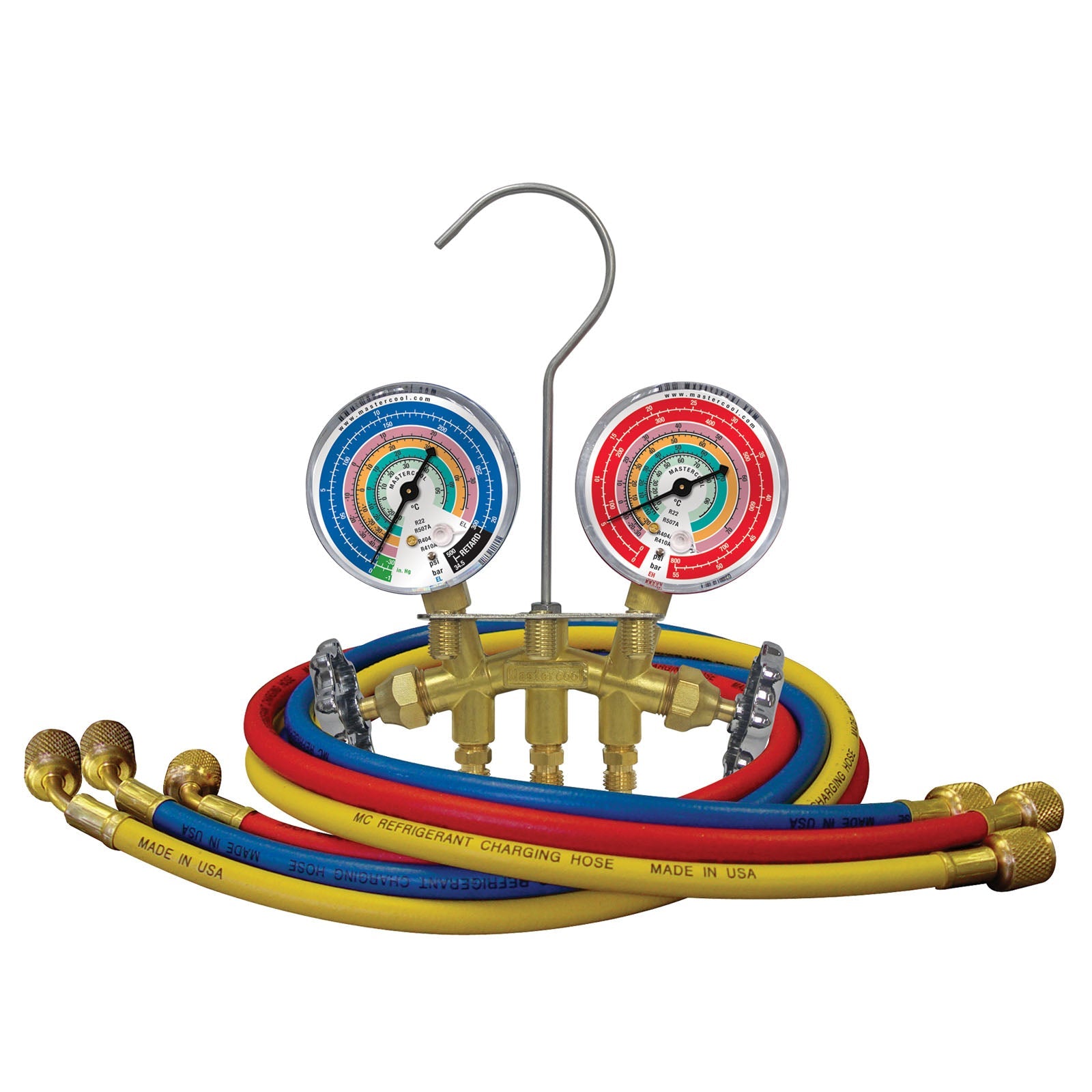

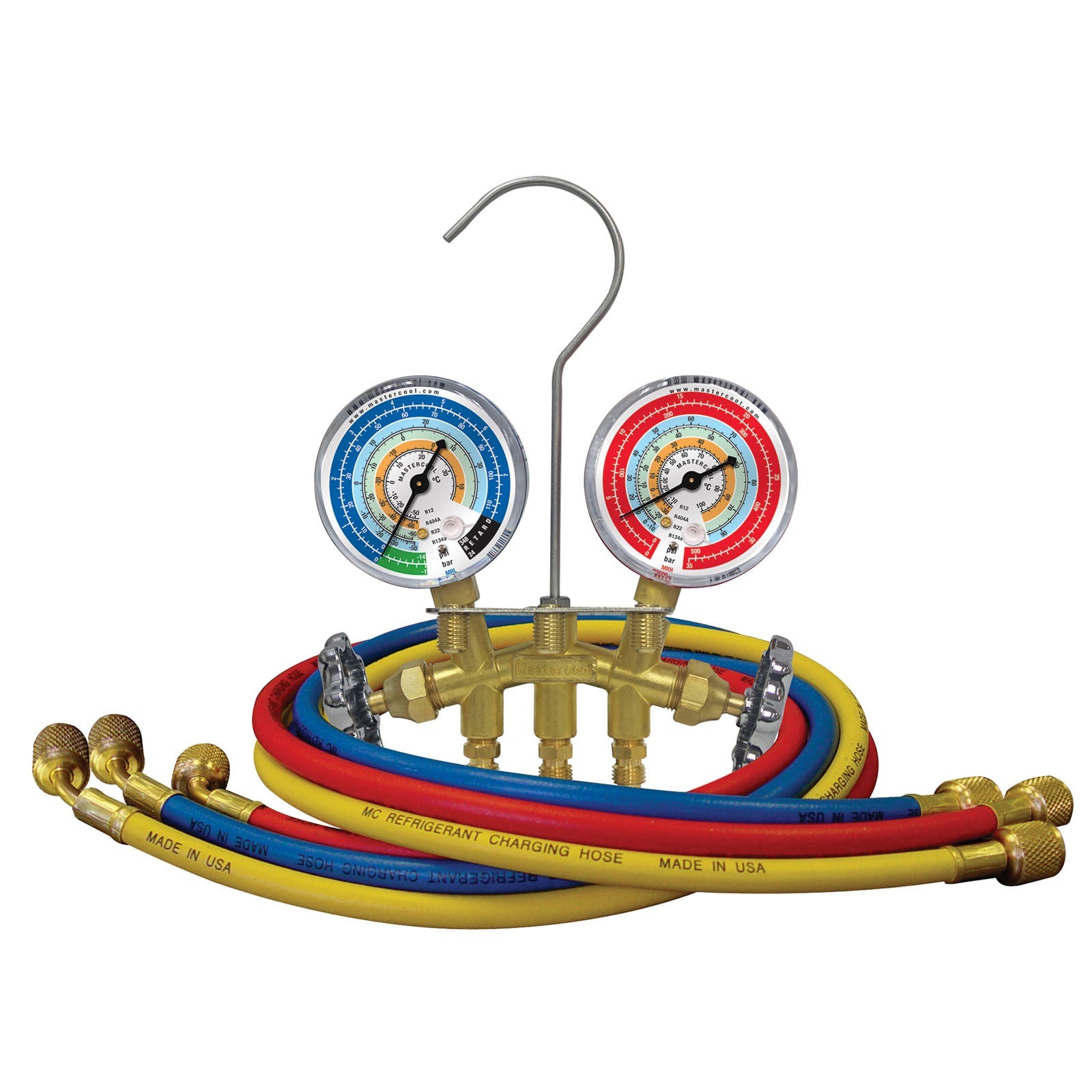

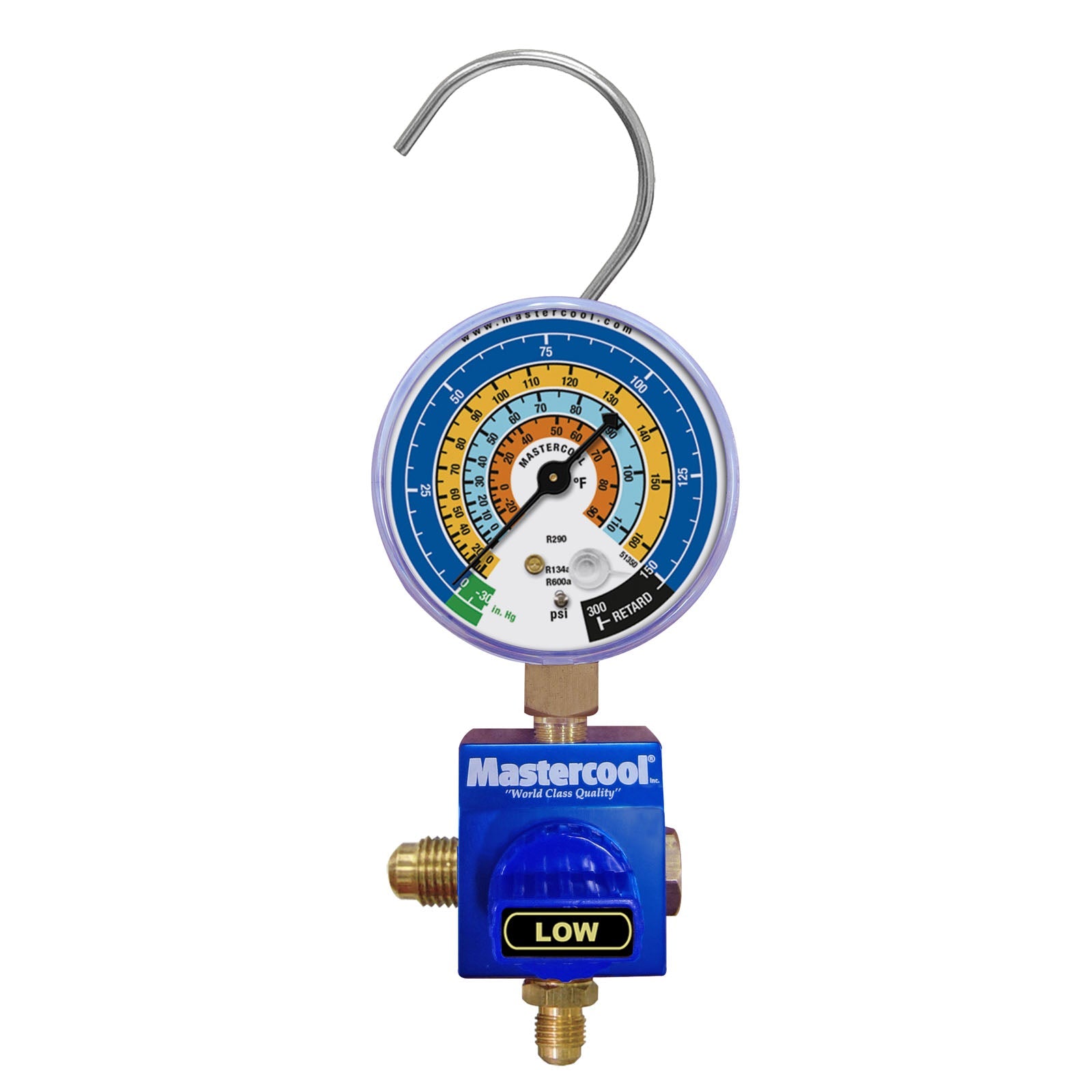

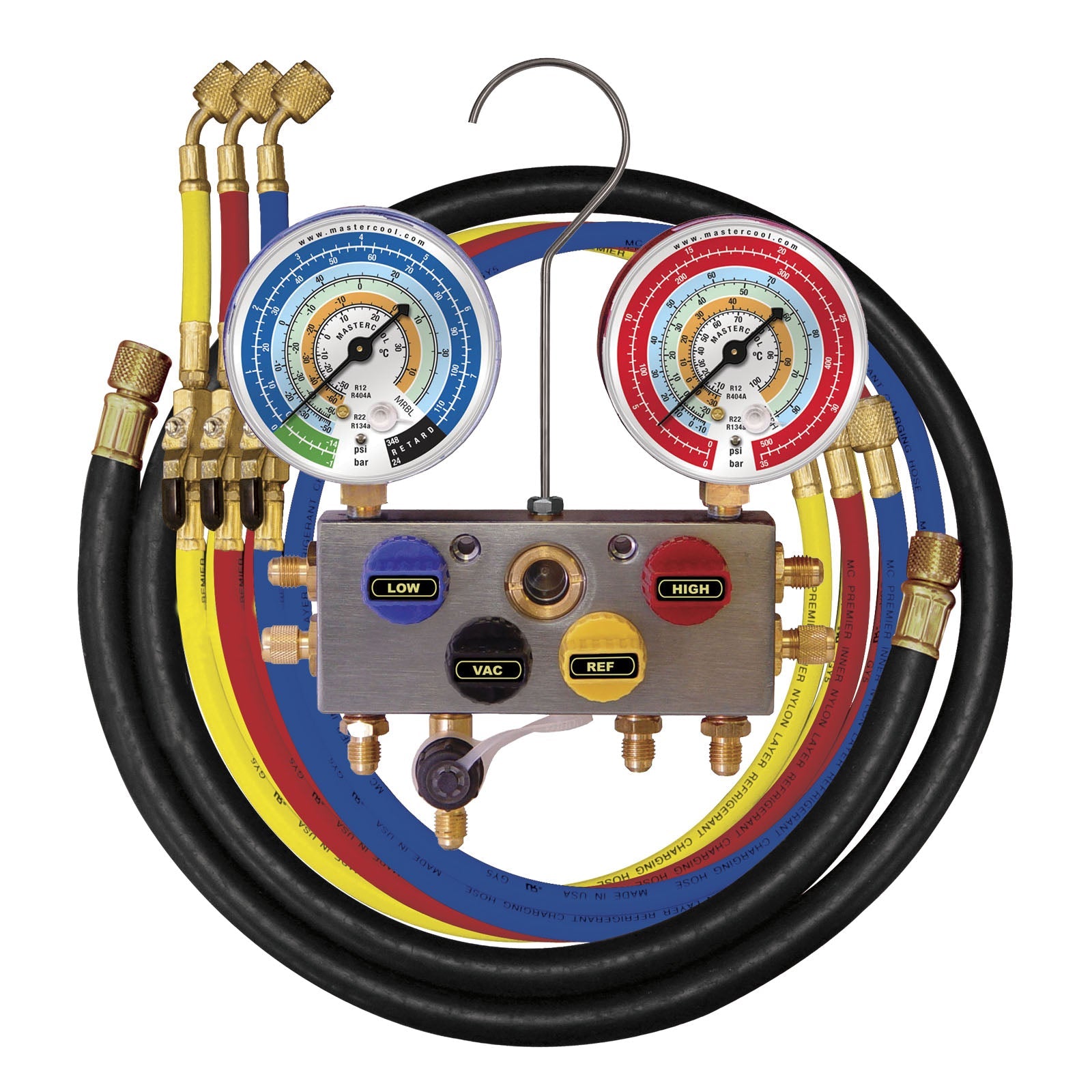

For accurate evacuation, pair your vacuum pump with a micron gauge — a manifold gauge alone cannot confirm system cleanliness. See also our manifold gauge sets, nitrogen pressure testing equipment, and full evacuation guide.

HVAC Vacuum Pumps for Air Conditioning & Refrigeration

Frequently asked questions

What size vacuum pump do I need for air conditioning?

For most domestic and light commercial split systems, a 2-stage vacuum pump with a capacity of 42 to 71 litres per minute (1.5 to 2.5 CFM) is sufficient. Larger commercial systems may require a higher capacity pump. Always evacuate to 500 microns or below before charging.

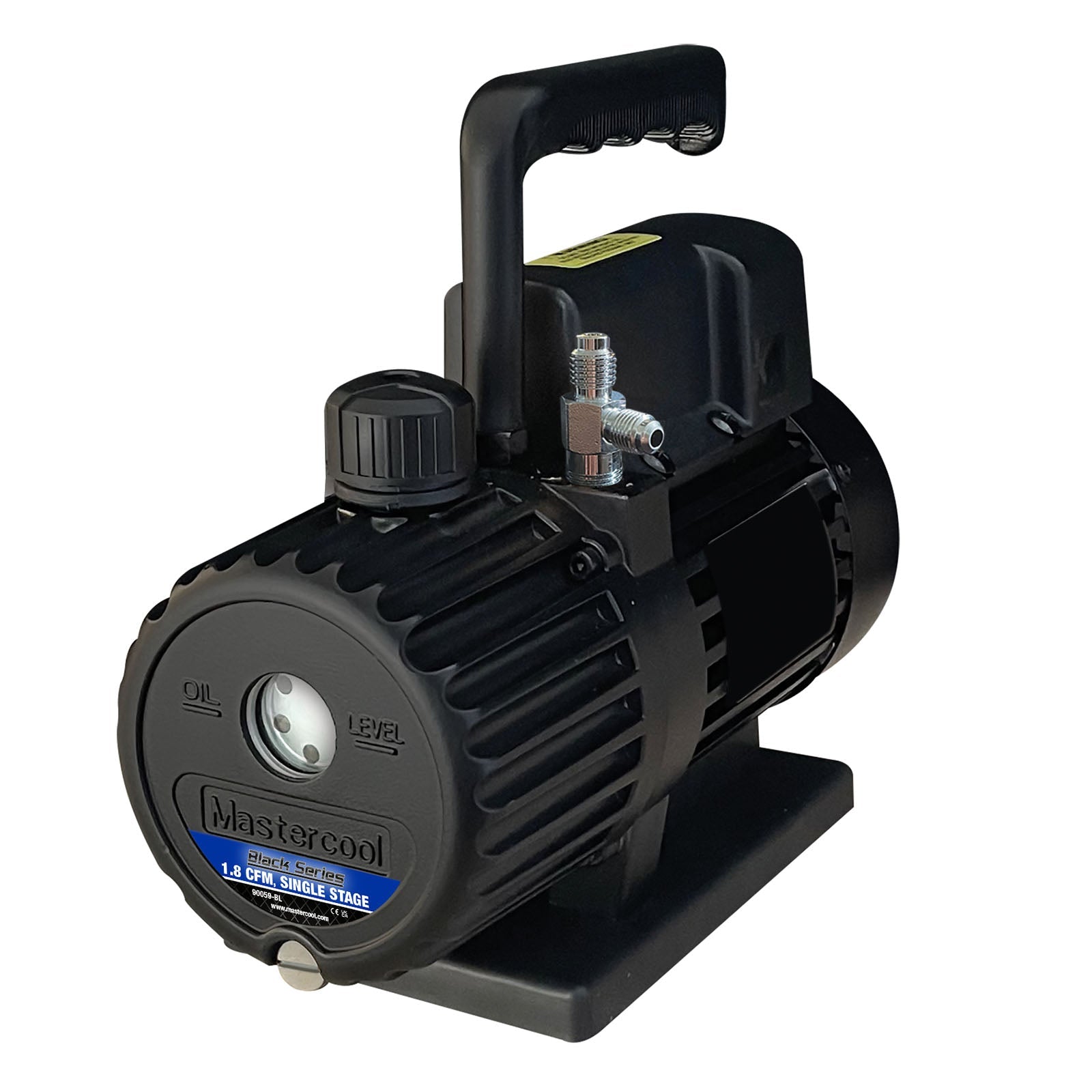

What is the difference between a single stage and two stage vacuum pump?

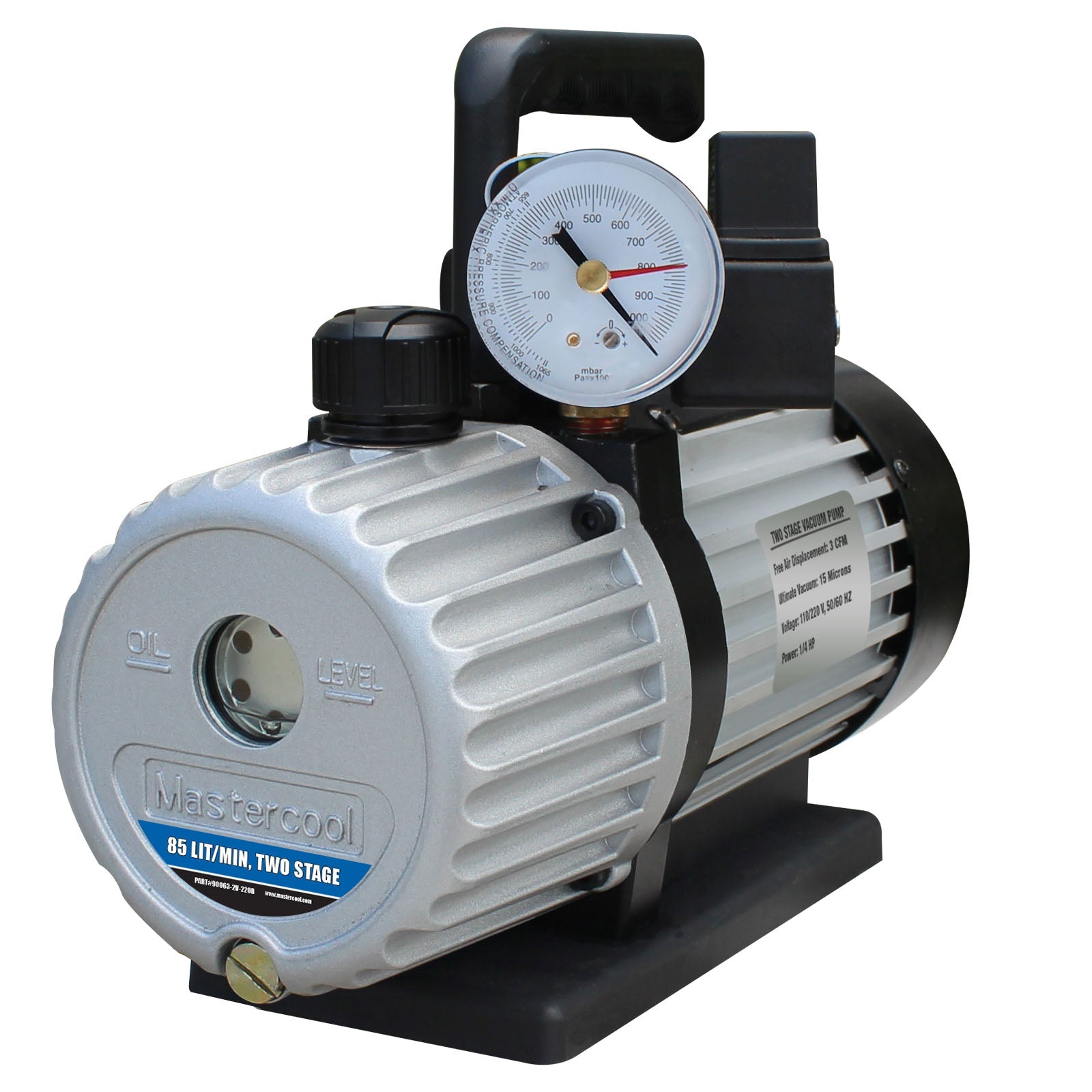

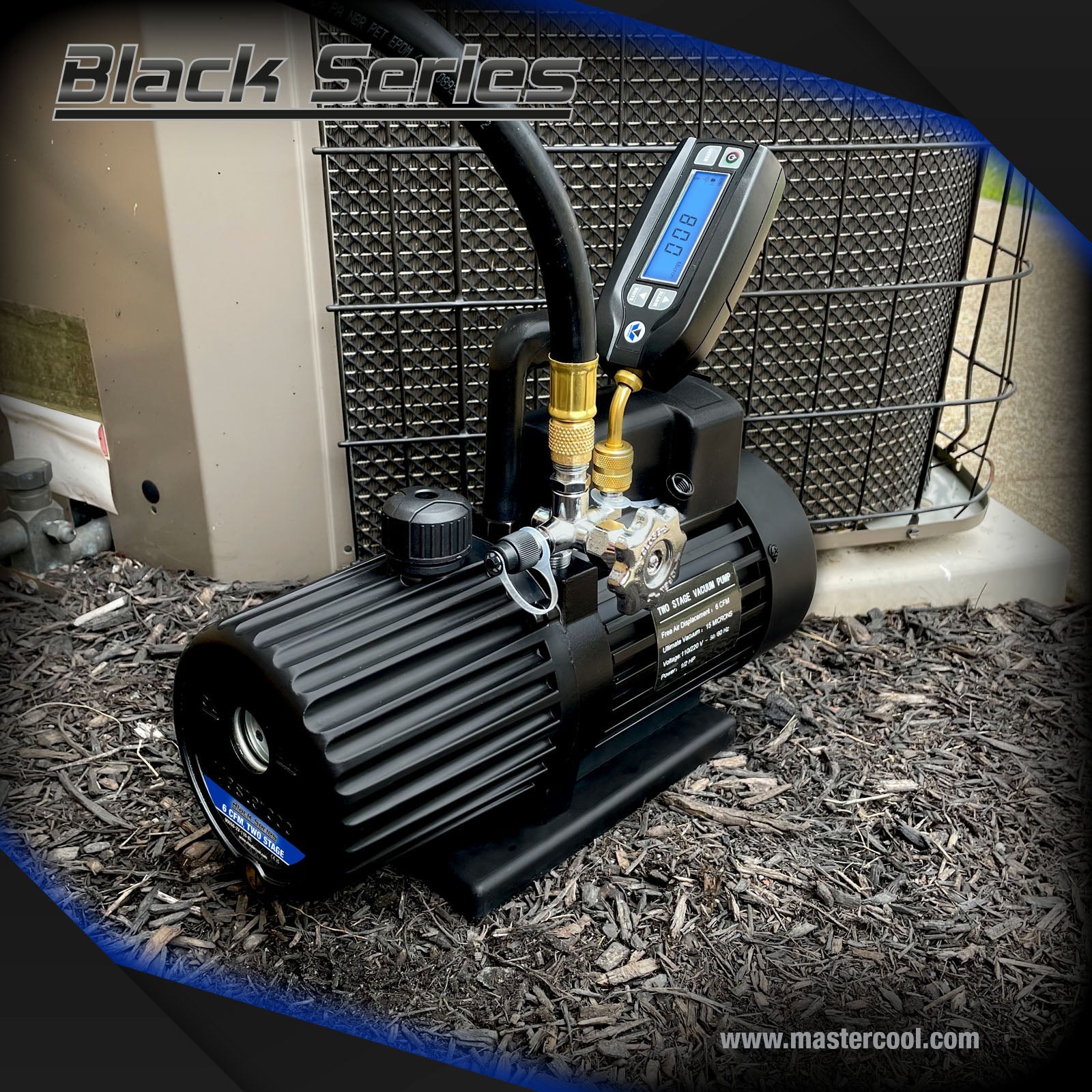

A two-stage vacuum pump achieves a deeper vacuum than a single stage pump. Two-stage pumps are industry standard and strongly recommended for all refrigerant work, particularly with R32 and R410A systems, to ensure complete moisture removal before charging.

Which vacuum pumps are compatible with R32 refrigerant?

Always use equipment specifically approved by the manufacturer for use with A2L refrigerants such as R32. Check the manufacturer specification to confirm compatibility before use. Leading brands in our range are suitable for use with R32, R410A, and R1234yf systems.

How do I know when the system has reached a deep enough vacuum?

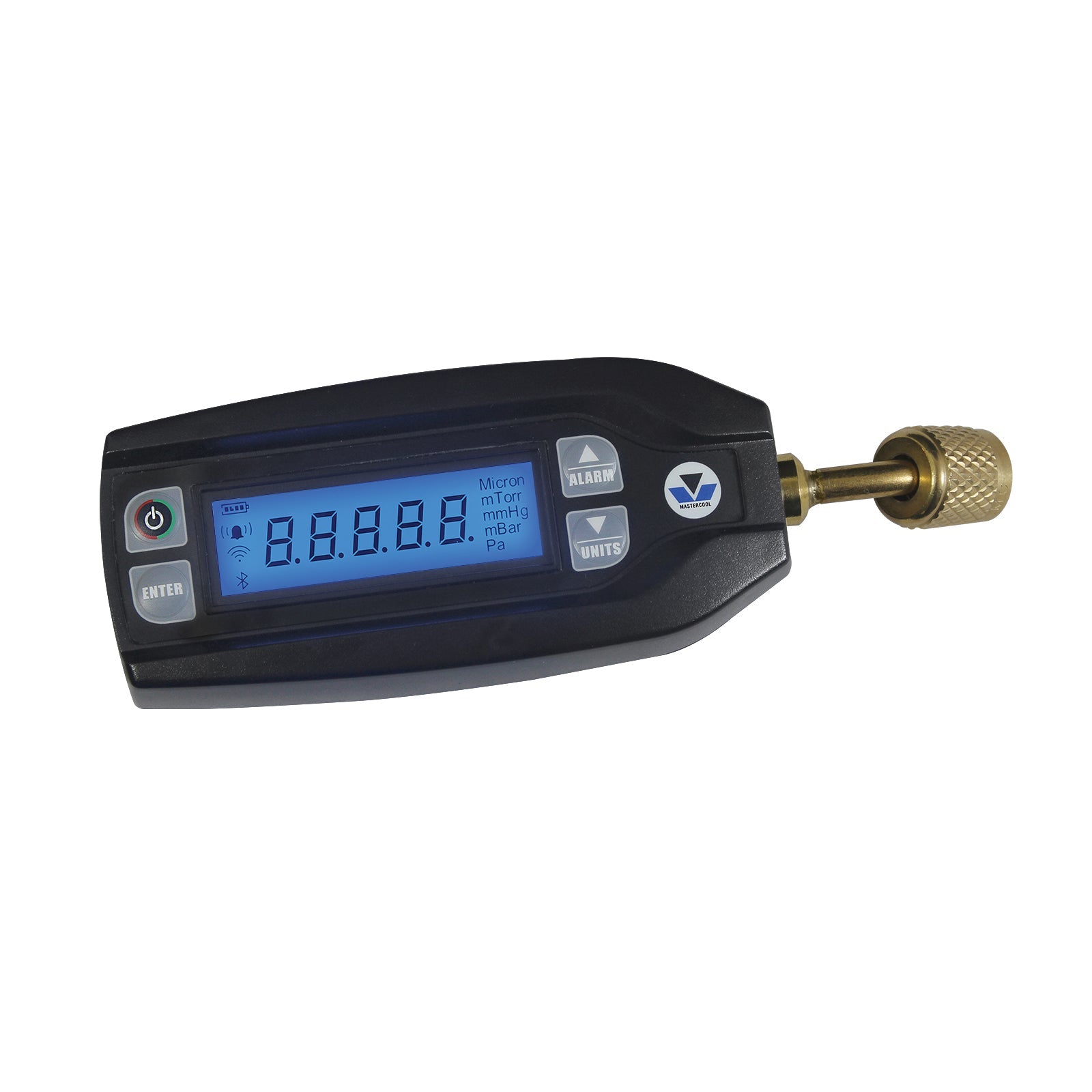

Use a digital micron gauge connected to the system to monitor vacuum level. The system should reach and hold 500 microns or below. After isolating the pump, the vacuum should remain stable — a rising level indicates moisture or a leak that must be resolved before charging.

How often should vacuum pump oil be changed?

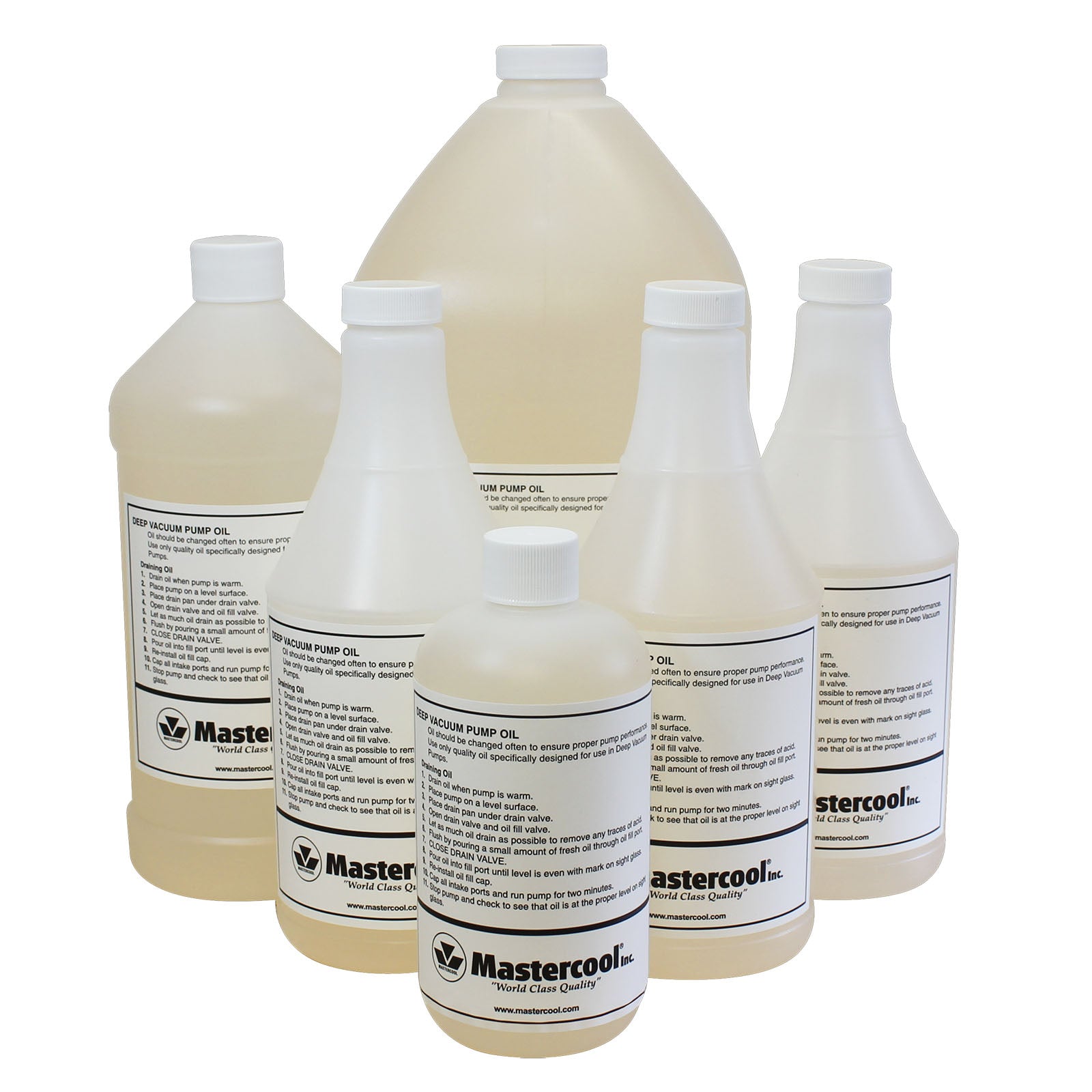

Vacuum pump oil should be changed after every use or at a minimum every 20 to 30 hours of operation. Contaminated oil significantly reduces pump performance and ultimate vacuum depth. Always use oil specified by the pump manufacturer.
