Javac CC-231AMM 8.9 CFM Double Stage Vacuum Pump for Ammonia (R717) | 240V
£1,145.51
Skip to product information
Javac CC-231AMM 8.9 CFM Double Stage Vacuum Pump for Ammonia (R717) | 240V
CC-231AMM
£1,145.51

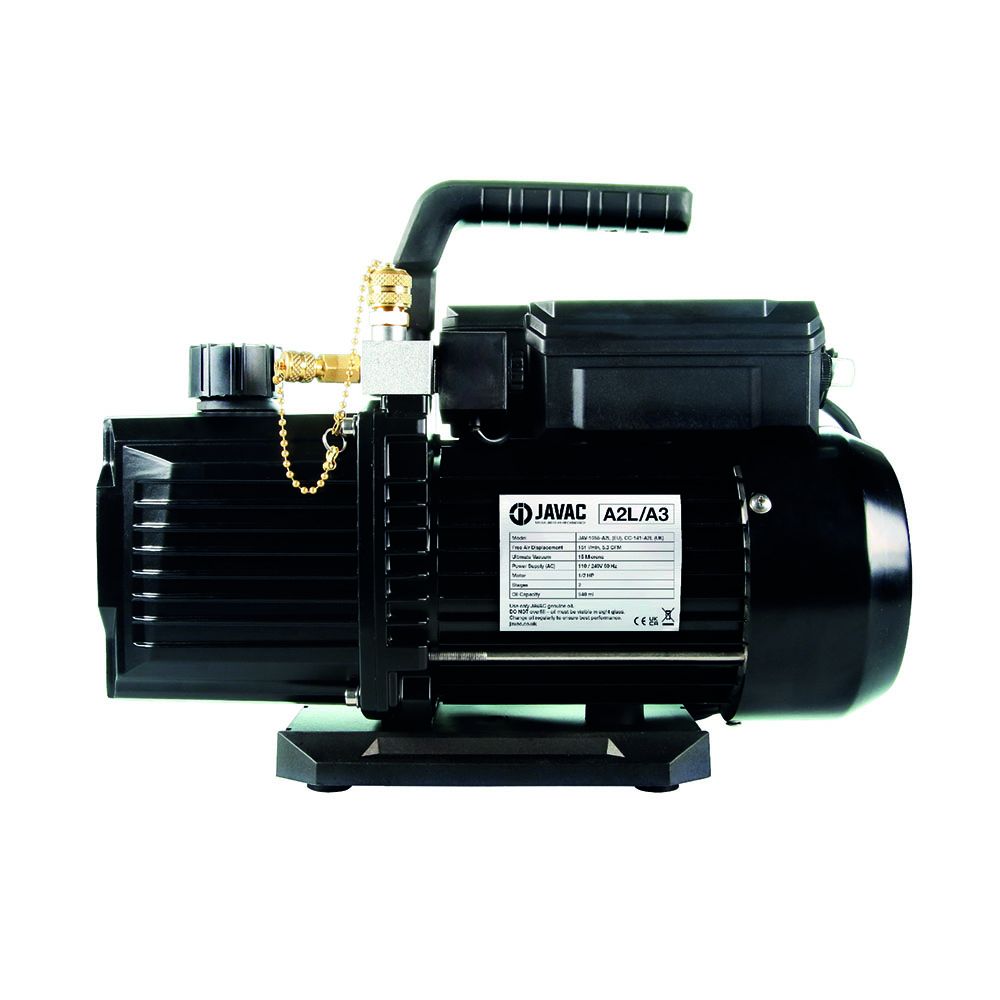

Javac CC-231AMM 8.9 CFM Double Stage Vacuum Pump for Ammonia (R717)
The Javac CC-231AMM is a heavy-duty 8.9 CFM double stage vacuum pump purpose-built for ammonia (R717) refrigeration systems. Based on the proven CC-231 platform with ammonia-compatible internals, it delivers a 15 micron ultimate vacuum with a solenoid valve as standard to prevent oil suck-back on shutdown. Dual voltage 110/240V with a 5m hard-wired lead and spark-proof switch. The highest-capacity pump in the Javac range for large commercial and industrial ammonia systems.
Key Features
- Ammonia (R717) Rated — ammonia-compatible internals and seals; purpose-built for R717 refrigeration systems
- 8.9 CFM (251 l/m) Displacement — maximum flow capacity for fast evacuation of large commercial and industrial systems
- 15 Micron Ultimate Vacuum — deep vacuum performance for thorough system dehydration
- Double Stage Oil Sealed — two-stage design for superior vacuum depth vs single stage pumps
- Solenoid Valve as Standard — prevents oil suck-back into the system on shutdown
- Dual Voltage 110/240V — compatible with both site power supplies
- 5m Hard-Wired Lead with Spark-Proof Switch — long reach with safe switching for industrial environments
- Dual Connector — 1/4" and 3/8" hose connections as standard
- Oil Sight Glass — easy oil level monitoring without removing covers
Technical Specifications
- Part Number: CC-231AMM
- EAN: 5060926535852
- Refrigerant: Ammonia (R717)
- Displacement: 251 l/m (8.9 CFM)
- Ultimate Vacuum: 15 microns
- Motor: 2/3 HP
- Stages: 2 (double stage)
- Power Supply: 110/240V AC, 50Hz
- Oil Capacity: 620 ml
- Weight: 14.8 kg
- Connections: 1/4" and 3/8" SAE flare
- Warranty: 12 months
