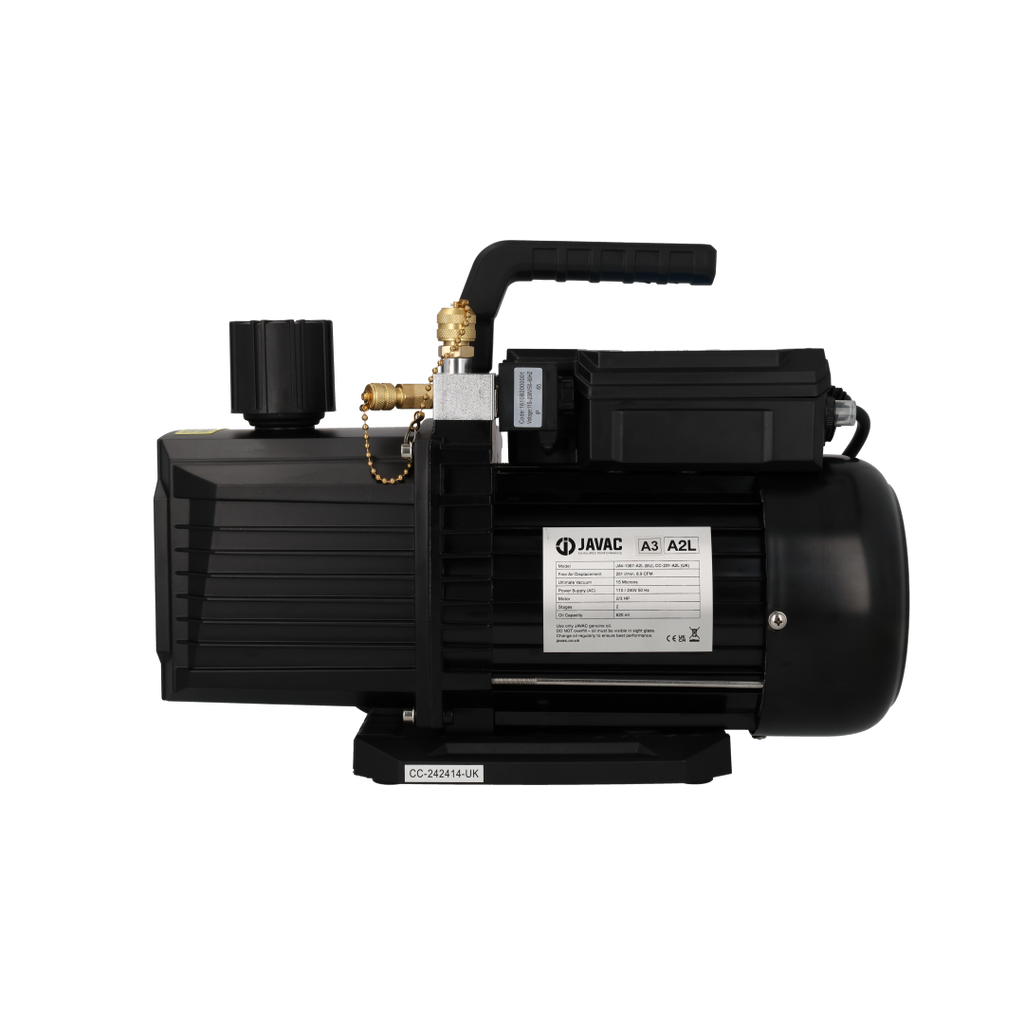

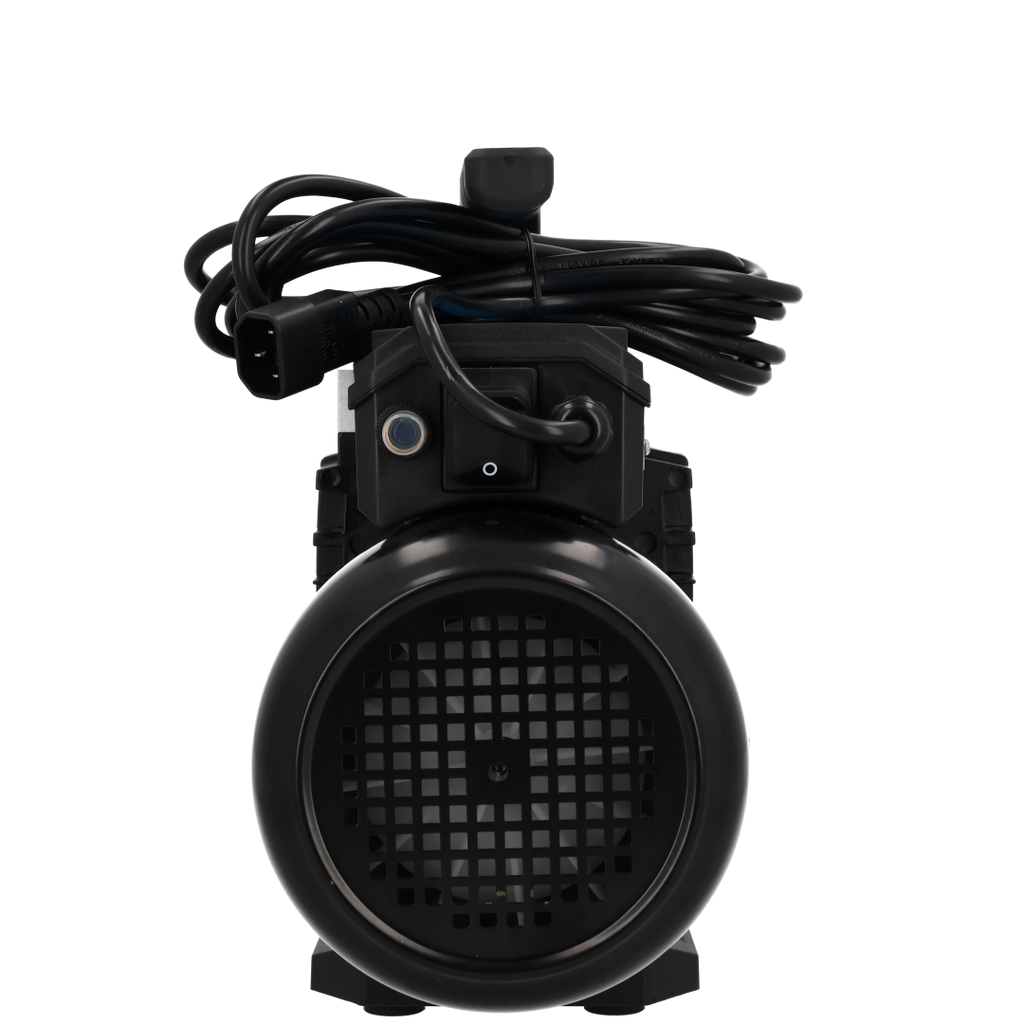

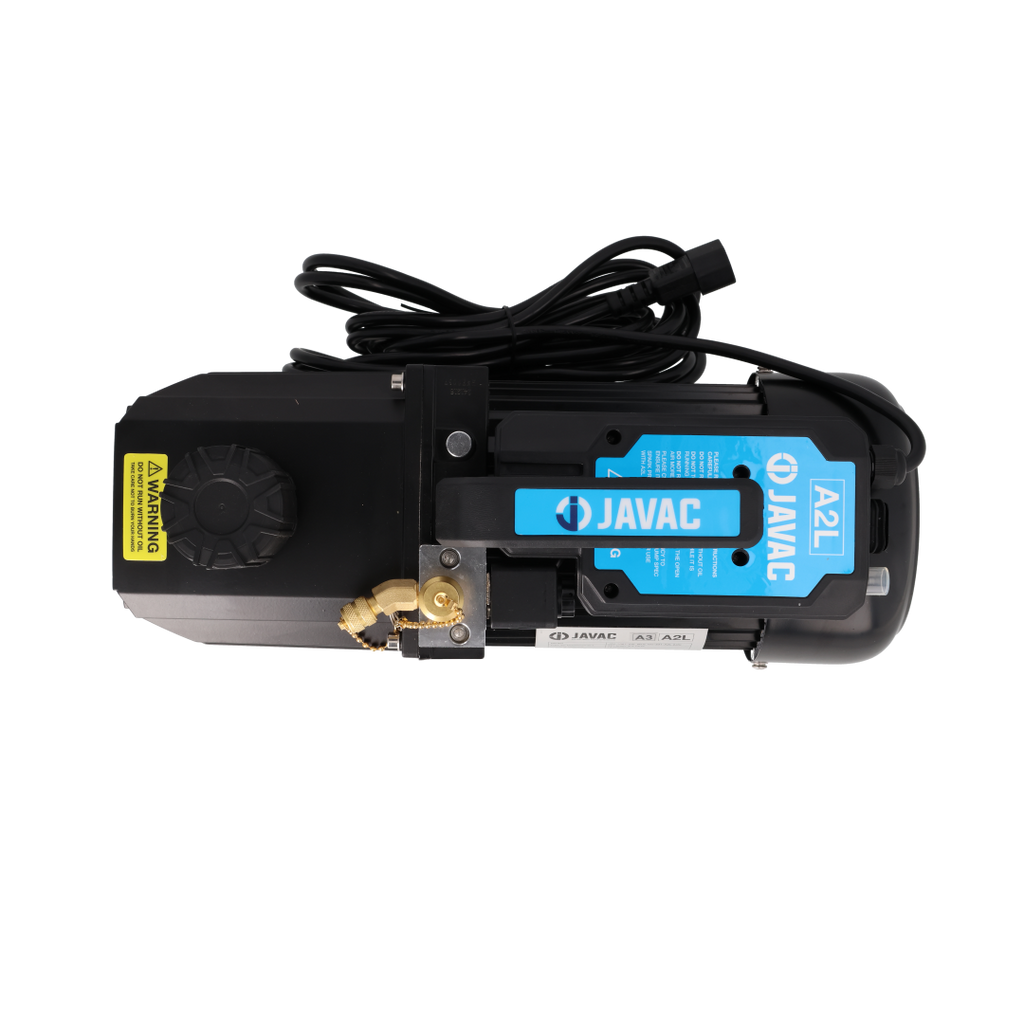

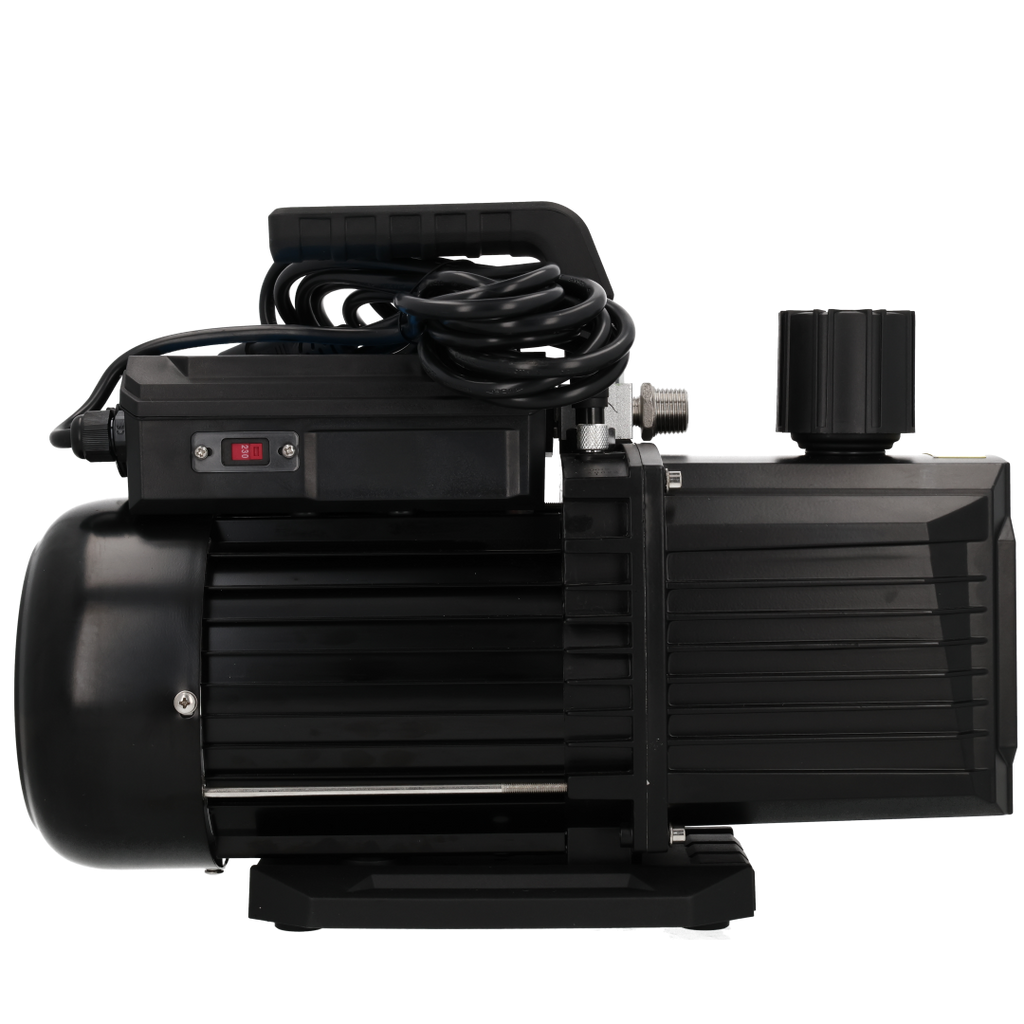

Javac CC-231-A2L 8.9 CFM Double Stage A2L/A3 Spark Proof Vacuum Pump 240V

Javac CC-231-A2L 8.9 CFM Double Stage A2L/A3 Spark Proof Vacuum Pump

The Javac CC-231-A2L is a high-performance double-stage rotary vane vacuum pump specifically designed and certified for safe use with A2L and A3 refrigerants, including R32, R1234yf and R290. Sparkproof switches and a solenoid valve make this the correct choice for engineers working with the new generation of low-GWP refrigerants.

Warning: For use on A3 refrigerants, you must be fully qualified. Scan the QR code on the unit to read A3 safety instructions before use.

Key Features

• A2L & A3 Rated — certified for safe use with R32, R1234yf, R290 and all A2L/A3 refrigerants
• Sparkproof Switches — eliminates ignition risk when working with flammable refrigerants
• Solenoid Valve — prevents oil backflow and system contamination on shutdown
• 8.9 CFM (251 l/m) Displacement — high-flow performance for fast system evacuation on large or multi-split systems
• 15 Micron Ultimate Vacuum — achieves the deep vacuum required for F-Gas compliant commissioning
• Dual Voltage 110/240V 50Hz — suitable for UK site power and generator use
• Hard-Wired 5m IEC Lead — extended reach for site use

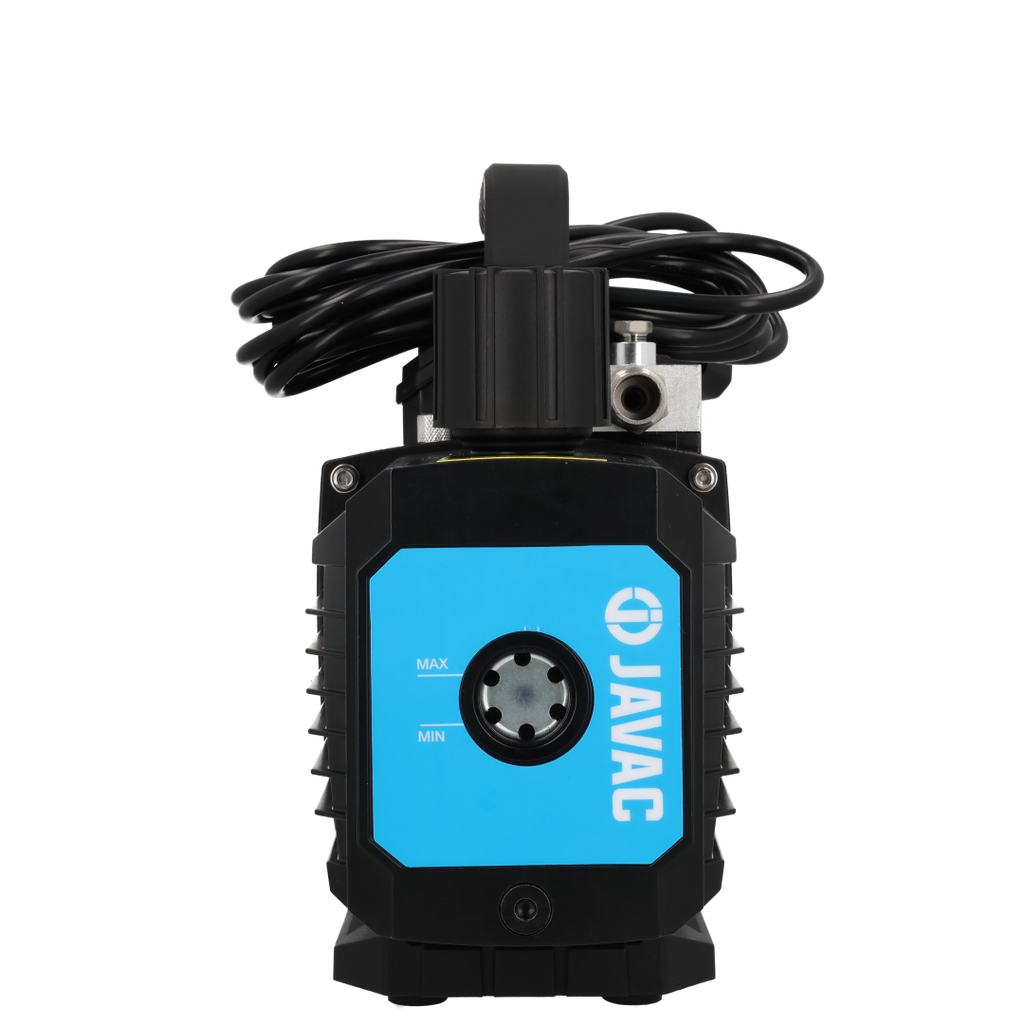

• Easy Access Oil Drain — simplifies oil changes in the field
• 1/4" & 3/8" SAE Intake Fittings — compatible with all standard HVAC hoses

Technical Specifications

• Model: CC-231-A2L
• Free Air Displacement: 251 l/m (8.9 CFM)
• Stage: Double
• Ultimate Vacuum: 15 microns
• Motor Size: 2/3 HP
• Power Supply: Dual voltage 110/240V 50Hz
• Power Cord: IEC, 5m hard-wired
• Oil Capacity: 620 ml
• Intake Fittings: 1/4" SAE, 3/8" SAE
• Weight: 14.8 kg
• Dimensions: 380 × 160 × 285 mm
• Refrigerant Suitability: All standard, A2L and A3 applications

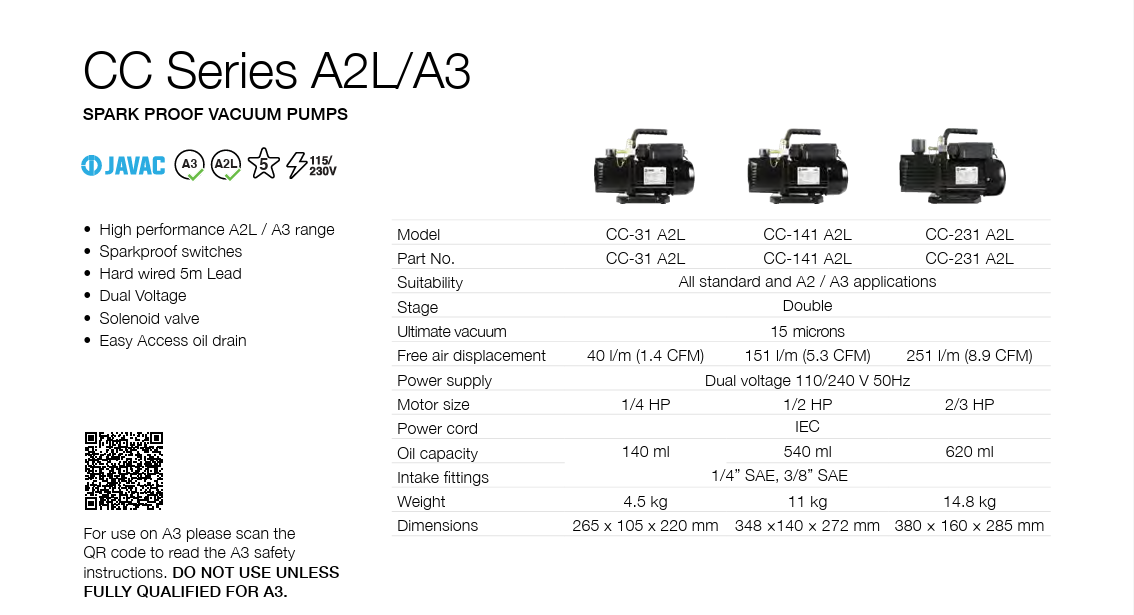

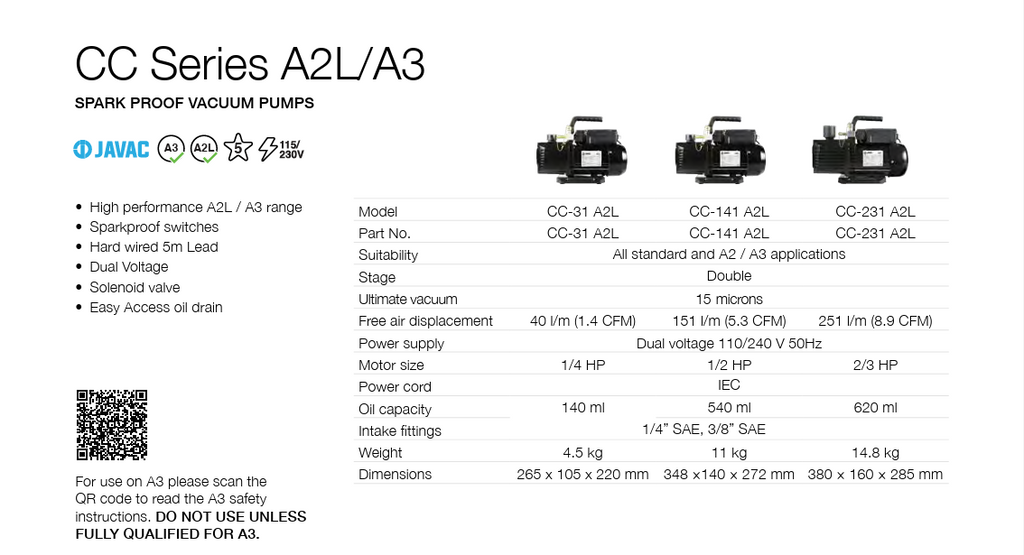

CC Series A2L/A3 Range

• CC-31-A2L — 1.4 CFM compact A2L/A3 pump (1/4 HP, 4.5 kg)
• CC-141-A2L — 5.3 CFM mid-range A2L/A3 pump (1/2 HP, 11 kg)
