Javac CC-31-A2L 1.4 CFM Double Stage A2L/A3 Spark Proof Vacuum Pump 240V
£342.99
Skip to product information
Javac CC-31-A2L 1.4 CFM Double Stage A2L/A3 Spark Proof Vacuum Pump 240V
CC-31-A2L
£342.99

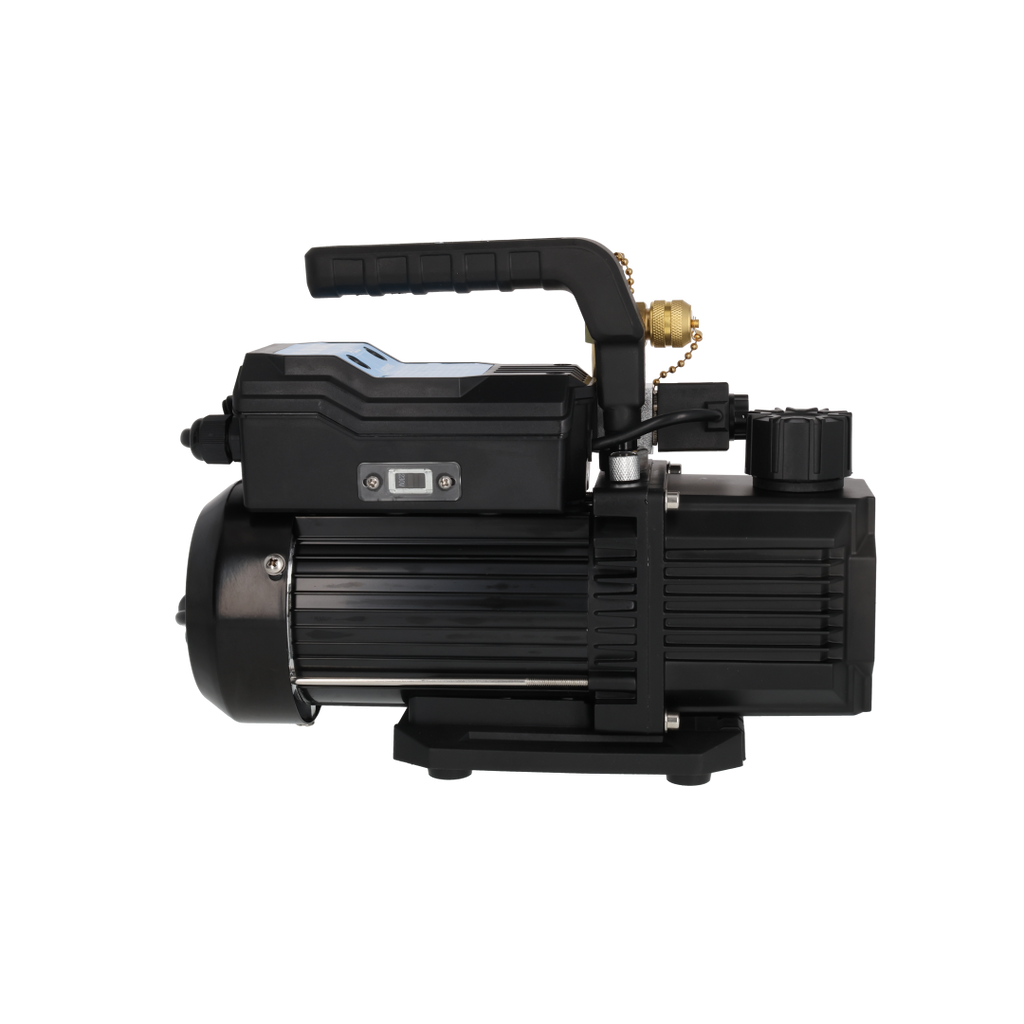

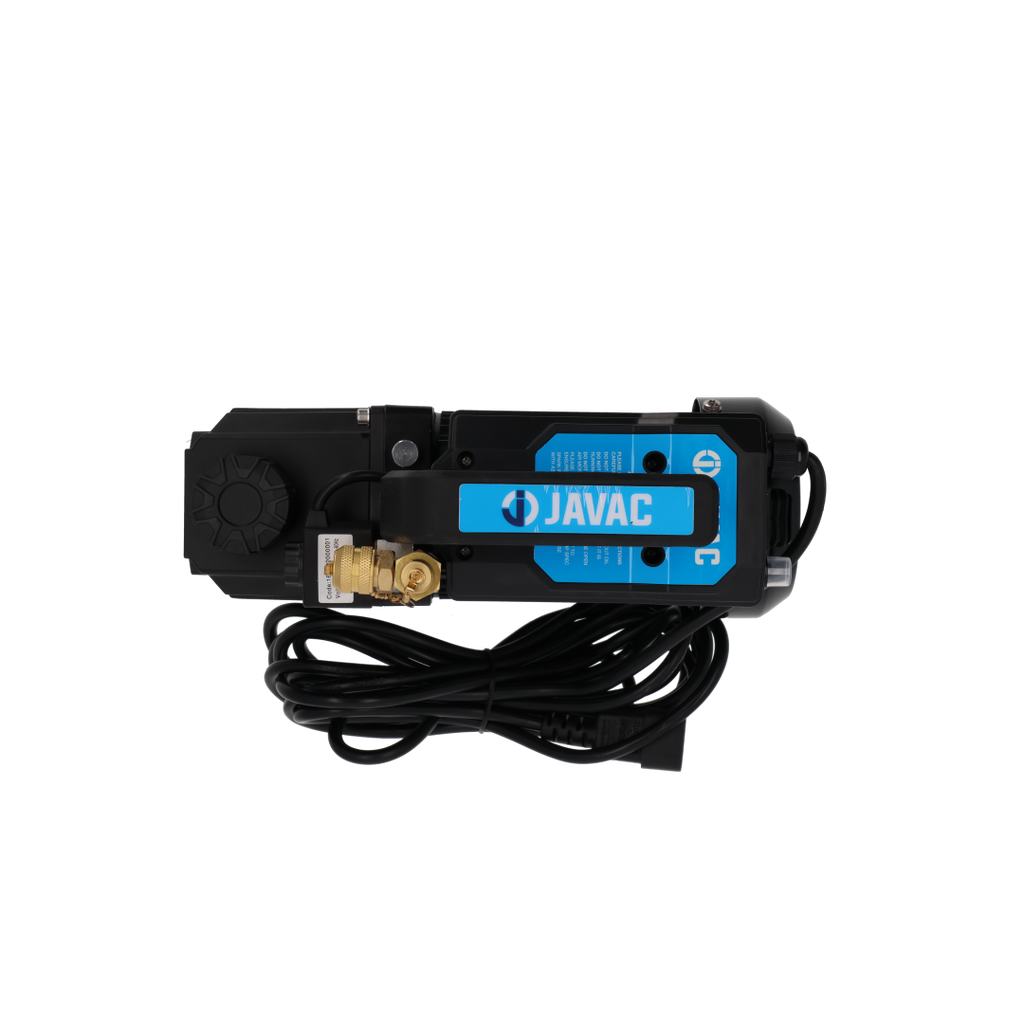

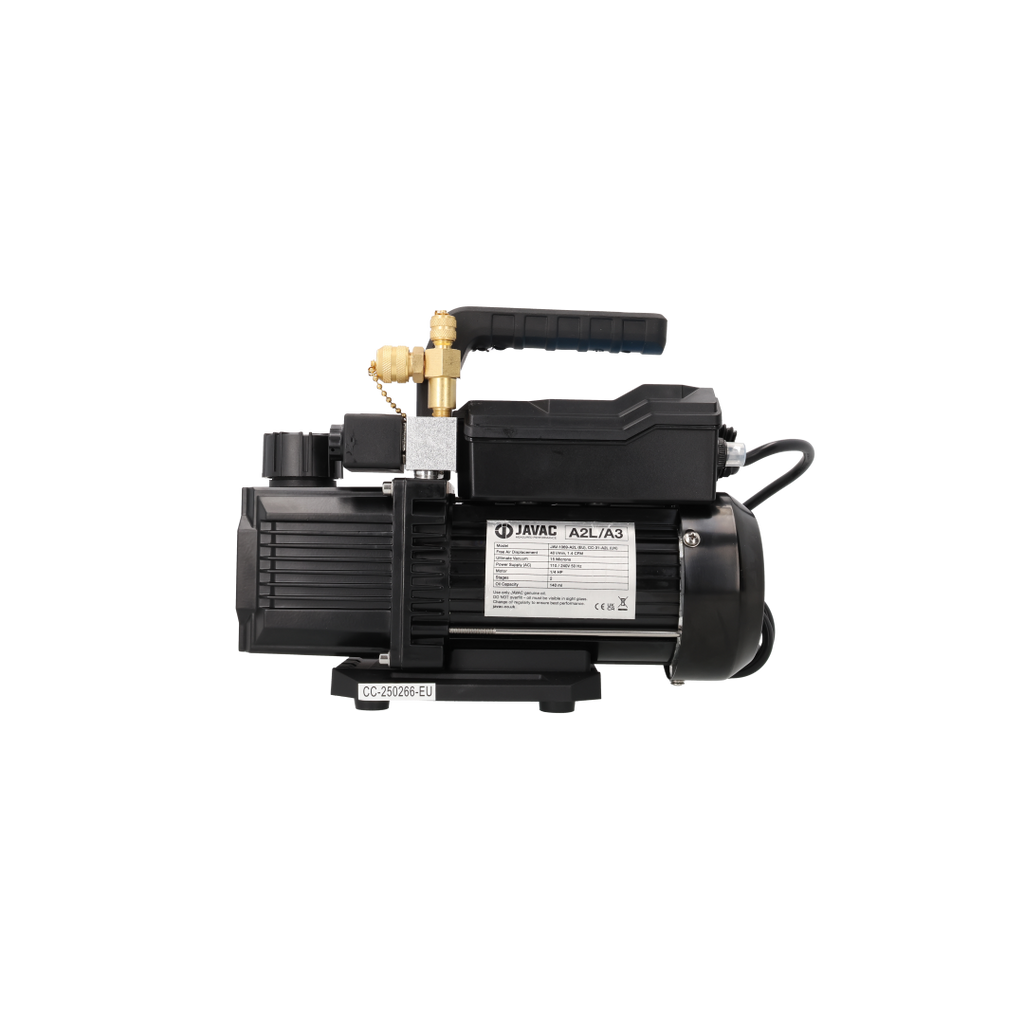

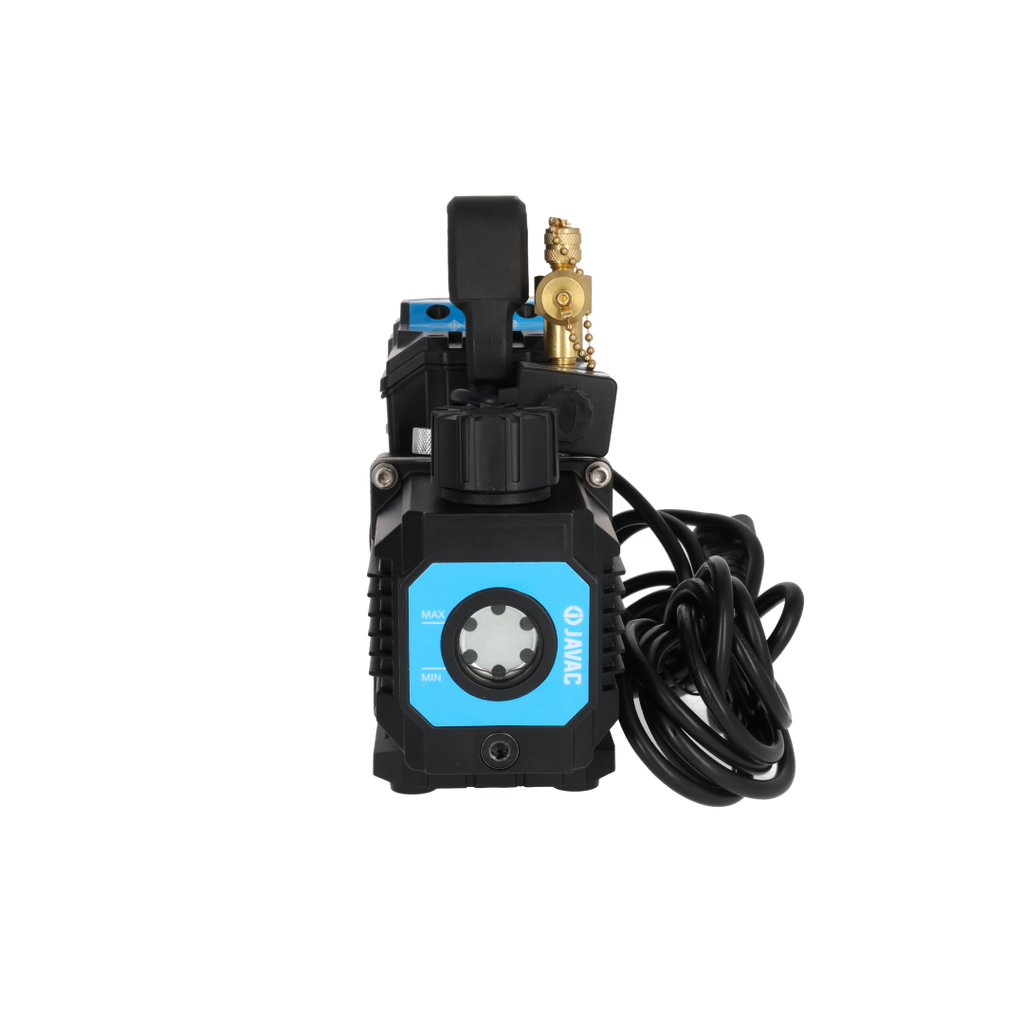

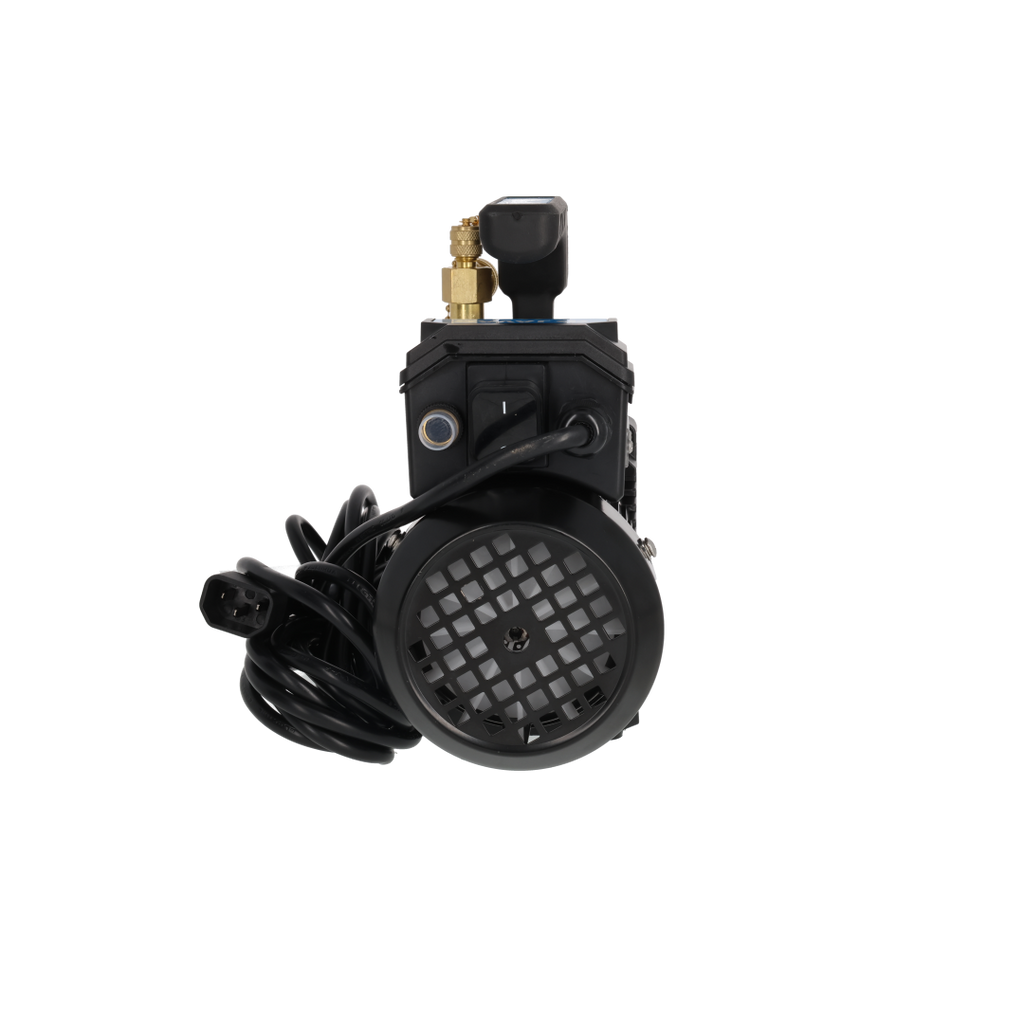

Javac CC-31-A2L 1.4 CFM Double Stage A2L/A3 Spark Proof Vacuum Pump
The Javac CC-31-A2L is a compact, lightweight double stage rotary vane vacuum pump specifically designed and certified for safe use with A2L and A3 refrigerants including R32, R1234yf and R290. At just 4.5 kg it is the ideal pump for engineers who need A2L compliance in a portable, van-friendly package.
Warning: For use on A3 refrigerants, you must be fully qualified. Scan the QR code on the unit to read A3 safety instructions before use.
Key Features
- A2L & A3 Rated — certified for safe use with R32, R1234yf, R290 and all A2L/A3 refrigerants
- Sparkproof Design — eliminates ignition risk when working with flammable refrigerants
- 1.4 CFM (40 l/m) Displacement — ideal for split AC and small multi-split system evacuation
- 15 Micron Ultimate Vacuum — achieves the deep vacuum required for F-Gas compliant commissioning
- Dual Voltage 110/240V 50Hz — suitable for UK site power and generator use
- Lightweight at 4.5 kg — compact and portable for daily van use
- 1/4" & 3/8" SAE Intake Fittings — compatible with all standard HVAC hoses
- Includes Vacuum Oil — ready to use straight from the box
Technical Specifications
- Model: CC-31-A2L
- Free Air Displacement: 40 l/m (1.4 CFM)
- Stage: Double
- Ultimate Vacuum: 15 microns
- Motor Size: 1/4 HP
- Power Supply: 110v or 240v (50Hz)
- Intake Fittings: 1/4" SAE, 3/8" SAE
- Weight: 4.5 kg
- In the Box: Vacuum pump, vacuum oil
- EAN: 5060144947543
- Tariff Code: 84141025
- Refrigerant Suitability: All standard, A2L and A3 applications
CC Series A2L/A3 Range
- CC-31-A2L — 1.4 CFM compact (this product)
- CC-141-A2L — 5.3 CFM mid-range (1/2 HP, 11 kg)
- CC-231-A2L — 8.9 CFM high-flow (2/3 HP, 14.8 kg)
