Correctly evacuating an air conditioning system is one of the most critical steps in any AC installation or repair. Proper evacuation removes moisture, non-condensable gases, and contaminants from the refrigeration circuit before commissioning — and failure to achieve a deep, stable vacuum is one of the leading causes of premature compressor failure and system callbacks.
This guide covers the correct HVAC evacuation procedure, target micron levels, nitrogen sweeping, vacuum decay testing, triple evacuation, and the commissioning tools required for professional AC and refrigeration work.
Why Proper AC System Evacuation Matters
During installation or repair, air and moisture enter the refrigeration circuit. If these contaminants are not fully removed before charging, they react with refrigerant and compressor oil to form acids and sludge — causing internal corrosion, bearing damage, and blocked expansion devices.
Moisture contamination can also freeze inside expansion valves and capillary systems, causing restrictions and unstable operating pressures that are difficult to diagnose post-commissioning.
A correctly executed evacuation ensures:
- Full removal of moisture and non-condensable gases
- Stable operating pressures at commissioning
- Improved long-term cooling efficiency
- Extended compressor service life
- Reduced risk of acid formation and system failure
- Compliance with manufacturer commissioning standards
Professional HVAC engineers should always use a digital micron gauge rather than relying on manifold gauges during evacuation. Manifold gauges cannot resolve the pressure levels required to confirm proper moisture removal.

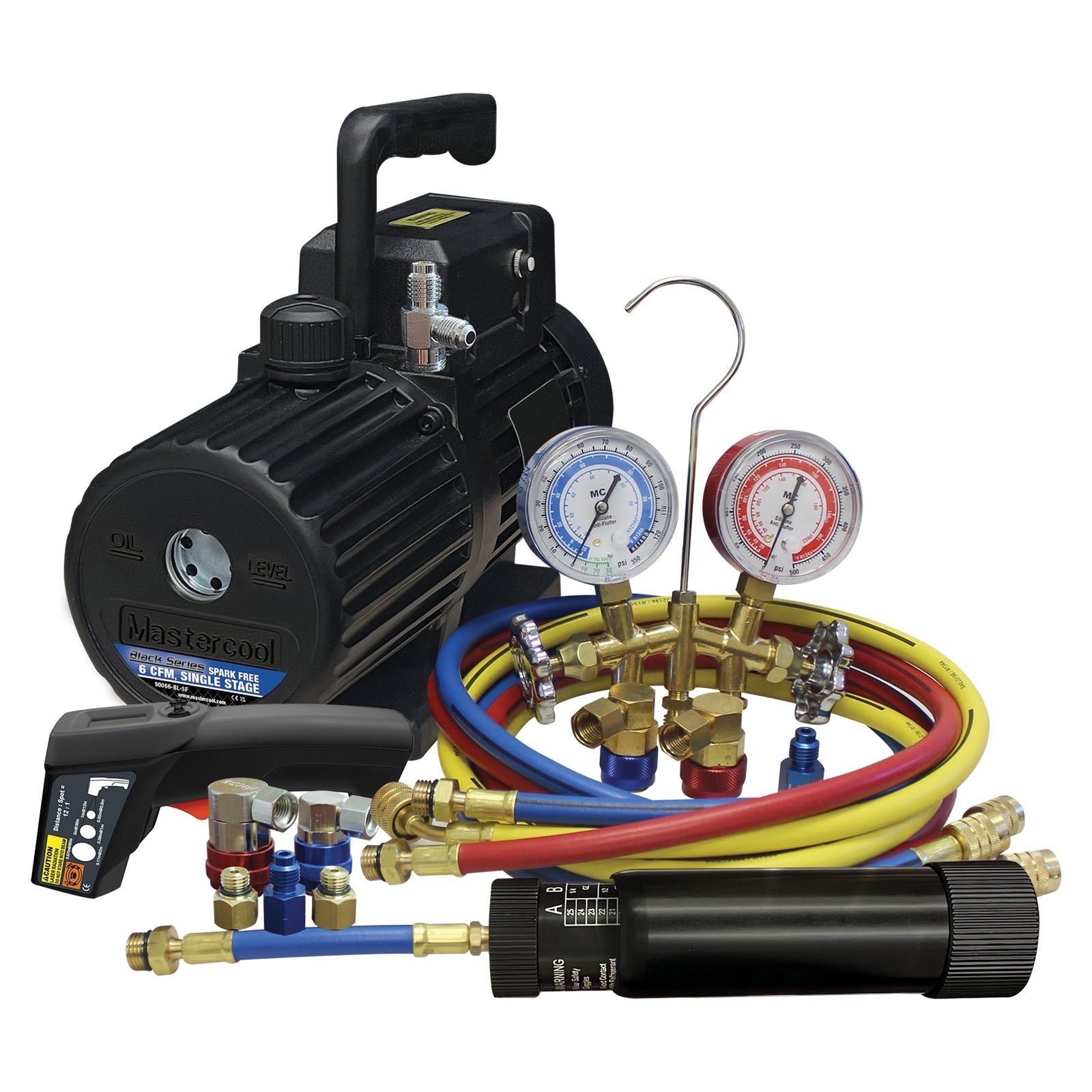

Tools Required for AC System Evacuation
Correct tool selection directly affects evacuation speed, depth, and reliability. The following equipment is required for professional commissioning:
- Two-stage vacuum pump — sized correctly for system volume
- Digital micron gauge — positioned away from the pump for accurate readings
- Manifold gauge set — for system pressure monitoring
- Large-diameter vacuum-rated hoses — to minimise flow restriction
- Core removal tools — to eliminate Schrader valve restriction during evacuation
- Nitrogen regulator and cylinder — for pressure testing and nitrogen sweeping
- Leak detection equipment — electronic or UV dye, confirmed before evacuation begins
Using core removal tools and large-bore hoses directly connected to the service ports significantly reduces evacuation time on larger systems.
Choosing the Correct Vacuum Pump
Pump selection should be based on system volume, application type, and required ultimate vacuum depth.
For most residential split systems, a two-stage vacuum pump rated between 5 CFM and 8 CFM is appropriate. Larger VRF, VRV, and commercial refrigeration systems require higher-capacity pumps to achieve target micron levels within a practical timeframe.
Key selection criteria:
- CFM rating relative to system volume
- Ultimate vacuum capability (target: below 50 microns at the pump inlet)
- Oil contamination protection and oil sight glass
- Reliability under continuous operation
- Ease of oil replacement and maintenance
Contaminated pump oil is one of the most common causes of poor evacuation performance. Always replace vacuum pump oil before commissioning critical systems.
Browse professional HVAC vacuum pumps →
Why a Micron Gauge Is Non-Negotiable
A manifold gauge operates in the PSI/bar range and cannot resolve the absolute pressure levels required to confirm proper evacuation. A digital micron gauge measures absolute pressure in microns of mercury (µmHg) and is the only instrument capable of confirming that moisture and non-condensables have been fully removed.
For accurate readings:
- Position the micron gauge at the system — not at the pump or manifold
- Use clean vacuum-rated fittings and hoses throughout
- Allow the gauge to stabilise before recording readings
- Isolate the pump before performing decay testing
A micron gauge connected directly to the system (rather than through the manifold) gives the most accurate representation of actual system vacuum depth.
Step-by-Step AC System Evacuation Procedure
Step 1 — Pressure Test with Nitrogen
Before evacuation begins, pressure test the system using dry nitrogen (OFN) to confirm there are no leaks. Do not proceed to evacuation on a system that has not passed a standing pressure test. Use electronic or UV leak detection to locate any identified leaks before continuing.
Step 2 — Perform a Nitrogen Sweep
After pressure testing, release the nitrogen and perform a nitrogen sweep if the system has been open to the atmosphere for an extended period. Nitrogen sweeping displaces atmospheric moisture and contaminants before deep evacuation begins, improving evacuation efficiency and reducing pull-down time.
Nitrogen sweeping is particularly important on:
- Large VRF and VRV systems
- Long refrigeration pipework runs
- Burnout repairs where acid contamination is present
- Systems that have been open for extended periods
Step 3 — Connect Vacuum Equipment
Connect large-diameter vacuum hoses directly to the liquid and suction service ports. Remove Schrader cores using core removal tools to eliminate flow restriction through the valve seats. Attach the micron gauge directly to the system, away from the vacuum pump, for accurate readings.
Step 4 — Pull Down to Target Micron Level
Run the vacuum pump until the system reaches the target micron level for the application. Monitor the micron gauge — not the manifold — throughout the pull-down.
Target Micron Levels for HVAC and Refrigeration Systems
| System Type | Recommended Vacuum Level |
|---|---|
| Residential split systems | Below 500 microns |
| Best practice commissioning | 300–400 microns |
| VRF / VRV systems | Below 250 microns |
| Refrigeration systems | 200–500 microns |
Lower micron readings indicate lower residual moisture content within the refrigeration circuit. Always target the deepest achievable vacuum within a practical timeframe — do not charge a system that has not reached and held the target level.
How to Perform a Vacuum Decay Test
Once the target vacuum level is reached:
- Isolate the vacuum pump from the system
- Monitor the micron gauge reading
- Observe pressure rise over 10–15 minutes
A rapid pressure increase indicates one of the following:
- Residual moisture remaining in the system
- A refrigerant or nitrogen leak
- Contaminated vacuum pump oil
- Loose hose connections or fittings
A stable decay test — where the micron reading rises slowly and plateaus below 1000 microns — confirms the system is properly evacuated and leak-free. Do not charge the system until a stable decay test has been achieved.
Triple Evacuation Procedure
Triple evacuation is the preferred method for larger systems, heavily contaminated systems, or burnout repairs where moisture absorption is a concern.
The procedure:
- Pull the system to below 1500 microns
- Break vacuum with dry nitrogen to approximately 2–3 PSIG
- Pull down again to below 1000 microns
- Break the vacuum with nitrogen again
- Pull to final target micron level and perform a decay test
Each nitrogen break absorbs residual moisture from the system walls and pipework, which is then removed during the subsequent pull-down. Triple evacuation is standard practice for:
- VRF and VRV systems
- Commercial refrigeration systems
- Burnout repairs
- Long pipe run installations
Common AC System Evacuation Mistakes
The majority of commissioning callbacks related to poor system performance can be traced to inadequate evacuation. Common errors include:
- Using manifold gauges instead of a digital micron gauge to verify vacuum depth
- Skipping nitrogen sweeping on systems open to atmosphere
- Evacuating through Schrader cores without core removal tools
- Using undersized or standard charging hoses instead of large-bore vacuum hoses
- Failing to replace contaminated vacuum pump oil before commissioning
- Not performing a vacuum decay test before charging
- Charging the system before a stable micron level has been achieved and held
Frequently Asked Questions
What micron level should an AC system hold?
Most residential split systems should hold below 500 microns. Best practice commissioning targets 300–400 microns. VRF and VRV systems should achieve below 250 microns.
How long should an AC evacuation take?
Evacuation time depends on system volume, hose diameter, pump CFM rating, and residual moisture levels. Small split systems may reach target micron levels within 30–60 minutes. Larger VRF systems with long pipe runs can take considerably longer, particularly if triple evacuation is required.
Can you evacuate through manifold gauges?
You can, but the Schrader cores and manifold internals restrict flow and reduce evacuation speed significantly. Professional engineers use dedicated vacuum hoses with core removal tools connected directly to the service ports for faster, more reliable pull-down.
Why is nitrogen sweeping important?
Nitrogen sweeping displaces atmospheric moisture and contaminants from the refrigeration circuit before deep evacuation begins. It is particularly important on systems that have been open for extended periods, long pipe runs, and burnout repairs.
What happens if moisture remains in an AC system?
Residual moisture reacts with refrigerant and compressor oil to form hydrofluoric and hydrochloric acids. This causes internal corrosion, bearing damage, compressor failure, frozen expansion valves, and unstable operating pressures. Moisture contamination is one of the leading causes of premature compressor failure.
