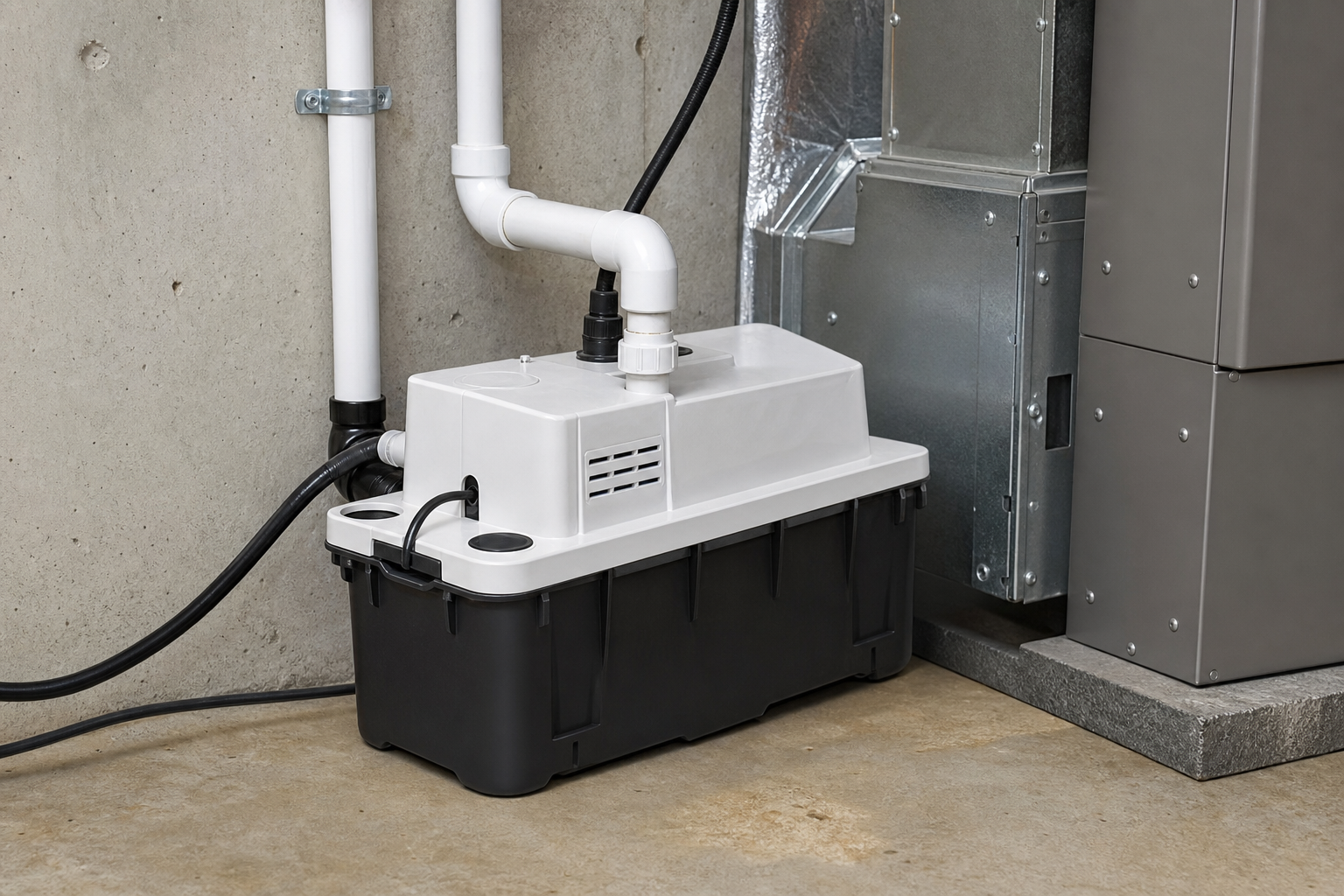

Condensate Pump Tank Systems: Complete Installation Guide

Condensate pump tank systems represent a critical component in modern air conditioning and refrigeration installations, particularly where gravity drainage proves impractical or impossible. These specialised assemblies collect and evacuate condensate water from cooling equipment, preventing water damage, system inefficiency, and potential health hazards associated with standing water.

Understanding the nuances of proper installation ensures longevity, reliable operation, and compliance with manufacturer specifications. This comprehensive guide addresses the technical requirements, best practices, and common pitfalls encountered during condensate tank pump installation projects.

Understanding Condensate Pump Tank Systems

Condensate pump tank systems comprise several integral components working in concert to manage water produced during the cooling cycle. The reservoir collects condensate from evaporator coils, whilst the pump mechanism evacuates this water to a suitable drainage point. A float switch typically governs pump activation, ensuring automatic operation without manual intervention.

These systems prove indispensable in basement installations, loft-mounted units, or any scenario where the condensate outlet sits below the drainage termination point. The pumping action overcomes gravitational limitations, propelling water vertically and horizontally as required by the installation constraints.

Types of Condensate Pump Configurations

Several configurations exist within the condensate pumping landscape. Integral tank systems feature the pump housed within the collection reservoir, offering compact footprints suitable for confined spaces. Split systems separate the collection tank from the pumping mechanism, providing flexibility in challenging installations.

Vertical discharge pumps excel in applications requiring significant lift, whilst horizontal configurations suit installations with extended lateral runs. Understanding these distinctions enables appropriate system selection based on specific project parameters.

Pre-Installation Planning and Site Assessment

Thorough pre-installation evaluation prevents costly remediation and ensures optimal system performance. Begin by calculating the total dynamic head—the vertical lift combined with friction losses from horizontal runs and fittings. This calculation determines the minimum pump capacity required for adequate condensate removal.

Examine the installation environment for accessible drainage termination points. External drainage must incorporate appropriate air gaps to prevent backflow contamination. Internal drainage connections require compliance with building regulations, particularly regarding soil stack connections and trap requirements.

Consider ambient temperature fluctuations, particularly in unheated spaces where freezing poses risks. Electrical supply proximity influences installation complexity and cost. A nearby 230V socket simplifies installation, whilst distant power sources necessitate additional electrical work by qualified personnel.

Calculating Condensate Production Rates

Accurate condensate production estimates prevent undersized installations. Air conditioning systems typically generate between 10 to 40 litres daily per kilowatt of cooling capacity, varying with ambient humidity and operational hours. Refrigeration equipment produces variable quantities dependent on temperature differentials and defrost cycles.

Oversizing provides safety margins for unexpected load increases or particularly humid conditions. However, excessively large tanks may permit microbial growth in stagnant water between pump cycles. Balance capacity against cycling frequency for optimal performance.

Recommended Solution: Little Giant VCMA-20S Condensate Removal System

For HVAC engineers seeking a dependable, field-proven solution, the Little Giant VCMA-20S Condensate Removal Tank Pump offers exceptional reliability in commercial and residential applications. This compact unit combines a 1.9-litre ABS reservoir with a robust magnetically-driven pump capable of 6.1-metre maximum lift.

The VCMA-20S addresses common installation challenges through its versatile configuration options. Multiple inlet ports accommodate various pipe sizes, whilst the safety switch prevents overflow during pump failure scenarios. The magnetic drive mechanism eliminates shaft seals, reducing maintenance requirements and extending operational lifespan considerably.

This system proves particularly valuable in basement plant rooms, loft conversions, and commercial installations where reliable condensate management is non-negotiable. The thermoplastic construction resists corrosion, whilst the whisper-quiet operation suits noise-sensitive environments.

Essential Tools and Materials for Installation

Proper preparation streamlines installation and ensures professional results. Assemble the following items before commencing work:

Step-by-Step Installation Procedure

Methodical execution ensures trouble-free operation and compliance with best practices. Begin by identifying the optimal pump location—as close to the condensate source as practical whilst maintaining accessibility for future maintenance. The unit must sit level on a stable, vibration-free surface.

Mounting the Condensate Tank Pump

Secure the pump assembly using appropriate fixings for the substrate material. Masonry installations require wall plugs and corrosion-resistant screws. Timber substrates benefit from wood screws with adequate thread engagement. Ensure mounting brackets distribute weight evenly, preventing stress concentrations that might crack plastic housings.

Maintain clearance around the unit for lid removal during maintenance procedures. A minimum 150mm above the unit facilitates float switch inspection and cleaning operations. Verify the mounting surface can support the filled weight—water adds considerable mass to the assembly.

Connecting Condensate Inlet Lines

Route condensate drainage from the cooling equipment to the tank inlet with continuous fall gradient. A minimum 1-in-40 slope prevents standing water within the pipework, which harbours bacterial growth and produces unpleasant odours. Avoid airlocks by eliminating high points in the run where vapour lock might impede flow.

Use appropriate pipe diameter for the condensate volume—undersized pipes risk overflow during peak production periods. Install an inline sediment trap before the tank inlet to capture particulate matter that might foul the pump mechanism. This simple addition substantially extends pump lifespan and reduces maintenance frequency.

Installing Discharge Pipework

The discharge line conveys pumped condensate to its final termination point. Select pipe diameter according to manufacturer specifications—typically 22mm for domestic applications. Avoid excessively long horizontal runs that increase friction losses and reduce effective pump capacity.

Install a check valve immediately after the pump discharge to prevent backflow when the pump stops. This component prevents the discharge line contents from draining back into the tank, causing premature pump activation and unnecessary cycling. Ensure the check valve orientation matches flow direction—reverse installation renders it ineffective.

Terminate external discharge lines with appropriate air gaps above gullies or drainage points. Never create hard connections to soil stacks without proper trap arrangements, as sewer gases may migrate back through the system into occupied spaces.

Electrical Connections and Safety Verification

Electrical work must comply with BS 7671 wiring regulations. Condensate pumps typically operate on 230V AC supply via standard 13A plugs. Verify supply integrity using a multimeter before connecting equipment. Test RCD functionality if the circuit incorporates residual current protection.

Route power cables away from sharp edges and hot surfaces. Use cable clips to prevent sagging, which presents a professional appearance and prevents accidental disconnection. Never extend power cables using improper connectors—use appropriate junction boxes if cable lengthening proves necessary.

Testing and Commissioning

Systematic testing validates installation integrity before placing the system into service. Fill the tank reservoir slowly whilst observing for leaks at inlet connections. Continue filling until the float switch activates the pump mechanism. The pump should energise smoothly without excessive noise or vibration.

Observe the discharge line for proper water evacuation. Flow should appear steady without sputtering or surging. Verify that water reaches the intended termination point with adequate force. Weak discharge might indicate excessive head pressure or undersized pump selection.

Test the safety switch by continuing to fill beyond the normal activation point. The overflow prevention switch should trigger, stopping further inlet flow or activating an alarm, depending on system configuration. This failsafe mechanism prevents water damage during pump malfunction scenarios.

Functional Performance Verification

Allow the system to complete several automatic cycles whilst monitoring operation. The pump should activate at consistent water levels and deactivate cleanly without chattering. Cycling frequency depends on condensate production rates—excessively rapid cycling suggests undersized tank capacity or float switch misadjustment.

Check all pipe joints for weeping or seepage, particularly solvent-welded connections that require curing time for full strength development. Tighten compression fittings if minor leaks appear, but avoid over-tightening which might crack plastic components.

Common Installation Mistakes to Avoid

Even experienced engineers occasionally encounter pitfalls during condensate pump installations. Awareness of these common errors prevents costly callbacks and system failures.

Maintenance Protocols and Longevity

Regular maintenance preserves system reliability and extends operational lifespan. Quarterly inspections should include tank cleaning to remove accumulated sediment and biofilm. Disconnect electrical supply before accessing internal components—safety must never be compromised for convenience.

Remove and inspect the float switch mechanism for free movement. Mineral deposits or bacterial slime may impede float travel, causing erratic operation. Clean with mild detergent solution and rinse thoroughly before reassembly.

Examine pump impellers for debris accumulation or damage. Foreign objects occasionally enter through inlet connections, particularly during initial commissioning when construction debris might contaminate pipework. Flush the system thoroughly during initial fill to minimise this risk.

Seasonal Considerations for Pump Systems

Winter presents unique challenges in unheated spaces. Freezing temperatures may damage pump components and crack plastic housings. Insulate tanks and pipework in vulnerable locations, or install trace heating cables where freezing risks are substantial.

During extended shutdown periods, drain the system completely to prevent stagnant water degradation. Bacterial proliferation in standing water produces offensive odours and potential health concerns. A biocide treatment before shutdown provides additional protection, though thorough flushing before restart remains essential.

Troubleshooting Common Operational Issues

Understanding typical failure modes enables rapid diagnosis and remediation. Pumps failing to activate despite adequate water level suggest float switch malfunction or electrical supply interruption. Verify power continuity using a multimeter before condemning pump components.

Continuous pump operation without tank drainage indicates blockage, failed pump motor, or excessive discharge head. Inspect discharge pipework for kinks or obstructions. Verify check valve functionality—debris occasionally lodges in the valve seat, preventing proper closure.

Noisy operation typically stems from air ingestion, loose mountings, or impeller damage. Ensure inlet connections remain submerged during operation to prevent air entrainment. Tighten mounting fasteners and verify the pump sits level on its mounting surface.

Regulatory Compliance and Building Regulations

Condensate drainage installations must satisfy relevant building regulations, particularly regarding drainage connections and electrical safety. Consult local building control authorities when uncertainty exists about specific requirements. Part H of the Building Regulations addresses drainage and waste disposal, whilst Part P governs electrical installations.

Water Regulations prohibit potential contamination pathways between waste water and potable supplies. Maintain appropriate air gaps at discharge terminations to prevent backflow scenarios. Never directly connect condensate drainage to soil stacks without proper trap arrangements incorporating anti-siphon provisions.

Professional Installation Versus DIY Considerations

Whilst competent HVAC engineers routinely install condensate pump systems, complex installations benefit from specialist expertise. Multi-zone systems, commercial applications, or installations requiring extensive electrical work justify professional engagement to ensure compliance and reliability.

Documentation of installation procedures, including photographs and test results, provides valuable records for future maintenance and regulatory inspections. Maintain comprehensive commissioning sheets recording pump specifications, discharge head calculations, and performance verification results.

Condensate pump tank installation demands attention to detail, adherence to manufacturer specifications, and appreciation for the system's role in overall HVAC performance. Proper installation techniques, coupled with regular maintenance protocols, deliver reliable condensate management for years of trouble-free operation. The investment in quality components and meticulous installation practices pays dividends through reduced callback frequency and enhanced professional reputation amongst discerning clients who value engineering excellence.
