Essential Fixings & Supports for HVAC Installations 2026

As HVAC installations grow increasingly sophisticated in 2026, the foundational elements securing these systems often receive insufficient attention during specification and procurement stages. Yet the longevity, operational efficiency, and safety of any climate control installation fundamentally depends upon the integrity of its fixings and supports. This comprehensive examination explores the critical considerations surrounding mounting brackets, structural supports, and ancillary components that transform theoretical designs into robust, compliant installations.

The evolution of HVAC equipment has introduced lighter materials, higher vibration frequencies, and more compact configurations—each presenting distinct challenges for fixings selection. Contemporary refrigerant regulations and energy efficiency mandates have simultaneously increased operational pressures and thermal cycling, intensifying the mechanical stresses experienced by mounting assemblies. Understanding these dynamics separates perfunctory installations from those engineered for decades of reliable service.

Understanding Load Requirements and Structural Compatibility

The paramount consideration when selecting HVAC mounting solutions involves accurate load calculation. Static loads represent the equipment's inherent weight, whilst dynamic loads encompass operational vibrations, thermal expansion cycles, and environmental factors such as wind loading on external units. A condensing unit weighing 85 kilogrammes generates substantially greater forces during start-up cycles and refrigerant migration, necessitating safety factors typically ranging from 2.5 to 4.0 depending upon installation context.

Substrate analysis proves equally critical. Masonry walls, steel frames, timber joists, and concrete slabs each exhibit distinct load-bearing characteristics and require purpose-engineered fixing solutions. A 10-millimetre rawl bolt might offer exceptional pull-out resistance in dense concrete yet prove catastrophically inadequate in friable blockwork. Contemporary installations increasingly encounter composite substrates—insulated cladding systems, for instance—where load transfer mechanisms demand specialist through-fixings that penetrate to structural elements whilst maintaining thermal envelope integrity.

Material Selection for Longevity and Compliance

Corrosion resistance fundamentally determines the serviceable lifespan of mounting assemblies. External installations face relentless assault from precipitation, temperature fluctuations, and atmospheric pollutants. Coastal environments introduce chloride-laden aerosols that rapidly degrade inadequately protected ferrous materials. Hot-dip galvanised steel offers robust protection for many applications, whilst marine-grade stainless steel (typically 316 specification) becomes essential within three kilometres of coastlines.

Material compatibility extends beyond corrosion considerations. Dissimilar metals in contact generate galvanic cells when moisture bridges the junction, accelerating localised corrosion. Aluminium brackets supporting copper pipework require insulating barriers or alternative material specifications. The coefficient of thermal expansion similarly demands attention; mismatched materials experiencing daily temperature fluctuations generate cyclical stresses that fatigue fixing points over months and years.

Comprehensive Fixings and Supports Solutions

Specifying appropriate mounting hardware requires access to comprehensive component ranges engineered specifically for HVAC applications. At Airconspares.com, our Fixings & Supports collection provides HVAC engineers and installers with professional-grade mounting solutions designed to address the demanding requirements of contemporary climate control systems.

This curated range encompasses everything from vibration-isolated brackets for sensitive residential installations to heavy-duty structural supports for commercial plant rooms. Whether you're securing wall-mounted evaporators in retrofitted properties or anchoring rooftop condensing arrays, having access to purpose-engineered fixings eliminates the compromises inherent in adapting general construction hardware. The collection addresses both the mechanical and regulatory dimensions of compliant installations, ensuring your projects meet structural integrity standards whilst maintaining operational efficiency throughout their service life.

HVAC Mounting Brackets Selection Guide

Navigating the diverse landscape of mounting bracket configurations requires systematic evaluation of several interconnected parameters. This methodical approach ensures optimal component selection for each unique installation scenario.

Wall-Mounted Bracket Configurations

Wall brackets for split system evaporators and small condensing units typically employ cantilever designs with reinforcing gussets. The critical dimension involves the standoff distance—the gap between wall surface and equipment mounting plane. Insufficient standoff compromises airflow around heat exchangers and complicates pipework routing, whilst excessive projection introduces unnecessary bending moments at fixing points. Standard configurations range from 50 millimetres for compact units to 300 millimetres for larger assemblies requiring service access behind the equipment.

Adjustable brackets offer invaluable flexibility during installation, accommodating slight misalignments without necessitating additional wall penetrations. Slotted mounting holes or telescopic designs permit final positioning adjustments after initial fixing, particularly beneficial when aligning multiple units or compensating for substrate irregularities. However, adjustability mechanisms introduce additional failure points; locking mechanisms must positively secure under operational loads rather than relying solely on friction.

Floor and Roof Stand Configurations

Larger HVAC equipment invariably requires floor-mounted or roof-positioned stands that distribute loads across multiple fixing points. Fabricated steel chassis, extruded aluminium frames, and composite polymer bases each suit particular applications. Steel fabrications offer maximum strength-to-cost ratios for heavy commercial plant, accepting custom modifications for non-standard equipment footprints. Aluminium extrusions provide excellent corrosion resistance with reduced weight penalties, advantageous for rooftop installations where structural loading constraints exist.

Vibration isolation represents a critical function of floor stands, particularly in noise-sensitive environments. Elastomeric isolators, spring mounts, and inertia bases each address vibration transmission through distinct mechanisms. Spring isolators excel at low-frequency isolation for reciprocating compressors, whilst neoprene pads suffice for scroll compressor installations. Inertia bases incorporate mass to shift natural frequencies away from equipment operating ranges, preventing resonance that amplifies vibration transmission.

Ceiling and Suspended Mounting Systems

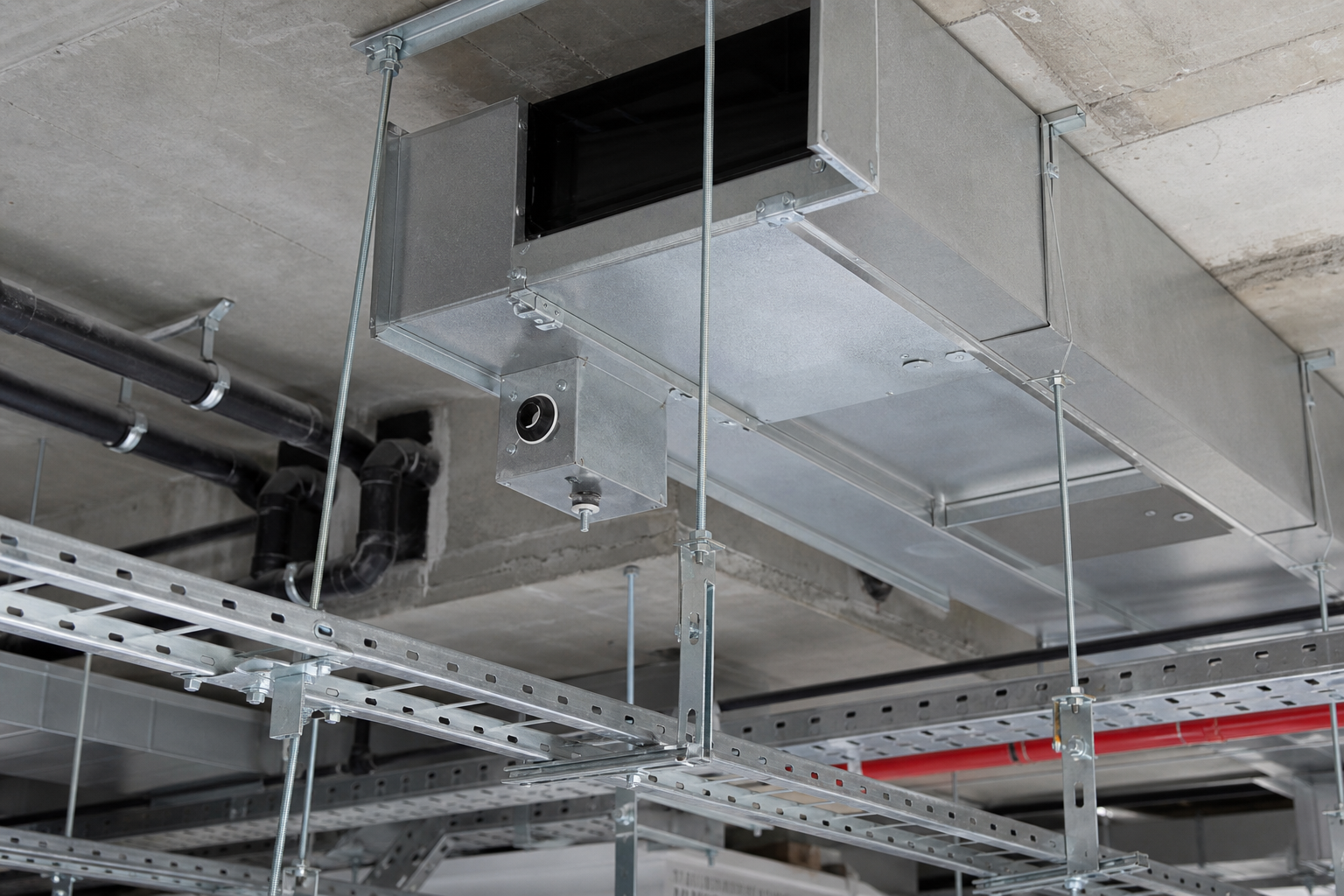

Ducted evaporators and air handling units frequently require suspended ceiling mounts or structural hangers. These installations demand rigorous attention to load paths and fixing integrity. Threaded rods connecting to structural elements must incorporate positive locking mechanisms—nyloc nuts or castellated nuts with split pins—preventing loosening under operational vibrations. Load ratings must account for dynamic amplification; equipment weighing 40 kilogrammes might generate effective loads exceeding 120 kilogrammes during fault conditions or maintenance activities.

Suspended installations present particular challenges regarding access for maintenance. Mounting systems incorporating quick-release mechanisms or swing-away configurations facilitate filter changes and coil cleaning without complete equipment removal. However, these convenience features must never compromise structural integrity; redundant safety mechanisms should prevent accidental release under load.

Anti-Vibration Technologies and Acoustic Considerations

Modern HVAC systems operate at higher efficiencies through increased rotational speeds and variable-frequency drives, both introducing complex vibration spectra. Inadequately isolated equipment transmits these vibrations through mounting structures, generating audible noise in occupied spaces and accelerating fatigue in building elements. Effective vibration isolation requires matching isolator characteristics to equipment operating frequencies.

Natural frequency calculations determine appropriate isolator specifications. The isolator-equipment system exhibits a resonant frequency determined by the combined mass and isolator spring rate. Effective isolation occurs only when operating frequencies exceed approximately 1.4 times the natural frequency; closer ratios risk amplification rather than attenuation. Selecting excessively soft isolators to maximise isolation effectiveness introduces stability concerns and excessive deflection under thermal cycling.

Regulatory Compliance and Safety Factors

HVAC installations in the United Kingdom must comply with Building Regulations, British Standards, and manufacturer specifications. Part A (Structure) stipulates that fixings must adequately support imposed loads without excessive deflection or failure. The Institution of Structural Engineers provides guidance on fixing design, typically requiring ultimate load capacity exceeding 2.5 times maximum anticipated service loads for non-redundant fixings.

Gas safety regulations introduce additional requirements where fixings support equipment containing refrigerants. Catastrophic fixing failure potentially ruptures refrigerant circuits, creating safety hazards and environmental releases. F-Gas regulations impose obligations to prevent refrigerant emissions, extending to ensuring mounting integrity throughout equipment service life. Documentation requirements increasingly demand traceability of fixing specifications, installation methodologies, and periodic inspections.

Installation Best Practices and Common Pitfalls

Even premium fixings perform inadequately when incorrectly installed. Drilling masonry substrates requires appropriate drill bit selection—percussion drills with carbide-tipped bits for concrete, avoiding hammer action in friable materials. Hole depth must accommodate the full embedment length of expansion anchors plus clearance for debris accumulation; shallow holes prevent complete anchor setting, drastically reducing pull-out resistance.

Torque specifications for mechanical fixings rarely receive adequate attention during installation. Under-tightening leaves assemblies vulnerable to loosening under vibration, whilst over-tightening damages threads, crushes substrates, or exceeds the elastic limit of fasteners. Torque wrenches calibrated for the specific fastener sizes eliminate guesswork, ensuring consistent, compliant installations.

Future-Proofing Installations for Evolving Technologies

HVAC technology continues advancing rapidly, with heat pump installations proliferating and refrigerant transitions ongoing. Mounting systems specified today should accommodate foreseeable equipment replacements without necessitating complete reinstallation. Standardised bolt patterns and adjustable configurations provide adaptability as equipment evolves.

Increasing equipment weights accompany efficiency improvements and integrated controls. A 2026 air-source heat pump might weigh 30% more than the 2020 equivalent serving identical capacity. Fixing specifications incorporating generous safety margins accommodate these trends without premature obsolescence. Similarly, provisions for additional pipework, electrical connections, and condensate drainage simplify future system modifications.

Frequently Asked Questions

What distinguishes HVAC-specific fixings from general construction hardware?

Purpose-engineered HVAC fixings incorporate features addressing the unique demands of climate control equipment: vibration resistance, corrosion protection suitable for refrigerant exposure, thermal cycling tolerance, and geometries accommodating common equipment configurations. General construction fixings lack these specialised characteristics, potentially compromising installation longevity and compliance.

How frequently should mounting assemblies undergo inspection?

Annual visual inspections suffice for most installations, examining for corrosion, loose fasteners, and structural degradation. Coastal locations, high-vibration applications, and critical installations merit six-monthly assessments. Comprehensive structural surveys every five years, potentially incorporating torque verification and substrate integrity testing, ensure continued compliance with safety standards.

Can existing fixings be reused when replacing HVAC equipment?

Reusing fixings introduces significant risks unless thorough assessment confirms their continued integrity. Corrosion, fatigue, and previous loading history compromise strength unpredictably. The modest cost of replacement fixings represents trivial insurance against catastrophic failure. When equipment weights or configurations differ substantially, complete fixing replacement becomes mandatory to ensure adequate load capacity and appropriate geometry.

What documentation should accompany fixing installations?

Professional installations should retain records specifying fixing types, quantities, locations, substrate conditions, torque values applied, and any special installation circumstances. Photographic documentation proves invaluable for future reference. These records demonstrate regulatory compliance, facilitate maintenance planning, and provide essential information for system modifications or expansions.

Conclusion

The fixings and supports securing HVAC installations represent far more than incidental components—they constitute the foundation upon which system reliability, safety, and longevity rest. Approaching their selection with the rigour accorded to equipment specification itself transforms installations from adequate to exceptional. As HVAC technologies advance and regulatory frameworks tighten, the criticality of proper mounting solutions only intensifies.

For HVAC engineers, installers, and refrigeration technicians across the United Kingdom, access to comprehensive, professional-grade fixings and supports removes the compromises that undermine installation quality. The intersection of material science, structural engineering, and HVAC expertise embodied in purpose-designed mounting solutions delivers tangible benefits: reduced callbacks, enhanced system performance, and installations that honour both regulatory obligations and professional standards. In an industry where reputation hinges upon every installation's enduring performance, the foundations quite literally matter.
