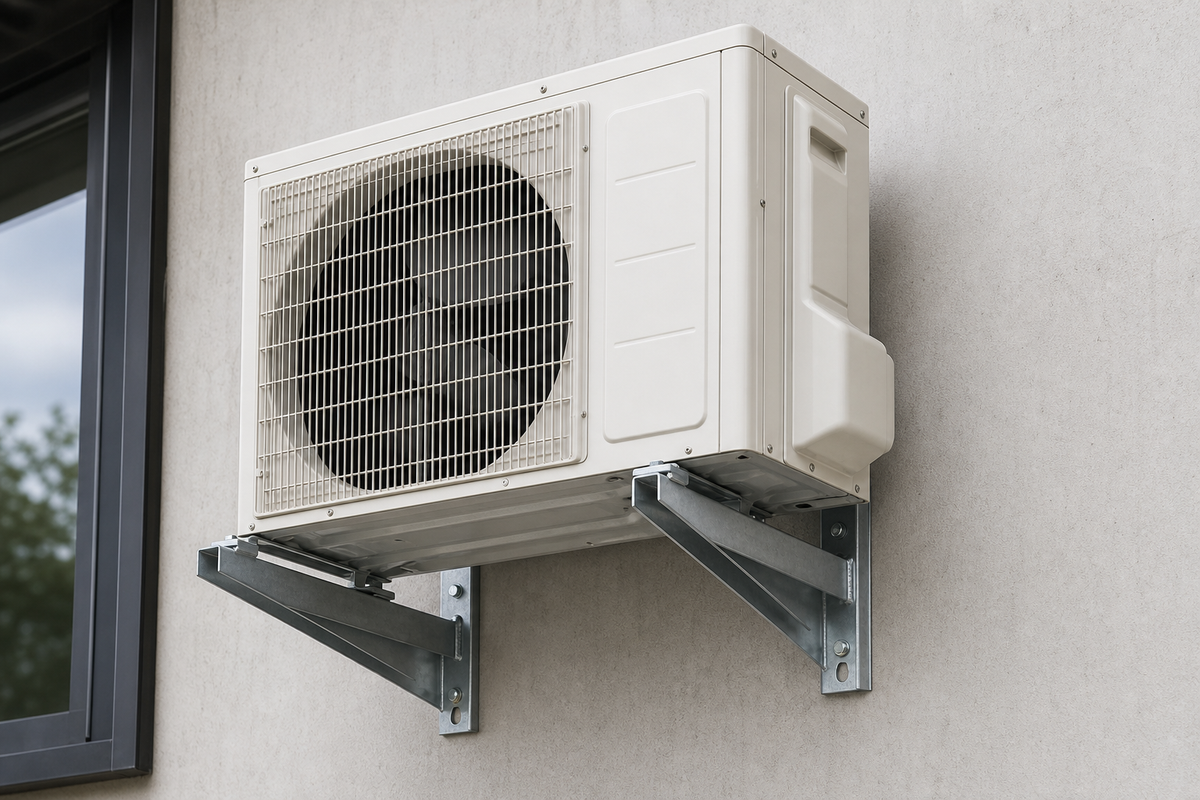

Heavy-Duty Wall Brackets for Air Con: Load Capacity Guide

Installing air conditioning units demands meticulous attention to structural integrity, particularly when selecting mounting solutions. The wall bracket serves as the critical intermediary between building fabric and expensive HVAC equipment, making its load-bearing capacity paramount to both safety and longevity. Understanding the nuances of load ratings, material specifications, and installation protocols separates professional installations from potentially catastrophic failures.

For HVAC engineers and refrigeration technicians, the consequences of inadequate bracket selection extend beyond equipment damage. Liability concerns, warranty invalidation, and compromised system efficiency all stem from improper mounting hardware choices. This comprehensive guide examines the technical considerations essential for air conditioning wall bracket installation, ensuring your projects meet rigorous industry standards.

Understanding Load Capacity Fundamentals

Load capacity represents the maximum weight a bracket can safely support under specified conditions. However, this seemingly straightforward metric encompasses multiple variables that professionals must evaluate. Static load differs significantly from dynamic load—the former representing stationary weight, whilst the latter accounts for vibrations, operational stresses, and environmental factors such as wind loading.

The critical distinction between working load limit (WLL) and ultimate tensile strength (UTS) often causes confusion. WLL indicates the maximum load for safe operation with appropriate safety factors incorporated, typically calculated as a fraction of the UTS. Professional installations should never approach the UTS, as this represents the failure threshold rather than operational parameters.

Material fatigue introduces another dimension to load capacity calculations. Repeated thermal expansion and contraction cycles, alongside constant vibration from compressor operation, gradually degrade bracket integrity. Quality brackets account for these cyclic stresses through conservative load ratings and superior metallurgy.

Safety Factors and Regulatory Compliance

Industry best practice dictates incorporating safety factors between 3:1 and 5:1, depending on installation environment and equipment criticality. A 50kg condensing unit should therefore utilise brackets rated for 150-250kg minimum. Building regulations and manufacturer specifications may mandate specific safety margins, making documentation review essential during the specification phase.

BS EN 1991 provides comprehensive guidance on structural loading, whilst manufacturer data sheets detail specific bracket capabilities. Cross-referencing these sources ensures compliance with both general construction standards and equipment-specific requirements.

Material Composition and Structural Integrity

The metallurgical properties of bracket materials fundamentally determine load-bearing capacity and environmental resistance. Mild steel brackets offer cost advantages but require robust protective coatings to prevent corrosion in external applications. Galvanised steel provides enhanced durability through zinc coating, whilst stainless steel grades (particularly 304 and 316) deliver superior corrosion resistance in coastal or industrial atmospheres.

Aluminium alloys present an interesting alternative, offering excellent strength-to-weight ratios and inherent corrosion resistance. However, galvanic compatibility must be considered when aluminium contacts dissimilar metals, as electrochemical reactions can compromise structural integrity over time.

Wall thickness and cross-sectional geometry significantly influence bracket strength. Box-section profiles typically outperform flat-bar designs of equivalent weight, distributing loads more effectively and resisting torsional forces. Reinforcement ribs and gussets further enhance rigidity, particularly important for larger condensing units.

Coating Technologies and Environmental Protection

Powder coating provides robust protection against weathering, available in various colours to match architectural aesthetics. The coating thickness and curing process directly impact longevity, with inferior applications degrading within months of exposure. Hot-dip galvanisation creates thicker, more durable zinc layers compared to electroplating, justifying premium pricing for demanding installations.

Marine-grade stainless steel becomes essential within five kilometres of coastline, where salt-laden atmospheres rapidly corrode standard materials. The initial investment proves economical when considering replacement costs and potential equipment damage from bracket failure.

Featured Solution: Brooklyn Wall Bracket Type 2

When specifications demand proven performance and regulatory compliance, the Brooklyn Wall Bracket Type 2 (S-211P) exemplifies professional-grade mounting hardware engineered for demanding HVAC applications. This bracket addresses the critical challenges discussed throughout this guide, offering substantial load capacity coupled with corrosion-resistant construction.

Manufactured to exacting standards, the S-211P bracket provides reliable support for condensing units up to substantial weights, incorporating safety margins that exceed minimum regulatory requirements. Its robust construction utilises quality materials designed to withstand the cyclic stresses inherent in air conditioning operation, from constant vibration to thermal expansion cycles.

The design incorporates features specifically beneficial for professional installers, including multiple fixing points that distribute loads effectively across the substrate. This proves particularly valuable when working with challenging wall constructions, allowing engineers to optimise anchor placement for maximum holding power.

For HVAC engineers prioritising installation quality and long-term reliability, specifying proven components like the Brooklyn Wall Bracket Type 2 demonstrates professional diligence whilst mitigating liability concerns. The bracket's compatibility with standard condensing unit mounting configurations streamlines installation procedures, reducing labour time without compromising structural integrity.

Substrate Assessment and Anchor Selection

Even the most robust bracket proves inadequate when affixed to unsuitable substrates. Comprehensive wall assessment precedes every professional air conditioning wall bracket installation, evaluating both surface conditions and underlying structural capacity. Masonry types vary dramatically in compressive strength—dense engineering bricks supporting substantially higher loads than soft heritage brickwork or aerated concrete blocks.

Cavity walls present particular challenges, as the outer leaf typically cannot support significant loads independently. Through-wall fixings that engage the inner structural leaf become necessary, requiring longer anchors and careful consideration of cavity width. Thermal bridging implications must also be evaluated, as metal fixings penetrating insulation layers create heat transfer pathways.

Substrate moisture content influences anchor performance significantly. Damp masonry reduces holding power and accelerates corrosion of ferrous fixings. Pre-installation moisture surveys identify problematic areas requiring remediation before bracket installation proceeds.

Mechanical Anchor Types and Applications

Chemical resin anchors excel in challenging substrates, distributing loads throughout the anchor hole rather than concentrating stresses at specific points. The resin bonds mechanically with both the substrate and threaded rod, creating exceptionally high pull-out resistance. Installation requires meticulous hole preparation—dust and debris contamination severely compromises bond strength.

Expansion anchors suit solid masonry and concrete applications, operating through radial forces that wedge against hole walls. Shield anchors and sleeve anchors represent common variants, each offering distinct advantages. Through-bolts provide maximum security for critical installations, particularly when brackets must support heavy condensing units in exposed locations.

Torque specifications must be observed rigorously during anchor installation. Over-tightening damages substrates and reduces holding capacity, whilst insufficient torque fails to develop full expansion or chemical bond. Calibrated torque wrenches become essential tools rather than optional luxuries.

Load Distribution and Multiple Bracket Configurations

Large condensing units frequently exceed single bracket capacity, necessitating multiple mounting points to distribute loads safely. Proper spacing ensures balanced weight distribution whilst avoiding stress concentration that could compromise wall integrity. Horizontal separation should position brackets to engage different vertical mortar courses when possible, preventing crack propagation along single planes of weakness.

Vertical alignment proves equally critical, as misaligned brackets induce torsional stresses during equipment mounting. Precision layout work using optical levels or laser alignment tools produces professional results and simplifies the actual installation process.

Vibration Isolation Considerations

Whilst not directly related to load capacity, vibration transmission through brackets affects both building occupants and equipment longevity. Resilient mounting pads between brackets and condensing units attenuate vibrations, reducing noise transmission through building structures. These isolation components must not compromise structural integrity—rubber mounting pads should be specified to maintain compression resistance under full equipment load.

Some advanced bracket systems incorporate integral vibration isolation, utilising elastomeric bushings at fixing points. These solutions prove particularly valuable in residential installations where noise complaints frequently arise from inadequate vibration control.

Environmental Loading Factors

Wind loading represents a frequently underestimated challenge in air conditioning wall bracket installation, particularly for equipment mounted on exposed elevations or at height. BS EN 1991-1-4 provides comprehensive wind load calculations, considering geographical location, building height, and topographical features. Condensing units present substantial surface areas to prevailing winds, generating significant lateral forces that brackets must resist.

Coastal installations face compounded challenges—salt-laden wind not only corrodes materials but often reaches higher velocities than inland locations. Bracket specifications must account for these harsh conditions through enhanced material grades and increased safety factors.

Snow and ice accumulation adds considerable weight to rooftop or elevated installations. Whilst condensing units typically shed snow relatively quickly, brackets supporting heat pump outdoor units may experience sustained loading during winter months. Regional snowfall data informs appropriate load capacity specifications for installations in areas experiencing significant winter weather.

Seismic Considerations

Although the United Kingdom experiences relatively minimal seismic activity compared to tectonically active regions, industrial installations and critical infrastructure increasingly incorporate seismic restraints. Bracket systems for these applications require additional lateral bracing to prevent equipment displacement during ground motion events.

Seismic brackets typically incorporate slotted mounting holes allowing controlled movement whilst preventing equipment detachment. This flexibility prevents stress concentration that could fracture rigid mounting systems during seismic events.

Installation Best Practices

Professional air conditioning wall bracket installation begins with thorough site survey and equipment specification review. Measuring condensing unit mounting hole patterns before bracket purchase prevents costly field modifications. Template fabrication streamlines the marking-out process, particularly when installing multiple identical units.

Pilot hole drilling demands precision—oversized holes reduce anchor effectiveness, whilst undersized holes risk substrate damage during expansion anchor installation. Hammer drills with depth stops ensure consistent hole depth, critical for chemical anchor applications where resin quantity must be carefully controlled.

Sequential tightening procedures prevent bracket distortion during installation. Snugging all fixings before final torquing distributes stresses evenly, whilst star patterns (for brackets with four or more fixings) prevent binding. Final torque application should proceed methodically using calibrated equipment, documenting values for quality assurance records.

Post-Installation Verification

Load testing validates installation integrity before mounting expensive HVAC equipment. Whilst full destructive testing proves impractical, applying test loads equivalent to 150% of anticipated equipment weight for sustained periods reveals installation deficiencies. Any movement, unusual sounds, or visible substrate damage necessitates remediation before proceeding.

Photographic documentation provides valuable records for warranty purposes and future maintenance reference. Images should capture bracket positioning, fixing details, and substrate conditions, creating comprehensive installation records.

Common Installation Errors and Remediation

Insufficient substrate preparation ranks amongst the most prevalent installation failures. Drilling through painted or rendered surfaces without subsequent hole cleaning leaves debris that compromises anchor performance. Brush-and-blow cleaning methods prove inadequate for chemical anchors—specialised vacuum extraction tools ensure proper hole preparation.

Anchor depth miscalculation frequently occurs when installers fail to account for render thickness or assume consistent substrate density. Probing suspect areas before finalising bracket positions identifies hidden voids or weak materials requiring alternative fixing strategies.

Mixing incompatible materials creates galvanic corrosion cells that rapidly degrade installation integrity. Stainless steel brackets require stainless steel fixings—utilising mild steel anchors introduces a sacrificial anode that corrodes preferentially, eventually failing. Similarly, aluminium brackets contacting steel fixings experience accelerated corrosion unless properly isolated.

Frequently Asked Questions

How do I calculate the required bracket load capacity for my installation?

Sum the condensing unit weight (consult manufacturer data plates), refrigerant charge weight, and any accumulated environmental loading such as snow or ice. Multiply this total by your chosen safety factor (minimum 3:1 for standard installations, 5:1 for critical applications or challenging environments). The resulting figure represents your minimum required bracket capacity.

Can I install heavy-duty brackets on cavity walls?

Cavity wall installations require through-wall fixings that engage the structural inner leaf, as the outer leaf lacks sufficient load-bearing capacity for most condensing units. Specialist cavity wall anchors or through-bolts secured to the inner leaf provide adequate support when properly installed. Always verify inner leaf material and condition before proceeding.

What bracket spacing is optimal for large condensing units?

Bracket spacing should distribute loads evenly whilst engaging sound substrate areas. Typically, brackets positioned at approximately one-third points along the unit width provide balanced support. For units exceeding 80kg, consider three or more brackets to prevent excessive point loading. Always consult equipment manufacturer specifications for mounting recommendations specific to your model.

How frequently should bracket condition be inspected?

Annual inspections suffice for standard installations in benign environments, examining fixings for tightness, brackets for corrosion or deformation, and substrates for cracking or deterioration. Coastal locations, industrial atmospheres, or installations subject to high vibration warrant six-monthly inspections. Immediate inspection following severe weather events or seismic activity proves prudent regardless of scheduled maintenance intervals.

Long-Term Maintenance and Monitoring

Proactive maintenance extends bracket service life significantly whilst preventing catastrophic failures. Regular inspections should assess fixing torque, substrate condition around anchors, and bracket surface condition for corrosion indicators. Touch-up painting of minor coating damage prevents accelerated deterioration, whilst wholesale corrosion necessitates bracket replacement.

Vibration analysis identifies developing problems before visible symptoms appear. Excessive vibration may indicate loose fixings, degraded isolation components, or compressor issues—all requiring prompt attention to prevent secondary damage.

Documentation proves invaluable for tracking bracket condition over time. Recording inspection findings, maintenance activities, and any observed changes creates historical context that aids in predicting service life and planning replacements proactively.

Specification and Procurement Considerations

When sourcing brackets for professional installations, prioritise suppliers offering comprehensive technical documentation including load testing certificates, material specifications, and installation guidance. Airconspares.com provides HVAC engineers with access to quality mounting hardware backed by technical support, ensuring installations meet rigorous professional standards.

Beware of uncertified brackets lacking verifiable load ratings—the modest cost savings prove illusory when considering liability exposure and potential equipment damage. Reputable suppliers maintain consistent stock of proven products, eliminating project delays whilst ensuring replacement parts availability for future maintenance.

Batch consistency matters particularly for commercial projects involving multiple identical installations. Sourcing all brackets from a single production batch ensures uniform performance characteristics and simplifies quality assurance procedures.

Cost-Benefit Analysis of Premium Brackets

Initial procurement costs represent a minor fraction of total installation expenses when labour, equipment, and access costs are considered. Premium brackets offering enhanced corrosion resistance and higher safety margins deliver superior value through extended service life and reduced maintenance requirements.

Calculate total cost of ownership rather than focusing solely on purchase price. A bracket lasting twenty years without maintenance significantly outperforms a cheaper alternative requiring replacement after five years, particularly when considering access equipment costs and business disruption for bracket replacement.

Professional reputation depends upon installation longevity—callbacks for failed brackets damage customer relationships and erode profit margins through warranty work. Specifying quality components protects both immediate project success and long-term business reputation.
