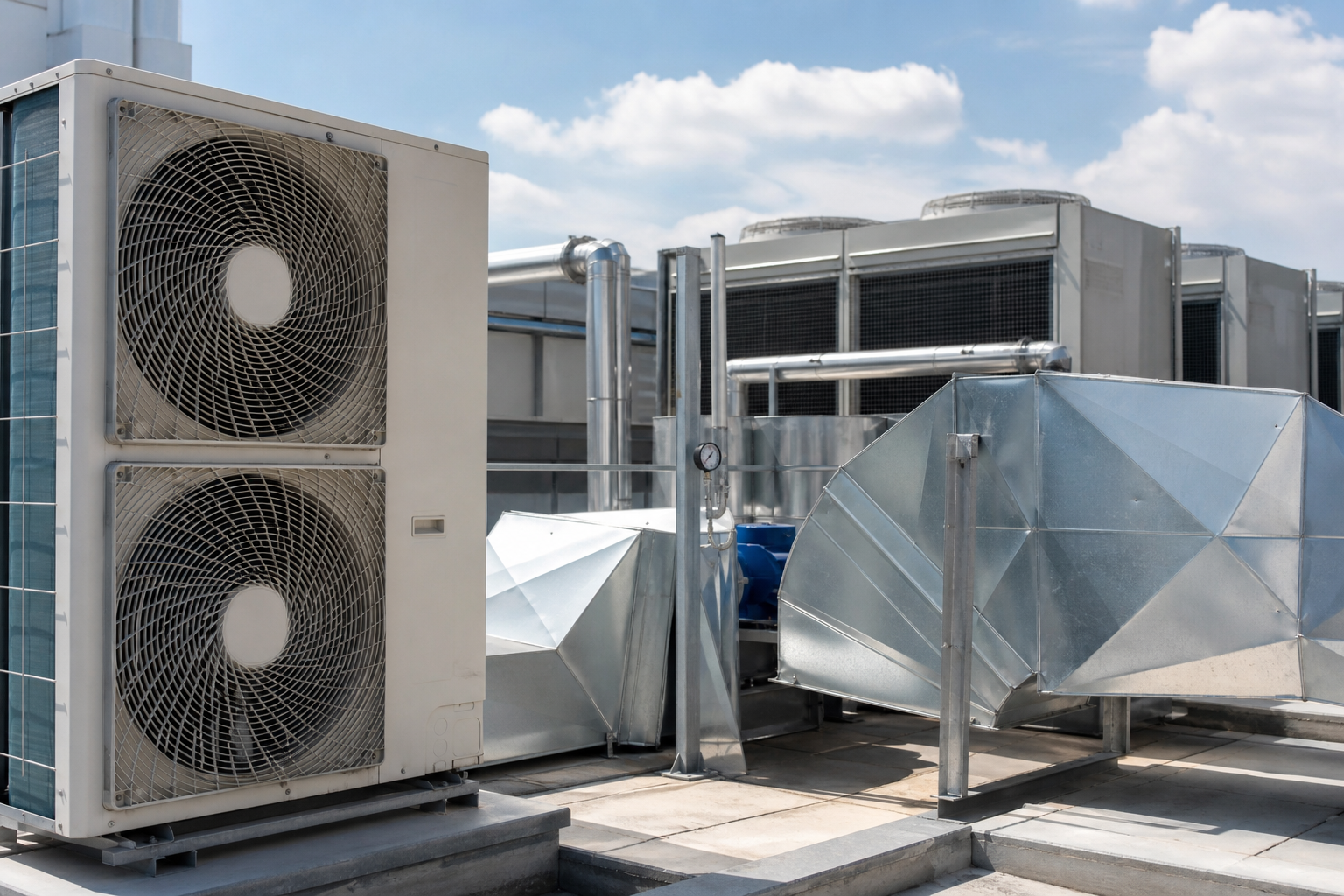

HVAC Components Explained: Engineer's Reference

Understanding the intricate architecture of heating, ventilation, and air conditioning systems requires comprehensive knowledge of each constituent element. For HVAC engineers and refrigeration technicians, familiarity with these components transcends basic identification—it encompasses understanding operational principles, failure modes, and maintenance protocols that ensure optimal system performance.

Primary Heat Exchange Components

The thermal transfer apparatus forms the nucleus of any climate control system. These sophisticated devices facilitate the fundamental thermodynamic processes that enable temperature regulation within conditioned spaces.

Evaporator Coils and Their Operational Dynamics

Evaporator coils serve as the primary heat absorption mechanism within refrigeration circuits. Positioned within the air handling unit or furnace plenum, these serpentine copper or aluminium assemblies enable refrigerant phase transition from liquid to vapour. The latent heat absorption during this metamorphosis extracts thermal energy from the surrounding air stream.

Modern evaporator configurations incorporate enhanced surface geometries—microchannel designs, louvred fins, and hydrophilic coatings—to maximise heat transfer coefficients whilst minimising pressure drop penalties. Corrosion-resistant treatments extend operational longevity in harsh environments where condensate acidity or airborne contaminants accelerate degradation.

Condenser Assemblies in Refrigeration Cycles

Condenser units reject absorbed heat to the ambient environment, completing the thermodynamic circuit. Air-cooled variants employ finned-tube heat exchangers with axial or centrifugal fans, whilst water-cooled configurations utilise shell-and-tube or plate heat exchangers for superior thermal efficiency.

The condensation process transforms high-pressure superheated vapour into subcooled liquid refrigerant. Proper subcooling margins—typically 5-15°C below saturation temperature—ensure adequate liquid refrigerant supply to expansion devices whilst preventing flash gas formation in liquid lines.

Compression and Expansion Mechanisms

Pressure differential creation and regulation constitute essential functions within vapour-compression cycles. These mechanical and thermal devices manipulate refrigerant state properties to enable continuous heat transfer.

Compressor Technologies and Applications

Compressors elevate refrigerant pressure and temperature, providing the driving force for refrigerant circulation. Reciprocating, scroll, rotary, screw, and centrifugal variants each offer distinct operational characteristics suited to specific capacity ranges and application requirements.

Variable-speed compressor technology, enabled through inverter-driven motors, permits precise capacity modulation matching thermal loads. This continuous adjustment eliminates the thermal cycling inherent in fixed-speed systems, improving energy efficiency and occupant comfort whilst reducing mechanical wear.

Expansion Valve Types and Selection Criteria

Expansion devices regulate refrigerant flow into evaporator coils whilst reducing pressure to facilitate evaporation. Thermostatic expansion valves (TXVs) employ bulb-sensing mechanisms to maintain constant superheat, ensuring complete evaporation without excessive superheating that reduces capacity.

Electronic expansion valves (EEVs) provide superior control precision through stepper motor actuation responding to multiple system parameters. Fixed orifices and capillary tubes serve simpler systems where load variation remains minimal, though they sacrifice adaptability for cost reduction and mechanical simplicity.

Air Distribution and Movement Components

Effective air circulation ensures uniform temperature distribution and adequate ventilation rates throughout conditioned spaces. These components govern airflow patterns, velocity profiles, and delivery pressure.

Fan Motor Configurations and Efficiency Standards

Blower assemblies comprise motor, impeller, and housing elements working synergistically to overcome system resistance whilst delivering specified airflow rates. Electronically commutated motors (ECMs) have supplanted permanent split capacitor (PSC) motors in premium applications, offering substantial energy savings through variable-speed operation and improved power factor.

Forward-curved, backward-inclined, and airfoil impeller designs each present unique pressure-flow characteristics. Backward-inclined configurations demonstrate non-overloading power characteristics and superior efficiency at design conditions, making them preferable for commercial air handling units.

Ductwork and Airflow Control Devices

Distribution networks constructed from galvanised steel, aluminium, or flexible materials convey conditioned air to terminal devices. Proper sizing according to friction rate methodologies prevents excessive velocity noise and pressure losses that compromise system performance.

Dampers—whether manual balancing, motorised zone control, or fire/smoke varieties—regulate airflow distribution and provide safety functionality. Variable air volume (VAV) terminal units incorporate dampers with reheat coils or fan-powered configurations to maintain space conditions across varying load profiles.

Control Systems and Protective Devices

Automated regulation and safeguarding mechanisms ensure reliable operation within design parameters whilst protecting expensive capital equipment from destructive operating conditions.

Thermostats and Temperature Sensing Elements

Temperature controllers initiate and terminate system operation based on space conditions. Whilst mechanical bimetallic devices remain viable in basic applications, digital programmable and smart thermostats deliver enhanced functionality including multi-stage control, adaptive algorithms, and remote accessibility.

Sensor placement critically influences control accuracy. Locations should avoid direct sunlight, drafts, heat-generating appliances, and exterior walls to obtain representative space temperature readings that prevent short cycling or inadequate conditioning.

Safety Controls and Monitoring Instrumentation

Protective devices prevent catastrophic failures resulting from abnormal operating conditions. High and low pressure switches, oil safety controls, motor overloads, and freeze stats interrupt operation when parameters exceed safe thresholds.

Electrical Components and Starting Apparatus

Electrical infrastructure supplies motive power to motors and controls whilst managing starting inrush currents that can substantially exceed running amperage.

Capacitors and Their Critical Functions

Run capacitors maintain phase displacement in single-phase motors, improving efficiency and power factor during continuous operation. Start capacitors provide momentary torque multiplication during acceleration, disconnecting via potential relay or solid-state switch once the motor reaches operational speed.

Capacitor failure represents a common service issue. Bulging cases, elevated temperatures, or diminished capacitance values—measurable via capacitance metres—indicate replacement necessity. Proper microfarad rating and voltage specification ensure compatible replacement, as undersized capacitors cause insufficient starting torque whilst oversized variants stress motor windings.

Contactors and Relay Mechanisms

Electromagnetic contactors switch compressor and fan motor circuits under control signal command. These heavy-duty switching devices manage substantial inductive loads through robust silver-cadmium or tungsten contact materials rated for hundreds of thousands of switching cycles.

Control relays facilitate logic sequences, interlock functions, and low-voltage switching of auxiliary circuits. Time-delay relays prevent rapid cycling, manage staged equipment operation, and coordinate sequenced starts that prevent excessive electrical demand surges.

Refrigerant Circuit Accessories

Ancillary components enhance system reliability, improve efficiency, and facilitate service procedures. Though individually modest, these elements collectively ensure proper refrigerant management and system protection.

Filter Driers and Moisture Control

Moisture contamination wreaks havoc within refrigeration systems, causing acid formation, copper plating, ice formation at expansion devices, and lubricant degradation. Filter driers containing molecular sieve desiccants and mechanical filtration media remove water vapour and particulate contaminants.

Suction line filter driers protect compressors following motor burnouts, whilst liquid line variants provide standard system protection. Periodic replacement based on pressure drop measurements or manufacturer recommendations maintains filtration effectiveness as desiccant capacity becomes exhausted.

Service Valves and Access Points

Schrader ports, ball valves, and service stems enable refrigerant charging, pressure measurement, and system evacuation without refrigerant loss. Core depressors within manifold gauge hoses actuate valve cores, whilst flare and brazed connections ensure leak-free interfaces.

How Do HVAC Components Work Together?

System integration transforms individual components into cohesive climate control apparatus. The compressor initiates refrigerant circulation, elevating low-pressure vapour to high-pressure superheated gas. This energised refrigerant flows to the condenser where heat rejection occurs, transitioning the refrigerant to subcooled liquid state.

Following condensation, the expansion device meters refrigerant into the evaporator at reduced pressure, enabling evaporation and heat absorption from the air stream. Blower assemblies circulate air across the evaporator coil, delivering cooled air to occupied spaces through distribution networks. Control systems orchestrate component operation based on temperature sensors, whilst protective devices monitor operating parameters to prevent damage.

This continuous cycle—compression, condensation, expansion, evaporation—repeats thousands of times daily, maintaining comfort conditions through precise thermal energy manipulation. Understanding each component's contribution to this integrated process enables effective troubleshooting, preventive maintenance, and system optimisation.

Why Component Quality Matters for System Longevity

Specification-grade components demonstrate superior materials, tighter manufacturing tolerances, and rigorous quality assurance compared to economy alternatives. Premium compressors incorporate enhanced bearing systems, improved motor insulation classes, and robust crankcase heaters that extend operational life in demanding applications.

Sourcing HVAC components from established suppliers ensures genuine manufacturer parts with verified performance characteristics. Counterfeit or substandard components may exhibit inadequate thermal ratings, inferior materials prone to premature failure, or dimensional variances preventing proper installation.

For HVAC engineers and refrigeration technicians requiring reliable stock and fast delivery across the UK, partnering with reputable suppliers guarantees access to quality air conditioning spares, refrigeration components, and installation supplies. Competitive pricing need not compromise component integrity when sourcing from distributors maintaining comprehensive inventory of capacitors, compressors, fan motors, and HVAC tools suitable for commercial and industrial applications.
