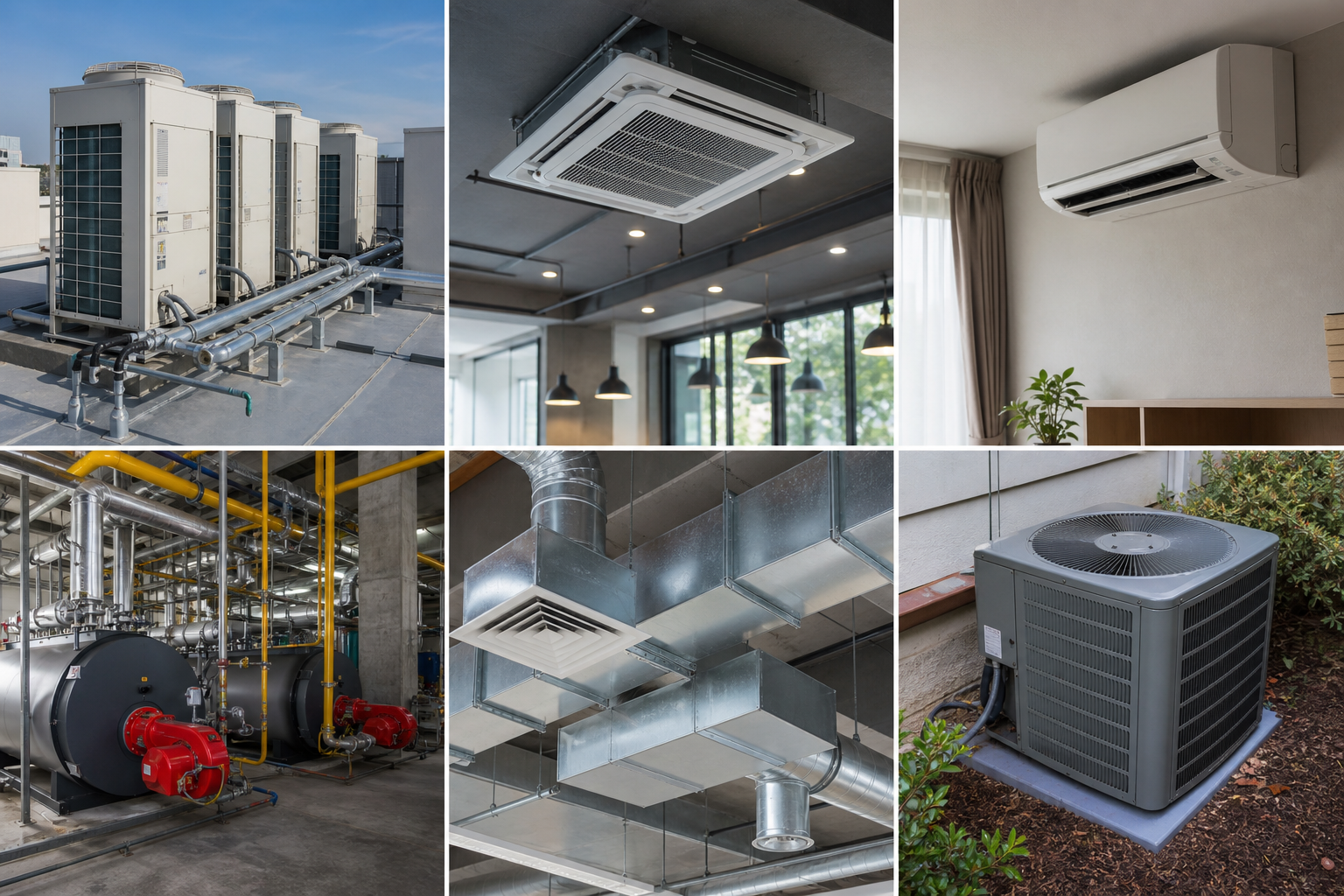

Selecting the appropriate HVAC configuration represents one of the most consequential decisions facing engineers during building design and refurbishment projects. Each system topology offers distinct operational characteristics, energy profiles, and maintenance requirements that fundamentally influence long-term performance and client satisfaction. This comprehensive analysis examines the principal system architectures employed across commercial and industrial applications, equipping HVAC professionals with the technical knowledge necessary for specification excellence.
Split System Configurations
Split systems remain the predominant choice for small to medium-scale installations, characterised by their bifurcated design separating indoor and outdoor components. The evaporator coil and air handling apparatus reside within the conditioned space, whilst the condensing unit operates externally, connected via refrigerant pipework.
These arrangements excel in scenarios demanding independent zone control without the spatial footprint of centralised plant. Installation flexibility represents a primary advantage—engineers can position outdoor units on rooftops, ground-level pads, or wall-mounted brackets depending on architectural constraints. The refrigerant lines typically extend up to 30 metres, though performance degradation occurs beyond manufacturer-specified distances.
Maintenance accessibility proves straightforward, as technicians can service components independently. However, multiple split units introduce complexity in commercial settings where dozens of outdoor condensers may populate roof spaces. Refrigerant charge management becomes critical; each circuit requires individual leak testing and pressure verification during commissioning and routine inspections.
Packaged Unit Systems
Packaged systems consolidate all refrigeration components—compressor, condenser, evaporator, and expansion device—within a singular enclosure. Rooftop configurations dominate commercial applications, delivering conditioned air through ductwork penetrating the building envelope.
The unified construction simplifies installation logistics considerably. A single crane lift positions the entire apparatus, eliminating the refrigerant pipework runs inherent to split configurations. This monolithic approach reduces potential leak points and streamlines commissioning procedures. Engineers favour packaged units for retail premises, industrial warehouses, and educational facilities where roof access permits straightforward maintenance protocols.
Thermal efficiency varies substantially across packaged unit classifications. Premium models incorporate variable-speed compressors and electronically commutated motors, achieving seasonal energy efficiency ratios exceeding standard offerings by 20-30%. Conversely, budget iterations utilise single-stage compression and fixed-speed fans, resulting in pronounced cycling losses during partial load conditions.
Variable Refrigerant Flow Technology
VRF systems represent sophisticated heat pump networks capable of simultaneous heating and cooling across disparate zones. A singular outdoor unit serves numerous indoor fan coil terminals through branched refrigerant distribution, with electronic expansion valves modulating refrigerant mass flow to each evaporator based on thermal demand.
Operational Characteristics
The capacity modulation inherent to VRF technology delivers exceptional part-load efficiency. Inverter-driven compressors adjust rotational velocity continuously, matching output precisely to instantaneous requirements rather than cycling on-off like conventional systems. This granular control eliminates the temperature fluctuations and energy wastage associated with binary operation.
Heat recovery variants enable remarkable operational flexibility. Refrigerant extracted from zones requiring cooling transfers thermal energy to spaces demanding heating, effectively recycling what conventional systems reject to atmosphere. This simultaneous mode proves particularly advantageous in mixed-use developments where perimeter offices require warming whilst internal server rooms need continuous cooling.
Installation Considerations
Refrigerant pipework complexity escalates substantially compared to simpler topologies. Branch selectors, refnet joints, and numerous connection points demand meticulous brazing technique and nitrogen purging throughout fabrication. Pipe sizing calculations require specialist software accounting for equivalent lengths, elevation changes, and refrigerant charge limitations.
Commissioning procedures extend beyond basic split systems. Address assignment for each indoor unit, refrigerant charge verification across extensive pipework networks, and control system programming necessitate manufacturer-certified technicians. However, the operational savings typically recover the premium installation investment within 3-5 years for appropriate applications.
Chilled Water Plant Configurations
Large-scale commercial and industrial facilities frequently employ centralised chiller plant distributing thermal energy via hydronic circuits. Water-cooled or air-cooled chillers generate chilled water—typically 6-12°C supply temperature—circulated to air handling units, fan coil terminals, or chilled beams throughout the building.
This decoupled arrangement separates refrigeration machinery from conditioned spaces entirely. Maintenance teams access all primary plant within dedicated mechanical rooms, avoiding disruption to occupied areas. System capacity scales efficiently; additional chillers operate in parallel during peak demand periods, with lead-lag sequencing optimising efficiency across varying loads.
Chilled water systems offer unparalleled flexibility for phased expansion and equipment replacement without wholesale system redesign—a critical advantage for facilities with evolving thermal requirements.
Hydraulic design requires careful consideration of pump selection, pipe sizing, and pressure drop calculations. Primary-secondary pumping arrangements decouple production from distribution, enabling chiller operation independent of variable terminal loads. Variable-speed drives on circulation pumps reduce parasitic energy consumption substantially compared to constant-volume configurations.
Direct Expansion Versus Hydronic Distribution
The fundamental distinction between DX and chilled water systems influences myriad downstream design decisions. Direct expansion distributes refrigerant directly to cooling coils, whilst hydronic systems employ water as an intermediate heat transfer medium.
| Parameter | Direct Expansion | Chilled Water |
|---|---|---|
| Pipe Diameter | Small (15-54mm typical) | Large (50-300mm typical) |
| Maximum Distance | 50-150m depending on system | Hundreds of metres practical |
| Refrigerant Charge | Distributed throughout building | Contained within plant room |
| Response Time | Rapid (minutes) | Slower (thermal mass effects) |
| Maintenance Access | Multiple locations required | Centralised plant room |
Refrigerant safety regulations increasingly influence system selection. F-Gas legislation mandates leak detection and routine inspections for systems containing charges exceeding specified thresholds. Centralised chiller plant concentrates refrigerant inventory within monitored mechanical spaces, whereas distributed DX systems position refrigerant throughout occupied zones, potentially triggering more stringent compliance requirements.
Heat Pump Reversibility
Reversible heat pumps provide both heating and cooling functionality through refrigeration cycle inversion via four-way valves. During heating mode, the outdoor coil becomes the evaporator whilst the indoor coil functions as the condenser, effectively pumping thermal energy from external air into the conditioned space.
Coefficient of performance for heating typically ranges from 3.0-4.5, meaning each kilowatt of electrical input delivers 3-4.5 kilowatts of thermal output. This thermodynamic advantage over resistive electric heating yields substantial operational cost reductions, particularly in moderate climates where ambient temperatures remain above freezing during heating seasons.
Defrost cycling represents an inevitable operational reality. When outdoor temperatures drop below approximately 5°C with elevated humidity, frost accumulates on external coils, impeding heat transfer. Automated defrost sequences temporarily reverse refrigeration flow, melting accumulated ice at the expense of brief heating interruptions. Advanced systems incorporate demand-based defrost algorithms minimising unnecessary cycles.
Specialist Applications and Emerging Technologies
Specific operational environments demand tailored system topologies. Clean rooms require 100% outdoor air systems with multi-stage filtration, precluding recirculation-based configurations. Data centres increasingly adopt direct liquid cooling, circulating dielectric fluids through cold plates mounted directly to processors, bypassing air-side heat exchange entirely.
Desiccant-enhanced cooling addresses latent loads independently from sensible cooling, particularly advantageous in humid climates or applications with substantial moisture generation. Rotating desiccant wheels absorb moisture from supply airstreams, with separate regeneration cycles using waste heat or natural gas burners to desorb accumulated water vapour.
System Selection Criteria for Engineering Specifications
Optimal system selection synthesises multiple engineering and commercial parameters. Initial capital expenditure represents merely one component; lifecycle cost analysis must account for projected energy consumption, maintenance labour requirements, equipment longevity, and replacement part availability.
Consider these fundamental questions during specification development:
- What spatial constraints exist for indoor and outdoor equipment placement?
- Does the application require simultaneous heating and cooling capabilities?
- What level of zone control granularity do occupants demand?
- Are maintenance personnel trained for complex refrigeration systems or basic mechanical tasks?
- What refrigerant safety compliance obligations apply to the building classification?
- Does the electrical infrastructure support high inrush currents from large compressors?
Building usage patterns profoundly influence appropriate topology. Intermittent occupancy favours rapid response systems like split units over high-thermal-mass chilled water configurations. Conversely, facilities with stable baseloads benefit from the superior part-load efficiency of variable-speed centralised plant.
Procurement and Component Sourcing
Regardless of system topology selected, reliable component availability ensures minimal downtime during maintenance and emergency repairs. HVAC engineers require access to quality spares—from capacitors and contactors to compressors and expansion valves—with delivery timescales compatible with service level agreements.
Establishing relationships with specialist suppliers provides access to technical support beyond mere component supply. Refrigeration circuit diagnostics, electrical troubleshooting guidance, and compatibility verification for replacement parts accelerate fault resolution, particularly for less-common equipment manufacturers or legacy installations.
The engineering profession demands continuous learning as system technologies evolve. Understanding the operational nuances, installation complexities, and maintenance implications of each HVAC topology empowers informed specification decisions that optimise building performance throughout decades of service life. Whether specifying compact split systems for retail fit-outs or designing centralised chiller plant for hospital complexes, matching system characteristics to application requirements remains the cornerstone of engineering excellence.
