HVAC Troubleshooting Tips: Diagnosing Common System Failures

When an HVAC system malfunctions, the resulting downtime can prove costly for both residential and commercial properties. As professional engineers and technicians, developing a systematic approach to diagnosing common failures not only expedites repairs but also enhances client satisfaction and operational efficiency. This comprehensive guide presents proven troubleshooting methodologies that will sharpen your diagnostic acumen whilst minimising unnecessary component replacements.

Understanding System Diagnostics Fundamentals

Effective troubleshooting begins with a thorough comprehension of how refrigeration cycles and air distribution systems function cohesively. Before examining specific failures, establishing a baseline understanding of normal operating parameters proves essential. Monitoring superheat and subcooling values, measuring voltage and amperage draws, and assessing airflow characteristics form the cornerstone of accurate diagnostics.

Modern HVAC systems incorporate increasingly sophisticated controls and sensors, yet the fundamental principles remain unchanged. Refrigerant must circulate properly, air must move efficiently across heat exchangers, and electrical components must receive appropriate power. When any of these elements falters, cascading failures can obscure the root cause without methodical investigation.

No Cooling or Heating Output

Perhaps the most common complaint engineers encounter involves complete system inoperability. This symptom often stems from electrical issues rather than mechanical failures, making it imperative to verify power supply before condemning components.

Thermostat and Control Verification

Begin diagnostics by confirming thermostat functionality and proper wiring connections. Miswired or incorrectly configured thermostats can prevent systems from initiating cooling or heating cycles. Check the voltage between the R and C terminals to ensure the transformer supplies adequate power, typically 24VAC for residential applications. Inspect wire terminations for looseness or corrosion that might create intermittent connectivity.

Many service calls result from simple programming errors or depleted batteries in wireless thermostats. Verify the thermostat registers the correct mode (cooling versus heating) and that temperature differentials exceed the system's deadband settings.

Electrical Supply Examination

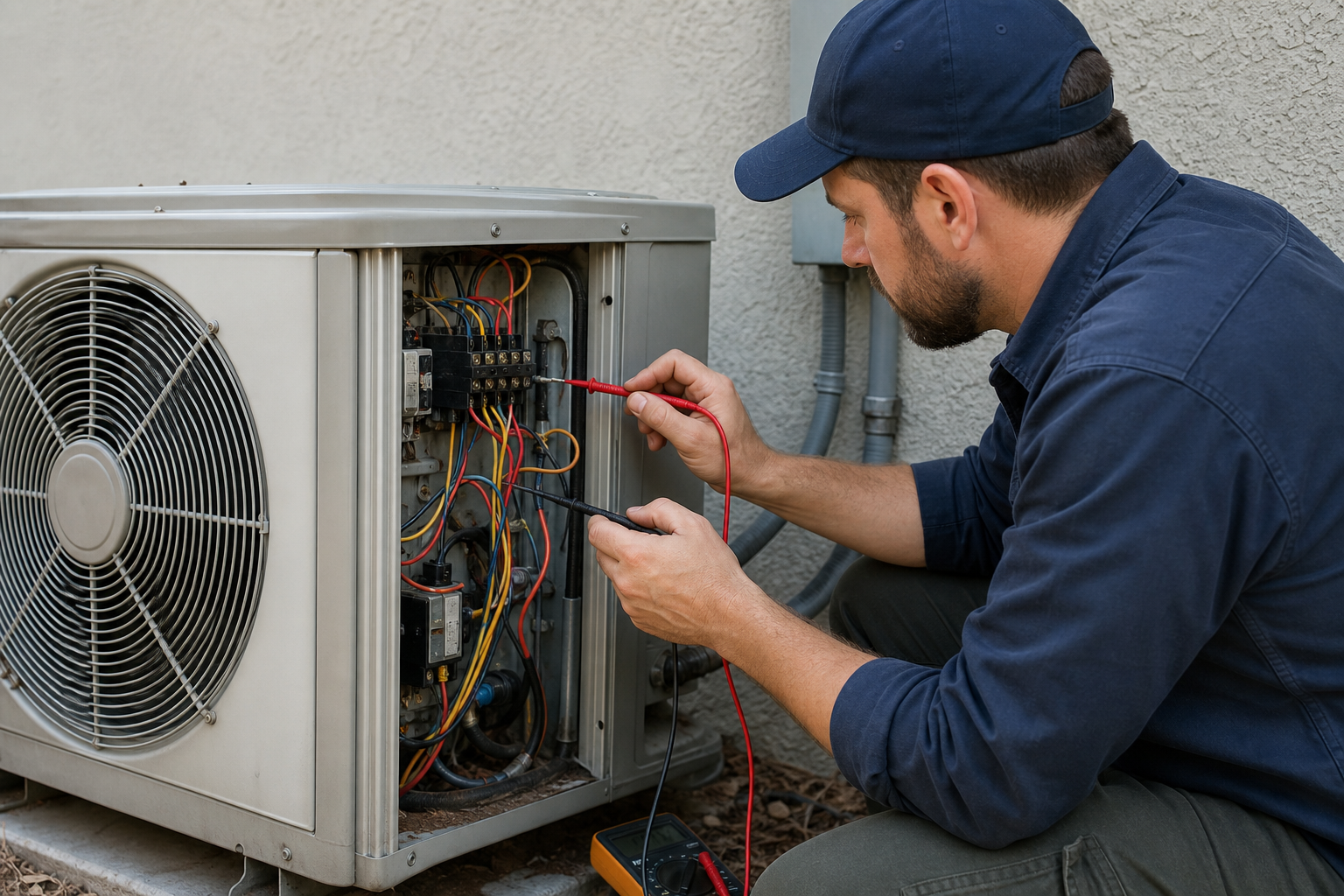

Proceed to the disconnect switch and circuit breakers, verifying that all safety disconnects remain engaged and fuses show continuity. Utilise a multimeter to measure voltage at various points throughout the electrical pathway, identifying whether the interruption occurs upstream or within the unit itself.

Capacitors frequently fail, particularly in systems subjected to frequent cycling or extreme ambient conditions. A bulging or leaking capacitor warrants immediate replacement. Test capacitance values against the nameplate specifications using a capacitor tester rather than relying solely on visual inspection, as internal degradation may not manifest externally.

Insufficient Airflow Challenges

Restricted airflow degrades system performance substantially, forcing compressors to work harder whilst delivering diminished comfort. This issue manifests through elevated energy consumption, frozen evaporator coils, or uneven temperature distribution throughout the conditioned space.

Filter and Ductwork Assessment

Commence with the most straightforward potential culprit: contaminated air filters. Even partial occlusion significantly impedes airflow, reducing system efficiency by 15-25%. Examine filters for loading with particulate matter, and recommend appropriate replacement intervals based on environmental conditions.

Ductwork assessment requires more intensive investigation. Disconnected or collapsed ducts, particularly in unconditioned spaces like attics or crawlspaces, create substantial performance deficiencies. Measure static pressure across the system using a manometer, comparing readings against manufacturer specifications to identify restriction points.

Blower Motor and Fan Complications

Blower motors occasionally fail due to bearing deterioration, capacitor degradation, or control board malfunctions. Listen for unusual noises such as squealing or grinding that indicate bearing failure. Measure amperage draw against the motor nameplate rating; excessive current suggests mechanical binding whilst insufficient amperage may indicate a failing capacitor or winding issues.

Variable-speed blower motors present unique diagnostic challenges. These motors rely on control modules that communicate with the system's main board. Diagnostic fault codes can expedite identification of communication errors or motor faults when accessed through the manufacturer's service interface.

Refrigerant-Related Malfunctions

Refrigerant charge imbalances—whether overcharge or undercharge—create pronounced performance degradation. Accurate diagnosis requires understanding the relationship between temperature, pressure, and system design specifications.

Identifying Refrigerant Leaks

Refrigerant loss rarely occurs spontaneously; leaks develop at mechanical joints, through vibration-induced fatigue, or via corrosion. Electronic leak detectors offer superior sensitivity compared to bubble solutions, particularly for pinpointing elusive slow leaks. Concentrate inspection efforts on flare fittings, brazed joints, Schrader valves, and coil tubing subjected to mechanical stress or corrosive environments.

Ultraviolet dye injection provides an effective method for detecting leaks that evade electronic sensors. Allow the system to operate for several hours after dye introduction, then scan components using a UV torch to reveal fluorescent traces at leak points.

Evaluating Charge Levels

Proper refrigerant charge verification extends beyond simple pressure gauge readings. Measure superheat at the evaporator outlet and subcooling at the condenser outlet, comparing these values against manufacturer specifications adjusted for ambient conditions. Fixed-orifice systems typically require superheat measurements, whilst thermostatic expansion valve (TXV) systems demand subcooling verification.

Compressor Diagnostic Procedures

The compressor represents the system's most expensive component, making accurate diagnosis critical before recommending replacement. Premature compressor condemnation often results from misdiagnosis of ancillary component failures.

Electrical Testing Protocols

Disconnect power and measure winding resistance between the common, run, and start terminals. Compare readings against typical values: run-to-common should measure lower resistance than start-to-common, whilst common-to-start should equal the sum of the other two measurements. Infinite resistance indicates an open winding, whilst zero resistance suggests a short circuit.

Check winding-to-ground resistance using a megohmmeter set to 500VDC. Readings below one megohm indicate insulation breakdown requiring compressor replacement. Standard multimeters lack sufficient sensitivity for this measurement.

Mechanical Failure Indicators

Compressor mechanical failures often announce themselves through abnormal sounds: knocking suggests internal bearing damage, whilst high-pitched squealing may indicate seizure. Measure operating amperage during the run cycle; current exceeding nameplate ratings by more than 10% signals mechanical difficulties or electrical problems.

Acid contamination following motor burnout necessitates meticulous system cleanup. Install oversized filter-driers and perform acid testing of refrigerant samples before returning systems to service. Neglecting this step risks premature failure of the replacement compressor.

Addressing Frozen Evaporator Coils

Ice accumulation on evaporator coils indicates airflow restriction, refrigerant undercharge, or metering device malfunction. This condition prevents effective heat transfer and can lead to compressor damage through liquid refrigerant floodback.

Allow complete ice melting before attempting diagnosis, as frozen coils obscure underlying issues. Once thawed, measure airflow across the coil using an anemometer or velometer. Residential systems typically require 400 CFM per tonne of cooling capacity. Insufficient airflow necessitates investigation of blower speed settings, ductwork restrictions, or coil fouling.

If airflow proves adequate, examine refrigerant charge and metering device function. A malfunctioning TXV may fail to modulate properly, causing coil flooding and ice formation. Temperature sensing bulb positioning affects TXV operation; ensure proper contact and insulation from ambient conditions.

Condensate Drainage Problems

Water damage from blocked condensate drains creates liability concerns and property damage. Regular maintenance prevents most drainage issues, but troubleshooting becomes necessary when blockages occur despite preventative measures.

Primary drain line obstructions typically result from algae growth, debris accumulation, or sediment buildup. Clear blockages using wet-dry vacuums applied to the drain terminus or compressed air introduced carefully to avoid damaging the drain pan. Chemical treatment tablets retard biological growth, though proper drain slope remains essential for reliable operation.

Condensate pumps require periodic inspection of float switches and discharge lines. Test pump operation by manually lifting the float mechanism whilst observing discharge flow. Ensure check valves function correctly to prevent backflow when pumps deactivate.

Control Board and Sensor Failures

Modern HVAC systems incorporate sophisticated control boards managing multiple operational parameters. These boards process inputs from various sensors, adjusting system operation accordingly. Component-level board repair rarely proves practical; replacement typically offers the most reliable solution.

Diagnostic Code Interpretation

Most contemporary systems store fault codes accessible through LED flash sequences or digital displays. Consult manufacturer documentation to decode these sequences accurately. Common faults include flame sensor contamination in furnaces, pressure switch failures, or communication errors between components.

Intermittent faults challenge even experienced technicians. These issues may require extended monitoring or component substitution to isolate definitively. Document environmental conditions when failures occur, as temperature or humidity extremes sometimes trigger problems that disappear under normal conditions.

Sensor Verification Methods

Temperature sensors typically utilise thermistor technology, exhibiting resistance changes corresponding to temperature variations. Measure sensor resistance at known temperatures, comparing values against manufacturer specifications. Indoor air quality sensors monitoring humidity or CO2 levels require periodic calibration to maintain accuracy.

Pressure transducers monitoring refrigerant pressures occasionally drift out of calibration or fail completely. Compare transducer readings against mechanical gauge measurements to verify accuracy. Replace sensors demonstrating significant deviation from actual conditions.

Frequently Asked Questions

How can I distinguish between a faulty contactor and a failed compressor?

Measure voltage at the contactor load terminals when the thermostat calls for cooling. If voltage appears but the compressor remains silent, the compressor likely has failed. However, if no voltage reaches the load side despite proper control voltage on the coil terminals, the contactor requires replacement. Always verify proper control voltage (typically 24VAC) reaches the contactor coil before condemning the contactor itself.

What tools are essential for comprehensive HVAC diagnostics?

A well-equipped service kit includes a digital multimeter with true RMS capability, manifold gauge set or digital pressure probes, clamp-on ammeter, non-contact thermometer, anemometer for airflow measurement, and a capacitor tester. Additionally, refrigerant leak detectors, manometers for static pressure measurement, and manufacturer-specific diagnostic tools prove invaluable for efficient troubleshooting.

Why does my system short-cycle repeatedly?

Short-cycling stems from multiple potential causes: oversized equipment, thermostat placement in unrepresentative locations, refrigerant charge imbalances, dirty coils restricting airflow, or failing pressure switches. Measure actual runtime versus off-time to quantify the cycling frequency. Systems should typically run for at least 8-10 minutes per cycle under moderate load conditions. Investigate each potential cause systematically, beginning with the simplest possibilities before examining complex mechanical issues.

Implementing Systematic Troubleshooting Approaches

Developing a methodical diagnostic routine prevents oversight of fundamental issues whilst chasing obscure problems. Create mental or written checklists encompassing common failure points, proceeding from simple to complex investigations. This approach minimises diagnostic time whilst reducing the likelihood of misdiagnosis.

Document findings throughout the troubleshooting process. Photograph unusual conditions, record measured values, and note environmental factors. This documentation proves invaluable when consulting with technical support or explaining findings to clients. It also creates a knowledge base for addressing similar issues in future service calls.

Consider the system holistically rather than focusing narrowly on isolated components. A failing capacitor might result from voltage irregularities; a frozen coil could stem from ductwork modifications that reduced airflow. Understanding these interconnections elevates diagnostic accuracy and prevents recurring failures.

Leveraging Quality Components for Reliable Repairs

Successful troubleshooting identifies problems accurately, but lasting repairs demand quality replacement components. Inferior parts may temporarily restore operation whilst introducing reliability concerns and premature failures. Source capacitors, contactors, motors, and controls from reputable suppliers who understand the demands placed on HVAC equipment.

Access to comprehensive inventory accelerates repair completion, minimising customer downtime. Establishing relationships with suppliers offering rapid delivery of common components—along with availability of specialised parts for commercial systems—enhances service capabilities and customer satisfaction.

When replacing components, consider upgrading to enhanced specifications where appropriate. Hard-start kits ease compressor starting on marginal electrical supplies, whilst time-delay relays prevent short-cycling. These improvements demonstrate professional expertise whilst reducing future service requirements.

Conclusion

Proficiency in HVAC troubleshooting develops through experience combined with systematic methodology. By understanding fundamental operating principles, utilising appropriate diagnostic tools, and approaching problems methodically, technicians diagnose failures accurately whilst avoiding unnecessary component replacements. This expertise not only improves operational efficiency but also builds client trust and professional reputation.

Continual learning remains essential as systems incorporate increasingly sophisticated technologies. Manufacturer training, industry certifications, and peer knowledge-sharing expand diagnostic capabilities. Combined with access to quality replacement components and tools, these skills position HVAC professionals to address challenges efficiently whilst delivering exceptional service outcomes.

The investment in proper diagnostic equipment and quality parts yields dividends through reduced callbacks, enhanced customer satisfaction, and improved profit margins. As systems grow more complex, the value of thorough, accurate troubleshooting becomes increasingly apparent—separating proficient technicians from those who merely replace components until systems function.
