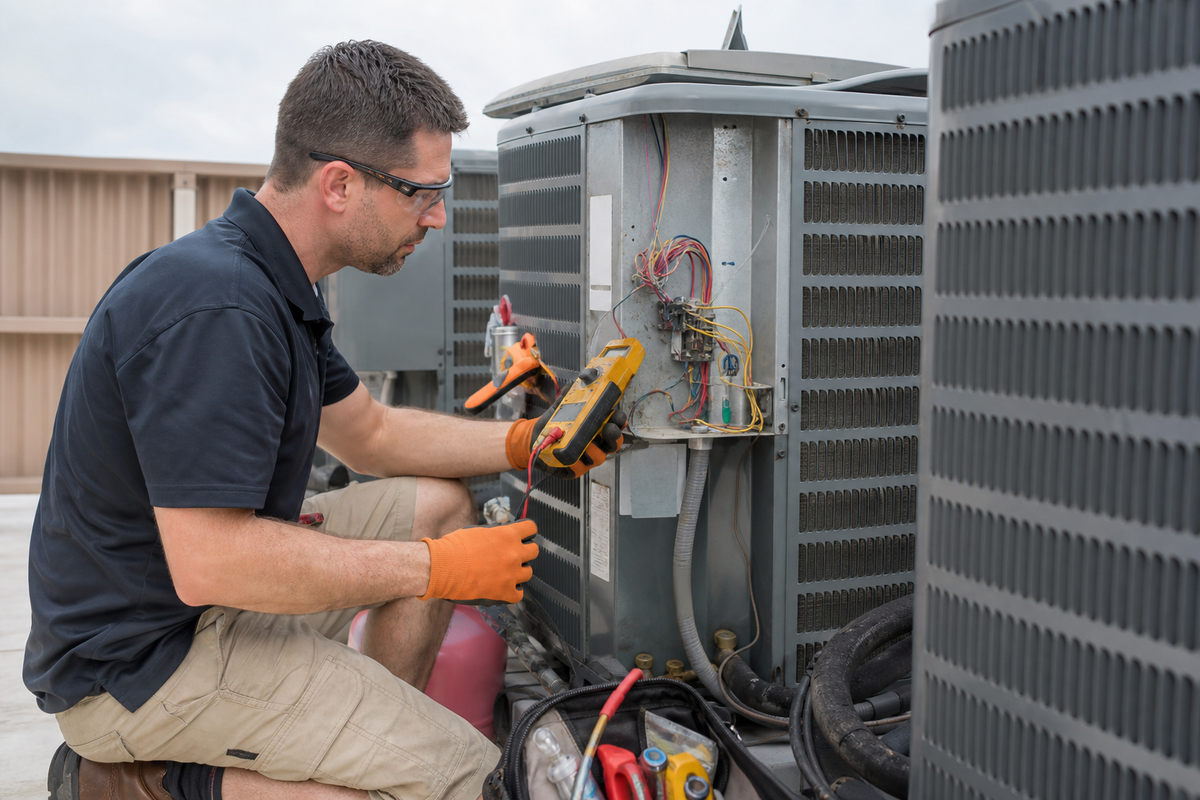

HVAC Troubleshooting Tips: Diagnosing Faults Fast

When an HVAC system malfunctions, the ability to diagnose faults swiftly can mean the difference between a minor inconvenience and a costly breakdown. For HVAC engineers and refrigeration technicians, mastering troubleshooting methodologies isn't merely about fixing problems—it's about developing a systematic approach that minimises downtime, reduces unnecessary component replacement, and ensures optimal system performance. This comprehensive guide explores practical hvac troubleshooting tips that enable professionals to identify issues rapidly and implement effective solutions.

Understanding the Fundamentals of HVAC System Diagnostics

Before delving into specific troubleshooting techniques, establishing a foundational understanding of system operation proves essential. HVAC systems comprise interdependent components including compressors, condensers, evaporators, expansion valves, and associated electrical controls. Each element performs a discrete function whilst simultaneously relying upon others to maintain overall system equilibrium.

The refrigeration cycle forms the cornerstone of most climate control systems. Refrigerant circulates through these components, undergoing phase transitions that facilitate heat transfer. When diagnosing faults, recognising the theoretical operating parameters allows technicians to identify deviations that signal specific malfunctions. Temperature differentials, pressure readings, and electrical measurements become diagnostic indicators rather than abstract numbers.

Developing familiarity with manufacturer specifications for particular systems streamlines the diagnostic process considerably. Equipment datasheets detail nominal operating pressures, amperage draws, and temperature ranges. These benchmarks serve as reference points when evaluating system performance, enabling rapid identification of anomalous conditions.

Essential Diagnostic Tools Every HVAC Engineer Should Carry

Effective troubleshooting demands appropriate instrumentation. Whilst experience and knowledge remain invaluable, accurate measurements provide empirical evidence that confirms or refutes diagnostic hypotheses. A well-equipped technician carries several fundamental tools that facilitate comprehensive system evaluation.

Manifold gauge sets measure refrigerant pressures on both high and low sides of the system. These readings reveal whether the system maintains appropriate pressures during operation, indicating potential issues such as refrigerant undercharge, overcharge, or restriction within the circuit. Digital manifolds offer enhanced accuracy and often include additional sensors for temperature measurement.

Multimeters remain indispensable for electrical diagnostics. Voltage, resistance, and current measurements help identify failed capacitors, defective contactors, compromised wiring, and motor issues. Clamp meters provide non-invasive current measurement, particularly useful when assessing compressor and fan motor performance without circuit interruption.

Temperature measurement devices, including infrared thermometers and thermocouples, allow technicians to verify heat transfer effectiveness. Measuring supply and return air temperatures, alongside refrigerant line temperatures, reveals whether the system achieves expected thermal performance. Superheat and subcooling calculations, derived from these measurements, provide critical diagnostic information about refrigerant charge and system efficiency.

Systematic Troubleshooting Methodology for Rapid Fault Identification

Random component testing wastes time and potentially leads to misdiagnosis. Implementing a structured approach ensures comprehensive evaluation whilst maximising efficiency. This methodology begins with information gathering and progresses through logical diagnostic stages.

Initial Assessment and Symptom Documentation

Commence every diagnostic procedure by documenting reported symptoms thoroughly. Speak with building occupants or facility managers to understand when problems began, whether issues occur continuously or intermittently, and what specific comfort complaints exist. This contextual information often provides valuable clues about underlying causes.

Visual inspection follows symptom documentation. Examine the system for obvious defects such as refrigerant leaks, damaged wiring, disconnected controls, or obstructed airflow. Check air filters, as restricted airflow represents one of the most common yet easily remedied issues affecting system performance. Inspect condensate drainage to ensure proper operation, as blocked drains can trigger safety switches and cause system shutdown.

Electrical System Verification

Electrical faults account for a substantial proportion of HVAC failures. Begin electrical diagnostics at the power source, verifying that the system receives appropriate supply voltage. Measure voltage at the disconnect switch, then at the control board, ensuring consistency throughout the distribution path.

Capacitor failure represents a frequent cause of compressor and fan motor issues. Test capacitors using a multimeter capable of capacitance measurement, comparing readings against the rated microfarad value printed on the component. Capacitors typically warrant replacement when measurements fall below 90% of rated capacity or exceed 110%. Bulging, leaking, or corroded capacitors require immediate replacement regardless of electrical readings.

Contactor inspection reveals whether switching components function correctly. Examine contact points for pitting, burning, or excessive wear. Measure coil voltage to confirm the control circuit energises the contactor properly. Failed contactors prevent compressor and condenser fan operation despite correct thermostat signals.

Refrigerant Circuit Analysis

After confirming electrical integrity, assess the refrigeration circuit. Connect manifold gauges to service ports and record static pressures when the system is inactive. These readings should correspond to the saturation temperature of the refrigerant at ambient conditions. Significant deviations suggest refrigerant loss or non-condensable contamination.

Operate the system and monitor running pressures. Compare measurements against manufacturer specifications and expected values for the refrigerant type. Abnormally low suction pressure combined with low discharge pressure typically indicates refrigerant undercharge. Conversely, elevated discharge pressure with normal suction pressure may suggest condenser fouling, restricted airflow, or refrigerant overcharge.

Common HVAC Faults and Their Diagnostic Signatures

Certain failure patterns recur frequently across diverse systems. Recognising these characteristic signatures accelerates diagnosis considerably, allowing experienced technicians to formulate preliminary hypotheses based on symptom presentation.

Compressor Failures and Performance Issues

Compressor problems manifest through various symptoms. Complete failure to start may result from electrical issues, capacitor failure, or internal mechanical seizure. Measure voltage at compressor terminals whilst attempting to start the unit. If voltage is present but the compressor remains silent, suspect internal failure or severe mechanical binding.

Short cycling, where the compressor operates briefly before shutting down, often indicates electrical overload, refrigerant issues, or thermal protection activation. Monitor amperage draw during operation. Excessive current consumption suggests mechanical resistance or inadequate cooling. Low amperage paired with insufficient cooling capacity may indicate internal valve failure or significant refrigerant leakage.

Unusual operational sounds provide diagnostic clues. Grinding noises suggest bearing deterioration, whilst knocking sounds may indicate loose internal components or liquid refrigerant entering the compressor—a condition known as liquid slugging that can cause catastrophic damage.

Airflow and Heat Exchange Deficiencies

Inadequate airflow compromises system performance dramatically. Restricted air filters represent the most prevalent cause, though duct obstructions, failed blower motors, and slipping drive belts also impede airflow. Measure temperature differential between supply and return air; excessive differences suggest inadequate airflow across the evaporator coil.

Frozen evaporator coils result from various conditions including low refrigerant charge, restricted airflow, or malfunctioning expansion devices. Ice accumulation prevents heat absorption, rendering the system ineffective. Before diagnosing the underlying cause, the coil must be completely defrosted. Subsequently, verify airflow adequacy and assess refrigerant charge.

Dirty condenser coils reduce heat rejection capacity, elevating discharge pressures and reducing system efficiency. External condensing units accumulate debris, pollen, and atmospheric contaminants that insulate coil surfaces. Regular maintenance prevents this deterioration, but when encountered during troubleshooting, coil cleaning often restores normal operation without component replacement.

Advanced Diagnostic Techniques for Complex Scenarios

Straightforward faults yield to basic troubleshooting procedures, but complex issues demand more sophisticated diagnostic approaches. These scenarios often involve multiple contributing factors or intermittent failures that elude standard testing protocols.

Refrigerant Contamination and Quality Assessment

Non-condensable gases within the refrigerant circuit elevate system pressures abnormally. This contamination typically results from improper evacuation procedures during installation or service. When static pressures exceed expected values based on ambient temperature, suspect air or moisture contamination. Recovery, evacuation, and recharge procedures become necessary to restore proper operation.

Acid formation within refrigerant circuits, often following compressor burnout, necessitates comprehensive system cleanup. Acid test kits reveal contamination levels. High acidity readings mandate filter-drier replacement, potentially multiple times, alongside thorough system flushing to prevent subsequent component damage.

Control System and Sensor Diagnostics

Modern HVAC systems incorporate numerous sensors and electronic controls. Temperature sensors, pressure transducers, and humidity sensors provide input to control boards that modulate system operation. Sensor failure can produce perplexing symptoms as the control system responds to erroneous information.

Test sensors by measuring their output signals and comparing against known conditions. Thermistors exhibit predictable resistance changes with temperature variation. Reference resistance-temperature charts for the specific sensor type to verify accuracy. Pressure transducers should produce voltage or current signals proportional to measured pressure within specified ranges.

Control boards occasionally develop failures that affect specific functions whilst leaving others operational. Consult wiring diagrams to trace signal paths and verify proper voltage levels at various test points. Many modern boards include diagnostic LED indicators that display fault codes, substantially streamlining troubleshooting when properly interpreted.

Documentation and Preventative Insights

Thorough documentation of diagnostic findings serves multiple purposes. Recording initial conditions, measurements taken, and corrective actions creates a service history that proves invaluable during subsequent maintenance visits. Patterns emerging from historical data often reveal recurring issues that warrant systematic correction rather than repeated reactive repairs.

Photographic documentation of equipment conditions, component labels, and wiring configurations aids future service work. These records prove particularly valuable when multiple technicians service the same equipment or when addressing systems installed by others.

Leveraging Quality Components for Reliable Repairs

Diagnostic excellence must be paired with quality replacement components to ensure lasting repairs. Sourcing HVAC parts from reputable suppliers guarantees that replacement capacitors, contactors, motors, and controls meet original equipment specifications. Substandard components may restore temporary functionality but frequently fail prematurely, necessitating repeat service calls that damage professional reputation.

Maintaining relationships with reliable parts suppliers who understand trade requirements facilitates rapid repairs. Access to comprehensive inventories, technical support, and prompt delivery minimises downtime when critical components require replacement. For UK-based engineers, partnering with suppliers offering fast delivery ensures that diagnostic work translates quickly into completed repairs.

Frequently Encountered Troubleshooting Questions

How can I differentiate between compressor failure and electrical issues preventing compressor operation?

Measure voltage at compressor terminals during an attempted start. If proper voltage exists but the compressor doesn't run and draws no current, internal mechanical failure is likely. If voltage is absent, trace the electrical circuit backwards through contactors, overloads, and controls. If the compressor hums loudly but doesn't start, suspect capacitor failure or severe mechanical resistance.

What causes refrigerant pressures to be abnormal on both high and low sides simultaneously?

When both pressures deviate from expected values in the same direction, refrigerant quantity issues are probable. Both pressures low suggests undercharge or significant leakage. Both pressures elevated indicates overcharge, non-condensable contamination, or severely restricted airflow across the condenser. Superheat and subcooling calculations help distinguish between these possibilities.

Why does an evaporator coil freeze despite adequate refrigerant charge?

Freezing with proper refrigerant typically results from insufficient airflow. Verify that the blower motor operates at correct speed, air filters are clean, and supply registers remain unobstructed. Ductwork problems, closed dampers, or undersized return air paths also restrict airflow. In rare cases, malfunctioning expansion devices can cause localised freezing despite adequate overall charge.

Continuous Professional Development in HVAC Diagnostics

Technology evolution constantly introduces new system configurations, refrigerants, and control strategies. Maintaining diagnostic proficiency requires ongoing education and adaptation. Manufacturers frequently update equipment designs, necessitating familiarity with emerging technologies.

Variable refrigerant flow systems, inverter-driven compressors, and smart controls represent contemporary developments that demand updated diagnostic approaches. Traditional troubleshooting principles remain applicable, but implementation details differ. Investing time in training programmes and technical literature review ensures that diagnostic capabilities evolve alongside industry advancement.

Peer collaboration provides another valuable learning avenue. Discussing challenging diagnostic scenarios with colleagues often reveals alternative perspectives and techniques. Industry forums and professional associations facilitate knowledge exchange that benefits all participants.

Building a Systematic Approach to Complex Diagnostics

Challenging diagnostic situations benefit from methodical problem-solving frameworks. When straightforward troubleshooting fails to identify faults, implementing a more rigorous approach prevents overlooking subtle issues.

Create a comprehensive list of potential causes for observed symptoms. Systematically test each possibility, documenting findings as you progress. This elimination process narrows the field of probable causes, eventually isolating the actual fault. Avoid fixating on a single hypothesis; remaining open to alternative explanations prevents diagnostic dead ends.

For intermittent problems that defy immediate diagnosis, monitoring equipment over extended periods using recording instruments can capture fault conditions when they occur. Temperature and pressure data loggers reveal patterns invisible during brief service visits.

Understanding system interdependencies proves crucial when multiple issues coexist. A failing component may create secondary symptoms that mask the primary fault. For instance, a severely restricted air filter reduces airflow, which lowers evaporator temperature, potentially freezing the coil. This ice formation further restricts airflow, creating a cascading failure that appears more complex than the underlying cause.

Economic Considerations in Diagnostic Decision-Making

Effective troubleshooting balances technical precision with economic practicality. Whilst comprehensive diagnostics ensure accurate fault identification, time constraints and cost considerations influence real-world service delivery. Developing efficient diagnostic routines that quickly identify common faults whilst retaining capability for thorough investigation when necessary represents professional maturity.

Communicate findings and recommendations clearly to customers, explaining identified problems and proposed solutions. Transparent discussion of repair costs versus replacement options builds trust and helps customers make informed decisions. When equipment age and condition suggest that repeated repairs prove economically disadvantageous, honestly presenting replacement options serves customer interests whilst demonstrating professional integrity.

Preventative maintenance programmes reduce emergency diagnostic calls by identifying developing problems before they cause system failure. Encouraging customers to implement regular servicing schedules benefits all parties—customers enjoy reliable operation and lower lifetime costs, whilst technicians develop ongoing relationships and predictable workflow.

Mastering hvac troubleshooting tips transforms reactive service work into strategic problem-solving. The combination of theoretical knowledge, practical experience, systematic methodology, and quality tools enables HVAC engineers to diagnose faults rapidly and implement effective solutions. Continuous learning, attention to detail, and commitment to professional excellence distinguish competent technicians from true diagnostics experts. Whether addressing straightforward component failuresor unravelling complex system interactions, these fundamental principles guide successful troubleshooting outcomes that satisfy customers and build professional reputation.

Practical Troubleshooting Scenarios and Solutions

Theoretical knowledge gains practical value through application to real-world situations. Examining specific troubleshooting scenarios illustrates how systematic diagnostic approaches resolve common yet challenging problems encountered in daily HVAC service work.

Scenario: System Runs Continuously Without Achieving Setpoint

When an HVAC system operates constantly yet fails to reach desired temperature, multiple factors warrant investigation. Begin by verifying thermostat calibration and placement. Thermostats located near heat sources, in direct sunlight, or in unrepresentative locations provide inaccurate temperature readings that prevent proper cycling.

Assess whether the system delivers adequate cooling or heating capacity. Measure supply air temperature and compare against expected values for the operating mode. Insufficient capacity suggests refrigerant issues, compressor inefficiency, or heat exchanger problems. Calculate superheat and subcooling to evaluate refrigerant charge status.

Consider external factors affecting building load. Inadequately sized equipment, increased occupancy, additional heat-generating equipment, or compromised building envelope integrity can exceed system capacity. Whilst these issues fall outside equipment malfunction, identifying them prevents fruitless component replacement and guides appropriate solutions.

Scenario: Intermittent Tripping of Circuit Breakers

Electrical overloads that cause intermittent breaker tripping present diagnostic challenges due to their sporadic nature. Monitor amperage draw across all system components during extended operation. Elevated current consumption indicates increased electrical load that eventually exceeds breaker capacity.

Compressor motors experiencing bearing wear or internal mechanical resistance draw excessive current. Compare measured amperage against nameplate ratings. Capacitor degradation causes motors to operate inefficiently, increasing current draw even when mechanical condition remains sound. Test all capacitors associated with motors experiencing overload conditions.

Loose electrical connections create resistance that generates heat and can cause intermittent contact. Thermal cycling from this heating may produce intermittent operation. Inspect all wire terminations, particularly at contactors, circuit breakers, and motor terminals. Tighten connections to manufacturer-specified torque values.

Short circuits within wiring or components cause immediate overcurrent conditions. Insulation breakdown from age, thermal stress, or physical damage creates fault paths. Megohm testing of motor windings and circuit conductors reveals insulation integrity. Readings below acceptable thresholds indicate compromised insulation requiring repair or replacement.

Seasonal Considerations in HVAC Troubleshooting

Environmental conditions influence system performance and failure patterns. Recognising seasonal variations helps technicians anticipate likely issues and focus diagnostic efforts appropriately.

During peak cooling season, condenser units operate under maximum thermal stress. High ambient temperatures elevate discharge pressures, increasing compressor workload. Systems with marginal refrigerant charge or restricted airflow that function adequately under moderate conditions may fail when ambient temperatures soar. Heat-related capacitor failures increase during summer months, as elevated temperatures accelerate electrolytic degradation.

Winter heating operation presents distinct challenges. Heat pump systems operating in heating mode experience greater stress than cooling operation. Defrost cycles, necessary to remove ice accumulation from outdoor coils, add complexity to troubleshooting. Auxiliary heat activation, backup heating element failures, and reversing valve issues become more prevalent.

Spring and autumn shoulder seasons, when heating and cooling demands fluctuate, can reveal control system issues. Thermostats cycling between modes may expose changeover problems invisible during single-mode operation. This transitional period offers ideal opportunities for comprehensive system evaluation before peak demand seasons commence.

Safety Protocols During Troubleshooting Activities

Diagnostic work involves inherent hazards including electrical shock, refrigerant exposure, and rotating machinery. Implementing rigorous safety protocols protects technicians whilst ensuring professional service delivery.

Always de-energise equipment before performing electrical work beyond basic measurement. Verify power disconnection using appropriate testing instruments rather than assuming switch positions indicate actual circuit status. Lockout-tagout procedures prevent accidental energisation during service work.

Refrigerant handling requires proper ventilation and personal protective equipment. Liquid refrigerant contact causes frostbite, whilst certain refrigerants displace oxygen in confined spaces. Recovery equipment prevents atmospheric release of refrigerants, satisfying environmental regulations whilst ensuring technician safety.

Rotating components including fan blades and belt drives present entanglement and impact hazards. Ensure complete shutdown before approaching moving parts. Guards and covers exist for protection; resist temptation to operate equipment with safety devices removed for observation purposes.

Optimising Your Diagnostic Toolkit and Resources

Beyond fundamental instruments, supplementary tools enhance diagnostic capability and efficiency. Investing in quality equipment pays dividends through improved accuracy, reduced diagnostic time, and expanded service capabilities.

Technical reference materials complement physical tools. Manufacturer service manuals contain wiring diagrams, specifications, and troubleshooting flowcharts specific to particular equipment models. Refrigerant pressure-temperature charts enable quick verification of saturation conditions. Mobile applications now provide convenient access to these references, eliminating the need for extensive paper documentation.

The Role of Preventative Maintenance in Reducing Troubleshooting Demands

Proactive maintenance substantially reduces emergency diagnostic requirements. Regular servicing identifies developing problems before they cause system failure, transforming potentially complex troubleshooting scenarios into routine component replacement during scheduled visits.

Comprehensive maintenance protocols include filter replacement, coil cleaning, electrical connection inspection, refrigerant pressure verification, and control system testing. These activities maintain optimal performance whilst revealing components approaching end-of-life. Capacitors showing early degradation, contactors exhibiting contact wear, and belts developing cracks can be addressed during planned maintenance rather than during inconvenient failures.

Maintenance documentation creates baseline performance data for comparison during subsequent troubleshooting. Historical pressure readings, amperage measurements, and temperature differentials establish normal operating parameters. Deviations from these baselines during diagnostic work provide immediate indication of developing problems.

Customer education about maintenance importance builds long-term relationships whilst reducing emergency service demands. Explaining how regular servicing prevents costly failures and extends equipment lifespan demonstrates professional value beyond reactive repairs.

Final Considerations for HVAC Diagnostic Excellence

Developing superior troubleshooting capability requires more than technical knowledge—it demands analytical thinking, systematic methodology, and commitment to continuous improvement. Each diagnostic challenge presents learning opportunities that refine skills and expand experience.

Embrace complex scenarios as chances to deepen understanding rather than frustrating obstacles. Difficult diagnostic problems often reveal system interactions and failure modes absent from training materials. Documenting these experiences builds personal expertise that distinguishes accomplished professionals from merely competent technicians.

Collaboration with parts suppliers who understand trade requirements facilitates efficient problem resolution. Establishing relationships with knowledgeable staff provides access to technical support, cross-reference information, and application guidance that streamlines component selection and ensures compatibility.

The HVAC industry continues evolving with emerging technologies, refrigerants, and efficiency standards. Maintaining diagnostic proficiency requires active engagement with industry developments, participation in training opportunities, and willingness to adapt established practices to new equipment configurations.

Ultimately, mastering hvac troubleshooting tips transforms service work from uncertain trial-and-error into confident systematic problem-solving. The combination of foundational knowledge, quality tools, structured methodology, and practical experience enables rapid fault diagnosis that satisfies customers, builds professional reputation, and creates sustainable success in the competitive HVAC service sector.
