Improving HVAC Air Quality: Filtration & Ventilation Strategies

Indoor air quality has emerged as a paramount concern for building occupants and facility managers alike, with mounting evidence linking substandard air conditions to respiratory ailments, diminished productivity, and compromised wellbeing. For HVAC engineers and refrigeration technicians, the challenge extends beyond simply maintaining thermal comfort—it encompasses the implementation of sophisticated filtration systems and ventilation protocols that actively purify and refresh indoor atmospheres. The strategic enhancement of HVAC air quality demands a comprehensive understanding of both mechanical filtration principles and airflow dynamics, coupled with practical knowledge of contemporary equipment specifications and maintenance regimens.

Modern commercial and industrial environments present unique challenges that require bespoke solutions. Contaminants ranging from particulate matter and volatile organic compounds to biological pathogens necessitate multi-layered approaches that integrate high-efficiency filters, demand-controlled ventilation, and continuous monitoring systems. The following exploration delves into proven methodologies for elevating air quality through judicious equipment selection, installation best practices, and ongoing optimisation techniques.

Understanding the Fundamentals of HVAC Air Quality

The conceptual framework underpinning indoor air quality revolves around the interplay between pollutant sources, ventilation rates, and filtration efficacy. HVAC systems function as the respiratory apparatus of buildings, continuously cycling air whilst removing contaminants and introducing fresh outdoor air. The effectiveness of this process hinges upon several interdependent variables that engineers must carefully calibrate.

Particulate matter constitutes one of the most prevalent indoor air quality concerns, encompassing everything from construction dust and textile fibres to combustion by-products and biological matter. These particles vary dramatically in size—from coarse fragments exceeding 10 micrometres to ultrafine particulates measuring less than 0.1 micrometres. Each size category presents distinct challenges for filtration systems and requires specific capture mechanisms. Additionally, gaseous pollutants such as formaldehyde, carbon monoxide, and various organic compounds demand altogether different remediation strategies.

The concept of air changes per hour (ACH) provides a quantifiable metric for assessing ventilation adequacy. This parameter indicates how frequently the entire volume of air within a space undergoes complete replacement. Whilst building regulations stipulate minimum ACH values, optimal rates vary considerably depending upon occupancy density, activity types, and pollutant generation rates. Industrial facilities with significant process emissions naturally require more aggressive ventilation than standard office environments.

Advanced Filtration Technologies and Selection Criteria

Contemporary filtration systems have evolved far beyond rudimentary mesh screens, now incorporating sophisticated media and electrostatic principles to capture increasingly minute particles. Understanding the nuances of filter ratings and performance characteristics enables engineers to specify appropriate equipment for diverse applications.

Mechanical Filter Classifications and Performance Metrics

The European Standard EN 779 and its successor ISO 16890 establish classification frameworks for air filters based upon their particle removal efficiency. Coarse filters (ISO Coarse grade) primarily capture larger debris and serve as pre-filters protecting downstream equipment. Medium filters (ISO ePM10 and ePM2.5) target particles within ranges most relevant to human health, whilst fine filters (ISO ePM1) achieve exceptional capture rates for submicron particulates.

High-Efficiency Particulate Air (HEPA) filters represent the apex of mechanical filtration, capable of removing 99.97% of particles measuring 0.3 micrometres. These units find application in healthcare facilities, cleanrooms, and other environments demanding exceptional air purity. However, their substantial pressure drop necessitates more powerful fans and increased energy consumption—factors that engineers must weigh against air quality benefits.

Filter selection demands careful consideration of several performance parameters beyond simple efficiency ratings. Dust-holding capacity determines service life and maintenance intervals, whilst pressure drop influences operational costs. Moisture resistance proves critical in applications involving high humidity or potential water exposure. Engineers must also evaluate structural integrity, ensuring filters maintain their rated performance throughout their intended service life without media degradation or bypass leakage.

Electrostatic and Activated Carbon Supplementation

Electrostatic precipitators offer an alternative filtration paradigm, utilising charged plates or collection surfaces to attract and retain particulates. These devices excel at capturing fine particles whilst maintaining relatively low pressure drops compared to dense mechanical media. Their primary limitation lies in the requirement for regular cleaning and the potential generation of trace ozone during operation.

Gaseous contaminant removal necessitates adsorptive media, with activated carbon serving as the predominant solution. These filters contain vast internal surface areas—a single gram may provide 500 to 1500 square metres of adsorptive capacity—enabling chemical bond formation with volatile organic compounds and odorous molecules. Specialised carbon formulations incorporating potassium permanganate or other impregnants extend efficacy to a broader spectrum of gaseous pollutants including ammonia, hydrogen sulphide, and formaldehyde.

Ventilation System Design and Optimisation

Whilst filtration addresses contaminant removal, ventilation strategies fundamentally control pollutant concentrations through dilution and displacement. Effective ventilation design requires thoughtful consideration of airflow patterns, pressure relationships, and outdoor air introduction rates.

Outdoor Air Integration and Energy Recovery

The introduction of outdoor air serves dual purposes: diluting indoor pollutants and providing oxygen for occupants. However, conditioning this air to appropriate temperature and humidity levels represents a substantial energy expenditure. Energy recovery ventilators (ERVs) and heat recovery ventilators (HRVs) mitigate this burden by transferring thermal energy between exhaust and supply airstreams, pre-conditioning incoming outdoor air with minimal additional heating or cooling.

Demand-controlled ventilation (DCV) systems employ carbon dioxide sensors or occupancy detection to modulate outdoor air introduction rates dynamically. This approach ensures adequate ventilation during peak occupancy whilst reducing unnecessary air conditioning during periods of reduced building utilisation. The integration of DCV can yield substantial energy savings—often 20% to 30% in variable-occupancy applications—without compromising air quality standards.

Pressure Differential Management and Contamination Control

Pressure relationships between spaces profoundly influence contaminant migration patterns. Positive pressurisation prevents infiltration of unconditioned air and external pollutants, making this approach suitable for cleanrooms and healthcare facilities. Conversely, negative pressure containment proves essential for spaces generating objectionable odours or hazardous contaminants, ensuring these pollutants cannot escape to adjacent areas.

The establishment and maintenance of appropriate pressure differentials demands meticulous attention to building envelope integrity, doorway air curtains, and supply/exhaust airflow balancing. Even minor leakage pathways can undermine pressure control schemes, necessitating regular verification through direct pressure measurement and visual smoke testing.

Practical Implementation for HVAC Engineers

Translating theoretical principles into tangible air quality improvements requires systematic approaches to equipment specification, installation precision, and ongoing maintenance protocols. Engineers must navigate the practical realities of budget constraints, space limitations, and operational continuity requirements.

System Assessment and Upgrade Pathways

Existing HVAC installations often present opportunities for incremental air quality enhancements without complete system replacement. Initial assessment should evaluate current filtration efficiency, outdoor air delivery rates, and airflow distribution patterns. Portable particle counters and indoor air quality monitors provide quantitative baseline data, identifying specific deficiencies requiring remediation.

Filter media upgrades frequently represent the most cost-effective intervention, provided existing filter housings can accommodate higher-efficiency units without excessive pressure drop. Engineers must verify that fan capacity proves adequate for increased static pressure, as inadequate airflow negates filtration improvements. In some instances, variable-speed drive retrofits enable existing fans to overcome higher system resistance whilst maintaining design airflow rates.

Ductwork modifications may prove necessary to eliminate dead zones and improve air distribution. Computational fluid dynamics modelling or physical airflow testing can identify problematic areas where insufficient air mixing permits pollutant accumulation. Strategic placement of additional supply diffusers or exhaust grilles often resolves these deficiencies with minimal invasive construction.

Commissioning and Verification Protocols

Proper commissioning ensures installed equipment operates according to design intent, validating airflow rates, pressure differentials, and control sequences. This process begins with filter installation verification, confirming proper seating within housings and absence of bypass gaps. Even minor installation errors can drastically compromise filtration efficiency, as air naturally follows the path of least resistance around improperly sealed filters.

Airflow measurement at individual diffusers and grilles verifies balanced distribution throughout served spaces. Pitot tube traverses or rotating vane anemometers provide accurate readings, though engineers must account for turbulence and non-uniform velocity profiles near outlets. Total system airflow verification through fan inlet measurements or duct traverses validates overall capacity.

Control system functionality testing confirms proper sensor calibration and appropriate response to varying conditions. Carbon dioxide sensors require periodic calibration against reference gases to maintain accuracy, whilst pressure transducers benefit from zero and span checks. Automated control sequences should undergo testing under simulated occupied and unoccupied conditions to verify correct operation.

Maintenance Strategies for Sustained Performance

Even expertly designed and installed systems gradually degrade without diligent maintenance. Establishing comprehensive preventive maintenance schedules preserves air quality performance whilst minimising unexpected failures and associated disruptions.

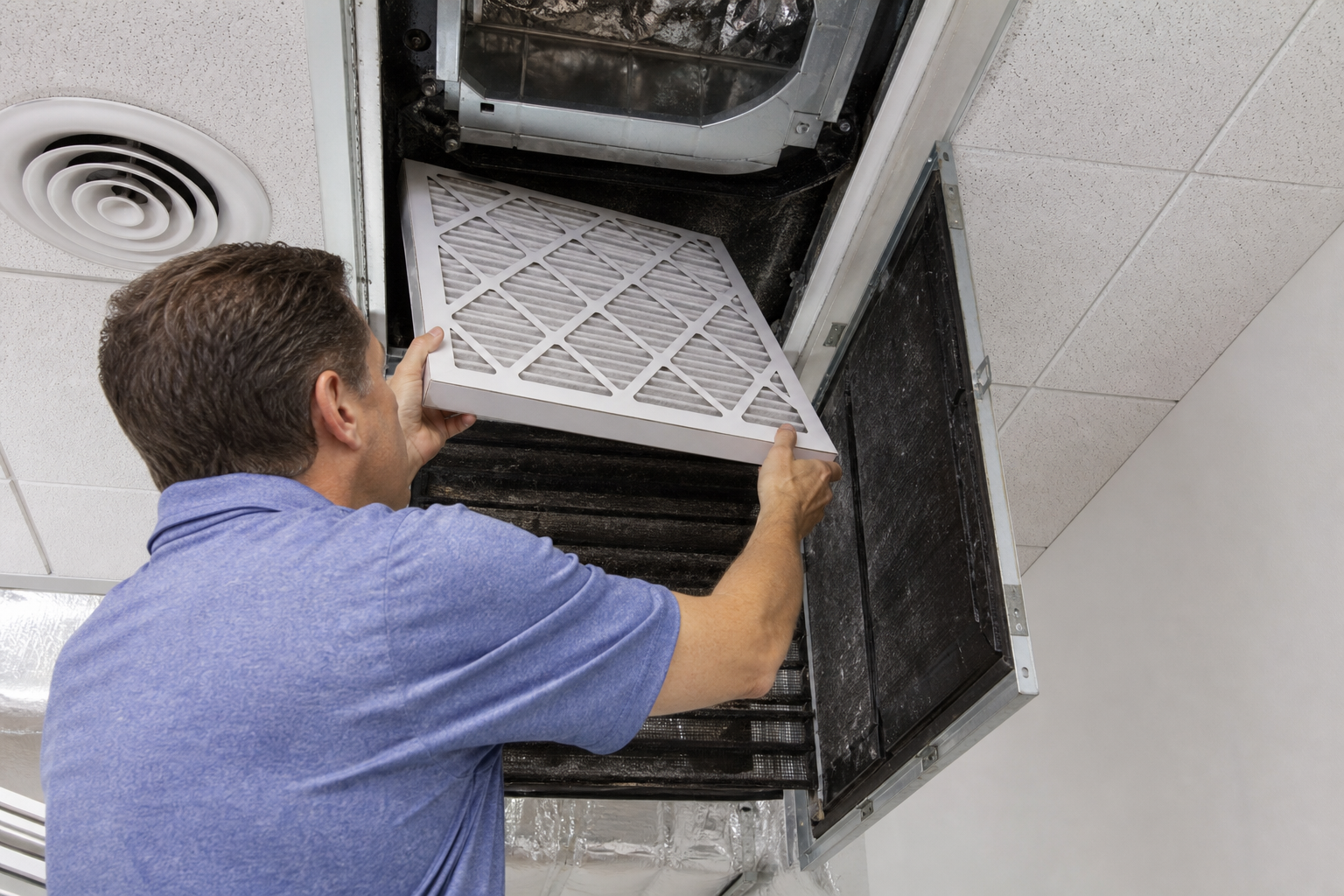

Filter Replacement Scheduling and Monitoring

Filter service life varies tremendously based upon local air quality, system runtime, and specific filter characteristics. Rather than relying solely upon elapsed time, differential pressure monitoring provides direct indication of filter loading. Magnehelic gauges or electronic pressure transducers measure resistance across filter banks, triggering replacement when pressure drop exceeds manufacturer specifications.

Premature filter replacement wastes resources and increases operational costs, whilst delayed replacement forces fans to work harder and may permit filter media failure with subsequent downstream contamination. The following table illustrates typical service intervals for various filter types under standard commercial applications:

Coil Cleaning and Condensate Management

Cooling coils accumulate biofilm, dust, and other debris that impedes heat transfer and harbours microbial growth. Regular inspection and cleaning maintains thermal performance whilst preventing the release of biological contaminants into supply airstreams. Alkaline coil cleaners effectively dissolve organic deposits, though technicians must exercise care to avoid damage to aluminium fins.

Condensate drainage systems require particular attention, as standing water provides ideal conditions for bacterial proliferation. Drain pans should slope adequately towards outlets, and trap priming during dry periods prevents sewer gas intrusion. Ultraviolet germicidal irradiation (UVGI) lamps installed near coils suppress microbial growth, though lamps require annual replacement as UV output diminishes over time.

Emerging Technologies and Future Considerations

The field of indoor air quality continues advancing, with novel technologies offering enhanced capabilities and addressing previously intractable challenges. Forward-thinking engineers should familiarise themselves with these developments to inform future upgrade decisions.

Photocatalytic Oxidation and Advanced Oxidation Processes

Photocatalytic oxidation (PCO) systems employ titanium dioxide catalysts activated by ultraviolet light to decompose organic compounds and neutralise microorganisms. Unlike passive filtration, PCO actively destroys pollutants rather than merely capturing them. These systems demonstrate particular efficacy against volatile organic compounds and biological contaminants, complementing traditional filtration approaches.

Advanced oxidation processes generate reactive oxygen species that oxidise a broad spectrum of contaminants. Whilst promising, these technologies require careful implementation to avoid unwanted by-product formation and ensure safe operation. Ongoing research continues refining reactor designs and catalyst formulations to enhance performance whilst minimising potential drawbacks.

Intelligent Monitoring and Predictive Maintenance

Internet-connected sensors and building automation systems increasingly enable continuous air quality monitoring and data-driven maintenance scheduling. Real-time particulate matter sensors, volatile organic compound detectors, and comprehensive environmental monitoring systems provide unprecedented visibility into indoor conditions. Machine learning algorithms analyse historical data to predict filter replacement needs and identify developing system issues before they compromise air quality or trigger equipment failures.

These intelligent systems empower facility managers and HVAC engineers with actionable insights, transforming reactive maintenance paradigms into proactive optimisation strategies. The integration of air quality data with occupancy patterns and weather forecasts enables sophisticated control algorithms that maintain optimal conditions whilst minimising energy consumption.

Common Challenges and Practical Solutions

Despite best intentions, air quality improvement initiatives frequently encounter obstacles that impede successful implementation. Anticipating these challenges and developing mitigation strategies enhances project outcomes.

What Are the Primary Constraints When Upgrading Existing HVAC Systems?

Space limitations often restrict filter housing modifications, particularly in retrofit applications where architectural constraints preclude substantial ductwork alterations. In such scenarios, engineers might consider compact high-efficiency filters utilising advanced media or explore distributed point-of-use filtration as supplemental measures. Fan capacity represents another common limitation, as existing equipment may lack sufficient power to overcome increased static pressure from higher-efficiency filters. Variable-frequency drives offer one solution, whilst fan replacement or supplemental air handling units provide alternatives when drives prove inadequate.

How Can Energy Efficiency and Air Quality Goals Be Reconciled?

The apparent tension between air quality enhancement and energy conservation need not result in compromise on either objective. Strategic implementation of demand-controlled ventilation, energy recovery systems, and optimised filtration hierarchies simultaneously improves air quality and reduces energy consumption. Pre-filtration stages protect high-efficiency final filters from rapid loading, extending service life and maintaining lower pressure drops. Right-sized equipment operates more efficiently than oversized units cycling frequently or undersized systems running continuously at maximum capacity.

What Documentation and Compliance Considerations Apply?

Building regulations, health and safety requirements, and industry standards establish minimum performance criteria for ventilation and air quality. Engineers must maintain familiarity with applicable regulations including Building Regulations Approved Document F (Ventilation), HSE guidance on workplace air quality, and sector-specific standards for healthcare, educational, and industrial facilities. Comprehensive documentation of system design parameters, equipment specifications, and commissioning results provides essential evidence of regulatory compliance whilst facilitating future maintenance and troubleshooting activities.

Cost-Benefit Analysis and Value Justification

Securing approval and funding for air quality improvement projects requires compelling business cases that quantify both costs and benefits. Whilst equipment expenses prove straightforward to calculate, the value of improved air quality manifests through diverse mechanisms that demand careful articulation.

Reduced absenteeism represents one measurable benefit, as improved air quality demonstrably decreases respiratory illness incidence amongst building occupants. Studies have documented 10% to 30% reductions in sick leave following significant air quality improvements. Enhanced cognitive function and productivity constitute less tangible but potentially more substantial benefits, with research indicating 5% to 15% productivity gains in environments with superior air quality. For commercial tenants and employers, these improvements directly impact operational performance and competitive positioning.

Equipment longevity and maintenance cost reductions accrue from cleaner operating conditions. Improved filtration protects downstream components from contamination, extending service life and reducing cleaning requirements for coils, fans, and ductwork. Energy savings from optimised ventilation strategies provide ongoing operational cost reductions that accumulate over system lifespans. When considered holistically, the return on investment for comprehensive air quality improvements frequently achieves payback periods of two to five years.

Specification Resources for Trade Professionals

HVAC engineers and air conditioning installers require ready access to high-quality components and reliable suppliers to execute air quality improvement projects successfully. Comprehensive inventories of```html filters, fan motors, capacitors, and installation supplies ensure project continuity without delays from component unavailability. Suppliers offering technical specifications, compatibility guidance, and rapid delivery enable engineers to maintain project schedules whilst ensuring appropriate equipment selection.

Filter housings and media in various efficiency grades accommodate diverse application requirements, from basic pre-filtration to HEPA-grade purification. Replacement fan motors and capacitors prove essential for capacity upgrades necessitated by higher-efficiency filtration systems. Refrigeration components and HVAC tools facilitate comprehensive system servicing, whilst installation accessories including gaskets, mounting hardware, and sealing materials ensure proper equipment integration without air bypass issues.

Access to technical datasheets, pressure drop curves, and efficiency ratings enables informed specification decisions aligned with project objectives. Reputable suppliers maintain current inventory information and provide compatibility verification, reducing the risk of procurement errors that delay installations or compromise performance. For contractors managing multiple concurrent projects, consolidated sourcing from reliable suppliers streamlines logistics whilst ensuring consistent component quality across installations.

Integration with Building Management Systems

Modern building management systems (BMS) provide centralised monitoring and control capabilities that enhance air quality management whilst optimising operational efficiency. Integration of HVAC equipment with BMS platforms enables sophisticated control strategies impossible with standalone systems.

Real-time data acquisition from multiple sensors throughout buildings provides comprehensive visibility into spatial and temporal air quality variations. Carbon dioxide levels, particulate matter concentrations, volatile organic compound measurements, and temperature-humidity parameters inform automated control adjustments. When sensor readings indicate elevated pollutant levels, systems automatically increase ventilation rates or activate supplemental filtration equipment to restore acceptable conditions.

Historical data trending reveals patterns that inform maintenance scheduling and identify chronic issues requiring remediation. Gradual increases in pressure drop across filter banks signal approaching replacement needs, enabling proactive servicing before excessive resistance compromises airflow. Correlation analysis between outdoor air quality, occupancy patterns, and indoor measurements refines ventilation strategies and identifies opportunities for further optimisation.

Alarm functions alert facility management personnel to equipment malfunctions, filter failures, or air quality excursions requiring immediate attention. Rather than discovering problems through occupant complaints or routine inspections, automated monitoring enables rapid response that minimises exposure duration and prevents minor issues from escalating into major failures.

Sector-Specific Considerations

Different building types and industrial applications present unique air quality challenges that demand tailored approaches. Understanding sector-specific requirements enables engineers to develop appropriately customised solutions.

Healthcare and Laboratory Environments

Medical facilities require exceptional air quality standards to protect immunocompromised patients and prevent healthcare-associated infections. Operating theatres demand HEPA filtration with stringent airflow patterns maintaining positive pressure and minimising turbulence. Isolation rooms for infectious patients require negative pressure containment with dedicated exhaust systems and high-efficiency filtration to prevent pathogen escape.

Laboratories handling hazardous materials necessitate sophisticated containment ventilation with fume hood integration and fail-safe controls. Redundant exhaust fans with automatic switchover ensure continuous operation even during equipment failures. Air change rates in these environments often exceed 12 to 15 ACH, substantially higher than standard commercial applications.

Industrial and Manufacturing Facilities

Manufacturing processes frequently generate substantial particulate matter, chemical vapours, or thermal loads that challenge ventilation systems. Source capture through localised exhaust ventilation prevents pollutant dispersion throughout facilities, reducing the burden on general ventilation systems. High-temperature applications may require specialised filter media resistant to thermal degradation, whilst corrosive environments demand materials compatible with aggressive chemical exposures.

Industrial refrigeration systems serving food processing or cold storage applications must maintain air quality whilst operating under extreme temperature conditions. Evaporator coil frosting patterns provide diagnostic information about airflow uniformity and refrigerant distribution. Proper defrost control prevents ice accumulation that restricts airflow and diminishes both cooling capacity and air circulation effectiveness.

Educational Institutions and Public Buildings

Schools and public facilities accommodate high-density occupancy with variable schedules that complicate ventilation management. Classrooms require adequate outdoor air delivery to maintain carbon dioxide levels below 1000 ppm, yet many existing installations provide insufficient ventilation during full occupancy. Portable air filtration units offer interim solutions whilst permanent system upgrades undergo planning and implementation.

Gymnasiums and sports facilities present challenges from elevated metabolic rates generating substantial bioeffluents and moisture. Dedicated outdoor air systems with energy recovery prove particularly effective in these applications, providing continuous ventilation independent of heating and cooling equipment that may operate intermittently based upon thermal loads.

Troubleshooting Common Air Quality Issues

Systematic diagnostic approaches enable efficient identification and resolution of air quality problems. Understanding common failure modes and their characteristic symptoms accelerates troubleshooting whilst minimising disruption to building operations.

Persistent odours despite apparently adequate filtration often indicate gaseous contaminants requiring activated carbon treatment or point-source control measures. Alternatively, odours may originate from microbial growth within HVAC equipment itself, necessitating thorough cleaning and potential antimicrobial treatment. Drain pan contamination frequently manifests as musty odours particularly noticeable during system startup after idle periods.

Uneven air quality across served spaces suggests distribution problems rather than filtration inadequacies. Balancing dampers may require adjustment to correct disproportionate airflow allocation. Alternatively, ductwork leakage might permit unconditioned air infiltration or short-circuit supply air directly to return grilles without proper room mixing. Smoke testing visualises airflow patterns and identifies problem areas requiring remediation.

Elevated particulate matter despite high-efficiency filtration points to filter bypass or installation errors. Visual inspection for gaps around filter frames, damaged gaskets, or improperly latched access doors often reveals the culprit. Alternatively, internal filter media damage from excessive pressure drop or rough handling may create pathways for particle passage.

Professional Development and Knowledge Resources

The rapidly evolving landscape of air quality science and HVAC technology demands ongoing professional development to maintain technical competence. Industry organisations, technical publications, and manufacturers' training programmes provide valuable knowledge resources for engineers and installers.

Professional certifications demonstrate expertise and commitment to industry standards, enhancing credibility with clients and employers. Organisations such as the Building Engineering Services Association (BESA) and the Chartered Institution of Building Services Engineers (CIBSE) offer technical guidance documents, training courses, and networking opportunities facilitating knowledge exchange amongst practitioners.

Manufacturer-specific training on equipment operation, maintenance procedures, and troubleshooting techniques proves invaluable for technicians working with particular product lines. Many suppliers provide technical support hotlines, online resources, and field service assistance to support installers and maintenance personnel. Cultivating relationships with knowledgeable suppliers ensures access to expert guidance when complex challenges arise.

Staying abreast of regulatory changes, emerging technologies, and evolving best practices positions professionals to deliver optimal solutions for clients whilst maintaining competitive advantages in the marketplace. The investment in continuous learning yields dividends through enhanced problem-solving capabilities, reduced project risks, and expanded service offerings.

Conclusion

Improving HVAC air quality through strategic filtration and ventilation interventions represents both a technical challenge and a professional opportunity for engineers and installers. The integration of high-efficiency filters, optimised outdoor air delivery, and intelligent control systems creates indoor environments that promote occupant health, enhance productivity, and demonstrate environmental stewardship. Success demands comprehensive understanding of filtration principles, ventilation fundamentals, and practical implementation considerations spanning equipment selection, installation precision, and diligent maintenance.

The tangible benefits of superior air quality—reduced illness, enhanced cognitive function, and improved building performance—justify the investments required for system upgrades and ongoing optimisation. As awareness of indoor air quality importance continues growing amongst building owners, facility managers, and occupants, demand for expert services in this domain will correspondingly increase. HVAC professionals who develop deep competencies in air quality enhancement position themselves advantageously to capitalise on this expanding market whilst contributing meaningfully to public health and wellbeing.

Successful project execution requires not only technical knowledge but also access to reliable components, tools, and supplies. Establishing relationships with suppliers offering comprehensive inventories, technical expertise, and responsive service ensures project continuity and quality outcomes. The combination of professional competence and logistical support enables engineers and installers to confidently undertake air quality improvement initiatives delivering measurable value for clients and building occupants alike.
