Peristaltic Condensate Pump Maintenance: Tube Replacement Guide

Peristaltic condensate pumps have become indispensable components within contemporary HVAC installations, particularly where gravity drainage proves impractical or impossible. These ingenious devices utilise rotating rollers to compress flexible tubing, propelling condensate water away from air handling units, fan coil systems, and other cooling apparatus. Whilst the pump mechanism itself demonstrates remarkable longevity, the elastomeric tubing subjected to constant compression inevitably degrades over time, necessitating periodic replacement to maintain optimal system performance.

Understanding the tube replacement procedure represents essential knowledge for HVAC engineers and refrigeration technicians tasked with maintaining commercial and residential climate control systems. Neglecting this critical maintenance activity often precipitates system failures, water damage, and unnecessary callouts that could otherwise be prevented through scheduled preventative maintenance protocols.

Understanding Peristaltic Pump Operation and Tube Degradation

The operational principle underpinning peristaltic pump functionality revolves around mechanical occlusion. A rotating assembly comprising multiple rollers systematically compresses the flexible tube against a rigid housing, creating discrete pockets of fluid that advance through the conduit with each revolution. This positive displacement mechanism offers distinct advantages: the pumped medium never contacts mechanical components, eliminating contamination risks and corrosion concerns.

However, this continuous compression-relaxation cycle imposes substantial mechanical stress upon the tube material. The elastomeric compounds—typically manufactured from synthetic rubber formulations, silicone, or thermoplastic elastomers—gradually exhibit fatigue characteristics. Microscopic fissures develop within the tube wall structure, compromising both tensile strength and elasticity. Eventually, the degraded tube may rupture, lose its ability to maintain occlusion pressure, or develop surface irregularities that impede fluid progression.

Environmental factors accelerate this deterioration process. Elevated ambient temperatures, exposure to aggressive cleaning agents, prolonged contact with contaminated condensate containing biological agents or chemical residues, and ultraviolet radiation exposure all contribute to premature tube failure. Recognising these degradation mechanisms enables engineers to implement appropriate preventative measures and establish realistic replacement intervals.

Recognising When Tube Replacement Becomes Necessary

Experienced HVAC professionals develop an intuitive sense for identifying compromised peristaltic pump tubes through systematic observation. Several diagnostic indicators warrant immediate attention and typically necessitate tube replacement rather than further operational service.

Visual Inspection Criteria

Surface examination reveals numerous telltale signs of tube degradation. Visible cracking—whether longitudinal striations or circumferential fissures—represents an unambiguous failure indicator. Discolouration beyond the normal patina acquired during operational service suggests chemical attack or thermal degradation. Permanent deformation where the tube no longer returns to its original circular cross-section following roller passage indicates material fatigue exceeding acceptable parameters.

Swelling or dimensional changes similarly indicate compromised tube integrity. The tube should maintain consistent wall thickness and internal diameter throughout its length. Localised bulging, particularly at compression points, signals imminent failure. Surface tackiness or material breakdown manifests as a sticky residue that collects particulate contamination.

Performance Degradation Symptoms

Operational deficiencies often precede catastrophic tube failure. Diminished flow rates despite consistent motor operation suggest the tube no longer maintains adequate occlusion pressure. Intermittent pumping action or pulsating discharge indicates irregular compression cycles resulting from tube hardening or dimensional inconsistencies.

Excessive noise generation during operation—beyond the characteristic rhythmic sound associated with normal peristaltic pump function—frequently correlates with tube surface irregularities or hardening. Conversely, unusual vibration may indicate the tube has become dislodged from its proper seating position within the pump housing.

Replacement Tube Selection and Compatibility Considerations

Selecting appropriate replacement tubing requires careful attention to dimensional specifications, material compatibility, and application requirements. Utilising incorrect tube specifications inevitably results in suboptimal performance or premature failure, potentially voiding equipment warranties and compromising system reliability.

Dimensional accuracy proves paramount. The tube's internal diameter, wall thickness, and overall length must correspond precisely to manufacturer specifications. Even minor deviations alter the occlusion characteristics and flow performance. Similarly, the tube material must demonstrate compatibility with the condensate chemistry—though typically neutral, condensate may contain residual refrigerant, treatment chemicals, or biological contaminants that interact with certain elastomeric compounds.

Professional-Grade Replacement Tubes for HVAC Applications

When sourcing replacement tubes for condensate pump maintenance, specifying manufacturer-approved components ensures dimensional accuracy and material compatibility. The Aspen Peristaltic Pump Spare Replacement Tube Kit (FP1282) represents a professional-grade solution engineered specifically for HVAC condensate removal applications.

This replacement tube kit addresses the common challenge HVAC engineers face when maintaining ageing condensate pump installations. Manufactured to exacting tolerances, the tube exhibits excellent resistance to the environmental conditions typical of air conditioning installations—temperature fluctuations, condensate chemistry variations, and sustained mechanical compression cycles. The kit includes all necessary components for complete tube replacement, eliminating the need to source individual parts from multiple suppliers.

For engineers managing multiple installations or maintaining preventative maintenance schedules across commercial portfolios, stocking these replacement tubes ensures rapid response capability when tube degradation necessitates intervention. The compatibility with widely deployed Aspen pump models makes this an essential inventory item for HVAC service departments.

Step-by-Step Tube Replacement Procedure

Executing tube replacement with methodical precision minimises downtime and ensures reliable post-maintenance operation. The following procedure represents industry best practice for peristaltic condensate pump servicing.

Pre-Replacement Preparation

System isolation constitutes the essential first step. Disconnect electrical power to the pump assembly, verifying complete de-energisation using appropriate test equipment. Never rely solely on switch position or indicator lamps. Drain residual condensate from the collection reservoir, utilising absorbent materials to manage spillage. Photograph the existing tube routing configuration before disassembly—this reference proves invaluable during reinstallation, particularly with complex routing arrangements.

Assemble necessary tools and materials: replacement tube kit, appropriate screwdrivers or hex keys for housing fasteners, cleaning materials, and personal protective equipment. Maintain a clean working environment, as contamination introduced during maintenance compromises pump longevity.

Tube Removal Process

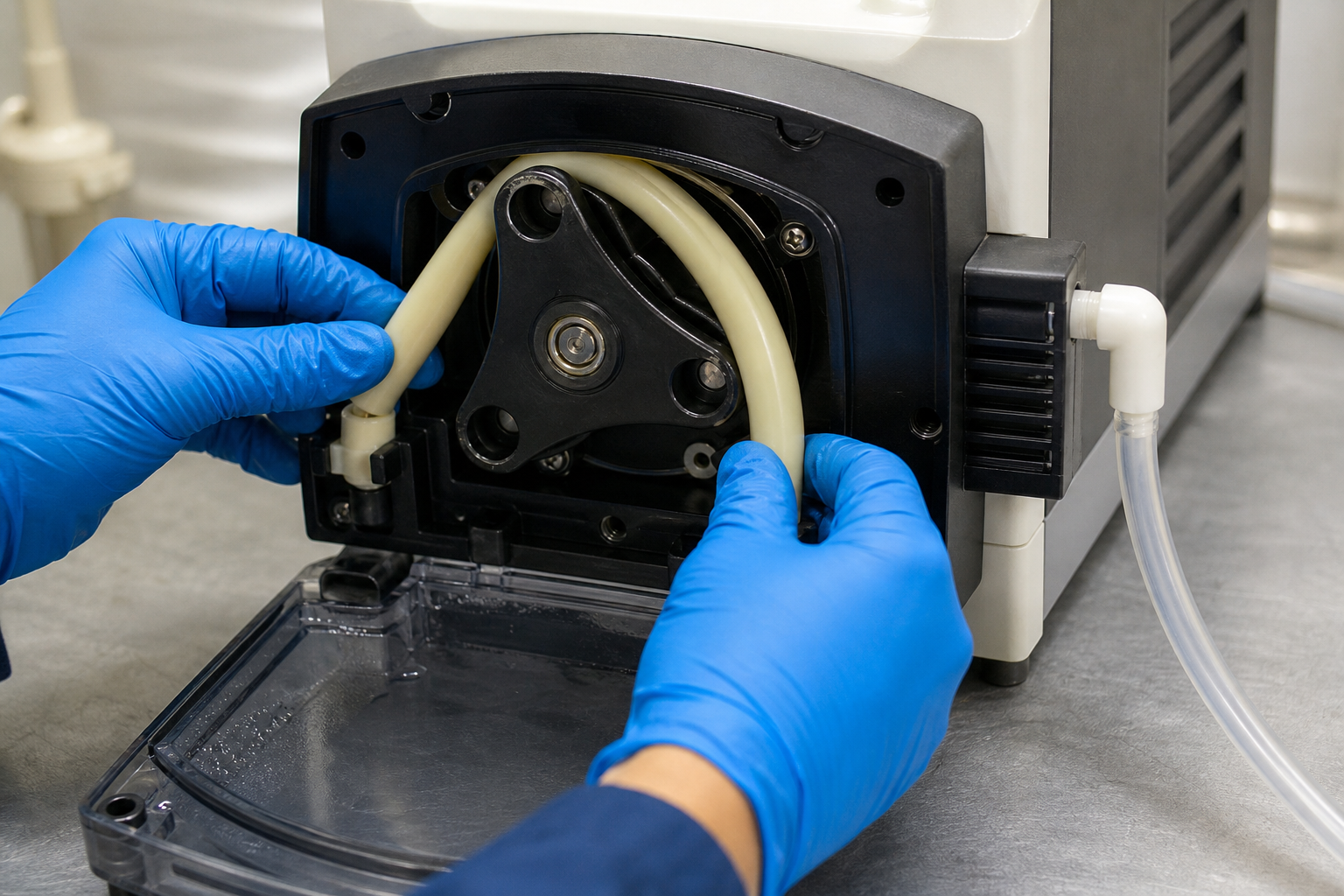

Access the pump mechanism by removing the cover assembly. Most designs incorporate snap-fit or screw-retained covers requiring minimal tooling. Exercise caution to avoid damaging sealing surfaces or breaking retention clips. Release the roller assembly tension mechanism—designs vary, but typically involve loosening a spring-loaded retention system that maintains roller pressure against the tube.

Once tension releases, carefully extract the degraded tube from the pump housing. Note the tube routing path, particularly how it interfaces with inlet and outlet connections. Some installations incorporate barbed fittings requiring careful manipulation to avoid damage to connection ports. Inspect the pump housing interior for debris accumulation or mechanical wear on the roller assembly. Clean all surfaces using appropriate non-aggressive solvents, ensuring complete removal of residual tube material or contamination.

New Tube Installation

Before installation, briefly inspect the replacement tube for any manufacturing defects or shipping damage. The tube should exhibit uniform dimensions, consistent wall thickness, and appropriate flexibility. Route the new tube through the pump housing following the original configuration, ensuring proper orientation and avoiding kinks or sharp bends that might compromise flow characteristics.

Secure tube ends to inlet and outlet connections, verifying leak-tight engagement. Push-fit connections should seat fully with audible confirmation; barbed fittings require firm pressure to achieve complete engagement beyond the barb retention features. Position the tube within the roller track, ensuring even alignment across the compression path.

Re-engage the roller assembly tension mechanism, applying manufacturer-specified pressure. Insufficient tension permits tube slippage and compromises pumping efficiency; excessive tension accelerates tube wear. Manual rotation of the pump drive shaft through several complete revolutions confirms smooth operation without binding or irregular resistance.

Post-Installation Verification

Reinstall the pump housing cover, ensuring proper sealing to prevent condensate leakage. Restore electrical power and observe initial pump operation carefully. The pump should operate smoothly with characteristic rhythmic sound but without excessive noise, vibration, or irregular pulsation. Verify discharge flow by introducing water into the collection reservoir and confirming proper evacuation.

Monitor the installation over the subsequent 24-48 hours, checking for leakage, unusual sounds, or performance irregularities. Document the replacement date and tube specifications in maintenance records, establishing a baseline for future replacement interval planning.

Establishing Optimal Tube Replacement Intervals

Reactive maintenance—replacing tubes only upon failure—represents false economy. Scheduled preventative replacement minimises emergency callouts, prevents water damage, and optimises labour efficiency by consolidating maintenance activities during planned service visits.

Replacement intervals depend upon multiple variables: operating duty cycle, ambient temperature conditions, condensate chemistry, and tube material specifications. Generally, tubes subjected to continuous operation in demanding environments warrant annual replacement, whilst intermittent-duty installations in benign conditions may achieve 18-24 month service intervals.

Documenting operational parameters and failure modes across your installation portfolio enables data-driven interval optimisation. Track tube service life, failure characteristics, and environmental conditions to refine replacement schedules specific to your operational context.

Common Mistakes to Avoid During Tube Replacement

Even experienced engineers occasionally fall victim to oversights that compromise replacement quality. Awareness of these common pitfalls facilitates their avoidance.

Installing tubes with incorrect dimensions represents perhaps the most prevalent error. Visual similarity does not guarantee dimensional compatibility—always verify specifications against manufacturer documentation. Reusing compression fittings or connection components beyond their service life similarly invites problems. These items represent minimal cost compared to callback expenses resulting from leakage.

Overtightening roller assembly tension mechanisms accelerates tube wear. Conversely, insufficient tension permits slippage and erratic performance. Adhere strictly to manufacturer specifications or torque values. Failing to clean the pump housing interior before installing new tubes introduces abrasive particles that accelerate degradation.

Neglecting to photograph original tube routing before disassembly frequently results in installation errors, particularly with complex configurations involving multiple bends or connection points. Documentation requires mere seconds but prevents substantial troubleshooting time.

Extending Tube Service Life Through Operational Best Practices

Whilst tube replacement eventually becomes inevitable, implementing operational best practices substantially extends service intervals and optimises total cost of ownership.

Maintaining appropriate ambient temperature conditions protects tube material from thermal degradation. Where possible, position pumps away from heat sources such as compressors, refrigerant lines, or direct sunlight. Ensure adequate ventilation to dissipate motor heat generation.

Regular condensate system cleaning prevents biological growth and chemical accumulation that attack tube materials. Periodic system flushing removes accumulated debris that might contain aggressive compounds. Installing debris filters upstream of the pump prevents particulate ingestion that can abrade tube surfaces.

Avoiding unnecessary pump cycling through proper float switch adjustment reduces cumulative compression cycles. Each operational cycle contributes to tube fatigue—optimising switch settings to permit appropriate reservoir fill levels before activation extends tube longevity without compromising drainage effectiveness.

Troubleshooting Post-Replacement Performance Issues

Occasionally, despite meticulous replacement procedure adherence, performance issues manifest following tube installation. Systematic troubleshooting identifies root causes and facilitates prompt resolution.

Inadequate flow rates despite new tube installation often indicate insufficient roller tension or tube dimensional mismatches. Verify tube specifications against equipment requirements and adjust tension mechanisms per manufacturer guidelines. Air entrainment within the tube similarly compromises pumping efficiency—ensure proper system priming and eliminate potential suction-side air ingress points.

Excessive noise generation typically results from improper tube seating within the roller track or foreign material contamination. Remove the tube, inspect the housing for debris, and reinstall with careful attention to proper positioning. Premature tube failure shortly after replacement suggests either incompatible tube material, excessive roller tension, or aggressive condensate chemistry requiring more resistant tube compounds.

Frequently Asked Questions About Peristaltic Pump Tube Replacement

Can I use generic tubing instead of manufacturer-specified replacement tubes?

Whilst generic tubing may appear dimensionally similar, subtle specification differences significantly impact performance and longevity. Manufacturer-specified tubes incorporate material formulations optimised for the specific compression characteristics, duty cycles, and chemical exposures typical of condensate pumping applications. Generic alternatives frequently fail prematurely or exhibit inadequate flow performance. The modest cost differential rarely justifies the increased failure risk and potential water damage consequences.

What causes tubes to fail more rapidly in some installations than others?

Tube service life variation results from multiple interacting factors. Continuous-duty installations accumulate compression cycles more rapidly than intermittent-use systems. Elevated ambient temperatures accelerate elastomeric degradation. Condensate contaminated with biological agents, cleaning chemicals, or refrigerant residues attacks tube materials. Additionally, manufacturing quality variations between tube suppliers produce inconsistent longevity outcomes. Systematic documentation of failure patterns enables identification of installation-specific factors warranting mitigation.

How do I determine if poor pump performance results from tube degradation versus other mechanical issues?

Diagnostic differentiation requires systematic evaluation. Visual tube inspection revealing surface cracks, permanent deformation, or material degradation clearly indicates tube replacement necessity. However, absent obvious tube deterioration, verify roller assembly condition, motor operation, and electrical supply adequacy. Measure discharge flow rates and compare against baseline specifications. If the motor operates correctly and mechanical components show no abnormal wear, but flow remains inadequate, tube replacement represents the logical intervention despite absence of obvious visual degradation.

Mastering peristaltic pump tube replacement procedures represents fundamental competency for HVAC engineers maintaining contemporary climate control installations. Through systematic approach, quality component selection, and adherence to manufacturers' specifications, technicians ensure reliable condensate management whilst minimising emergency callouts and extending equipment service life. The relatively modest investment in scheduled tube replacement yields substantial returns through enhanced system reliability and reduced total ownership costs across your installation portfolio.
