Polyethylene Pipe Insulation: Energy Savings Guide
Table of Contents

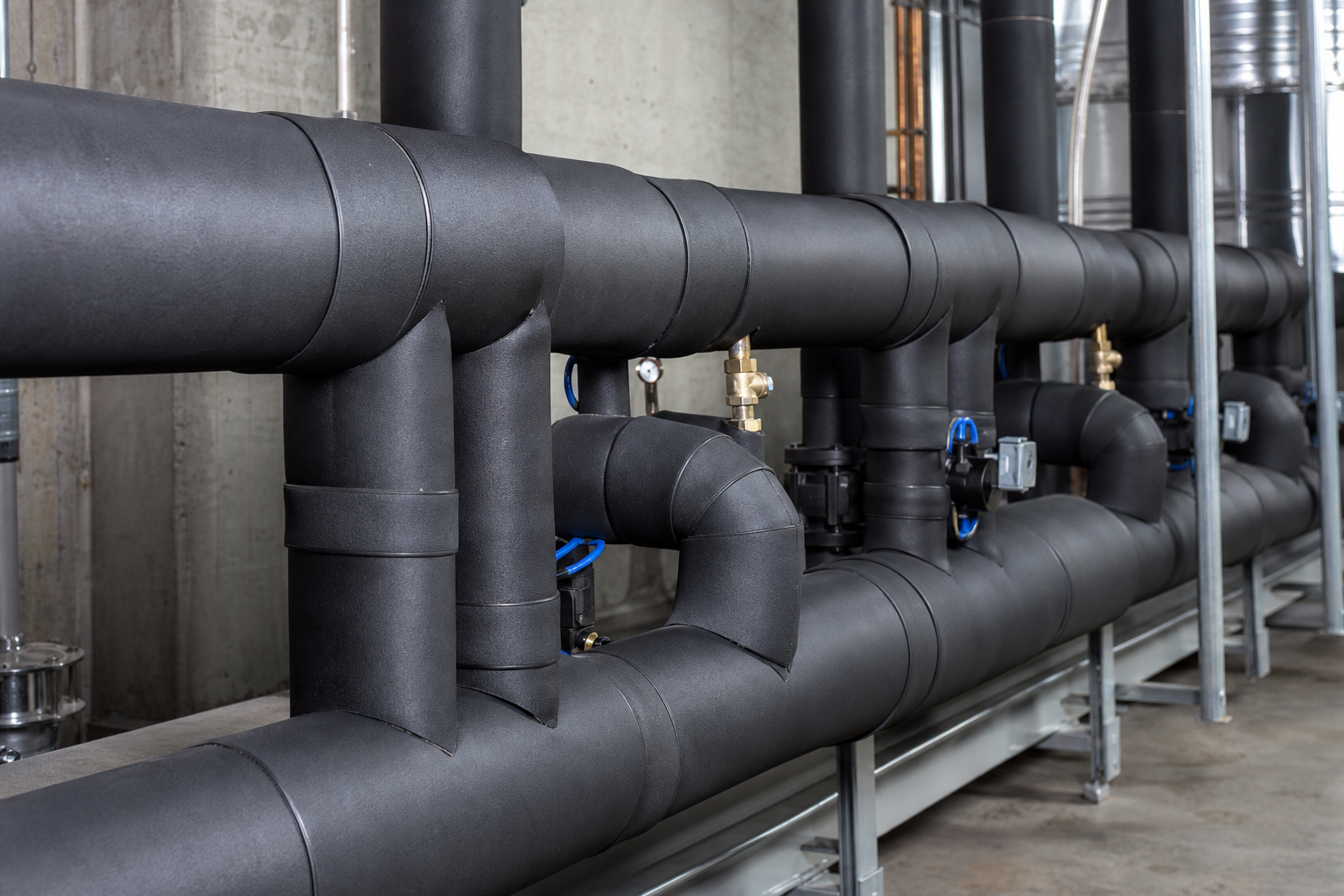

Within the demanding sphere of HVAC installations and refrigeration systems, thermal efficiency stands as a non-negotiable pillar of operational excellence. Polyethylene pipe insulation represents a cornerstone solution for professionals seeking to optimise energy consumption whilst maintaining system integrity across diverse environmental conditions. Understanding the nuances of polyethylene pipe insulation thermal performance enables engineers to make informed decisions that directly impact long-term operational costs and system reliability.

The thermal conductivity characteristics of polyethylene foam insulation materials fundamentally determine their efficacy in preventing unwanted heat transfer. This cellular structure creates thousands of microscopic air pockets that function as thermal barriers, drastically reducing conductive heat flow between refrigerant lines and ambient environments.

Understanding Polyethylene Foam Cell Structure

Polyethylene pipe insulation derives its exceptional thermal properties from its closed-cell molecular architecture. Each cell functions independently, trapping air within impermeable walls that prevent moisture infiltration whilst simultaneously impeding thermal conductivity. This microstructure achieves thermal conductivity values typically ranging between 0.033 and 0.038 W/mK at 0°C mean temperature.

The density of the foam material directly correlates with its thermal performance capabilities. Higher-density formulations exhibit enhanced structural rigidity and marginally improved thermal resistance, though the relationship is not strictly linear. HVAC engineers must balance density requirements against flexibility needs, particularly when navigating complex pipework configurations in commercial installations.

Closed-cell polyethylene demonstrates remarkable resilience against moisture vapour transmission. The permeance rating of quality polyethylene insulation typically measures below 0.013 perm-inch, effectively creating a vapour barrier that prevents condensation formation on cold pipe surfaces—a critical consideration for refrigeration applications operating below ambient dewpoint temperatures.

Thermal Conductivity Metrics and Real-World Performance

Lambda values provide the quantifiable foundation for assessing insulation thermal performance. Polyethylene pipe insulation maintains consistent thermal conductivity across typical HVAC operating temperature ranges, with minimal degradation between -50°C and +105°C. This stability ensures predictable performance regardless of seasonal temperature fluctuations.

The relationship between insulation thickness and thermal resistance follows a logarithmic curve rather than a linear progression. Doubling insulation thickness does not double R-values; engineers must consult thermal calculation charts to determine optimal thickness for specific applications. A 19mm wall thickness on a 22mm copper refrigerant line typically achieves R-values between 0.47 and 0.52 m²K/W.

Temperature Differential Impact

System efficiency gains vary proportionally with the temperature differential between refrigerant and ambient conditions. A chilled water system operating at 6°C in a 25°C plant room experiences substantially different thermal losses compared to a refrigeration line carrying R410A at -15°C. Polyethylene insulation maintains its protective efficacy across this entire spectrum, though thickness requirements escalate with increasing temperature deltas.

K-Flex PE Pipe Insulation: Professional-Grade Solution

For HVAC professionals demanding reliable thermal performance backed by industry certification, K-Flex PE pipe insulation represents a thoroughly tested solution engineered specifically for demanding mechanical service applications. This closed-cell polyethylene insulation combines optimal thermal conductivity characteristics with the practical durability required on active construction sites and retrofit projects.

The material exhibits excellent resistance to moisture absorption whilst maintaining flexibility during installation—a crucial attribute when working with existing pipework in confined ceiling voids or service risers. The self-sealing properties around pipe supports and penetrations minimise thermal bridging risks that compromise overall system efficiency.

Installation efficiency directly impacts project timelines and labour costs. The pre-slit configuration allows rapid fitment around pipework without requiring disconnection of existing systems, whilst the inherent flexibility accommodates the thermal expansion and contraction cycles inherent in HVAC operations.

Calculating Energy Savings from Proper Insulation

Quantifying thermal losses requires consideration of multiple variables: pipe diameter, insulation thickness, refrigerant temperature, ambient temperature, and linear metres of exposed pipework. The fundamental heat loss equation incorporates these parameters to generate BTU/hr or Watt values that translate directly into operational costs.

An uninsulated 54mm copper refrigerant line carrying liquid at 5°C through a 20°C environment loses approximately 28 watts per linear metre. Applying 19mm polyethylene insulation reduces this to roughly 6 watts per metre—a 78% reduction in thermal gain. Across a 50-metre pipe run operating 12 hours daily, this represents annual savings exceeding 48 kWh per metre of pipework.

Compressor Run-Time Reduction

Thermal gains on refrigerant suction lines directly increase compressor workload. Every watt of unwanted heat absorbed by returning refrigerant gas demands additional compressor energy to reject that heat. Proper polyethylene insulation on suction lines can reduce compressor run-time by 8-15% in typical commercial refrigeration applications, with proportional reductions in electrical consumption.

Installation Best Practices for Maximum Thermal Performance

Achieving theoretical thermal performance values requires meticulous installation technique. Gaps, compressions, and thermal bridges undermine the carefully engineered cellular structure that provides insulation efficacy.

  • Ensure continuous coverage without gaps at joints, bends, or fittings
  • Seal longitudinal seams with compatible adhesive to prevent moisture infiltration
  • Avoid compression of foam structure during installation or subsequent trades work
  • Protect insulation from UV exposure in outdoor applications using appropriate jacketing
  • Maintain minimum bend radii to prevent cell structure damage

Joints between insulation sections represent potential thermal weak points. Butt joints should meet squarely with full adhesive coverage extending 50mm either side of the junction. Staggered joints on adjacent pipes prevent cumulative thermal bridging effects in high-density pipe runs.

Comparative Analysis: Polyethylene Versus Alternative Materials

Material selection impacts both initial installation costs and long-term thermal performance. Polyethylene foam occupies a distinct position within the insulation material spectrum, offering specific advantages for mechanical services applications.

Material Type Thermal Conductivity (W/mK) Moisture Resistance Installation Flexibility
Polyethylene Foam 0.033-0.038 Excellent High
Elastomeric Rubber 0.036-0.040 Excellent Very High
Phenolic Foam 0.018-0.022 Moderate Low
Mineral Wool 0.035-0.044 Poor Moderate

Whilst phenolic foam delivers superior lambda values, its brittleness and susceptibility to moisture damage limit applicability in refrigeration environments. Elastomeric rubber offers comparable performance to polyethylene with enhanced flexibility, though at increased material cost. Polyethylene strikes an optimal balance between thermal performance, durability, and cost-effectiveness for the majority of HVAC applications.

Long-Term Performance Degradation Factors

Insulation thermal performance inevitably degrades over operational lifespan. Understanding degradation mechanisms enables realistic lifespan projections and maintenance scheduling.

UV radiation exposure causes surface embrittlement and eventual cell structure breakdown in unprotected polyethylene insulation. Outdoor installations absolutely require protective jacketing or coating systems to maintain thermal performance beyond 3-5 years. Indoor applications face minimal UV degradation risks.

Moisture ingress represents the primary degradation vector for polyethylene pipe insulation. Whilst the closed-cell structure inherently resists water absorption, damaged seams or punctures allow moisture accumulation that dramatically increases thermal conductivity and promotes microbial growth.

Mechanical damage from subsequent trades, building occupants, or maintenance activities compromises both thermal and moisture barrier functions. Protection during and after installation preserves design performance values throughout the intended service life.

Refrigerant Type Considerations

Modern refrigerants operate across diverse temperature and pressure ranges that influence insulation requirements. R410A systems typically run higher pressures than legacy R22 installations, though polyethylene insulation accommodates both refrigerant types without material incompatibility concerns.

Hydrocarbon refrigerants like R290 demand particular attention to insulation integrity due to flammability classifications. Whilst polyethylene itself demonstrates low flame spread characteristics, maintaining continuous thermal barriers prevents refrigerant accumulation in ceiling voids should leakage occur.

Regulatory Compliance and Building Standards

UK building regulations increasingly mandate minimum insulation standards for mechanical services as part of broader energy efficiency initiatives. Part L specifications require demonstrable thermal performance for new installations and major refurbishments, with calculation methodologies defined in CIBSE guidance documents.

F-Gas regulations indirectly impact insulation decisions by incentivising leak prevention and refrigerant charge minimisation. Proper thermal insulation reduces system inefficiencies that might otherwise prompt engineers to increase refrigerant charge beyond optimal levels.

Cost-Benefit Analysis for Insulation Upgrades

Retrofitting improved insulation to existing installations requires careful economic justification. Payback periods vary enormously depending on system operating hours, energy tariffs, and existing insulation condition.

A refrigeration system operating 6000 hours annually with electricity costs at £0.16/kWh can justify insulation upgrades with payback periods under 18 months. Systems with lower utilisation or superior existing insulation may require 4-5 years to recoup investment through energy savings alone. However, secondary benefits including condensation prevention and extended equipment lifespan often tip the economic balance favourably.

Facilities managers should prioritise insulation improvements on the highest temperature-differential lines first—typically refrigeration suction lines and chilled water supplies—where thermal gains impose the greatest efficiency penalties.

Future Developments in Polyethylene Insulation Technology

Material science advances continue refining polyethylene foam formulations. Emerging additives enhance flame retardancy without compromising thermal performance, whilst manufacturing process improvements achieve more uniform cell structures that deliver consistent lambda values across production batches.

Aerogel-enhanced polyethylene composites represent the cutting edge of insulation technology, potentially delivering thermal conductivity values below 0.020 W/mK whilst maintaining the flexibility and moisture resistance that HVAC applications demand. Commercial viability remains constrained by manufacturing costs, though economies of scale may bring these materials within mainstream reach within the next decade.

The trajectory of HVAC system efficiency improvements demands ever-more rigorous thermal management. Polyethylene pipe insulation thermal performance will remain central to achieving the energy consumption reductions necessary for meeting increasingly stringent environmental targets whilst maintaining the system reliability that commercial and industrial facilities require.
