Professional Tube Bending Techniques for Copper Pipework

Understanding the Fundamentals of Copper Tube Bending

Copper pipework remains the cornerstone of modern HVAC installations, prized for its malleability, thermal conductivity, and longevity. Yet the very characteristic that makes copper so versatile—its ductility—also presents a significant challenge during manipulation. The art of bending copper tubing without inducing kinks represents a fundamental skill that separates proficient HVAC engineers from novices.

Kinking occurs when the compressive forces on the inner radius of a bend exceed the material's structural integrity, causing a localised collapse. This deformation restricts refrigerant flow, creates pressure differentials, and compromises system efficiency. Beyond performance degradation, kinked pipework becomes a site for potential refrigerant leakage and premature failure.

The metallurgical properties of copper tube vary considerably depending on temper classification. Soft-annealed copper (often delivered in coils) exhibits greater formability than half-hard or hard-drawn variants. Understanding these distinctions proves essential when selecting appropriate bending methodologies and tooling. The wall thickness ratio to diameter—a critical parameter—determines minimum bend radii and susceptibility to distortion.

Essential Equipment for Professional Copper Tube Manipulation

Professional HVAC engineers require purpose-built apparatus to achieve consistent, kink-free bends across various tube diameters. Manual tube benders with precision formers accommodate standard refrigeration dimensions from 1/4" through 7/8" outside diameter. These devices incorporate calibrated degree markings, enabling accurate angular positioning essential for spatial constraints within plant rooms and commercial installations.

Hydraulic bending machines offer enhanced mechanical advantage for larger diameter pipework and hard-drawn copper variants. Their consistent pressure application minimises work-hardening whilst maintaining uniform wall thickness throughout the bend radius. For field installations where portability supersedes production capacity, ratcheting hand benders deliver adequate performance within compact footprints.

Bending Springs: The Traditional Safeguard

Internal bending springs represent time-honoured solutions for preventing kink formation during manual bending operations. These helical steel implements insert into the tube bore, providing radial support throughout the deformation process. The spring's coil spacing permits compression on the bend's interior whilst allowing expansion along the exterior radius.

Professional-grade bending springs feature chamfered entry points and retrieval eyes, facilitating insertion and extraction even after compression. Material selection—typically hardened spring steel—ensures the implement retains its geometry through repeated cycles without permanent deformation. Proper sizing remains paramount; the spring must slide freely yet provide sufficient internal bracing.

Mastercool Bending Springs: Professional-Grade Protection

The Mastercool bending springs for copper tubes set addresses the comprehensive requirements of HVAC professionals working across multiple pipe dimensions. This five-piece collection encompasses the most frequently encountered refrigeration tube sizes, eliminating the need for improvisation or inadequate tooling during critical installations.

Engineered specifically for the rigours of commercial HVAC applications, these springs deliver consistent performance across soft and semi-hard copper variants. The graduated sizing accommodates 1/4", 5/16", 3/8", 1/2", and 5/8" outside diameter tubing—the predominant dimensions in split systems, packaged units, and refrigeration circuits. Each spring features optimised coil tension calibrated to its corresponding tube dimension, providing neither excessive resistance during insertion nor insufficient support during bending.

For engineers confronting awkward spatial constraints or field modifications, these springs prove indispensable. They enable precise bends in locations where mechanical benders cannot physically access, such as tight ceiling voids or congested manifold assemblies. The protective carrying case maintains organisation across service calls, preventing loss and contamination.

Copper Tube Bending Without Kinking: Methodologies and Best Practices

Achieving kink-free bends demands methodical technique complemented by understanding of material behaviour. Cold-working copper induces strain hardening, progressively increasing yield strength whilst reducing ductility. Consequently, excessive manipulation or repeated bending in proximate locations invites failure.

The Spring-Assisted Manual Bending Technique

Insert the appropriately sized bending spring into the tube section, positioning it centrally within the intended bend zone. Apply thin lubricant—proprietary tube oils or even washing-up liquid—to ease insertion and subsequent removal. The spring should extend approximately 25-50mm beyond the bend centre in both directions.

Grip the tube firmly on both sides of the spring, maintaining consistent spacing. Apply gradual, uniform pressure whilst supporting the tube against your thigh or a padded work surface. Progress incrementally, checking angular progression frequently. Rushing the process concentrates stress, overwhelming the spring's protective capacity.

For acute angles exceeding 90 degrees, pause midway to assess wall condition and redistribute material stress. Extract the spring using rotational motion—twist clockwise whilst pulling—to prevent coil binding. Should the spring resist removal, gentle twisting in alternating directions typically releases it.

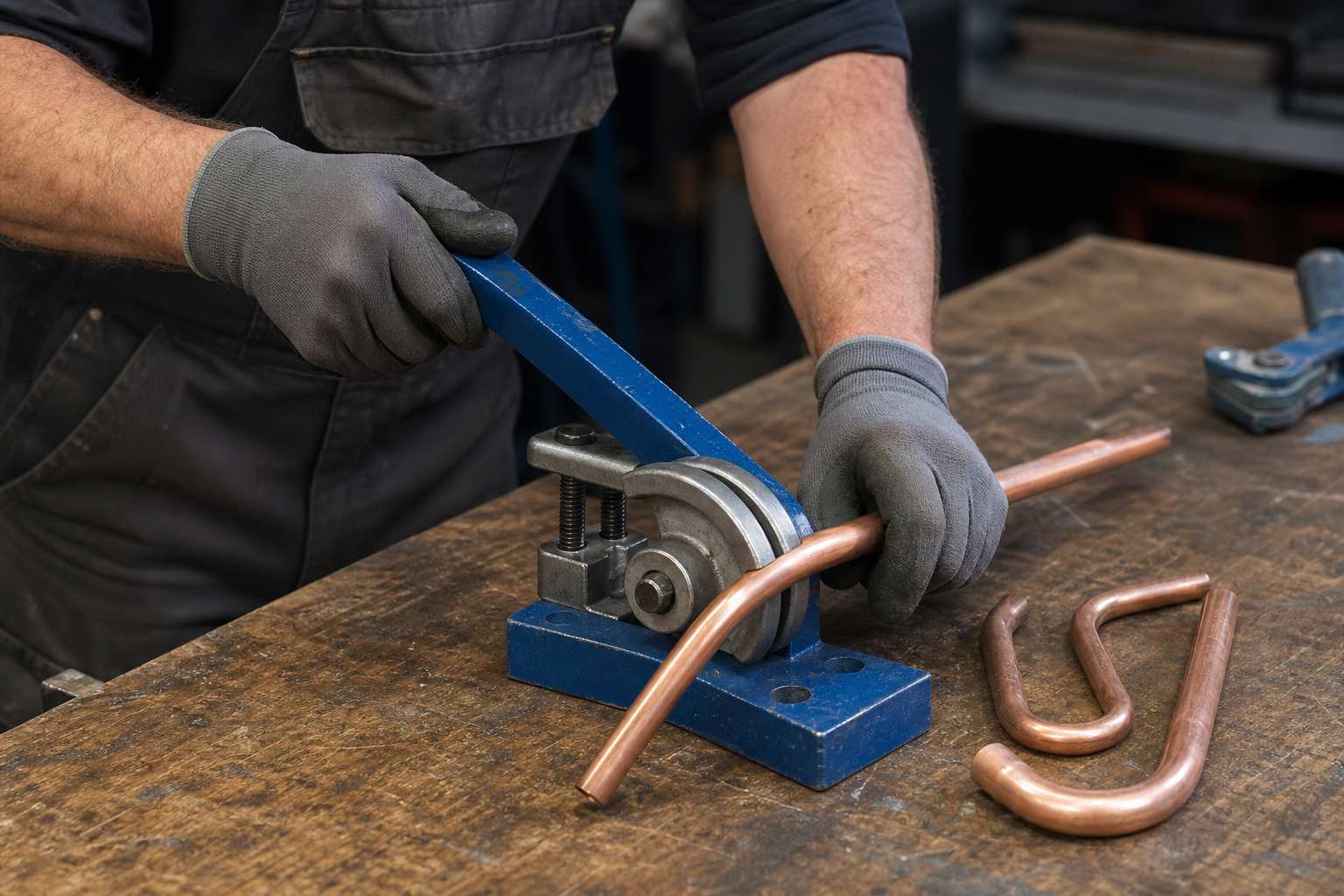

Mechanical Bender Operation

Position the tube within the former groove, aligning the bend mark with the former's zero-degree index. Secure the pressure clamp firmly but without overtightening, which risks dimpling. Rotate the bending lever smoothly, maintaining steady cadence rather than jerky movements.

Quality mechanical benders incorporate radius-specific formers calculated to prevent wall thinning beyond acceptable tolerances. Standard refrigeration applications typically employ 4-5 times the tube diameter as minimum centreline radius. Tighter radii demand annealed copper and heightened vigilance regarding kink potential.

Material Considerations and Copper Temper Classifications

British Standards BS EN 12735 delineates copper tube specifications for refrigeration and air conditioning applications. Temper designation profoundly influences bending characteristics and appropriate methodologies.

Wall thickness variations significantly impact collapse resistance. Type K copper provides heavier walls than Type L, offering greater kink resistance but requiring increased bending force. Refrigeration-grade ACR tube arrives clean, capped, and nitrogen-charged, maintaining internal cleanliness crucial for HVAC applications.

Environmental Factors Affecting Bendability

Ambient temperature influences copper's mechanical properties. Cold working in sub-zero environments increases brittleness, whilst elevated temperatures enhance malleability. Winter installations demand particular vigilance; allowing tube to acclimate to workshop temperatures before manipulation reduces failure risk.

Work-hardening accumulation from previous manipulations creates invisible stress concentrations. Tube sections subjected to straightening operations or minor dings exhibit compromised structural integrity. Professional practice dictates using pristine tube sections for critical bends, reserving work-hardened material for straight runs or less demanding applications.

Common Mistakes and Failure Modes

Even experienced engineers occasionally encounter kinking, typically traceable to specific oversights. Inadequate spring sizing—either too loose or excessively tight—ranks amongst the most prevalent errors. Springs should slide smoothly yet resist lateral wobbling within the bore.

Ovalization and Wall Thinning

Excessive bending velocity concentrates deformation at localised points rather than distributing stress throughout the bend zone. This produces oval cross-sections compromising fitting engagement and creating turbulent flow regions. Digital callipers enable verification that diameter variance remains within 10% tolerance.

Exterior radius wall thinning occurs when material elongation exceeds the copper's strain capacity. Whilst some thinning proves unavoidable, excessive reduction creates weak points vulnerable to pressure cycling fatigue. Maintaining generous bend radii and utilising appropriate temper classifications mitigates this phenomenon.

Sequential Bending Errors

Multiple bends in close proximity accumulate strain hardening, progressively reducing remaining ductility. Professional technique incorporates adequate spacing—minimum 150mm between bend centres—allowing stress dissipation. Complex serpentine routing requires strategic sequence planning, executing bends progressively from one end rather than alternating positions.

Advanced Techniques for Challenging Installations

Complex plant room layouts and retrofit scenarios occasionally demand unconventional approaches. Sand-filling represents a traditional method for achieving tight radii in large-diameter tubes. Pack dry, fine silica sand tightly within the tube, capping both ends securely. The sand functions as internal support, preventing collapse during manipulation.

Controlled heat application—typically from propane torches—locally anneals work-hardened copper, restoring formability. Exercise caution to avoid overheating, which produces surface oxidation and potential joint contamination. Gentle heating to cherry-red coloration followed by air cooling provides optimal results.

Offset Bending for Spatial Constraints

Creating parallel offsets requires two complementary bends separated by a straight section. Calculate the offset dimension trigonometrically: the straight section length equals the required offset distance divided by the sine of the bend angle. Standard 45-degree angles typically provide optimal balance between compactness and bendability.

Fabricate the first bend completely before commencing the second. Mark the tube accurately using the calculated dimension, accounting for springback—copper's elastic memory that causes partial angle recovery post-bending. Professional benders incorporate springback compensation, whilst manual techniques require overbending by approximately 5-10 degrees.

Quality Verification and Installation Standards

Post-bending inspection protocols ensure installation integrity and system longevity. Visual examination should reveal smooth, uniform curves devoid of rippling, flattening, or visible kinks. Run fingertips along interior and exterior radii, detecting subtle irregularities overlooked by visual assessment alone.

Pressure testing represents the definitive verification method. Nitrogen charging to 150% working pressure for 24 hours exposes structural weaknesses before refrigerant introduction. Any pressure decay indicates compromised integrity demanding investigation and remediation.

Documentation and Professional Standards

Maintaining comprehensive installation records protects both engineer and client. Photograph complex pipework routing before insulation application, creating reference documentation for future maintenance interventions. Note tube specifications, bending methodologies employed, and testing results within commissioning documentation.

Industry qualifications—F-Gas certification, City & Guilds refrigeration credentials—establish baseline competency expectations. Continuous professional development ensures awareness of evolving techniques, materials, and regulatory requirements governing refrigeration installations.

Maintenance Considerations and Long-Term Performance

Properly executed bends exhibit service lives matching straight pipework sections—decades in typical HVAC applications. Periodic inspection during routine maintenance should assess for developing leaks at bend apexes, where stress concentrations prove highest.

Vibration transmission from compressors and fans induces fatigue cycling, particularly problematic at bends lacking adequate support. Install vibration dampening clamps proximate to bends, preventing oscillating stress that accelerates crack propagation. Maintain minimum 300mm spacing between rigid fixings and bend centres, allowing slight flexure without imposing bending moments.

Troubleshooting Kinked Pipework

Despite preventative measures, kinks occasionally occur, demanding remediation decisions. Minor restrictions—less than 20% diameter reduction—may prove acceptable in low-velocity applications, though best practice advocates replacement. Moderate to severe kinks mandate complete section replacement; attempting to straighten kinked copper risks creating invisible microfractures.

When replacement proves impractical, consider inserting flexible connectors to bypass problematic sections. This approach suits retrofit scenarios where extensive pipework reconfiguration exceeds project scope or budget. Ensure bypass routing maintains adequate support and complies with refrigerant piping standards.

Frequently Asked Questions

Can annealed copper tube be re-straightened after kinking without replacement?

Attempting to straighten kinked copper tube invariably creates internal stress concentrations and microfractures invisible to visual inspection. Whilst the tube may appear serviceable, compromised structural integrity poses reliability risks. Professional standards mandate complete replacement of kinked sections regardless of apparent severity. The modest material cost proves insignificant compared to potential system failure and subsequent refrigerant loss.

What determines the minimum acceptable bend radius for refrigeration applications?

Minimum bend radius correlates primarily with tube diameter and temper classification. Industry standards specify four times the outside diameter as minimum centreline radius for soft copper, increasing to five or six times diameter for harder tempers. These parameters ensure adequate flow characteristics whilst preventing excessive wall thinning. Tighter radii risk turbulence, pressure drop, and premature failure from cyclical stress.

How does tube wall thickness affect kinking susceptibility?

Thicker walls provide enhanced collapse resistance through greater structural rigidity. Type K copper tubing exhibits superior kink resistance compared to Type L, though requiring correspondingly greater bending force. The thickness-to-diameter ratio fundamentally determines bend performance; tubes with ratios below 0.05 demand meticulous technique and appropriate support tooling. Refrigeration applications typically employ sufficient wall thickness for reasonable bendability with proper technique.
