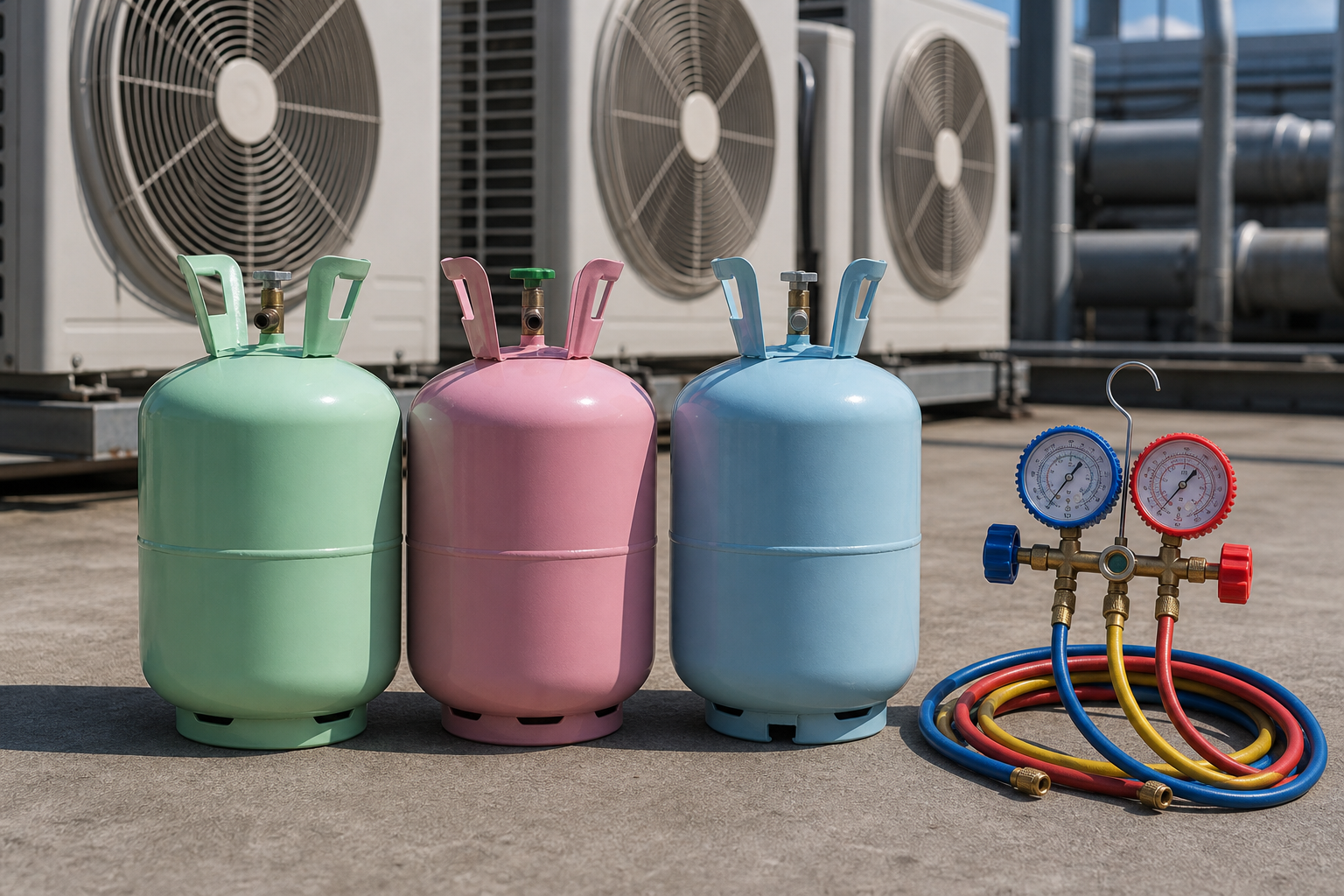

Refrigerant Types HVAC: Properties & Applications

Understanding the intricacies of refrigerant types remains fundamental for HVAC engineers and technicians operating within modern climate control systems. The evolution of refrigerant technology has been driven by environmental regulations, efficiency demands, and safety considerations. From legacy CFCs to contemporary low-GWP alternatives, each refrigerant class presents distinct thermodynamic properties, operational parameters, and application-specific advantages that directly impact system performance and longevity.

Selecting appropriate refrigerants requires comprehensive knowledge of pressure-temperature relationships, compatibility with lubricants, environmental impact metrics, and regulatory compliance frameworks. This guide examines the prevalent refrigerant classifications utilised across residential, commercial, and industrial HVAC applications, providing technical insights essential for informed specification and maintenance decisions.

Historical Context and Regulatory Evolution

The trajectory of refrigerant development reflects escalating environmental consciousness. Chlorofluorocarbons (CFCs) such as R-12 dominated mid-twentieth-century applications until the Montreal Protocol mandated their phase-out due to ozone depletion potential. Hydrochlorofluorocarbons (HCFCs) including R-22 served as transitional substances, offering reduced ozone impact whilst maintaining acceptable thermodynamic efficiency.

Contemporary regulations focus on Global Warming Potential (GWP), with the European F-Gas Regulation establishing progressive reduction schedules. The Kigali Amendment accelerates hydrofluorocarbon (HFC) phase-down timelines, compelling the HVAC sector towards fourth-generation refrigerants. UK-based engineers must navigate these legislative frameworks whilst ensuring system reliability and client satisfaction.

Hydrofluorocarbons (HFCs): Workhorse Refrigerants

R-410A: High-Pressure Efficiency

This near-azeotropic blend comprises difluoromethane (R-32) and pentafluoroethane (R-125) in equal proportions. R-410A operates at significantly elevated pressures compared to R-22, necessitating purpose-designed components including thick-walled copper tubing and robust compressors. Its volumetric refrigeration capacity exceeds legacy substances, permitting smaller displacement compressors for equivalent cooling output.

The refrigerant demonstrates excellent heat transfer characteristics and compatibility with polyolester (POE) lubricants. However, its GWP of 2088 positions it within phase-down schedules, prompting gradual transition towards lower-impact alternatives. Many split systems and VRF installations currently utilise R-410A, representing substantial installed capacity requiring ongoing maintenance support.

R-134a: Automotive and Medium-Temperature Applications

Tetrafluoroethane serves as the predominant refrigerant for automotive air conditioning and medium-temperature commercial refrigeration. Its moderate pressure characteristics and non-flammability classification (A1 under ASHRAE 34) provide inherent safety advantages. The substance exhibits good thermodynamic stability and minimal material compatibility concerns.

With a GWP of 1430, R-134a faces regulatory pressure despite widespread adoption. Engineers servicing older chillers and transport refrigeration equipment require familiarity with its operational parameters and charging procedures. Proper refrigerant recovery practices prevent atmospheric release whilst maintaining system integrity.

Hydrofluoroolefins (HFOs): Next-Generation Solutions

R-1234yf: Low-GWP Automotive Standard

This unsaturated HFC represents a paradigmatic shift in refrigerant chemistry. R-1234yf possesses a GWP below 1, attributable to its atmospheric decomposition characteristics. The molecular structure contains a carbon-carbon double bond, facilitating rapid breakdown via hydroxyl radical reactions in the troposphere.

Mild flammability (A2L classification) necessitates enhanced leak detection and ventilation considerations. Performance characteristics closely mirror R-134a, enabling retrofit applications with minimal system modifications. Automotive manufacturers have embraced this refrigerant as the primary replacement for R-134a in new vehicle production.

R-1234ze: Chiller Applications

Offering similar environmental credentials to R-1234yf, this variant demonstrates suitability for centrifugal and screw chiller installations. Its thermophysical properties align favourably with R-134a, simplifying equipment conversion projects. The lower pressure ratio requirements can enhance compressor efficiency in certain operating envelopes.

Material compatibility extends to conventional elastomers and lubricants, reducing conversion costs. Some installations require capacity adjustments or heat exchanger optimisation to maintain design performance parameters. Technical documentation from equipment manufacturers provides conversion guidance specific to model variations.

Natural Refrigerants: Traditional Substances Revisited

R-290 (Propane): Hydrocarbon Efficiency

Propane delivers exceptional thermodynamic performance with negligible environmental impact. Its GWP of 3 and zero ODP make it environmentally compelling. Excellent miscibility with mineral oils and superior heat transfer coefficients contribute to high coefficient of performance (COP) values.

Specialist training ensures safe handling procedures, leak detection protocols, and installation compliance with building regulations. Properly executed installations deliver reliable operation with minimal environmental footprint. Component selection must account for flammability considerations, including electrical classifications and ventilation requirements.

R-744 (Carbon Dioxide): Transcritical Systems

CO2 presents unique operational characteristics, functioning in transcritical cycles rather than conventional vapour compression. Operating pressures exceed 100 bar in typical configurations, demanding specialised components and safety considerations. The substance demonstrates excellent volumetric capacity and transport properties.

Supermarket refrigeration and heat pump water heaters increasingly adopt R-744 technology. The steep pressure-temperature relationship requires precise control algorithms and sophisticated expansion devices. Engineers transitioning from traditional refrigerants must acquire specialised knowledge regarding transcritical thermodynamics and system architecture.

Refrigerant Blends: Customised Performance Characteristics

Zeotropic and azeotropic blends combine multiple components to achieve targeted property profiles. R-407C blends R-32, R-125, and R-134a, offering a non-ozone-depleting alternative to R-22 in existing installations. Temperature glide during phase change complicates charging procedures and heat exchanger design.

Fractionation risks necessitate liquid charging and careful leak management. When composition shifts occur through preferential leakage, system performance degrades unpredictably. Complete refrigerant recovery and replacement proves more reliable than topping up partially leaked charges.

Practical Considerations for HVAC Professionals

System Compatibility Assessment

Retrofitting existing installations demands meticulous evaluation of component compatibility. Elastomers, gaskets, and lubricants may require replacement when transitioning between refrigerant classes. Compressor motor windings must tolerate electrical characteristics of alternative refrigerants, particularly regarding dielectric strength and thermal conductivity.

Expansion devices require recalibration or replacement to accommodate differing pressure-temperature relationships. Thermostatic expansion valves calibrated for R-22 exhibit suboptimal performance with R-410A due to pressure differential variations. Electronic expansion valves offer adaptability through parameter adjustment, though verification testing remains essential.

Charging Procedures and Best Practices

Accurate refrigerant charging directly influences efficiency, capacity, and component longevity. Subcooling and superheat measurements provide diagnostic indicators for charge optimisation. Zeotropic blends necessitate liquid charging to prevent composition alteration, whilst single-component refrigerants permit vapour charging during operation.

Recovery equipment must meet certification standards to prevent cross-contamination between refrigerant types. Dedicated manifold sets and hoses for specific refrigerant classes eliminate compatibility concerns. Digital scales with 0.01 kg resolution enable precise charge quantities, particularly critical in small-capacity systems where tolerances tighten.

Environmental and Safety Compliance

F-Gas certification requirements mandate technician competency in refrigerant handling, leak detection, and record-keeping. Annual leak checks apply to installations exceeding specified charge quantities, with inspection frequency increasing for larger systems. Electronic leak detection equipment calibrated for specific refrigerant types ensures reliable identification.

Safety data sheets provide handling guidance, including exposure limits and emergency procedures. Mildly flammable refrigerants require ventilation calculations and ignition source elimination within prescribed zones. Pressure relief devices must discharge to safe locations, preventing refrigerant accumulation in occupied spaces.

Future Trends and Emerging Technologies

Research continues into fifth-generation refrigerants with minimal environmental impact and enhanced safety profiles. Hydrofluoroethers (HFEs) and hydrochloroolefins (HCOs) represent potential development pathways. Not-in-kind technologies including magnetic refrigeration and thermoacoustic cooling may eventually supplement or replace vapour compression systems.

The HVAC sector adapts continuously to regulatory evolution and technological advancement. Engineers maintaining current knowledge of refrigerant developments position themselves advantageously within a transforming industry landscape. Component suppliers like Airconspares.com support this transition by stocking compatible parts, tools, and accessories suited to emerging refrigerant technologies.

Which Refrigerant Should You Specify?

Application requirements, environmental regulations, and lifecycle costs collectively inform refrigerant selection. New installations benefit from future-proof choices with low GWP and established supply chains. Retrofit projects must balance performance objectives against conversion complexity and budget constraints.

Consultation with equipment suppliers and refrigerant manufacturers provides application-specific guidance. Field testing under actual operating conditions validates theoretical performance predictions, ensuring client satisfaction and system reliability.

Concluding Perspectives on Refrigerant Selection

Mastery of refrigerant characteristics empowers HVAC professionals to deliver optimal solutions across diverse applications. The ongoing transition towards environmentally responsible substances presents both challenges and opportunities for skilled technicians. Understanding thermodynamic properties, safety classifications, and regulatory frameworks enables informed decision-making throughout system lifecycles.

Staying abreast of technological developments and regulatory changes maintains professional competency in this dynamic field. Investment in proper tools, recovery equipment, and ongoing education ensures service quality whilst meeting legal obligations. The refrigerant landscape will continue evolving, rewarding adaptable professionals who embrace innovation whilst maintaining rigorous technical standards.
