Refrigeration Components Explained: Engineer's Reference Guide

Refrigeration systems form the backbone of modern climate control and preservation technology. For HVAC engineers and refrigeration technicians, understanding the intricate components that comprise these systems is paramount to effective installation, maintenance, and troubleshooting. This comprehensive reference guide delves into the fundamental and auxiliary components that facilitate heat transfer and maintain optimal operational parameters within refrigeration circuits.

The efficacy of any refrigeration system hinges upon the seamless interaction between its constituent parts. Each component serves a specific thermodynamic purpose, working in concert to remove thermal energy from a designated space and expel it elsewhere. Whether servicing commercial cold storage facilities or industrial process cooling applications, practitioners must possess an intimate knowledge of these elements to ensure system longevity and performance.

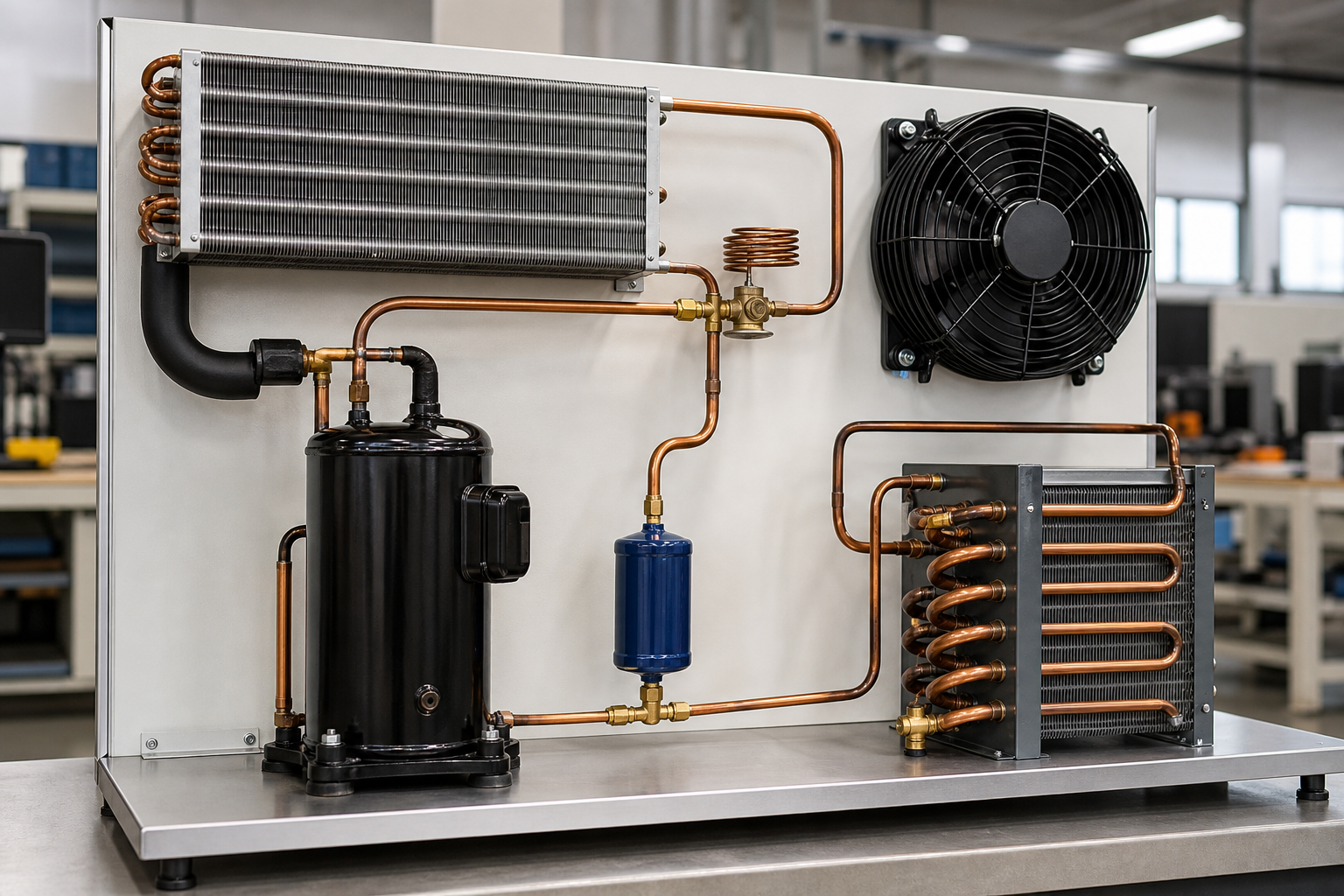

Core Refrigeration Cycle Components

The refrigeration cycle relies upon four principal components that enable the continuous circulation and phase transformation of refrigerant. These fundamental elements create the pressure differentials and temperature changes necessary for heat absorption and rejection.

Compressor Assemblies

The compressor represents the heart of any refrigeration system, providing the motive force that propels refrigerant throughout the circuit. This mechanical device elevates low-pressure vapour from the evaporator to high-pressure superheated gas, simultaneously increasing both temperature and pressure. Reciprocating compressors utilise pistons within cylinders to compress refrigerant mechanically, whilst scroll compressors employ two interleaved scrolls—one stationary, one orbiting—to compress vapour progressively. Rotary compressors feature eccentric rotating elements that trap and compress refrigerant against the housing wall. Screw compressors, predominantly found in large-capacity applications, use intermeshing helical rotors to achieve compression. Selection depends upon capacity requirements, efficiency considerations, and operational parameters such as ambient conditions and refrigerant type.

Condensers and Heat Rejection

Following compression, superheated refrigerant vapour enters the condenser, where it relinquishes absorbed heat to the surrounding medium. This component facilitates the phase change from high-pressure vapour to high-pressure liquid through heat exchange. Air-cooled condensers employ finned coil arrangements with forced airflow, commonly deployed in smaller installations where water availability presents challenges. Water-cooled condensers utilise shell-and-tube or plate heat exchanger configurations, offering superior efficiency in applications where cooling water proves readily accessible. Evaporative condensers combine both methodologies, spraying water over coil surfaces whilst forcing air through the wetted fins, achieving enhanced heat transfer through evaporative cooling.

Expansion Devices and Metering

The expansion device governs refrigerant flow between the high-pressure liquid line and low-pressure evaporator whilst simultaneously reducing pressure. This pressure reduction enables the refrigerant to evaporate at lower temperatures suitable for heat absorption. Thermostatic expansion valves (TXVs) modulate refrigerant flow based upon superheat measurement at the evaporator outlet, providing precise control across varying load conditions. Electronic expansion valves offer programmable control parameters and rapid response times, ideal for applications requiring sophisticated capacity modulation. Capillary tubes—simple fixed-orifice devices—present cost-effective solutions for smaller systems with relatively stable load profiles. Fixed-orifice devices lack modulation capability but prove reliable in properly matched systems.

Evaporators and Heat Absorption

Within the evaporator, low-pressure liquid refrigerant absorbs heat from the conditioned space or medium, transitioning to low-pressure vapour. This endothermic phase change extracts thermal energy, achieving the desired cooling effect. Direct expansion (DX) evaporators allow refrigerant to boil within the coil itself, commonly employed in air conditioning and commercial refrigeration. Flooded evaporators maintain liquid refrigerant levels through float mechanisms, typically paired with liquid overfeed systems in industrial applications. Plate evaporators provide efficient heat transfer in compact configurations, whilst shell-and-tube variants serve process cooling and chiller applications. Fin spacing, circuitry design, and airflow patterns significantly influence evaporator performance.

Essential Auxiliary Components

Beyond the primary cycle components, numerous auxiliary devices ensure safe, efficient, and reliable system operation. These supporting elements protect against adverse conditions, optimise performance, and facilitate serviceability.

Refrigerant Line Components

Proper refrigerant distribution requires carefully selected piping and ancillary fittings. Filter-driers remove moisture and particulate contaminants that could compromise system integrity or cause component failure. Moisture poses particular hazards, potentially freezing at expansion devices or reacting with refrigerant to form corrosive acids. Sight glasses enable visual verification of refrigerant state and moisture content through integral moisture indicators. Liquid line solenoid valves provide positive shut-off capability, preventing refrigerant migration during off-cycles. Suction line accumulators protect compressors from liquid slugging by separating liquid refrigerant and oil from returning vapour. These vessels prove particularly crucial in applications with significant load variations or extended low-temperature operation.

Pressure and Temperature Controls

Maintaining operational parameters within design specifications necessitates sophisticated control apparatus. High-pressure switches prevent excessive discharge pressures that could damage components or create safety hazards. Low-pressure switches guard against suction pressures falling below safe thresholds, protecting compressors from insufficient lubrication or operating outside design envelopes. Oil pressure differential switches monitor lubrication system functionality in larger compressors, ensuring adequate oil circulation. Temperature controls regulate system capacity to match thermal loads, cycling compressors or modulating capacity through various methodologies. Defrost controls initiate and terminate defrost cycles in low-temperature applications where frost accumulation impedes heat transfer.

Receivers and Oil Management

Liquid receivers provide refrigerant storage capacity, accommodating charge variations resulting from changing operating conditions or servicing requirements. These vessels facilitate pump-down procedures and ensure adequate liquid supply to expansion devices under all circumstances. Oil separators extract lubricant from discharge gas, returning it to the compressor crankcase and preventing excessive oil circulation throughout the system. Efficient oil separation proves particularly important in low-temperature applications where oil viscosity increases and solubility in refrigerant decreases. Oil reservoirs maintain adequate lubricant inventory for compressor components, whilst oil level switches provide protection against insufficient oil levels.

Specialised System Components

Certain applications demand components beyond standard refrigeration circuit elements to address unique operational requirements or enhance system capabilities.

Heat Exchangers and Subcooling Devices

Suction-to-liquid heat exchangers improve system efficiency by subcooling liquid refrigerant whilst superheating suction vapour, simultaneously enhancing capacity and protecting compressors from liquid return. These devices prove particularly beneficial in systems operating across wide ambient ranges or with long liquid lines. Subcoolers employ various configurations to reduce liquid refrigerant temperature below saturation point, increasing refrigeration effect and improving overall efficiency. Mechanical subcooling utilises a dedicated refrigeration circuit, whilst ambient subcooling leverages lower outdoor temperatures when available.

Capacity Control Mechanisms

Matching system capacity to fluctuating thermal loads optimises energy consumption and maintains precise temperature control. Cylinder unloaders selectively deactivate compressor cylinders in reciprocating units, providing stepped capacity reduction. Variable frequency drives (VFDs) modulate compressor speed continuously, offering infinite capacity modulation whilst significantly reducing energy consumption at partial loads. Hot gas bypass systems maintain minimum evaporator loading by routing discharge gas directly to the suction side, though this methodology sacrifices efficiency for simplicity. Multi-compressor systems employ sequential staging to match aggregate capacity against demand.

Component Selection Considerations for Engineers

Specifying appropriate components demands careful analysis of operating conditions, refrigerant characteristics, and application-specific requirements. Engineers must balance initial capital expenditure against operational efficiency, maintenance accessibility, and expected service life.

Refrigerant Compatibility and Material Selection

Refrigerant properties dictate compatible materials and component designs. Modern hydrofluoroolefin (HFO) refrigerants present different lubrication requirements and material compatibility profiles compared to legacy hydrochlorofluorocarbon (HCFC) or chlorofluorocarbon (CFC) fluids. Component manufacturers specify approved refrigerants for each product, and deviating from these recommendations risks premature failure or safety hazards. Copper, brass, aluminium, and steel components each exhibit varying compatibility with different refrigerants and lubricants. Elastomeric seals and gaskets require particular attention, as incompatible materials may deteriorate, causing leaks and system contamination.

Capacity Matching and System Balance

Proper component sizing ensures each element operates within its design envelope whilst maintaining system balance. Oversized compressors short-cycle, reducing efficiency and accelerating wear. Undersized evaporators cannot absorb required thermal loads, compromising temperature control. Condensers must reject heat effectively under peak ambient conditions without excessive pressure rise. Expansion devices require careful selection to provide proper superheat control across the operating range. Engineers utilise manufacturer performance data, psychrometric calculations, and heat load analyses to specify appropriately sized components that function harmoniously.

Common Configuration Variations

Refrigeration systems adopt various configurations to address specific application demands, each presenting unique component arrangements and operational characteristics.

Secondary Refrigerant Systems

Indirect cooling employs secondary fluids—such as glycol solutions or phase-change materials—to transport thermal energy between the refrigeration system and conditioned space. This configuration minimises primary refrigerant charge, reduces leak potential in occupied areas, and simplifies distribution piping. The intermediate heat exchanger separates primary and secondary circuits, with the refrigeration system cooling the secondary fluid that subsequently absorbs heat from the application. Whilst introducing additional temperature differential and associated efficiency penalties, secondary systems prove advantageous in applications prioritising safety, regulatory compliance, or system complexity reduction.

Maintenance and Diagnostic Considerations

Systematic inspection and proactive maintenance extend component life whilst preventing costly failures. Engineers must recognise performance degradation indicators and implement corrective measures before minor issues escalate.

Performance Monitoring and Testing

Regular measurement of operating pressures, temperatures, and superheat values reveals component condition and system efficiency. Suction and discharge pressure analysis indicates compressor performance and refrigerant charge adequacy. Superheat measurement at the evaporator outlet confirms proper expansion valve operation, whilst subcooling assessment verifies condenser performance and refrigerant charge. Electrical measurements—including voltage, current, and power factor—identify motor inefficiencies or impending failures. Vibration analysis detects mechanical wear in rotating equipment before catastrophic failure occurs. Oil analysis programmes monitor lubricant condition and contamination levels in critical compressors.

Common Component Failure Modes

Understanding typical failure mechanisms enables targeted preventative maintenance and rapid diagnosis. Compressor failures often result from inadequate lubrication, liquid slugging, or electrical issues such as single-phasing. Expansion valve malfunction commonly stems from contamination, moisture freezing, or bulb charge loss. Heat exchanger efficiency deteriorates through fouling, corrosion, or refrigerant-side oil accumulation. Control device failures typically involve contact degradation, sensing element failure, or mechanical wear. Filter-driers become saturated with moisture or occluded with particulates, restricting flow and requiring replacement. Recognising these patterns expedites troubleshooting and restoration activities.

Frequently Asked Questions

What determines the appropriate compressor type for a specific refrigeration application?

Compressor selection hinges upon capacity requirements, operating temperature range, refrigerant type, duty cycle, and efficiency targets. Reciprocating compressors suit smaller capacities and applications requiring high compression ratios. Scroll compressors offer reliability and efficiency for medium-capacity installations with moderate pressure differentials. Screw compressors prove economical for large-capacity systems operating continuously. Evaluating these parameters against manufacturer performance data yields optimal selections.

How does refrigerant choice impact component selection and system design?

Refrigerant thermophysical properties—including pressure-temperature relationships, latent heat values, and transport properties—fundamentally influence component sizing and material compatibility. High-pressure refrigerants necessitate robust construction and appropriate pressure ratings. Low-pressure variants require larger displacement compressors and piping to handle greater specific volumes. Lubricant miscibility varies amongst refrigerant families, dictating oil separator requirements and return methodologies. Environmental regulations increasingly favour low-global-warming-potential (GWP) options, influencing long-term component standardisation decisions.

What role do filter-driers play in maintaining system reliability?

Filter-driers remove moisture and solid contaminants that threaten component longevity and system performance. Moisture promotes corrosion, forms acids through refrigerant decomposition, and freezes at expansion devices. Particulates damage precision surfaces in compressors and expansion valves. Core materials—typically molecular sieve desiccants and mechanical filters—chemically adsorb water whilst capturing debris. Regular replacement during maintenance intervals and following system openings preserves protective capacity.

Why is proper superheat control critical in refrigeration systems?

Superheat represents the temperature increase of refrigerant vapour above its saturation point at a given pressure. Insufficient superheat risks liquid refrigerant returning to the compressor, potentially causing catastrophic mechanical damage through hydraulic compression. Excessive superheat reduces system capacity and efficiency by underutilising evaporator surface area. Properly adjusted expansion devices maintain optimal superheat—typically 5-7°C for DX systems—maximising performance whilst protecting components.

Mastery of refrigeration components empowers HVAC engineers and technicians to design, commission, maintain, and troubleshoot systems with confidence and precision. Each element contributes specific functionality within the broader thermodynamic cycle, and understanding their individual characteristics alongside systemic interactions enables practitioners to optimise performance, extend equipment life, and satisfy demanding application requirements. As refrigeration technology evolves—embracing alternative refrigerants, advanced controls, and enhanced efficiency standards—continuous professional development remains essential for those serving this vital industry sector.
