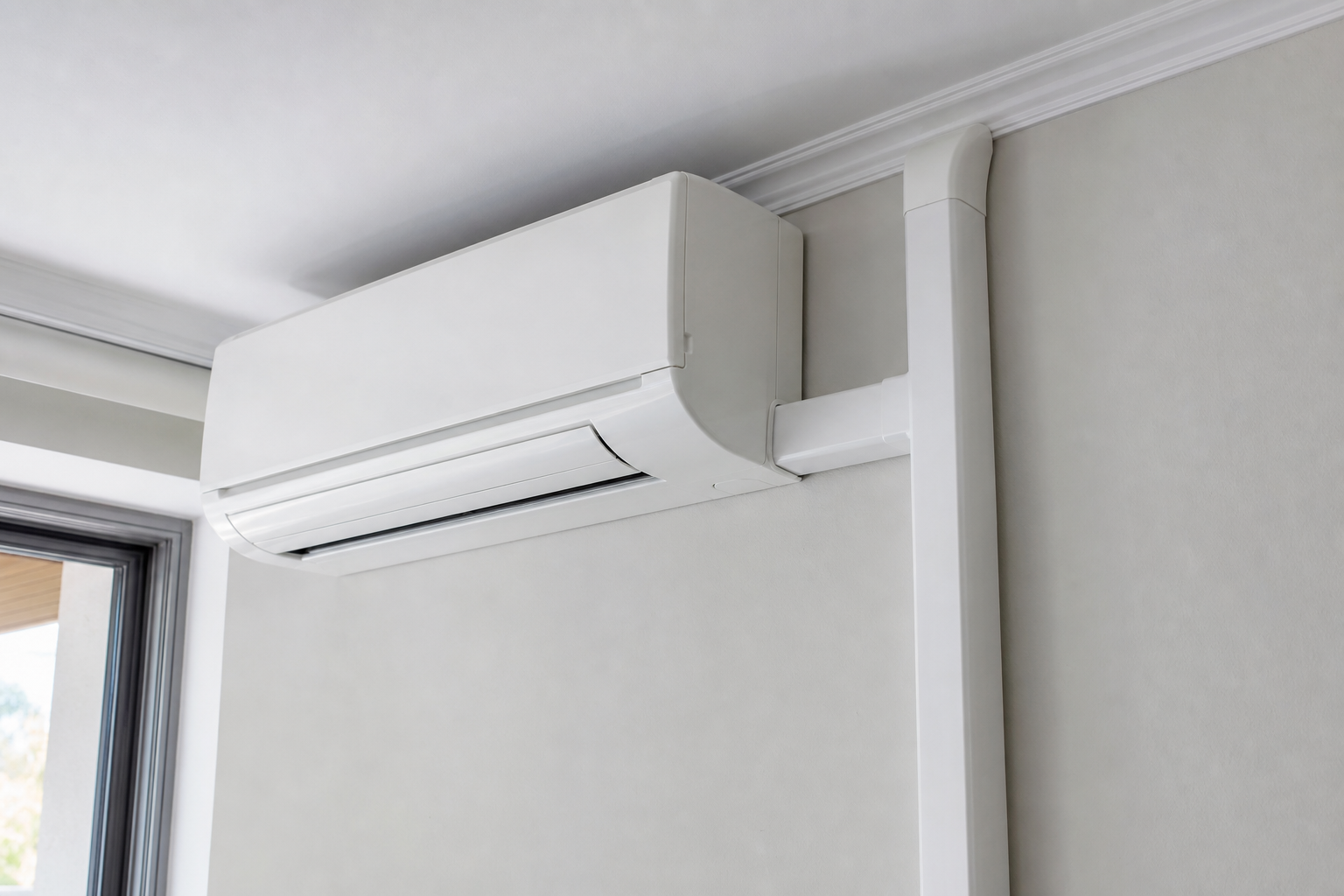

Slimline Cable Management for Professional AC Installations

Understanding the Critical Role of Cable Management in Air Conditioning Systems

Professional air conditioning installations demand meticulous attention to every component, yet cable management frequently receives insufficient consideration during project planning. The aesthetic and functional integrity of an HVAC system extends beyond the condensing units and evaporators—the visible infrastructure speaks volumes about installation quality. Disorganised cabling creates maintenance bottlenecks, compromises system longevity, and undermines professional credibility.

Slimline cable trunking represents a transformative approach to concealing and protecting power cables, control wiring, and refrigerant pipework insulation within commercial and residential environments. For HVAC engineers and air conditioning installers, implementing robust cable management protocols distinguishes competent workmanship from exceptional service delivery. The integration of properly specified trunking systems safeguards electrical infrastructure whilst facilitating future modifications and troubleshooting activities.

Contemporary building regulations and client expectations necessitate installations that merge technical excellence with visual discretion. Cable trunking installation for air conditioning projects addresses both requirements simultaneously, providing protective enclosures that withstand environmental stressors whilst maintaining architectural harmony. The selection of appropriate trunking profiles, materials, and finishes directly impacts project outcomes and client satisfaction metrics.

Why Slimline Profiles Matter in Modern HVAC Installations

Spatial constraints characterise most air conditioning retrofit projects, particularly within established commercial premises and residential properties. Traditional bulky trunking systems protrude conspicuously from wall surfaces, creating visual impediments and reducing usable floor space in corridors and circulation areas. Slimline alternatives minimise these intrusions whilst delivering equivalent protective functionality.

The dimensional efficiency of low-profile trunking becomes especially pertinent in listed buildings, heritage properties, and architecturally sensitive environments where visual impact requires careful consideration. Installers frequently encounter scenarios where concealment options remain limited, necessitating surface-mounted solutions that blend seamlessly with existing décor. A 75mm profile typically provides sufficient capacity for standard split system cabling whilst maintaining an unobtrusive presence.

Beyond aesthetics, reduced trunking depth facilitates installation in locations with clearance restrictions—behind radiators, beneath windowsills, or adjacent to door frames. This versatility expands routing possibilities, enabling more direct cable paths that reduce material consumption and installation labour. The cumulative effect translates to cost efficiencies without compromising installation standards or long-term reliability.

Practical Solution: Slimline Wall Cover Systems for Professional Installations

Addressing the specific requirements of professional air conditioning installations necessitates purpose-designed cable management solutions that balance functionality with discretion. The 75mm wall cover slimduct trunking system exemplifies this equilibrium, providing HVAC engineers with a streamlined enclosure suitable for concealing power cables, communication wiring, and condensate drainage pipework associated with split air conditioning units.

This black-finished trunking integrates seamlessly with contemporary interior schemes, offering particular advantages in commercial environments where dark accent colours complement modern design palettes. The slimline profile ensures minimal wall projection, critical when routing cables through occupied spaces where protruding infrastructure could present obstruction hazards or detract from interior aesthetics.

For contractors managing multiple installations across diverse property types, maintaining stock of versatile trunking solutions expedites project completion whilst ensuring consistent presentation standards. The adaptability of properly specified wall cover systems accommodates variations in cable quantities and routing configurations encountered across different air conditioning specifications.

Installation Methodology for Optimal Results

Implementing cable trunking demands systematic planning commencing during the site survey phase. Accurate measurements of cable run lengths, identification of fixing surface types, and assessment of environmental conditions inform material specifications and installation techniques. Pre-drilling pilot holes at regular intervals—typically 400mm to 600mm centres—ensures secure mechanical fixing whilst preventing substrate damage.

Adhesive-backed systems offer accelerated installation where surface conditions permit, though mechanical fixings provide superior long-term security, particularly in high-traffic areas subject to physical contact. The combination of both fixing methodologies delivers optimum performance in challenging environments. Cutting trunking sections to precise lengths using fine-toothed saws prevents material splintering and ensures clean joints between successive lengths.

Internal cable arrangement requires consideration to prevent electromagnetic interference between power conductors and low-voltage control circuits. Maintaining physical separation using trunking dividers or selecting multi-compartment profiles preserves signal integrity whilst simplifying future circuit identification during maintenance activities. Labelling at accessible points facilitates troubleshooting and complies with best practice guidelines for electrical installations.

Material Selection Considerations for HVAC Applications

Trunking materials significantly influence durability, fire performance, and environmental suitability. PVC formulations predominate within HVAC applications, offering cost-effectiveness, corrosion resistance, and adequate mechanical protection for typical installation scenarios. However, aluminium alternatives provide enhanced fire resistance and mechanical strength where regulatory requirements or risk assessments mandate upgraded specifications.

Colour selection extends beyond aesthetic preferences, influencing thermal performance in locations exposed to direct sunlight. Black trunking absorbs radiant heat, potentially exacerbating cable temperature rise in south-facing installations. White or light grey alternatives reflect solar radiation, maintaining lower internal temperatures that extend cable insulation longevity. Material specifications should reference relevant British Standards to ensure compliance with building regulations and insurance requirements.

Environmental factors including humidity levels, temperature fluctuations, and chemical exposure potential inform material selection decisions. Marine environments, industrial facilities with airborne contaminants, and areas subject to regular cleaning with aggressive chemicals necessitate trunking systems with enhanced chemical resistance properties. Specification datasheets provide essential guidance regarding material compatibility with specific environmental conditions.

Fire Performance and Regulatory Compliance

Building regulations stipulate minimum fire performance criteria for cable containment systems, particularly within escape routes, communal areas, and commercial premises. Low smoke zero halogen (LSZH) trunking variants generate minimal toxic fumes during combustion events, critical for maintaining tenable evacuation conditions. Understanding applicable fire safety standards prevents specification errors that could delay project sign-off or necessitate costly remedial works.

Certification documentation accompanying trunking products confirms compliance with relevant European and British Standards. Installers bear responsibility for verifying product certifications align with project specifications before commencing installation activities. Maintaining comprehensive records of materials used, including batch numbers and certification references, facilitates warranty claims and demonstrates due diligence during regulatory inspections.

Integration with Air Conditioning System Components

Effective cable management encompasses complete system infrastructure, not merely visible power cables. Condensate drainage pipework, refrigerant line insulation, and communication cables between indoor and outdoor units require coordinated containment strategies. Oversized trunking accommodates multiple service types within unified enclosures, simplifying installation logistics and presenting cohesive visual outcomes.

Transition arrangements between trunking sections and equipment connection points demand careful detailing to maintain weather seals and prevent pest ingress. Purpose-designed end caps, junction boxes, and gland entries facilitate professional terminations that withstand environmental exposure. The junction between internal and external cable runs represents particular vulnerability, requiring weatherproof transitions that prevent moisture penetration whilst accommodating cable movement from thermal expansion.

Routing considerations should anticipate future system modifications or capacity expansions. Specifying trunking with 30-40% spare capacity accommodates additional circuits without necessitating complete replacement. This forward-planning approach delivers long-term value, reducing lifecycle costs and minimising disruption during system upgrades or alterations.

Common Installation Challenges and Mitigation Strategies

Irregular wall surfaces present fixing challenges that compromise trunking alignment and visual presentation. Preparatory surface treatment—filling voids, removing protrusions, and ensuring plumb reference lines—establishes foundations for professional installations. Where surface irregularities exceed acceptable tolerances, packing pieces or adjustable brackets maintain consistent trunking alignment despite substrate variations.

Negotiating internal and external corners requires either mitred joints or proprietary corner pieces. Mitred installations demand precision cutting and patience but deliver seamless appearances particularly valued in high-visibility locations. Prefabricated corner accessories accelerate installation but introduce visual discontinuities that may prove unacceptable in premium projects. The selection between approaches balances time constraints against aesthetic requirements.

Cable pulling through extended trunking runs generates friction that risks conductor damage or insulation compromise. Applying suitable cable lubricants reduces friction coefficients, facilitating smoother installations whilst protecting cable integrity. Limiting continuous run lengths to 10-15 metres and incorporating strategically positioned access points simplifies cable installation and subsequent maintenance interventions.

Addressing Multi-Split System Complexity

Multi-split air conditioning configurations compound cable management challenges, with multiple indoor units served by branched refrigerant pipework and electrical circuits converging at outdoor condensing units. Trunk-and-branch trunking architectures mirror system topology, with primary trunking routes feeding subsidiary branches to individual fan coil units. Maintaining logical, traceable cable paths simplifies commissioning and troubleshooting activities throughout system operational life.

Where ceiling voids or service ducts provide concealed routing opportunities, limiting visible trunking to final connection drops enhances aesthetic outcomes. However, maintaining accessible inspection points along concealed routes ensures compliance with electrical installation standards requiring periodic inspection capabilities. Balancing concealment objectives against maintenance accessibility represents a fundamental installation design consideration.

Maintenance Accessibility and Long-Term System Serviceability

Cable trunking systems must facilitate, not impede, ongoing maintenance activities. Removable lids secured with snap-fit mechanisms enable tool-free access to contained cables, expediting fault diagnosis and circuit modifications. Screwed retention systems provide enhanced security in locations vulnerable to tampering but increase time requirements for routine inspections.

Documentation practices significantly influence maintenance efficiency. Photographic records captured during installation, annotated with circuit identifications and routing details, provide invaluable references for engineers unfamiliar with specific installations. Digital records accessible via cloud-based project management platforms ensure information availability regardless of personnel changes within maintenance teams.

Periodic inspection schedules should encompass trunking condition assessment, verifying mechanical fixings remain secure and identifying any physical damage requiring remediation. Proactive maintenance prevents minor deterioration escalating into failures that compromise system operation or safety. Establishing documented inspection regimes demonstrates professional standards and fulfils duty-of-care obligations to building occupants.

Cost-Benefit Analysis for Professional Contractors

Initial material costs represent merely one component within comprehensive project economics. Labour efficiency gains from rapid-install trunking systems frequently offset marginal material premiums, reducing overall installation costs whilst improving project margins. Contractors should evaluate total installed costs rather than focusing exclusively on material pricing when comparing alternative cable management solutions.

Client perception significantly influences payment willingness and recommendation likelihood. Installations featuring neat, professional cable management command premium positioning within competitive markets, justifying pricing strategies that reflect true value delivery. Conversely, exposed or poorly organised cabling undermines confidence in overall installation quality, regardless of technical competence in core HVAC disciplines.

Long-term warranty implications merit consideration when evaluating cable management investments. Properly protected cables exhibit extended service lives with reduced failure incidence, minimising warranty callback costs that erode project profitability. The insurance value of robust cable protection systems becomes apparent when considering potential costs associated with cable damage, system failures, or safety incidents attributable to inadequate cable management.

Frequently Asked Questions About Cable Trunking for Air Conditioning

What minimum trunking size accommodates standard split system cabling?

A 75mm width typically suffices for single split systems incorporating power cables, control wiring, and condensate drainage within unified enclosures. However, larger multi-split configurations or installations combining multiple service types may necessitate 100mm profiles to prevent cable congestion and facilitate future additions.

Can trunking systems accommodate refrigerant line insulation?

Standard electrical trunking profiles generally lack sufficient depth for insulated refrigerant pipework, which requires dedicated lagging or specialist HVAC trunking designed to accommodate both electrical cables and insulated copper tubing. Attempting to force oversized pipework into inadequate trunking compromises insulation integrity and risks cable damage from compression.

How does trunking selection affect installation time?

Snap-fit lid retention mechanisms significantly accelerate installation compared with screw-fixed alternatives, potentially reducing installation time by 30-40% on extensive cable runs. However, ease of installation must balance against security requirements and environmental suitability—high-traffic areas may mandate more secure fixing methodologies despite increased installation duration.

Are there specific trunking requirements for outdoor installations?

External applications demand UV-stabilised materials resistant to degradation from solar radiation exposure. Additionally, weatherproof sealing at joints and penetration points prevents moisture ingress that could compromise cable insulation. Galvanised steel or aluminium trunking provides enhanced durability in aggressive external environments compared with standard PVC formulations.

What regulations govern cable trunking installations?

The IET Wiring Regulations (BS 7671) establish fundamental requirements for electrical cable containment, whilst building regulations specify fire performance criteria for materials used within escape routes and communal areas. Local authority requirements may impose additional constraints, particularly within conservation areas or listed buildings where external trunking visibility faces restrictions.

Emerging Trends in HVAC Cable Management

Sustainability considerations increasingly influence material selection decisions, with recycled content trunking systems gaining market presence. Manufacturers developing products incorporating post-consumer recycled plastics address environmental concerns without compromising performance specifications. Forward-thinking contractors adopting sustainable materials enhance environmental credentials valued within procurement processes emphasising corporate social responsibility.

Intelligent building integration drives demand for enhanced data cabling capacity within HVAC installations. Modern air conditioning systems increasingly incorporate IoT connectivity, remote monitoring capabilities, and integration with building management systems—all requiring structured cabling infrastructure. Future-proofing installations through adequate trunking capacity accommodates technological evolution without necessitating disruptive retrofitting.

Modular trunking systems offering tool-free reconfiguration facilitate agile workspace adaptations within commercial environments. As office layouts evolve to accommodate flexible working patterns, HVAC infrastructure must adapt accordingly. Cable management systems supporting rapid reconfiguration without specialist tools or extensive downtime align with contemporary workspace management philosophies.

Establishing Professional Standards Within Your Installation Practice

Consistency across projects builds recognisable quality hallmarks that differentiate professional contractors within competitive markets. Standardising on preferred trunking systems, fixing methodologies, and finishing techniques creates efficiency through familiarity whilst ensuring predictable outcomes. Documented installation procedures capture best practices, facilitating training and maintaining standards across installation teams.

Photographic documentation serves dual purposes—providing maintenance references whilst showcasing workmanship quality for marketing collateral. Before-and-after imagery demonstrating transformation from cluttered cabling to neat, professional installations proves persuasive within proposal presentations and website portfolios. Visual evidence of quality workmanship communicates competence more effectively than written descriptions alone.

Continuous professional development regarding emerging products, installation techniques, and regulatory changes maintains competitive advantages. Manufacturers frequently offer technical training covering product innovations and application-specific installation guidance. Investing time in such development activities pays dividends through enhanced installation efficiency and reduced error rates that might otherwise necessitate costly remediation.

For HVAC engineers, air conditioning installers, and refrigeration technicians seeking reliable cable management solutions backed by competitive pricing and fast UK delivery, establishing relationships with specialist suppliers ensures consistent access to quality materials. Partnering with suppliers maintaining comprehensive stock across trunking profiles, colours, and accessories prevents project delays whilst supporting diverse installation requirements across commercial and industrial applications.
