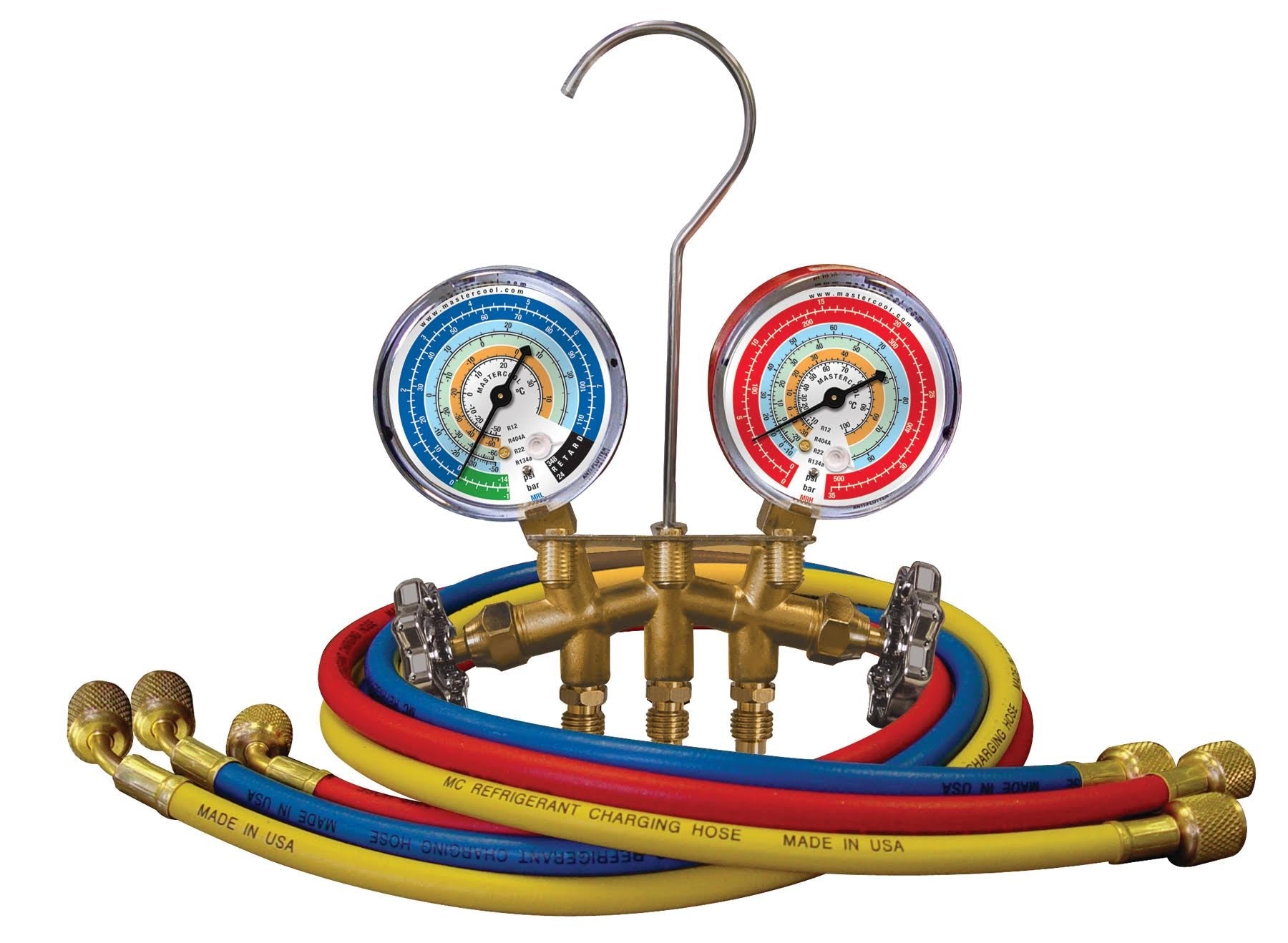

Mastercool 33661-E-JT Brass Manifold Set with 3 x 150cm Hoses - R410A

Professional brass manifold gauge set with 63mm gauges and 3 x 150cm (60") hoses included. Complete kit ready for R410A and other refrigerant service work. Features free floating piston valves for reduced wear and double O-ring seals for leak-free operation.

Key Features:

• Free Floating Piston Valve – Results in less wear and tear compared to standard twisting piston valves
• Double O-Ring – Provides superior seal resulting in fewer leaks
• 63mm Gauges – 1.6 gauge class for accurate pressure readings
• R410A Compatible – Designed for modern refrigerant systems
• 3 x 150cm Hoses Included – Complete set ready to use
• Colour Coordinated – Easy refrigerant recognition
• Bar/°C Metric Scales – European standard measurements
• 3 x 1/4" SAE Fittings – Standard connections

Specifications:

• Hose working pressure: 600 PSI (41 bar)
• Hose burst pressure: 3000 PSI (210 bar)
• Model: 33661-E-JT
• Gauge size: 63mm
• Gauge class: 1.6
• Hoses: 3 x 150cm (60") included
• Connections: 3 x 1/4" SAE fittings
• Valve type: Free floating piston valves
• Material: Brass
• Weight: 1g

What's Included:

• Brass manifold body with piston valves
• 2 x 63mm pressure gauges (high and low side)
• 3 x 150cm charging hoses (red, blue, yellow)

Applications:

• R410A system service
• HVAC/R diagnostics
• System charging and recovery
• Pressure testing
• Leak detection

Benefits:

This complete manifold set includes everything needed for professional refrigerant service work. The 150cm hoses provide excellent reach for most applications whilst the free floating piston valves ensure long-lasting performance. Built to Mastercool's exacting standards for professional HVAC/R technicians.
