Mastercool 89772-AYF 2-Way Aluminium Manifold R1234yf/R134a 3×180cm
- UK stock – fast dispatch
- UK Mainland Delivery £7.50
- Expert technical support
- Trade accounts available
£411.03
Sale price
£411.03
Regular price
Shipping calculated at checkout.
REFcom Elite registered supplier
Achilles Silver accredited supplier
UK HVAC specialist since 2005
Fast UK dispatch
✓ Trade Pricing | ✓ Technical Support Available | ✓ Secure Checkout

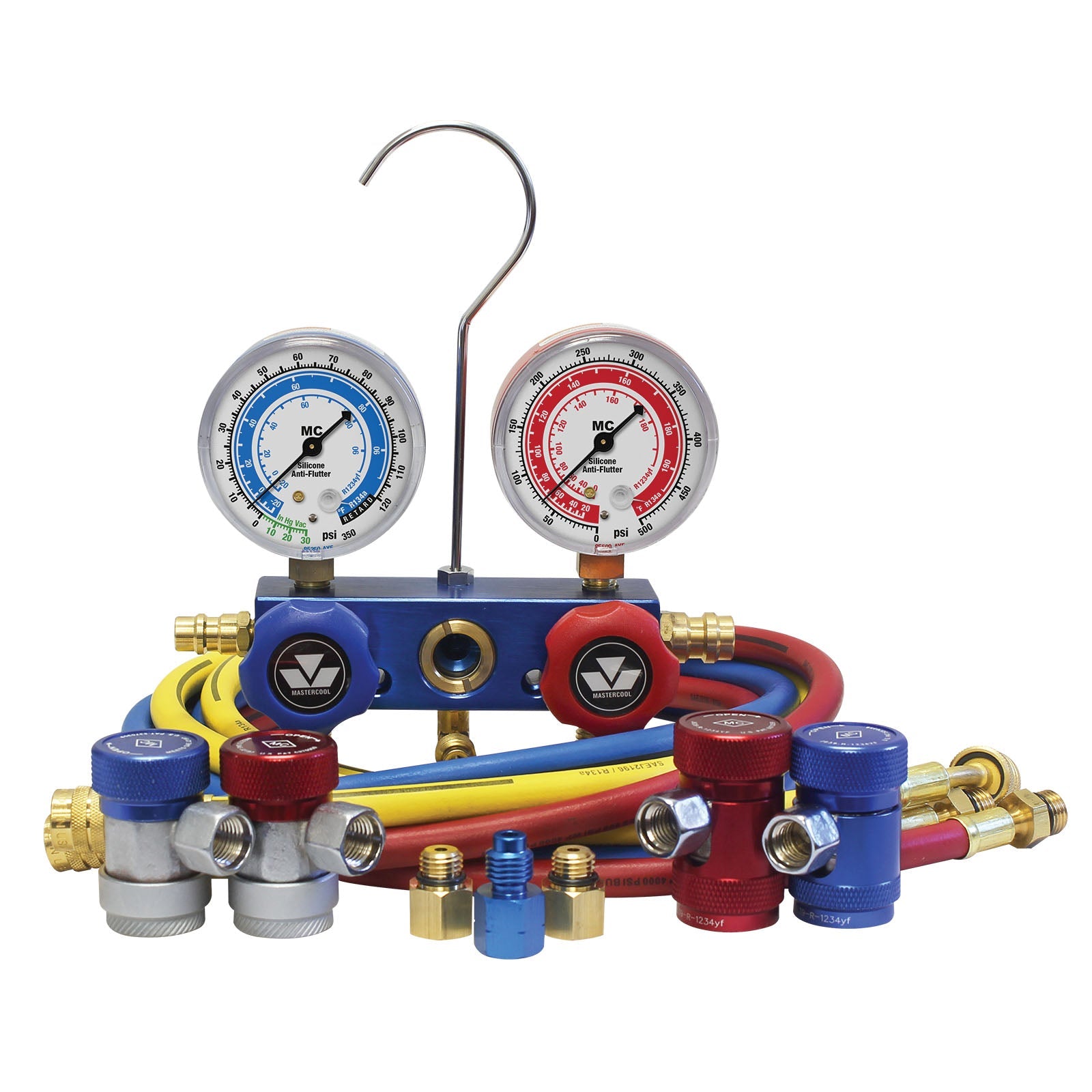

The Mastercool 89772-AYF is a professional dual refrigerant aluminium manifold gauge set designed for both R1234yf and R134a automotive A/C systems. Featuring a professional extruded aluminium block and advanced piston-type valves, this premium kit includes everything needed to service modern and legacy automotive air conditioning systems.
Complete Kit Includes
- 2.5" silicone-dampened gauges — Recalibratable for long-term accuracy
- 3× 72" R134a standard hoses — Maximum reach for difficult access points
- R1234yf couplers — High and low side with extended disconnect protection sleeve, meets SAE J639 & J2888 (83834, 83934)
- R134a manual couplers — High and low side, meets SAE, UL and EPA requirements (82834, 82934)
- 1/2" ACME adapter — M×F LH thread (83633)
- 2× R1234yf adapters — 12mm-M × 14mm-F (83735)
Premium Features
- Professional extruded aluminium block — Superior durability and heat dissipation
- Free-floating piston type valves — Reduces O-ring wear for extended service life
- Extra large sight glass — Visual refrigerant check for accurate diagnostics
- Extra access port — Dedicated vacuum line connection
- Large easy-to-grip knobs — Enhanced control and comfort
- Dual refrigerant compatibility — Service both R1234yf and R134a systems
- SAE-compliant couplers — R1234yf couplers meet SAE J639 & J2888 standards
- 72" hoses — Maximum length for superior reach and flexibility
Technical Specifications
- Gauge Size: 2.5" diameter
- Gauge Type: Silicone dampened, recalibratable
- Refrigerants: R1234yf and R134a
- Hose Length: 3× 72" (183cm)
- Hose Type: R134a standard
- Manifold Material: Extruded aluminium
- Valve Type: Free-floating piston
Related Products
- 89636-AYF — Same manifold with 3×36" hoses
- 89661-AYF — Same manifold with 3×60" hoses
- 85500-AYF — 2.5" high side replacement gauge, R1234yf/R134a
- 85350-AYF — 2.5" low side replacement gauge, R1234yf/R134a
View our complete range of manifolds and gauges for professional HVAC/R service solutions.
Premium aluminium manifold for professional automotive A/C technicians servicing both modern R1234yf and legacy R134a systems.
