Armacell AF/Armaflex EVO Closed-Cell Elastomeric Pipe Insulation Coil | 9mm & 13mm Wall | 15m

Name: Armacell AF/Armaflex EVO Closed-Cell Elastomeric Pipe Insulation Coil | 9mm & 13mm Wall | 15m
Rating: 4.74 (23 reviews)

L330

£29.23 Inc VAT £24.36 Ex VAT

Wall 9 13

Bore 6 10 12 15 20 22 28

In stock – ready to dispatch

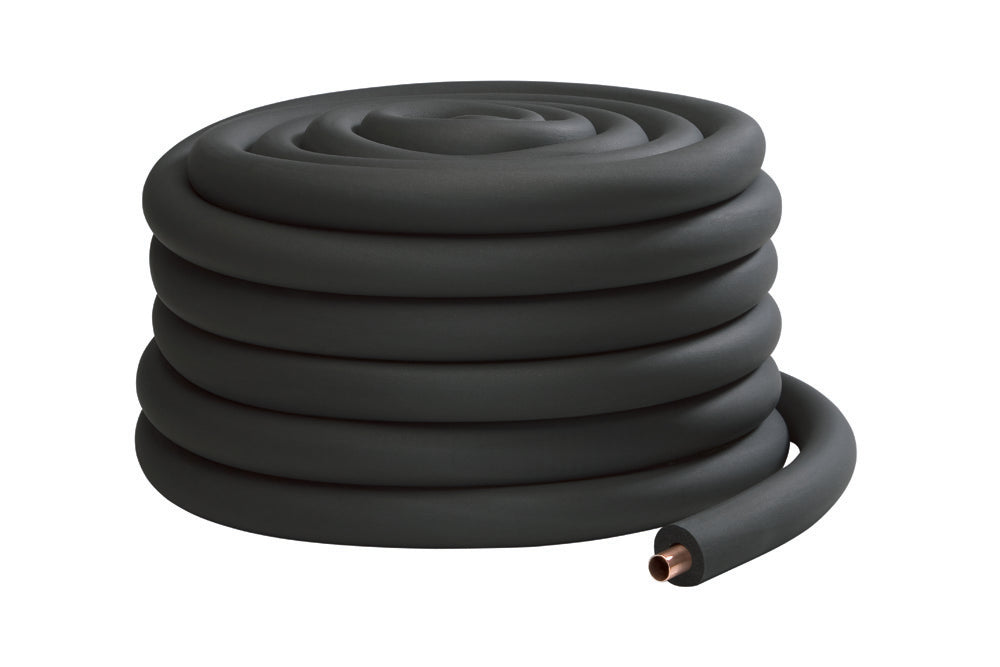

Armacell AF/Armaflex EVO Closed-Cell Elastomeric Pipe Insulation Coil | 15m

Armaflex EVO is Armacell's premium closed-cell elastomeric foam pipe insulation, designed for air conditioning, refrigeration, and heat pump pipework. Available in 9mm and 13mm wall thickness across bore sizes from 6mm to 28mm, supplied in 15m coil form — ideal for smaller jobs or where a full-length coil isn't required.

Key Features

Closed-cell structure — excellent resistance to water vapour diffusion
Class O fire rated — meets UK Building Regulations requirements
UV resistant — suitable for outdoor and exposed installations
Flexible and self-sealing — easy to fit around bends and fittings
Low thermal conductivity — superior energy efficiency
Compatible with R410A, R32, R22, and most refrigerants
No additional vapour barrier required

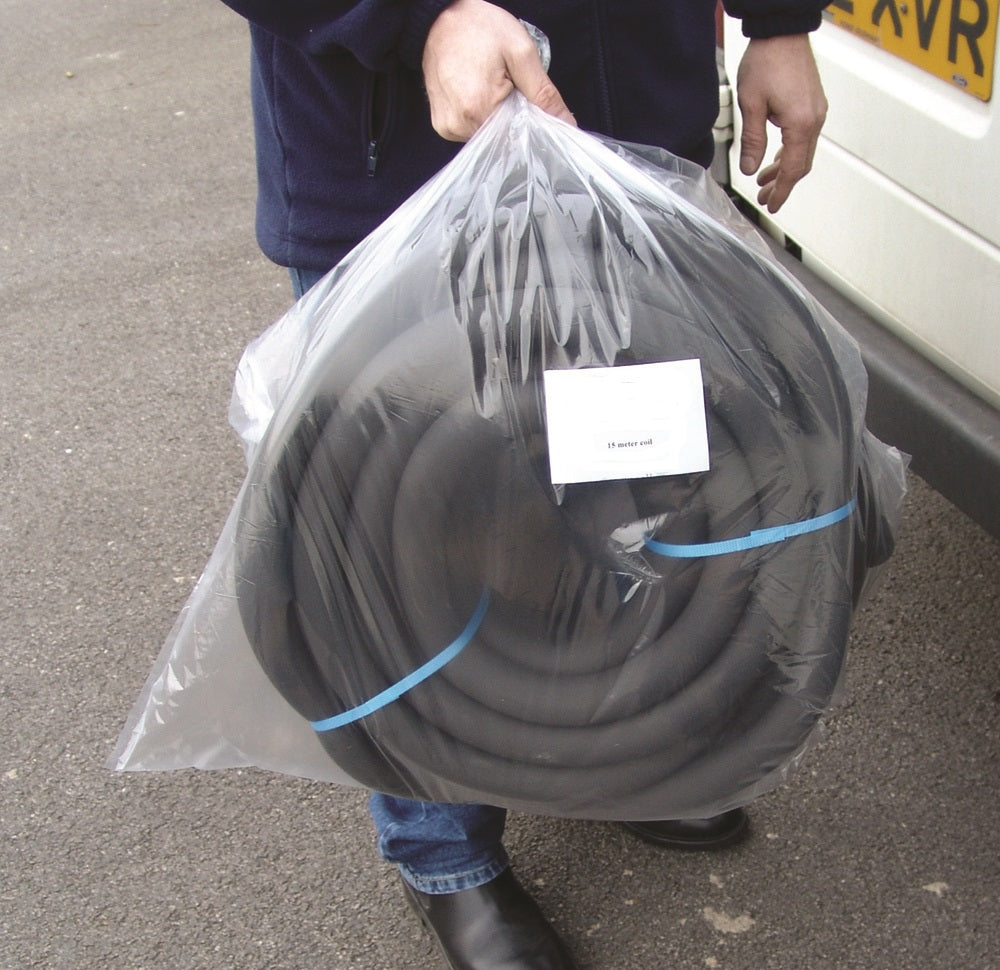

Supplied in 15m coil form

Available Variants

Wall	Bore	SKU	Armacell Part No.
9mm	6mm	L330	CO-09x006/e-15
9mm	10mm	L331	CO-09x010/e-15
9mm	12mm	L332	CO-09x012/e-15
9mm	15mm	L333	CO-09x015/e-15
9mm	20mm	L334	CO-09x020/e-15
9mm	22mm	L335	CO-09x022/e-15
9mm	28mm	L336	CO-09x028/e-15
13mm	6mm	L337	CO-13x006/e-15
13mm	10mm	L338	CO-13x010/e-15
13mm	12mm	L339	CO-13x012/e-15
13mm	15mm	L340	CO-13x015/e-15
13mm	20mm	L341	CO-13x020/e-15
13mm	22mm	L342	CO-13x022/e-15
13mm	28mm	L343	CO-13x028/e-15

Technical Data

Material	Closed-cell elastomeric foam (NBR/PVC)
Fire rating	Class O (UK Building Regulations)
Temperature range	-50°C to +105°C
Water vapour diffusion resistance (μ)	≥ 7,000
UV resistance	Yes — suitable for outdoor use
Coil length	15m
HS Code	3917 39 00
Brand	Armacell
Country of origin	Germany

Also Available

Full length coils — Armaflex EVO in longer coil lengths
