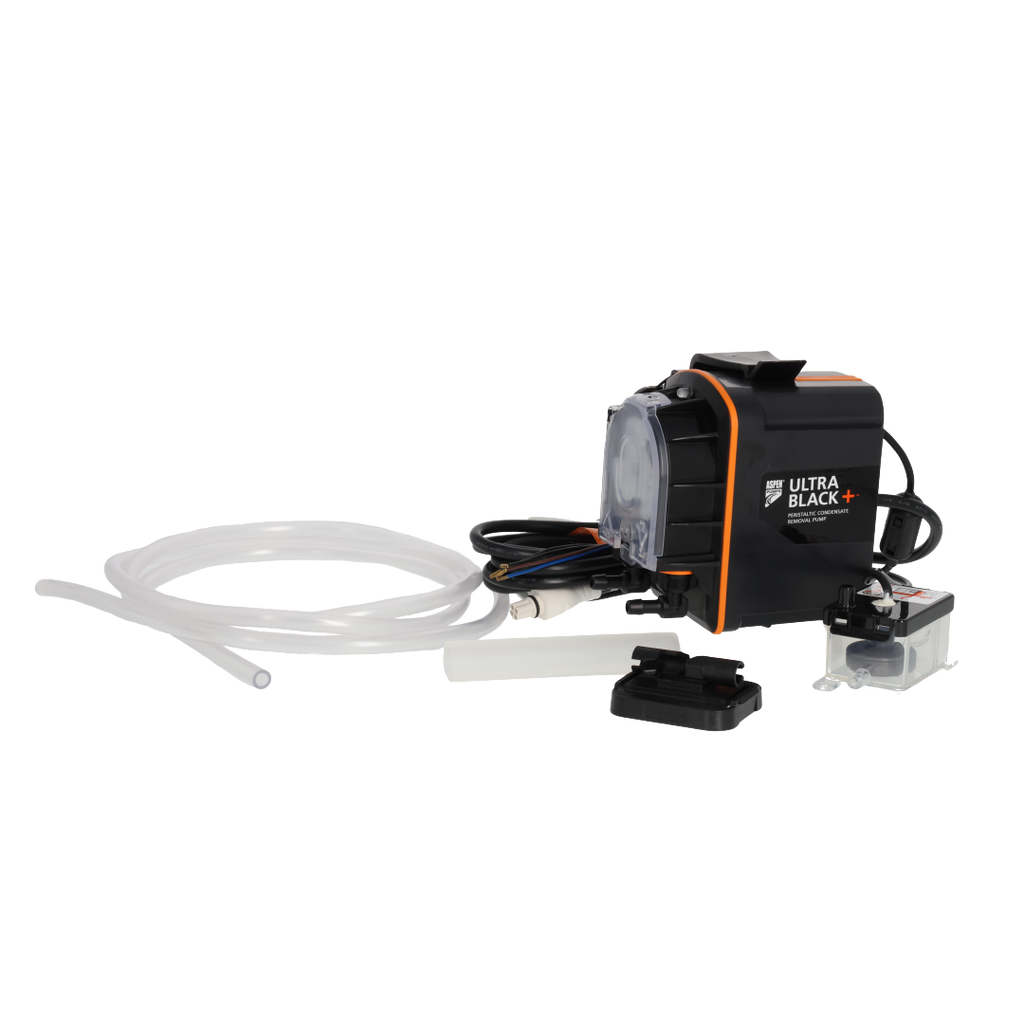

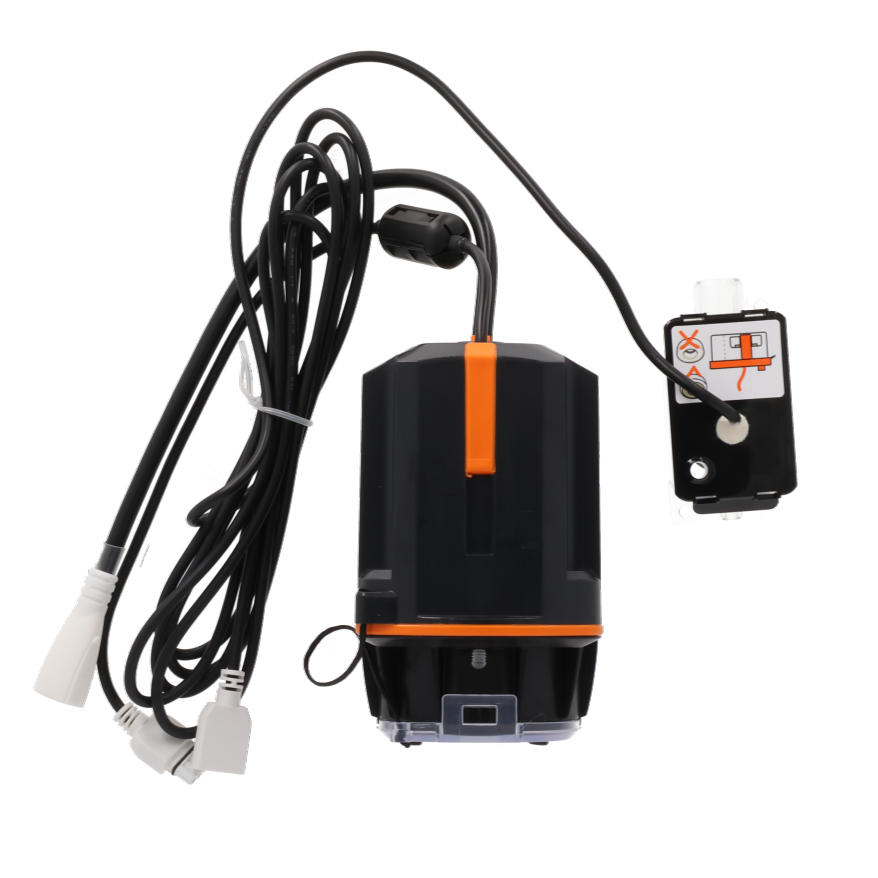

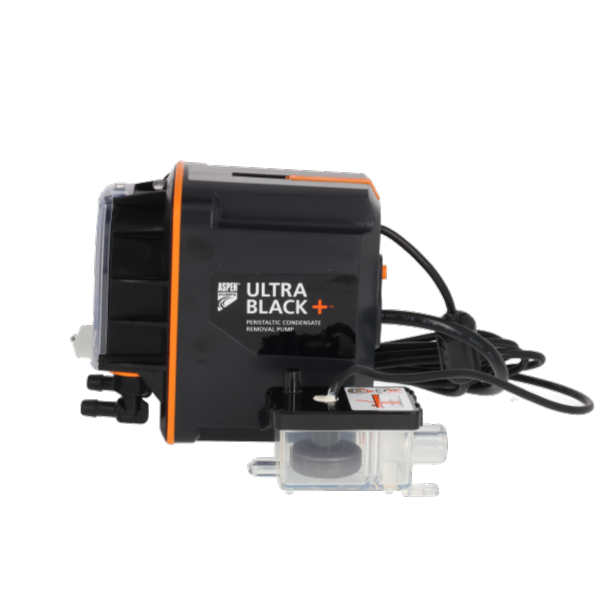

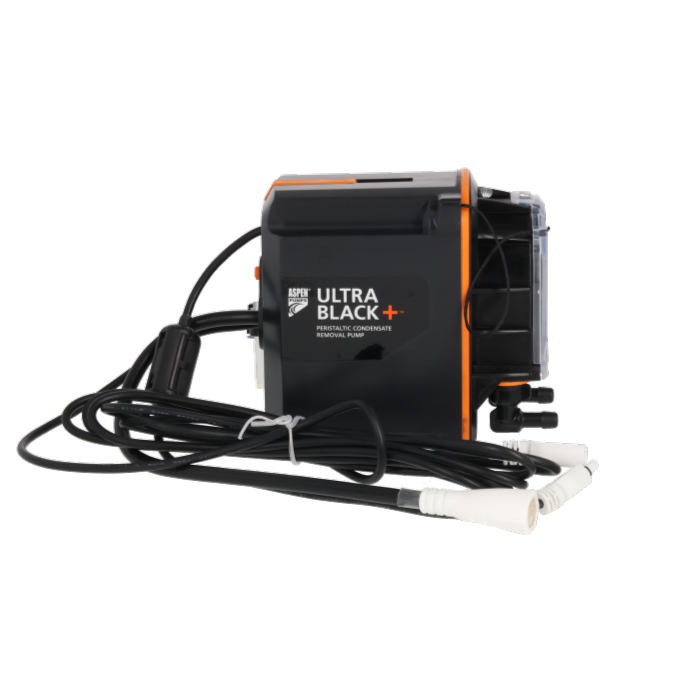

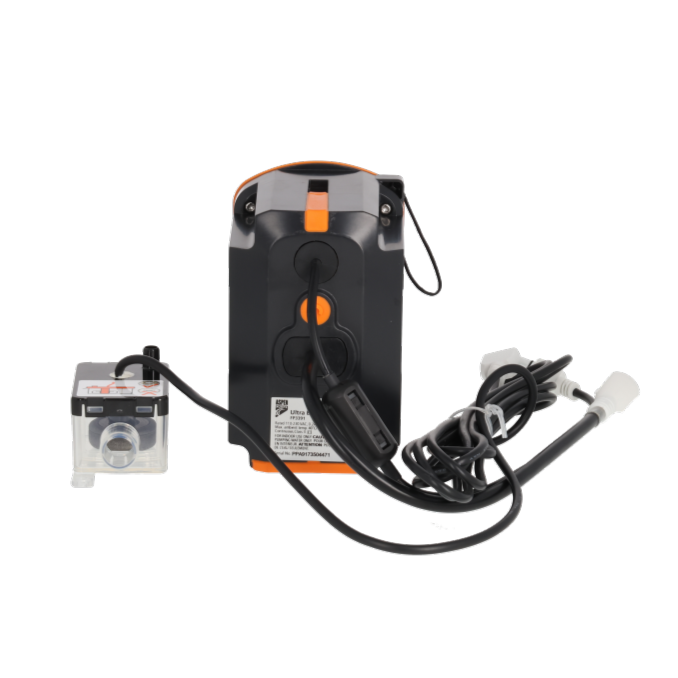

Aspen UltraBlack+ FP3391 Peristaltic Condensate Pump

The Aspen UltraBlack+ (FP3391) is a high-performance peristaltic condensate removal pump for mini split air conditioning, wall-mounted splits, cassette units, and fan coil installations where silent, reliable condensate management is critical.

Unlike conventional mini pumps with impellers and reservoirs, the UltraBlack+ uses a peristaltic mechanism — a rotating roller squeezes condensate through flexible tubing with no contact between the pump mechanism and the liquid. There is no tank, no float chamber, and no impeller to block or corrode. This makes it inherently self-priming, blockage-resistant, and exceptionally quiet in operation.

Key Specifications

• MPN: FP3391
• Pump type: Peristaltic (no tank)
• Trigger: Float switch
• Max head: 10m
• Flow rate: 15 L/h
• Voltage: 230V AC 50Hz
• Power consumption: 18W
• Noise level: <35 dB(A)
• IP rating: IP44
• Country of origin: United Kingdom
• Warranty: 5 years (Aspen Pumps UK)

Why Choose a Peristaltic Pump?

Peristaltic condensate pumps are specified where standard mini pumps are unsuitable or have previously failed. The peristaltic mechanism eliminates the most common failure modes of conventional pumps — blocked floats, fouled impellers, and algae build-up in the reservoir. The result is a pump that operates reliably in unattended commercial environments and noise-sensitive residential installations alike.

Ideal Applications

• Mini split air conditioning systems in bedrooms, offices, and premium residential installs
• Wall-mounted splits where silent condensate removal is required
• Cassette units and concealed fan coils with dirty or debris-laden condensate
• Long horizontal pipe runs where head pressure is low
• Installations where standard mini pumps have previously blocked or failed
• Commercial HVAC systems requiring reliable unattended operation

Downloads

• FP3391 Technical Data Sheet (PDF)
• FP3391 Installation Manual (PDF)
• Condensate Pump Selection Chart — Airconspares Installer Resources
