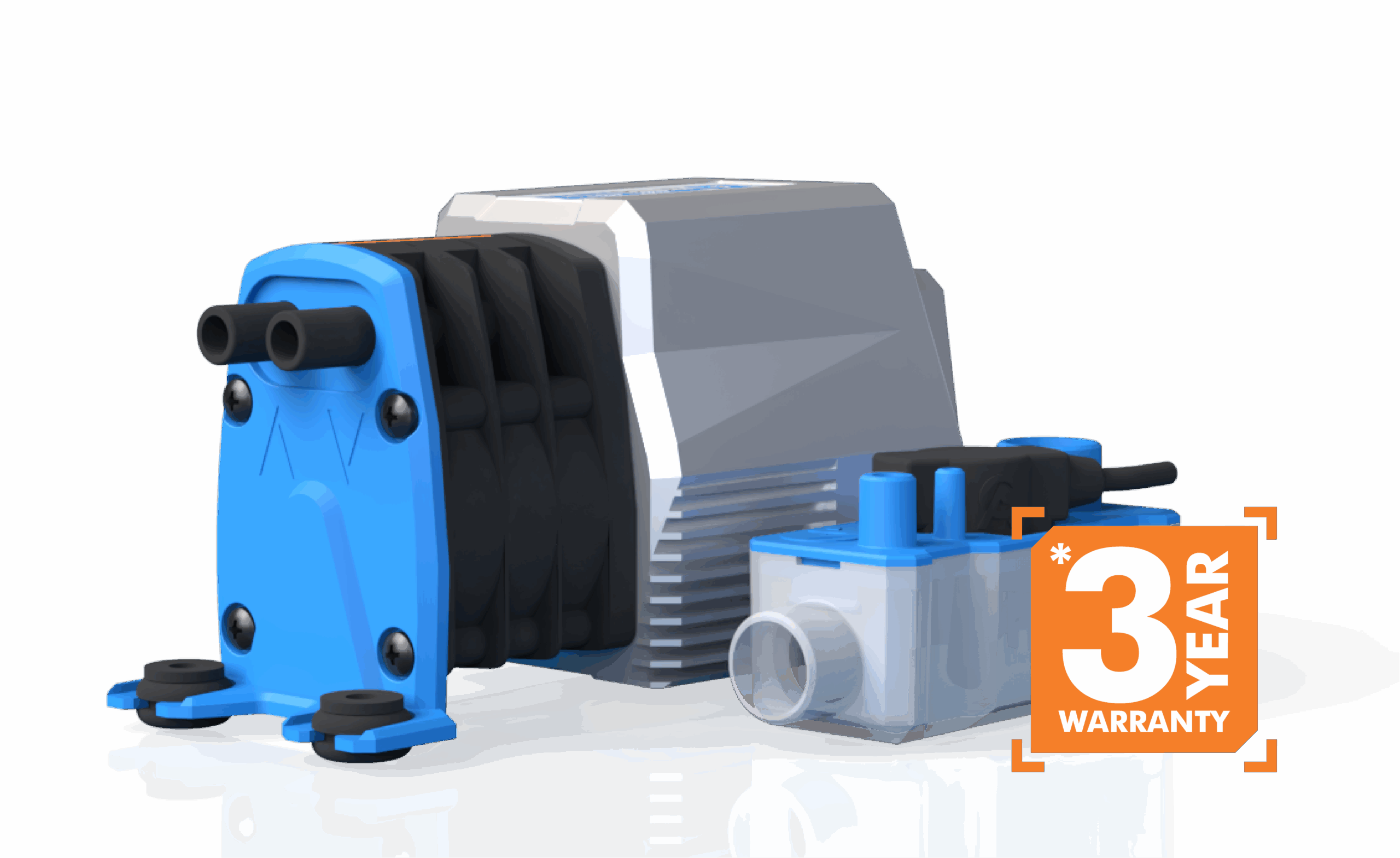

Mechanical device with blue and black components on a gray background, featuring a 3-year warranty badge. MaxiBlue® V2 — the next generation in BlueDiamond®’s trusted pump range. Powered by enhanced Rotary Diaphragm technology, this cutting-edge model combines a lighter, more efficient design with intelligent features like a smart control board for real-time monitoring and adaptive condensate management. Its clog-resistant, filter-free architecture and CondenSense™ technology in the reservoir allow the pump

Blue Diamond MaxiBlue® V2 X88-701 Condensate Pump

£130.25
£130.25
Skip to product information
Mechanical device with blue and black components on a gray background, featuring a 3-year warranty badge. MaxiBlue® V2 — the next generation in BlueDiamond®’s trusted pump range. Powered by enhanced Rotary Diaphragm technology, this cutting-edge model combines a lighter, more efficient design with intelligent features like a smart control board for real-time monitoring and adaptive condensate management. Its clog-resistant, filter-free architecture and CondenSense™ technology in the reservoir allow the pump
1/5
  • Mechanical device with blue and black components on a gray background, featuring a 3-year warranty badge. MaxiBlue® V2 — the next generation in BlueDiamond®’s trusted pump range. Powered by enhanced Rotary Diaphragm technology, this cutting-edge model combines a lighter, more efficient design with intelligent features like a smart control board for real-time monitoring and adaptive condensate management. Its clog-resistant, filter-free architecture and CondenSense™ technology in the reservoir allow the pump

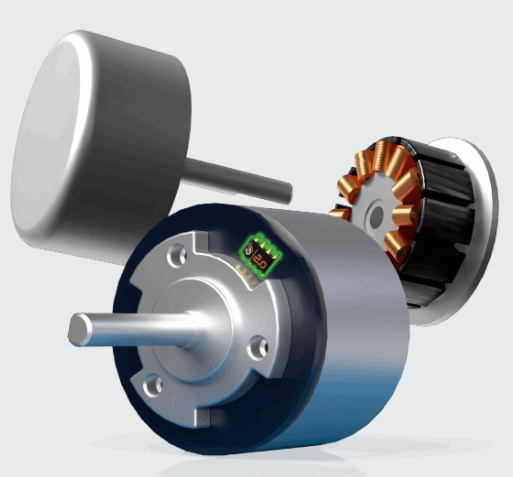

  • The MaxiBlue V2 redefines motor technology with its advanced brushless design, offering exceptional performance, reliability, and energy efficiency. By eliminating carbon brushes, it minimizes wear, extends lifespan, and reduces maintenance. Durability is built in: ball-raced bearings ensure smooth operation, a reinforced stainless-steel shaft resists corrosion, and conformal coating protects wiring from environmental damage. Performance is consistent, with reliable torque across all speeds and built-in sp

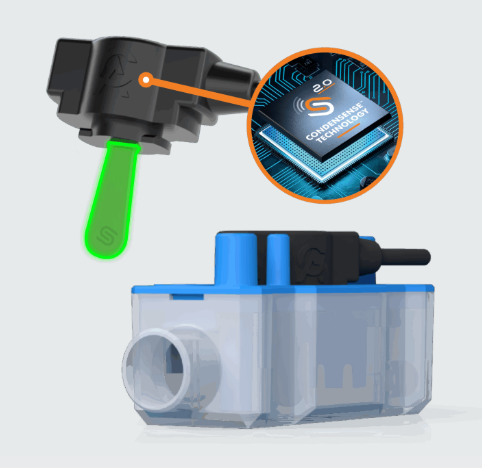

  • CONDENSENSE™ COMPATIBLE CondenSense™ with CS2 microchip technology transforms condensate management through intelligent detection and adaptive performance. Filter-free design simplifies installation and maintenance, while its compact size fits space-limited environments. Engineered for precision over 200 dynamic touchpoints communicate with the CS2 chip for accurate liquid detection, a patented smaller meniscus reduces false triggers from debris and the detachable sensor enables quick servicing without ful

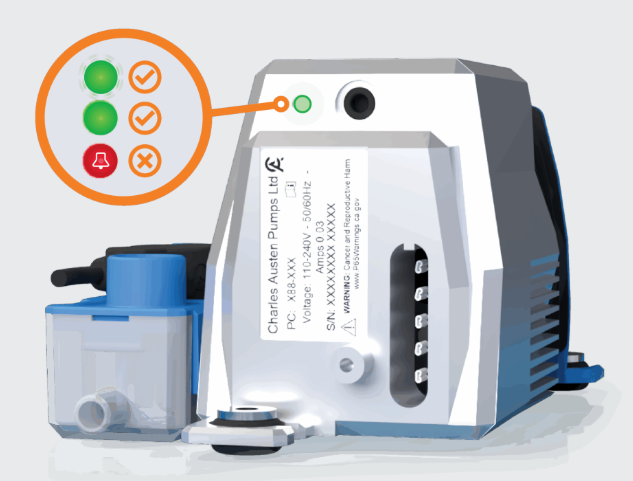

  • DYNAMIC MONITORING Dynamic Monitoring, powered by the advanced CS2 microchip, delivers real-time performance analytics for smarter pump management. A volt-free alarm, rear LED indicators, and integrated audio alerts provide instant status updates, enabling rapid issue detection. The system follows a clear three-stage sequence: solid green for normal operation; flashing green while the pump removes condensate and flashing red with audio alert for faults. Even during errors, the pump continues running, maint

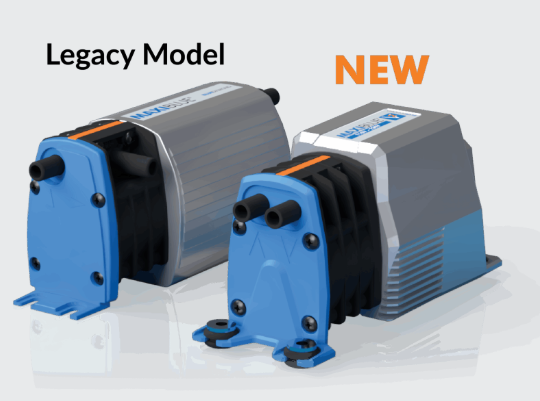

  • NEW ARCHITECTURE Updated Architecture gives the MaxiBlue V2 a streamlined body with integrated elastomeric feet, reducing vibration and noise for smoother operation. The improved plug-and-play system features slimmer, space-saving cables, making installation faster, cleaner, and more efficient. All pumps MiniBlue, MaxiBlue, and MegaBlue share a uniform design, reinforcing product identity and simplifying specification and installation.
Blue Diamond MaxiBlue® V2 X88-701 Condensate Pump

Blue Diamond MaxiBlue® V2 X88-701 Condensate Pump
Blue Diamond
MPN: X88-701
  • UK stock – fast dispatch
  • UK Mainland Delivery £7.50
  • Expert technical support
  • Trade accounts available
£130.25
£130.25
Shipping calculated at checkout.
REFcom Elite registered supplier
Achilles Silver accredited supplier
UK HVAC specialist since 2005
Fast UK dispatch

✓ Trade Pricing | ✓ Technical Support Available | ✓ Secure Checkout

Blue Diamond MaxiBlue® V2 — Intelligent Condensate Management for Modern HVAC

The MaxiBlue® V2 (X88-701) is Blue Diamond's most advanced mid-range condensate pump, engineered for air conditioning systems up to 14kW. Building on the proven MaxiBlue platform, the V2 introduces a smart control board, CondenSense™ technology, and an enhanced brushless motor — delivering quieter operation, lower energy consumption, and a maintenance-free service life that demands nothing from the engineer once installed.

Its valveless, clog-resistant, filter-free architecture removes the need for routine servicing. The integrated CondenSense™ reservoir allows the pump to self-adjust condensate flow in real time, preventing overflow and adapting automatically to changing system conditions. The result is a pump that works harder, lasts longer, and requires less attention — ideal for demanding commercial and residential HVAC installations.

Key Features

  • Ultra-quiet soft-start operation — 21 dB(A) maximum
  • Enhanced Rotary Diaphragm technology for improved pumping efficiency
  • Smart control board with real-time monitoring and automatic flow adjustment
  • CondenSense™ compatible — CS2 microchip integration for intelligent level sensing
  • Valveless, clog-resistant, filter-free design — zero routine maintenance
  • Energy-efficient brushless motor with ball-raced bearings for extended service life
  • Conformal-coated wiring for protection in high-humidity environments
  • Integrated elastomeric feet for vibration damping and noise reduction
  • Volt-free, audio, and LED alarm package included as standard
  • Compact, lightweight form factor — lighter than its predecessor

Technical Specifications

  • Part Number: X88-701
  • Max System Capacity: Up to 14kW
  • Noise Level: 21 dB(A) maximum
  • Motor Type: Brushless, ball-raced bearings
  • Voltage: 230V AC
  • Pump Technology: Enhanced Rotary Diaphragm
  • Reservoir: CondenSense™ integrated reservoir included
  • Alarm: FSA + HLA combined — volt-free, audio, LED
  • Wiring: Conformal-coated for environmental protection

Applications

  • Split and multi-split air conditioning systems up to 14kW
  • Cassette and ceiling-mounted fan coil units
  • Mid-range commercial fan coil applications
  • High-humidity environments requiring bio-film prevention
  • Installations requiring ultra-low noise operation

Alarm System

The V2 combines the FSA (Fail Safe Alarm) and HLA (High Level Audio) functions into a single enhanced alarm package with LED indicator included as standard. Operation is indicated across three clear stages: solid green for normal standby, flashing green while actively removing condensate, and flashing red with audio alert for fault conditions — with the pump maintaining operation even during error states to prevent overflow.

What's in the Box

  • MaxiBlue® V2 pump unit
  • CondenSense™ reservoir
  • Installation hardware
