Blue Diamond MicroBlue® X86-007 Condensate Pump with Ivory Ducting Kit

Blue Diamond MicroBlue® X86-007 Condensate Pump with Ivory Ducting Kit

The MicroBlue® X86-007 combines Blue Diamond's ultra-compact, whisper-quiet condensate pump with an Ivory Ducting Kit — designed for in-unit installations where a clean, concealed finish is required. At just 150 × 37 × 40mm and weighing only 226g, the MicroBlue leads the microsized condensate pump market with superior performance and reliability.

Featuring Blue Diamond's unique patented GyRok™ technology, the MicroBlue uses advanced dynamic diaphragm control for powerful, self-priming pumping in an ultra-compact, dual-voltage, anti-vibration design. BLUEDIAMOND® onboard intelligence dynamically adjusts the pump to condensate levels, operating in the quietest and most efficient manner at all times.

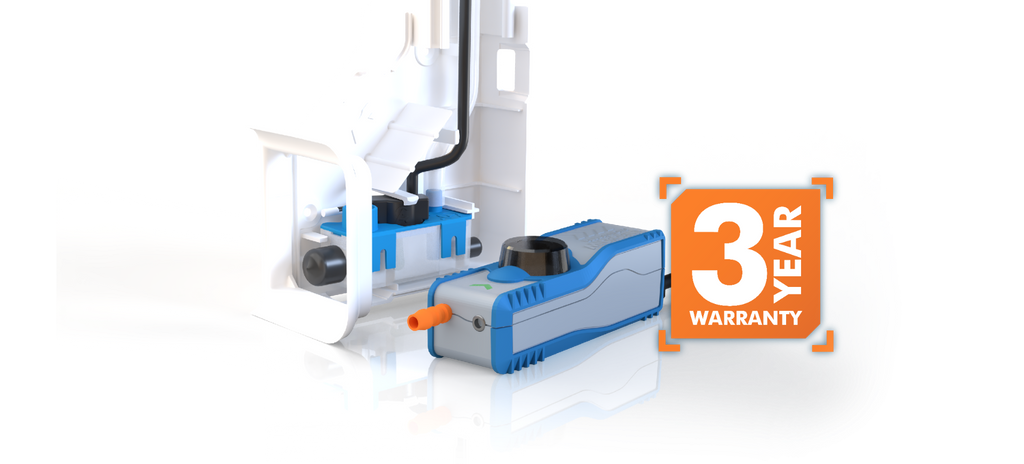

The included Ivory Ducting Kit allows the pump to be neatly integrated within the AC unit housing, with ivory-coloured trunking to match standard indoor unit casings — ideal for cassette, ceiling concealed, and wall-mounted installations where aesthetics matter.

Key Features

• Ultra-quiet operation — 17 dB(A), the quietest in its class
• Unique patented GyRok™ technology — advanced dynamic diaphragm control
• Anti-vibration design — ideal for in-unit and concealed installations
• Self-priming activation — no need for siphoning devices
• BLUEDIAMOND® onboard intelligence — dynamically adjusts to condensate levels
• Dual voltage capability — 115–230V / 50-60Hz
• Ivory ducting kit included for clean, concealed in-unit installation
• LED status indicators: Standby (solid green), Pumping (flashing green), Alarm (flashing red + buzzer)
• Plug and play set-up for quick installation
• Compact and lightweight — 226g
• IPX4 rated — splash-proof protection
• 3-year warranty

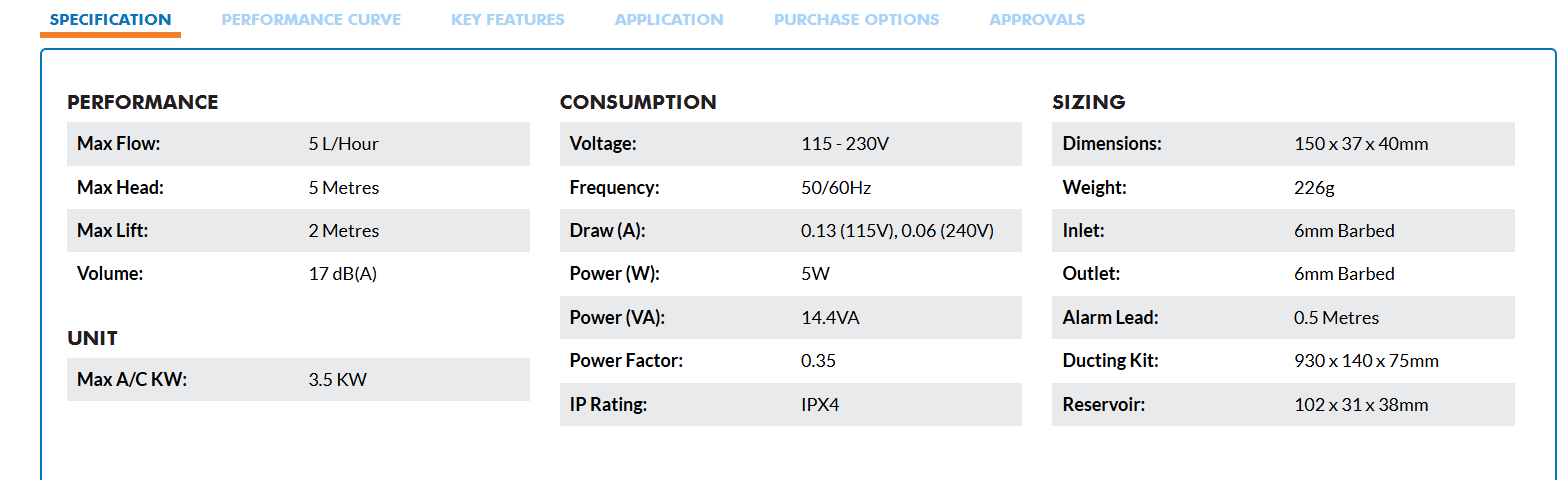

Technical Specifications

Discharge Pipe Run

The MicroBlue® can be mounted in any orientation up to 2 metres away from the air conditioning unit. For each metre not used on vertical head you can run 3m on the horizontal.

Compatible Systems

• Mini-split AC systems up to 3.5 kW
• Refrigeration applications
• Cassette and ceiling concealed units
• In-unit installations requiring concealed ducting
• Bedrooms, small offices, and noise-sensitive environments

Compatible Brands

Suitable for use with Daikin, Mitsubishi Electric, Fujitsu, Panasonic, Samsung, LG, Hitachi, Toshiba, and most other AC brands.

Frequently Bought With

• DiversiTech RVT-1/4 Condensate Drain Hose 6mm – 30m — direct-fit 6mm drain hose for the MicroBlue 6mm barbed outlet
• Jubilee Clip 13–20mm — for securing the outlet hose connection

Also Available

• Blue Diamond MicroBlue X86-001 — HLA-Pack reservoir variant
• Blue Diamond MicroBlue X86-002 — FSA-Pack reservoir variant

Frequently Asked Questions

What is included in the Ivory Ducting Kit?

The X86-007 includes the MicroBlue® pump and an ivory-coloured ducting kit (930 × 140 × 75mm) designed for in-unit installation, allowing the pump to be neatly concealed within the AC unit housing with matching trunking.

What is the difference between X86-007 (Ivory) and X86-001/X86-002?

The X86-007 includes a ducting kit for in-unit installation rather than a reservoir. It is designed for installations where the pump sits inside the AC unit housing. The X86-001 and X86-002 include reservoirs and are designed for remote or external mounting.

What AC system size is this pump suitable for?

The MicroBlue is designed for AC systems up to 3.5 kW — ideal for small mini-split units and refrigeration applications.

Can this pump be mounted in any orientation?

Yes. The MicroBlue can be mounted in any orientation up to 2 metres away from the air conditioning unit.

Does this pump require a fuse?

Yes. A T0.5AH250V fuse is required but not supplied with the pump.
