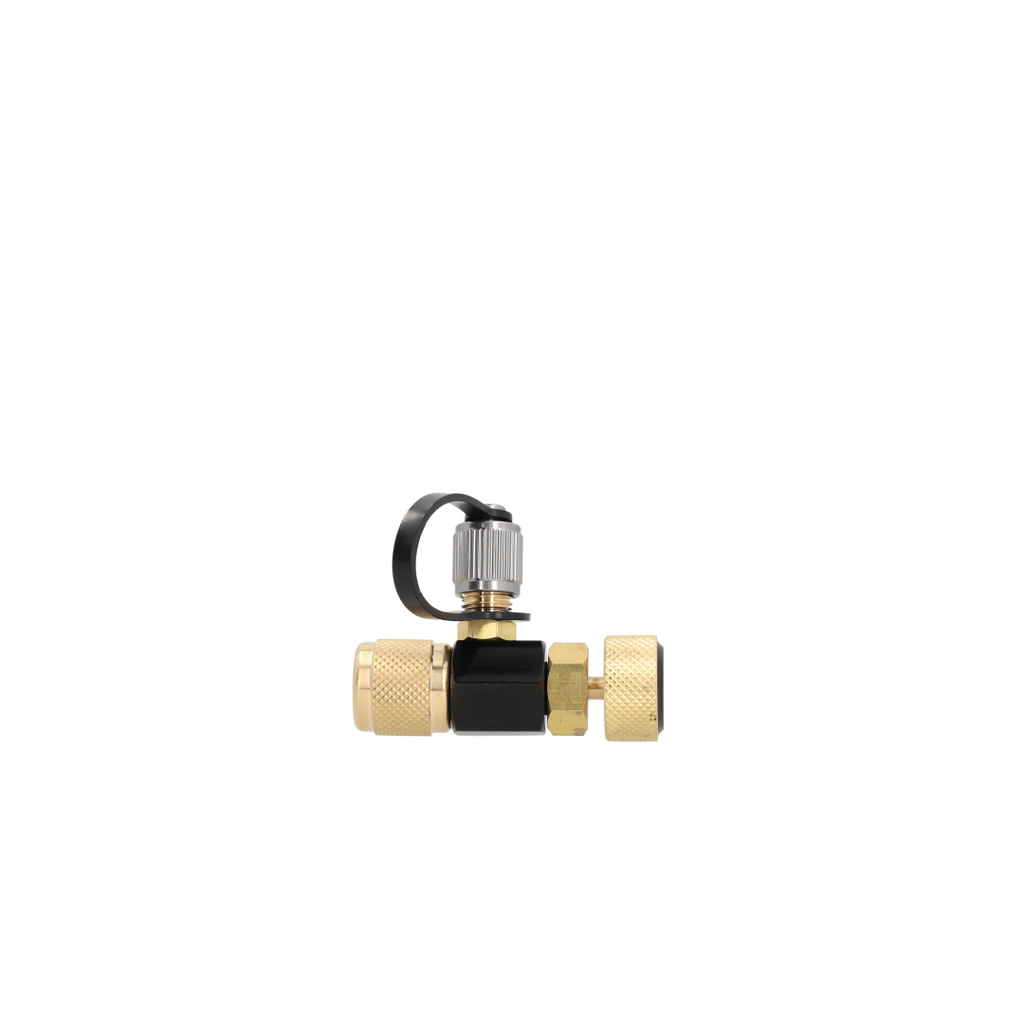

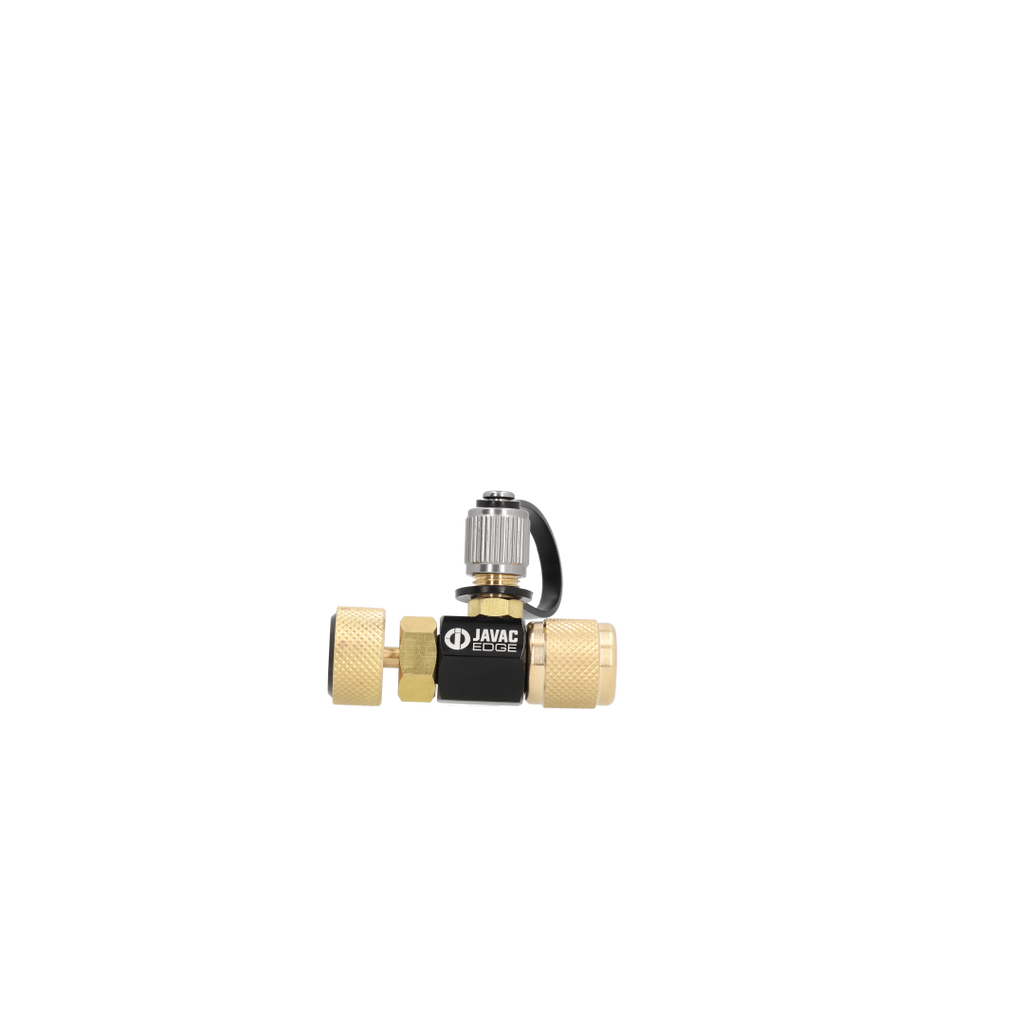

The Javac EDGE Hi-Flow Core Depressor Tool (1/4" x 1/4") is an inline Schrader valve depressor that opens the valve core on a 1/4" service port to allow unrestricted flow during vacuum and charging operations, without removing the core. Features a special tight-seal deep vacuum rated connector, large bore internal passages with optimised flow paths, and aircraft-grade aluminium construction.
- 1/4" x 1/4" inline pass-through with 90° depressor port
- Depresses Schrader valve core for unrestricted flow — no core removal required
- Special tight-seal deep vacuum rated connector
- Vacuum rated to 20 microns
- Large bore internal passages with optimised flow paths
- Brass body with black anodised aluminium centre block
- Tethered cap included
- A2L and A3 refrigerant compatible
- Part of the Javac EDGE Ultimate Hi-Flow system
Technical Specifications
| Part number | JAV-1606 |
| Connections | 1/4" x 1/4" SAE |
| Function | Inline Schrader core depressor |
| Vacuum rating | 20 microns |
| Refrigerant compatibility | A2L, A3 |
| Body material | Brass with black anodised aluminium |
| Brand | Javac EDGE |
| Country of origin | Australia |
