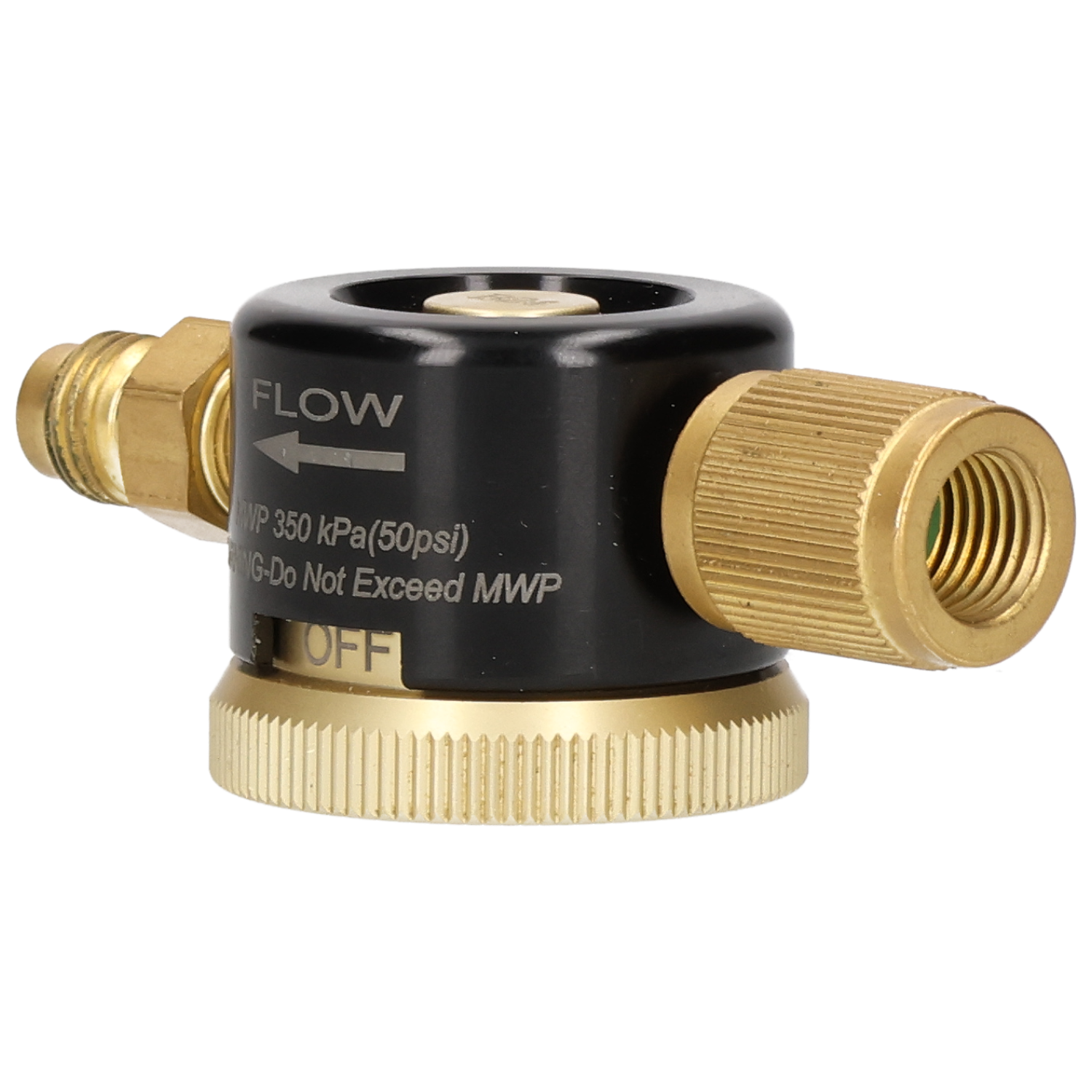

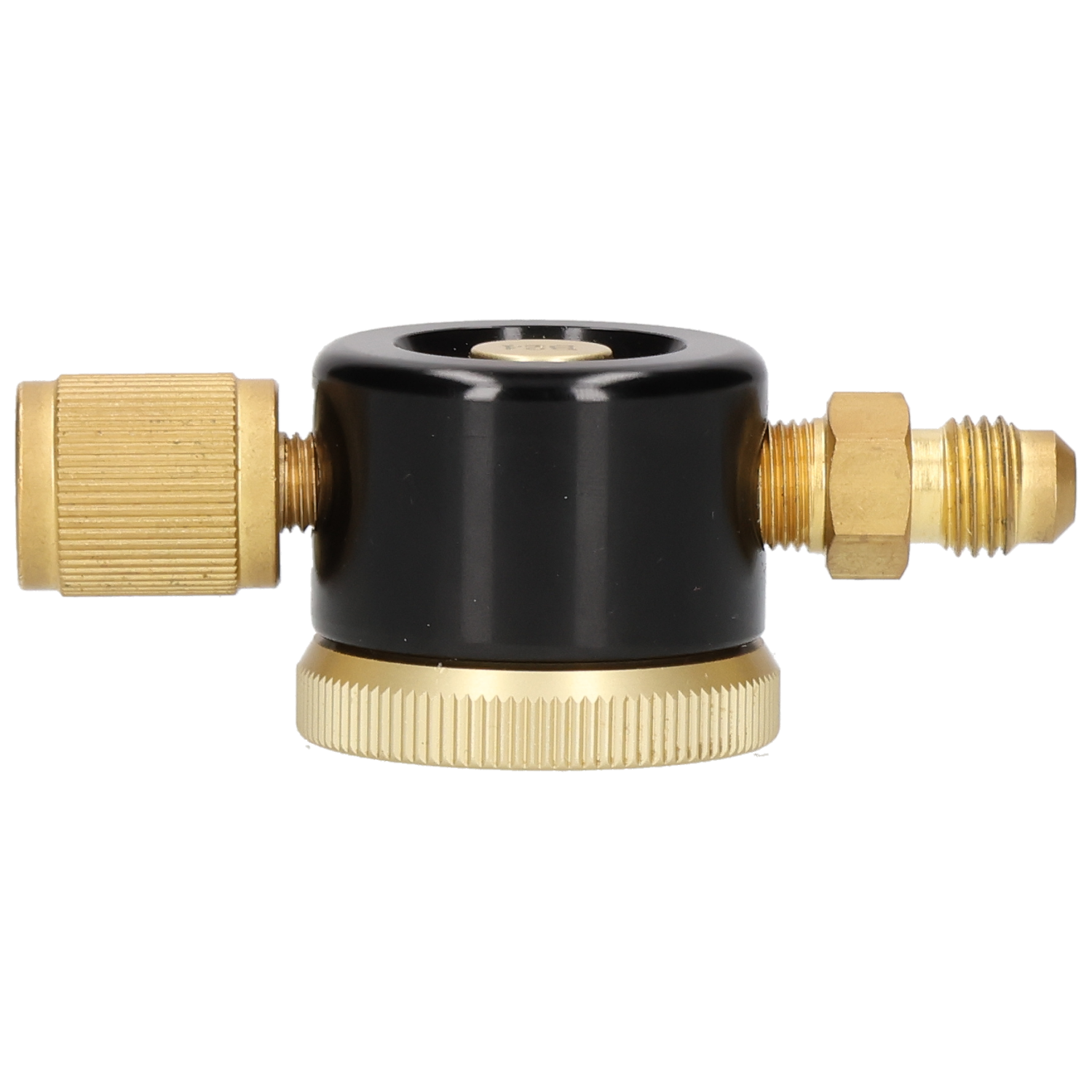

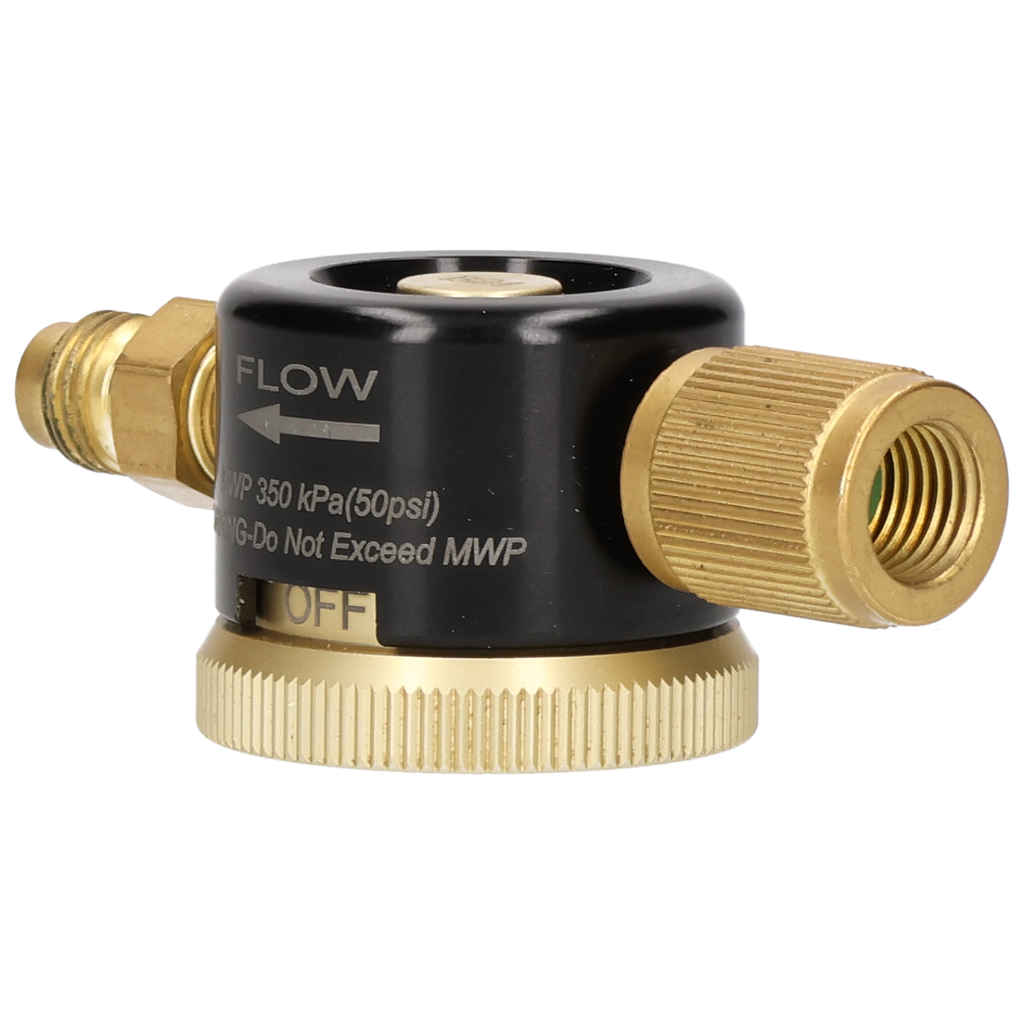

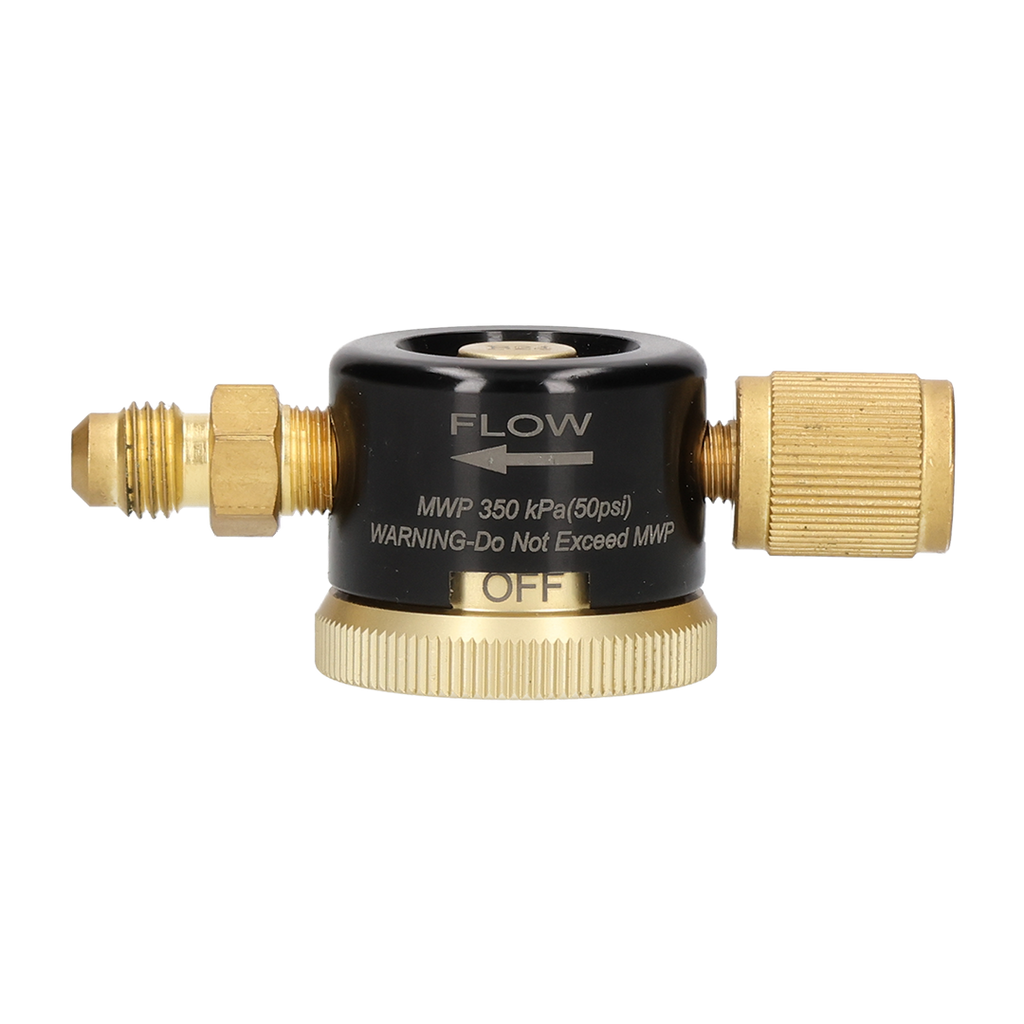

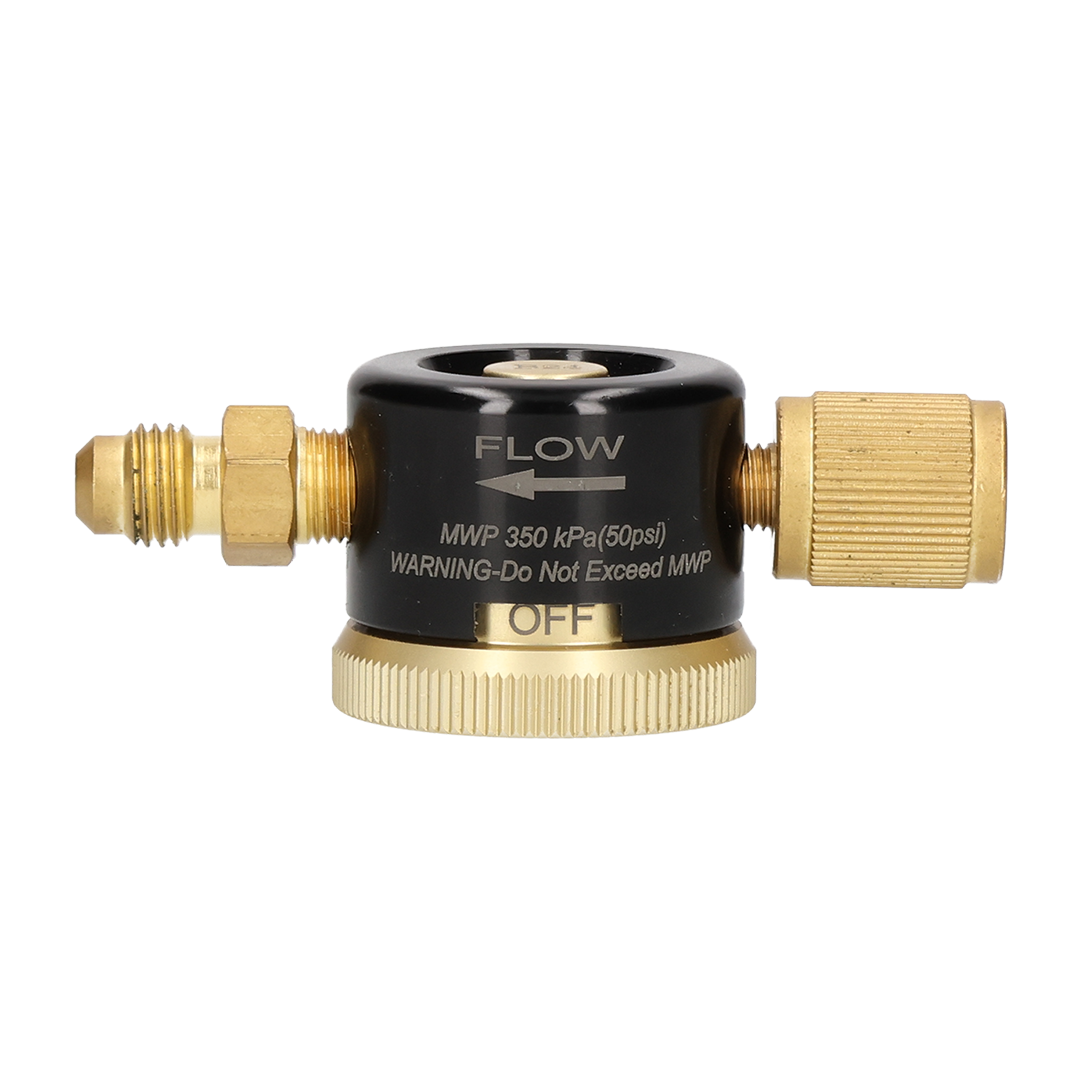

Javac JAV-1444 Nitrogen Purge & Braze Tool for HVAC Brazing

Javac JAV-1444 Nitrogen Purge & Braze Tool for HVAC Brazing

When carrying out repairs on refrigeration or air conditioning pipework, it is essential to purge the inside of the tubing with nitrogen to prevent oxidation around the joint area — both before and throughout the brazing process. The Javac JAV-1444 simplifies this procedure with dual-mode operation: initiate the PURGE function at a pre-set regulated flow rate, then switch to BRAZE mode with a simple turn of the control knob to deliver a steady 3 L/min — sufficient to protect the joint from oxidation while minimising nitrogen consumption.

Key Features

• Dual-Mode Operation (Purge & Braze) — single tool covers both stages of the nitrogen brazing process
• Pre-Set Purge Flow Rate — regulated flow eliminates guesswork; consistent results every time
• 3 L/min Braze Mode Flow — ideal flow rate to protect joints from oxidation without wasting nitrogen
• Connects to Standard Nitrogen Regulator — no additional adapters required for most setups
• 1/4" SAE Flare Outlet — fully compatible with standard HVAC service hoses
• Aluminium Body, Brass Internals — lightweight and durable; brass inlet, outlet and internals for long-term wear resistance
• Prevents Air Ingress — maintains inert atmosphere inside pipework throughout the repair

Technical Specifications

• Part Number: JAV-1444
• EAN: 5060926535715
• Tariff Code: 84818069
• Gas Service: Nitrogen (N2)
• Max Working Pressure: 350 kPa (50 psi) — do not exceed MWP
• Outlet Flow Rate: 3 L/min (braze mode)
• Outlet Connection: 1/4" SAE flare
• Operating Temperature: -20°C to +50°C
• Body Material: Aluminium
• Inlet, Outlet & Internals: Brass
• Weight: 0.11 kg
• Dimensions (W×L×D): 38×80×30 mm
• Warranty: 12 months

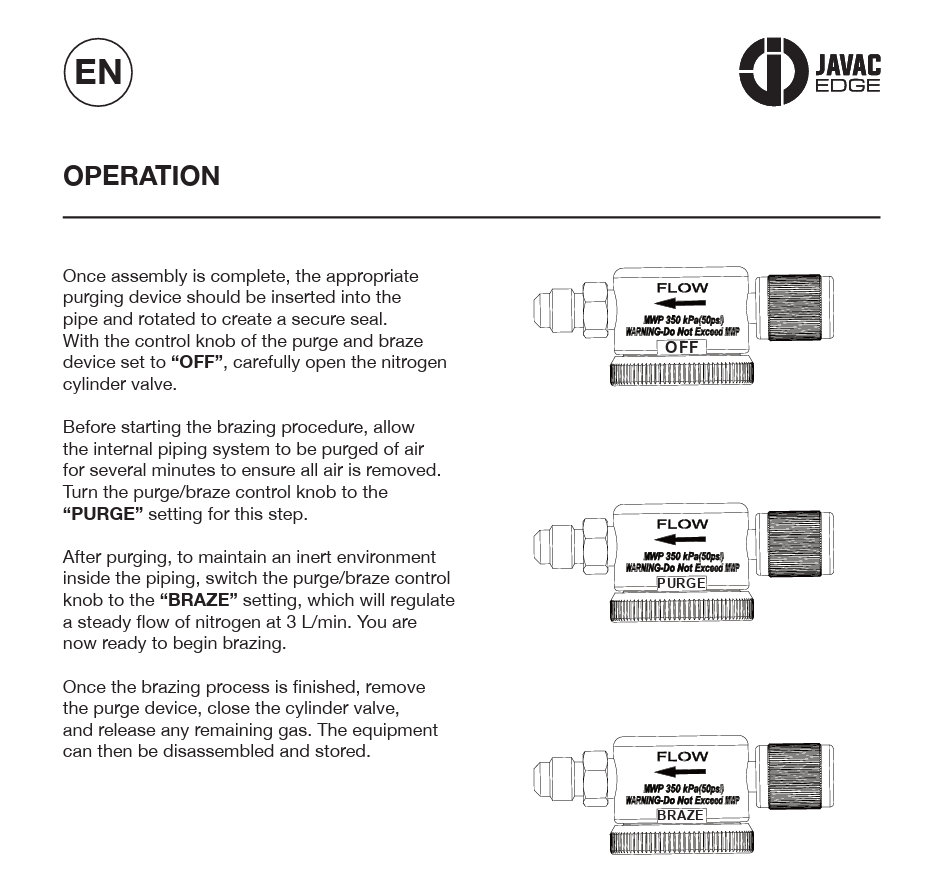

How to Use

1. Insert the purge device into the pipe and rotate to create a secure seal
2. Set control knob to OFF and carefully open the nitrogen cylinder valve
3. Turn to PURGE — allow system to purge for several minutes to remove all air
4. Turn to BRAZE — nitrogen flows at 3 L/min to protect the joint during brazing
5. Once complete, remove device, close cylinder valve and release remaining gas
