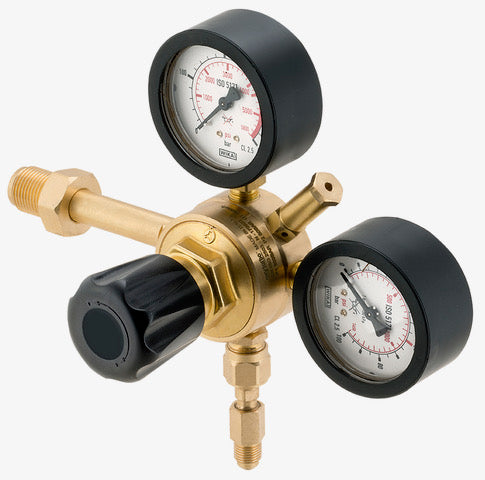

Mastercool 53007-100-CO2 CO2 Pressure Regulator W21.8 100 Bar

Professional CO2 Pressure Regulator - Standard W21.8 Connection

High-quality CO2 pressure regulator designed for professional refrigeration applications using CO2 (R744) refrigerant. Features standard W21.8 x 1/14" RH inlet connection and delivers up to 100 bar outlet pressure for CO2 system charging and servicing.

Key Features:

• 100 bar outlet pressure - Suitable for CO2 refrigeration system charging and operation
• Standard W21.8 connection - Universal CO2 cylinder fitting (W21.8 x 1/14" RH)
• CO2 refrigerant specialist - Engineered specifically for R744 applications
• Dual pressure gauges - Monitor both inlet (up to 300 bar) and outlet (up to 100 bar) pressures
• 1/4" SAE flare outlet - Standard connection for HVAC/R equipment
• Precision control valve - Fine adjustment for accurate charging pressures
• Professional-grade construction - Built for commercial refrigeration technicians
• Brass body construction - Durable and corrosion-resistant

Applications:

• CO2 refrigeration system charging and recharging
• Transcritical CO2 system servicing
• Commercial refrigeration maintenance (supermarkets, cold storage)
• Natural refrigerant system repairs
• CO2 refrigerant recovery and transfer
• Heat pump CO2 system servicing

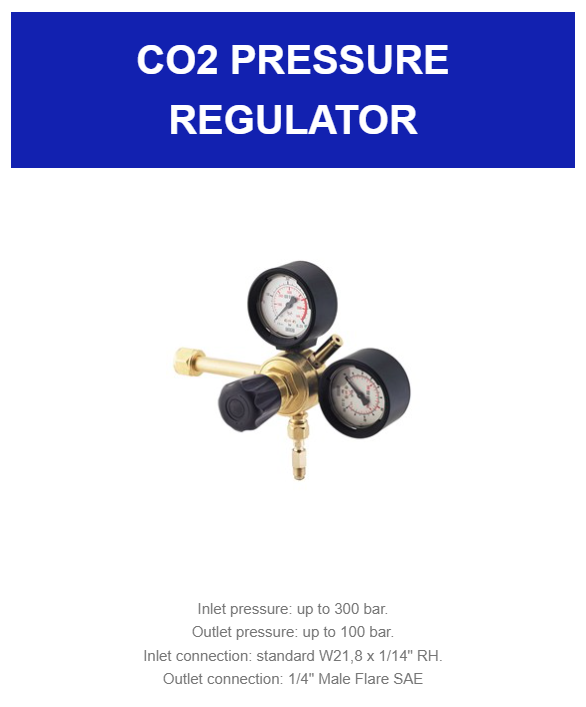

Technical Specifications:

• Inlet pressure: Up to 300 bar
• Outlet pressure: Up to 100 bar
• Inlet connection: Standard W21.8 x 1/14" RH (right-hand thread)
• Outlet connection: 1/4" Male Flare SAE
• Gauge range: High-pressure rated for CO2 applications
• Model: 53007-100-CO2
• Application: CO2 refrigerant charging and servicing
• Body material: Brass with protective coating

Why CO2 (R744) Refrigeration?

CO2 is increasingly adopted in commercial refrigeration due to:

• Zero ozone depletion potential (ODP) and low global warming potential (GWP)
• Excellent thermodynamic properties for refrigeration
• Natural, non-toxic, and non-flammable refrigerant
• Cost-effective and widely available
• Compliance with F-Gas regulations and environmental legislation

CO2 System Considerations:

CO2 refrigeration systems operate at significantly higher pressures than traditional HFC systems. This regulator is specifically designed to handle:

• High operating pressures (up to 100 bar outlet)
• Transcritical operation where CO2 exceeds its critical point
• Safe charging procedures for high-pressure systems
• Precise pressure control for optimal system performance

UK F-Gas Compliance:

CO2 (R744) is classified as a natural refrigerant and is exempt from many F-Gas restrictions. However, proper handling equipment and F-Gas certification are still required for working with refrigeration systems. This regulator meets professional standards for CO2 system servicing.

Related Products:

Complete your CO2 system toolkit with our high-pressure CO2 manifold gauges, recovery equipment, nitrogen testing regulators, and vacuum pumps.

Essential equipment for commercial refrigeration technicians working with CO2 transcritical and subcritical systems.
