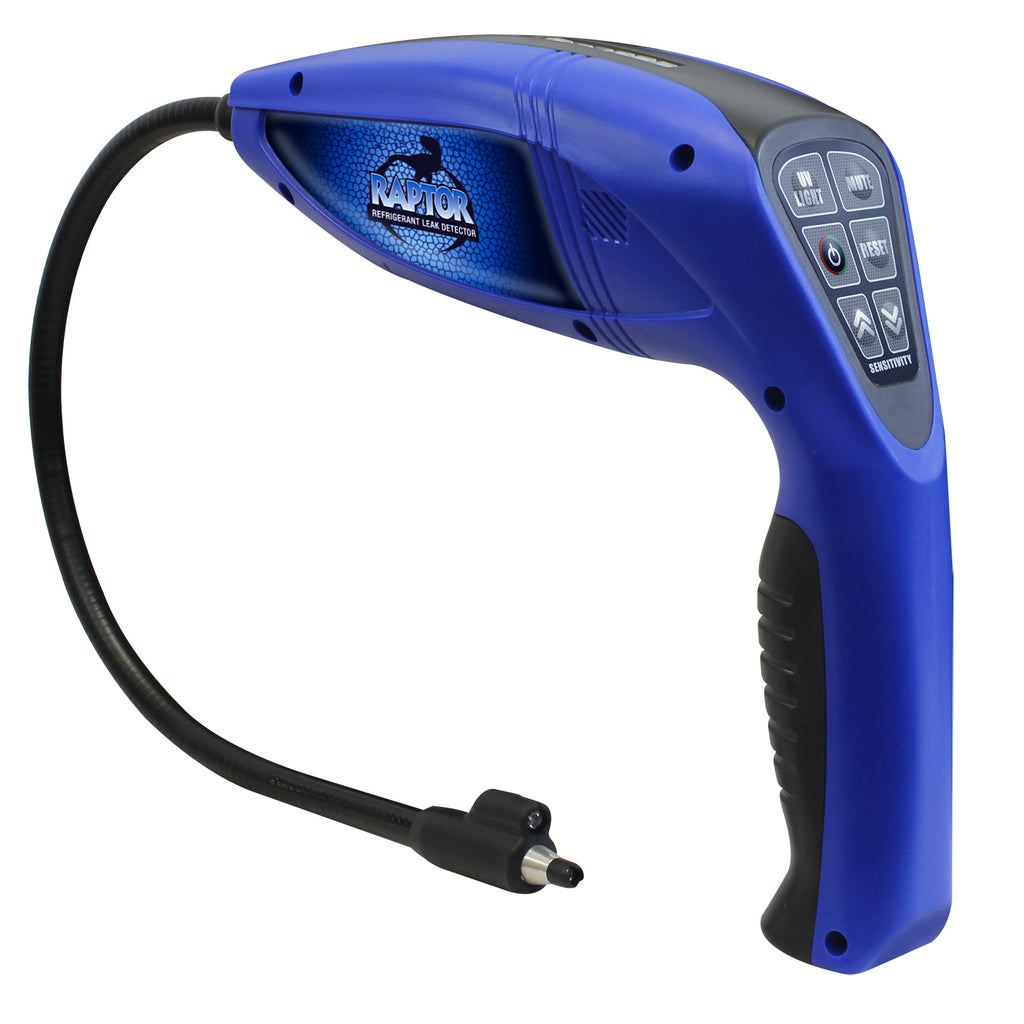

Mastercool 56200 Raptor Electronic Refrigerant Leak Detector with UV Blue Light

Mastercool 56200 Raptor Electronic Refrigerant Leak Detector with UV/Blue Light

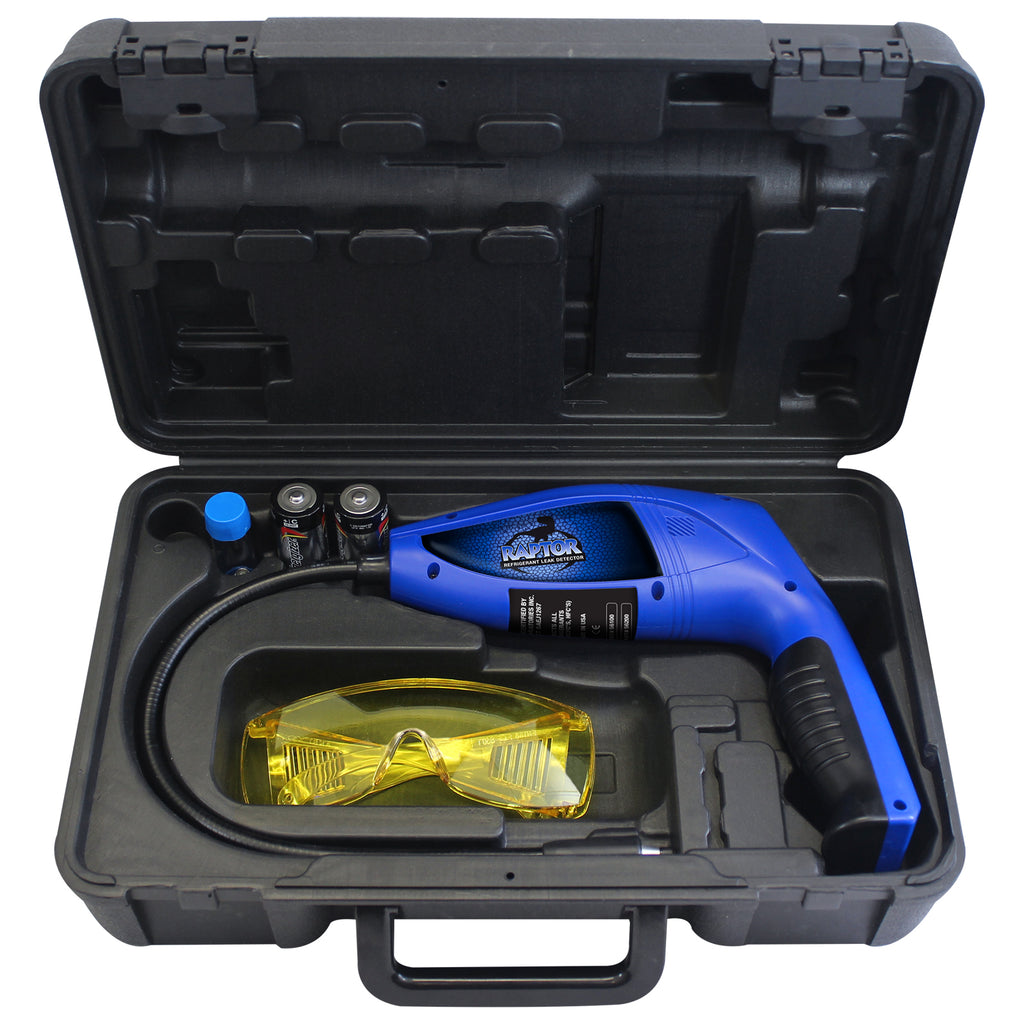

The Mastercool 56200 Raptor combines professional electronic refrigerant leak detection with an integrated UV/Blue LED light built into the end of the probe — allowing both electronic and UV dye detection of even the toughest leaks. Packaged in a blow-moulded carry case with UV glasses, 2 x C batteries and sensor tip.

Key Features

• Digital Signal Micro Processor — accurate and instantaneous response
• Ultra Bright UV/Blue LED Light — built into probe tip for dye detection
• 6 levels of sensitivity (15 levels of detection)
• Detects leaks as small as 1/10 oz per year
• Flexible 16" (43cm) probe — for difficult to reach places
• Variable Frequency Audible Alarm
• Visual Leak Level Indicator — 6 vertical LEDs
• Keypad Control
• Mute Function
• Battery Test Function
• Reset Function
• Sensitivity Level Adjustment
• Meets and exceeds SAE J1627
• Power: 2 x C batteries

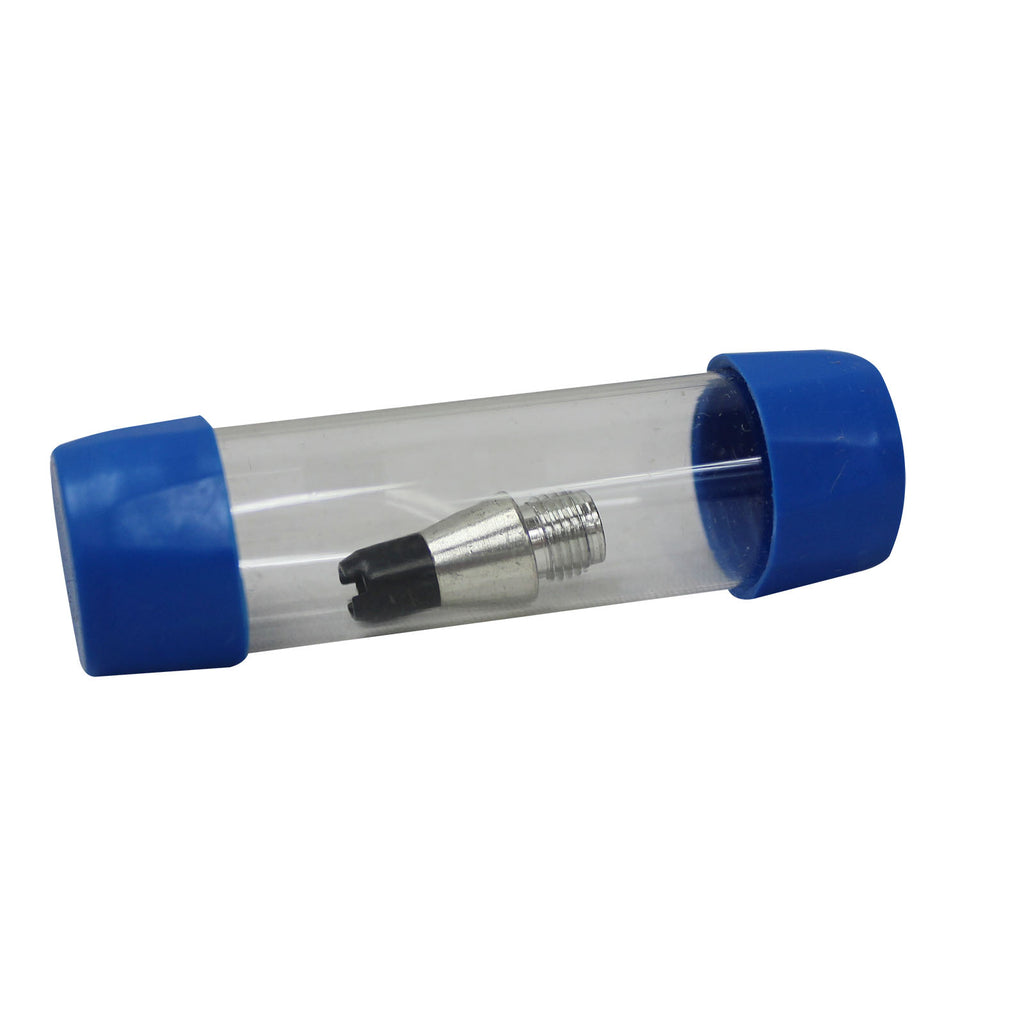

• Supplied with UV glasses, sensor tip and blow-moulded carry case

Compatible Refrigerants

The 56200 detects leaks from the following refrigerant families:

• ✅ CFCs — e.g. R12, R502
• ✅ HCFCs — e.g. R22, R408A
• ✅ HFCs — e.g. R134a, R404A, R407C, R410A, R32, R507

The 56200 does not detect:

• ❌ HFOs — e.g. R1234yf, R1234ze (requires HFO-specific detector)
• ❌ Natural refrigerants — CO₂, ammonia (R717), hydrocarbons (R290, R600a)

Specifications

Also Available

• 56100 — Raptor electronic only (no UV light)
• 56400 — Complete electronic & UV kit with dye injector
