Sauermann Delta Pack 80x60 Elbow Condensate Pump Kit — Up to 13kW

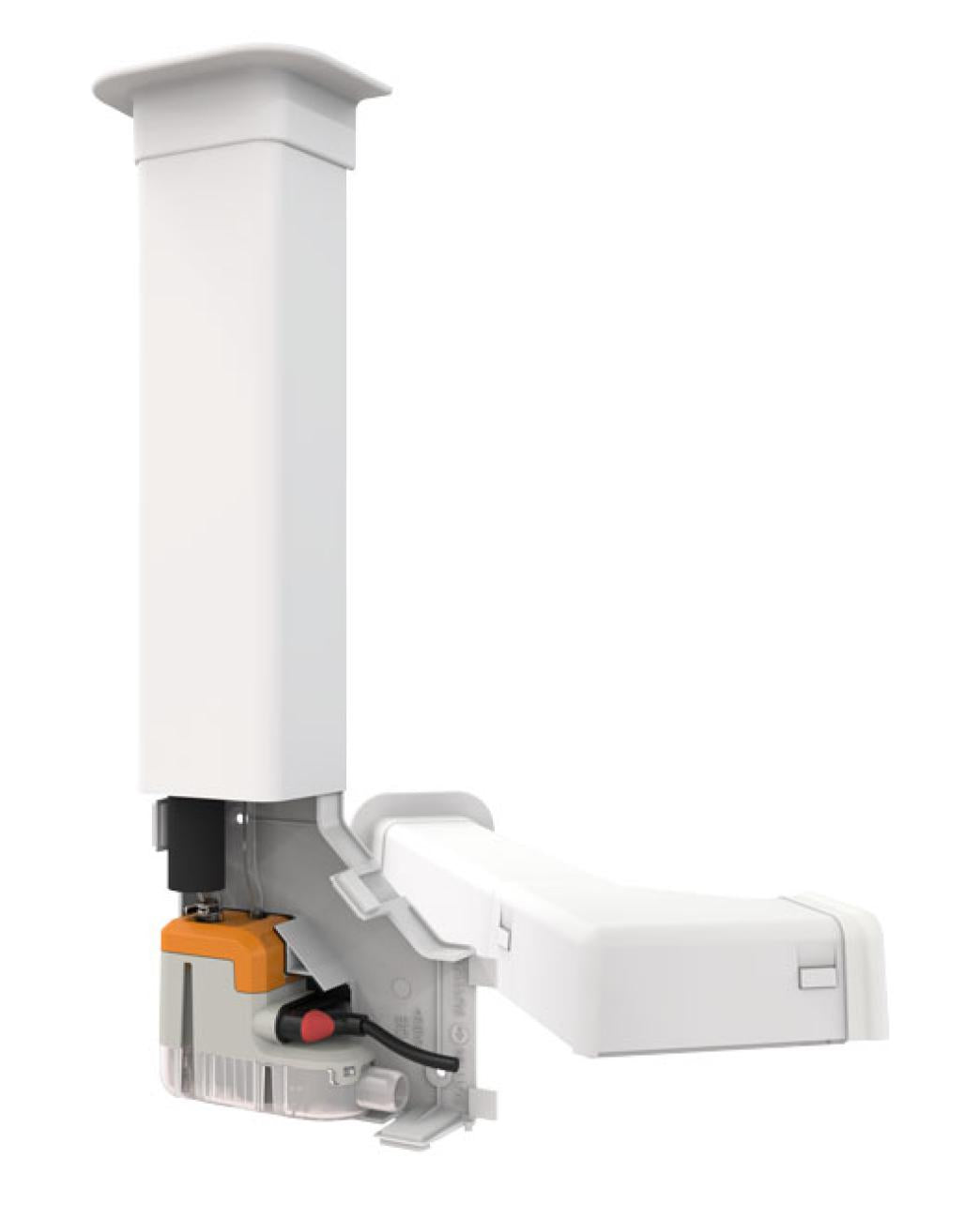

The Sauermann Delta Pack 80x60 (DP10CE05UN23) is a complete condensate pump installation kit in an 80x60mm elbow configuration, designed for wall-mounted split AC systems with linesets up to 3/8"–5/8" insulated (up to 13kW). Everything needed for a neat, professional installation is included — condensate pump, 80x60mm duct and elbow section, and all fittings.
Key Features

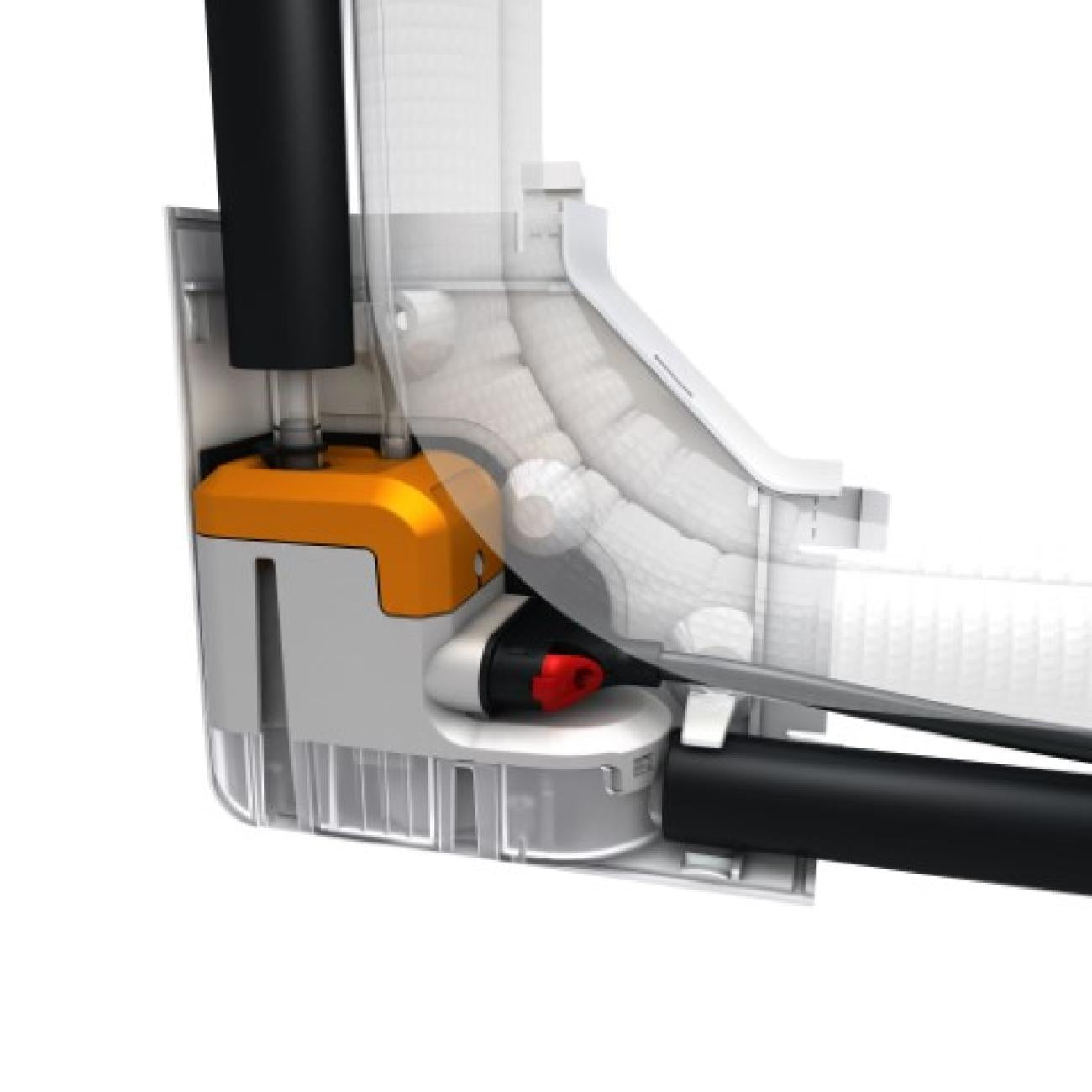

- Complete installation kit — pump, 80x60mm duct (750mm), elbow (130×130×60mm) and fittings
- 20 L/h max flow rate | 10m max discharge head (4 L/h) | 14m max pressure (0 L/h)
- ≤22 dB(A) @ 1m — quiet operation
- IPX4 splash protection
- For wall-mounted AC systems with linesets up to 3/8"–5/8" insulated (up to 13kW)
- RAL 9003 signal white — matches standard AC trunking
- CE & EAC certified | RoHS & WEEE compliant
- Masterpack: 5 units
Technical Specifications
| SKU | DELTAPACK80X60 |
| Manufacturer Part No. | DP10CE05UN23 |
| Brand | Sauermann |
| Barcode (EAN) | 5011768010045 |
| Max Flow Rate | 20 L/h |
| Max Discharge Head | 10m (flow rate = 4 L/h) |
| Max Pressure | 14m (flow rate = 0 L/h) |
| Noise Level | ≤22 dB(A) @ 1m (EN ISO 3744) |
| Mains Supply | 230V~ 50/60Hz — 14W |
| Isolation Class | Double insulation |
| Protection | IPX4 |
| Detection Levels | On: 18mm | Off: 13mm | Safety: 21mm |
| Safety Switch | NC 3A resistive load — 250V (ACC00919) |
| Thermal Protection | 115°C auto-reset |
| Max Condensate Temp | 35°C |
| Operating Temperature | +2 to +50°C |
| Colour | RAL 9003 signal white |
| Elbow Dimensions | L 130 × W 130 × H 60mm |
| Duct Dimensions | L 750 × W 80 × H 60mm |
| Lineset Compatibility | Ø max 3/8"–5/8" insulated (up to 13kW) |
| Packaging Weight | 1.55kg |
| Masterpack | 5 units |
| Safety Standards | CE & EAC |
| Country of Origin | France |
What's Included
- Sauermann condensate pump
- 80x60mm duct section (750mm length)
- 80x60mm elbow (130×130×60mm)
- All fittings for complete installation
Accessories
- ACC00909 — Clear PVC hose Ø int. 6mm (1/4") — 5m
- ACC00910 — Clear PVC hose Ø int. 6mm (1/4") — 50m
- ACC00956 — 5 replacement rubber gaskets
- ACC00919 — 5 self-sealing fittings for hose Ø int. 6mm (1/4")
Frequently Asked Questions
What AC system size is this kit suitable for?
The Delta Pack 80x60 is rated for wall-mounted AC systems with linesets up to 3/8"–5/8" insulated, covering systems up to 13kW.
What is included in the kit?
The kit includes a Sauermann condensate pump, 80x60mm duct section (750mm), elbow section (130×130×60mm) and all fittings for a complete installation.
What is the noise level?
The Delta Pack 80x60 operates at ≤22 dB(A) @ 1m, measured to EN ISO 3744.
Is this CE certified?
Yes — CE & EAC certified, RoHS and WEEE compliant.
