2-Way Manifold Basics

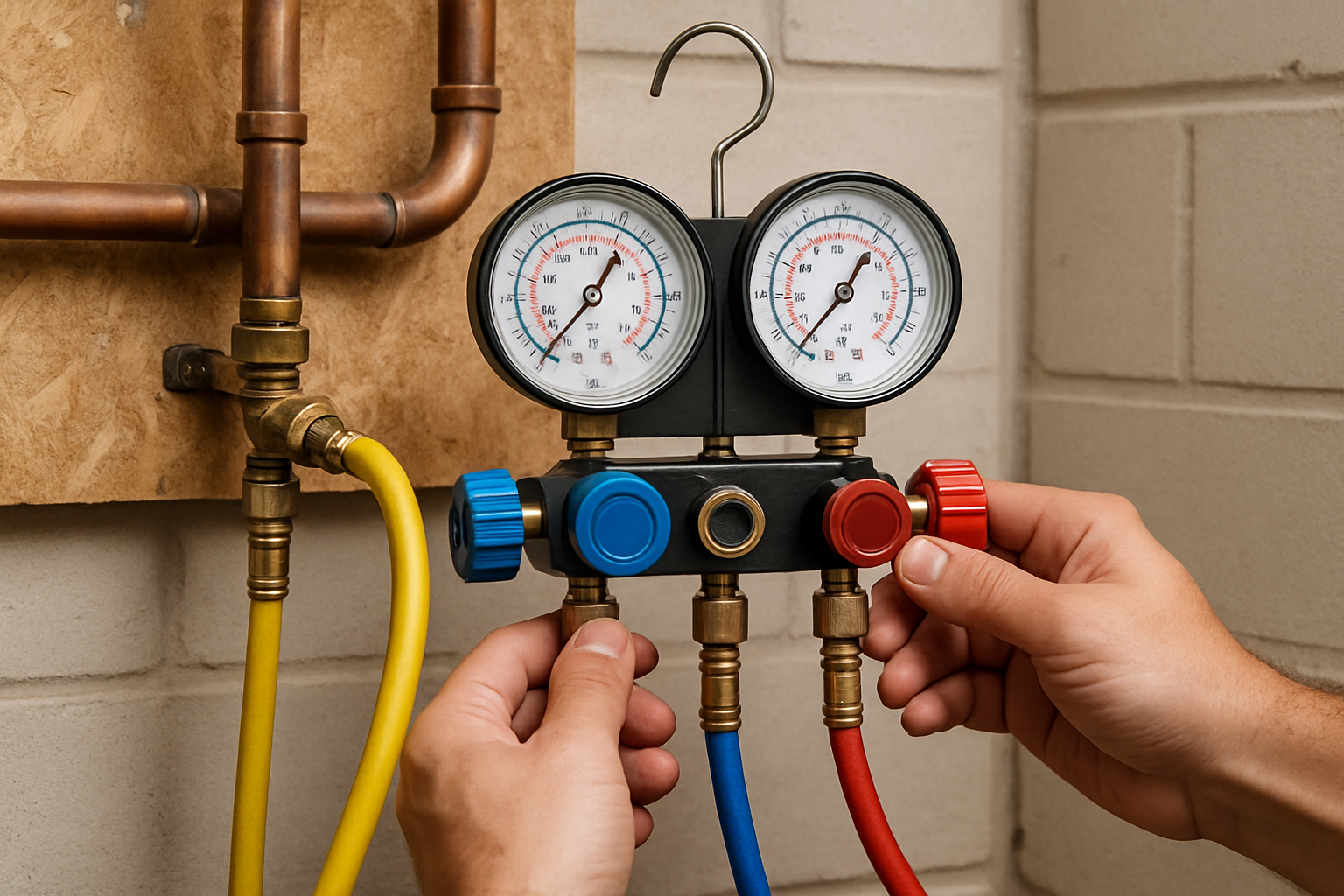

A 2-way manifold has two gauges — low side (compound, blue) and high side (red) — connected through a manifold block with two hand valves and a centre service port. It's the standard tool for pressure diagnostics, evacuation, and charging on split systems and most commercial HVAC equipment. Simple, reliable, and sufficient for the majority of HVAC service work.
Port Connections
| Port | Hose Colour | Connects To | Typical Pressure Range |
|---|---|---|---|
| Low side | Blue | Suction line service valve | Vacuum to ~30 bar |
| High side | Red | Liquid line or discharge service valve | 0 to ~55 bar |
| Centre (service) | Yellow | Vacuum pump, refrigerant cylinder, or recovery machine | Variable |
Connection Sequence
- Close both manifold valves before connecting anything — prevents refrigerant release on connection.
- Connect blue hose to the suction service valve. Hand-tight plus a quarter turn — don't overtighten, you'll damage the O-ring.
- Connect red hose to the high-side service valve. Same torque.
- Connect yellow hose to your vacuum pump, recovery machine, or refrigerant cylinder depending on the task.
- Open service valves on the unit (if Schrader type, the hose depressor opens them automatically on connection).
- Slowly open manifold valves and observe gauge response — smooth needle movement confirms good connections. Erratic movement or no reading suggests a connection issue or restriction.
Common Issues
Pressure reading discrepancy between gauges — on a static system both sides should equalise after a few minutes. If they don't, check for a closed service valve or a restriction in the system.
Gauge reads zero on connection — check the Schrader valve depressor in the hose fitting is engaging correctly. A worn or missing depressor won't open the valve.
Erratic readings — often caused by refrigerant cross-contamination in the manifold from a previous job. Purge the manifold with the target refrigerant before taking diagnostic readings.
Hose leaking at connection — replace the O-ring. Keep a set of spare O-rings in the van; they're cheap and a leaking hose connection wastes refrigerant and gives false readings.
Refrigerant Compatibility
Confirm your manifold's pressure rating covers the refrigerant you're working with. R410A and R32 operate at higher pressures than R22 — a manifold rated only for R22 will have an undersized high-side gauge. Most modern manifolds cover R410A as standard; check the spec if you're using an older set.
Never use the same manifold on different refrigerant types without purging — cross-contamination damages systems and violates F-Gas regulations.
