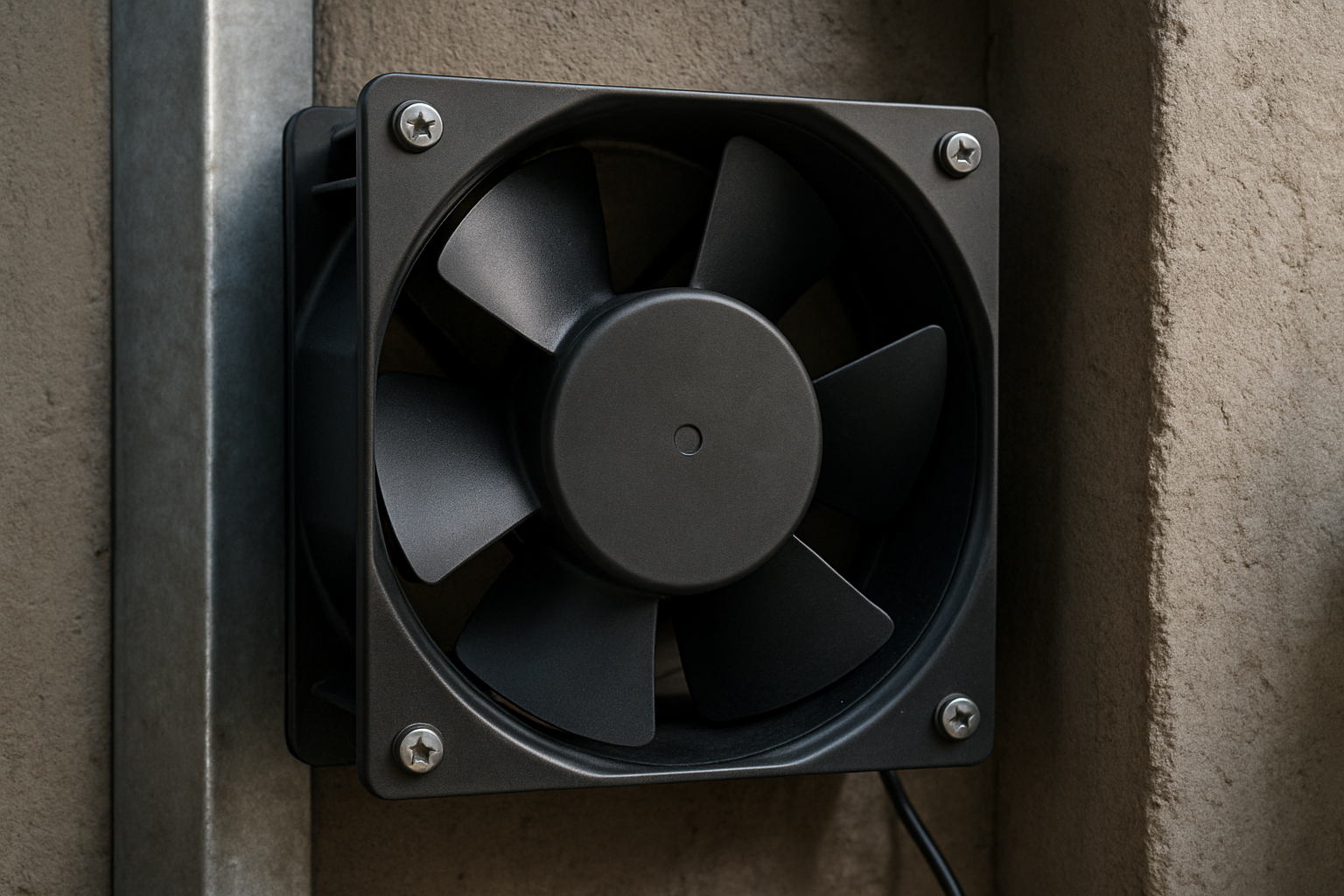

Why Square Axial Fans?
Square axial fans move air parallel to the motor shaft — the same principle as a standard propeller fan, but in a square frame that fills a rectangular aperture completely. This makes them significantly more space-efficient than circular fans in panel cutouts, shallow plenums, and equipment bays where every millimetre counts.
They're the standard choice for condenser sections in RTUs and packaged units, control panel cooling, server rack ventilation, and any application where a circular fan would waste usable space in the corners of the opening.
Motor Types
PSC (Permanently Split Capacitor) — the traditional choice. Simple, reliable, speed-controllable via voltage regulation. Lower upfront cost. Standard for most replacement applications.
ECM (Electronically Commutated Motor) — significantly more energy-efficient, precise speed control, better performance at part load. Higher cost but worthwhile on systems running continuously or where energy efficiency is a priority.
Key Specifications to Check
Airflow (CFM or m³/h) — match to the system's ventilation requirement. Square axial fans typically cover 500–15,000 CFM depending on size.
Static pressure capability — up to around 2 in. w.c. (500 Pa) for most axial designs. If you need higher static pressure, a centrifugal fan is more appropriate.
Voltage — confirm supply voltage matches: 115V, 230V, or 480V are common. Three-phase options available for larger commercial units.
IP rating — for outdoor or wash-down environments, confirm the motor and frame are rated appropriately. IP44 minimum for outdoor condenser applications.
Frame size — measure the existing aperture carefully before ordering a replacement. Square axial fans are sized by frame dimension (e.g. 172mm, 254mm, 310mm).
Installation
Maintain minimum clearances on both intake and discharge sides — typically 0.5–1.0 times the fan diameter on the intake, more on the discharge if ducted. Insufficient clearance causes recirculation and reduces effective airflow.
Use anti-vibration mounts where noise transmission is a concern. Check that the motor rotation direction matches the blade pitch — running a fan backwards reduces airflow significantly and increases noise.
For VFD-controlled applications, confirm the motor is VFD-compatible before connecting — standard PSC motors are not suitable for inverter duty without modification.
Maintenance
| Component | Check Frequency | Common Issues |
|---|---|---|
| Motor bearings | 6-monthly | Noise, vibration, overheating |
| Impeller/blades | Quarterly | Blade damage, debris, imbalance |
| Electrical connections | Annually | Corrosion, loosening, insulation wear |
Sealed bearings on most modern units are maintenance-free for 40,000–100,000 hours under normal conditions. If a bearing starts making noise, replace the motor — attempting to re-lubricate sealed bearings rarely extends service life meaningfully.
