Understanding Vapour Barriers in HVAC Systems
Vapour barriers represent critical components in contemporary HVAC installations, functioning as impermeable membranes that restrict moisture migration through building assemblies and mechanical systems. These specialised materials prevent water vapour transmission, thereby mitigating condensation formation that can compromise system efficiency and structural integrity.
The fundamental principle underlying vapour barrier efficacy involves controlling the dewpoint differential across insulation systems. When warm, moisture-laden air encounters cooler surfaces within HVAC infrastructure, condensation occurs if the surface temperature drops below the dewpoint threshold. This phenomenon manifests particularly in chilled water systems, refrigeration lines, and air conditioning ductwork where substantial temperature differentials exist between conditioned air and ambient environments.
Professional installers must recognise that vapour barriers function differently from vapour retarders. Barriers exhibit permeance ratings below 0.1 perm, whilst retarders demonstrate higher permeability values. This distinction proves crucial when specifying materials for diverse climatic conditions and system applications.
Moisture Transmission Mechanisms
Water vapour migration occurs through three primary mechanisms: diffusion, air leakage, and capillary action. Diffusion represents molecular movement through porous materials driven by vapour pressure differentials. Air leakage facilitates moisture transport via convective currents through gaps, joints, and discontinuities. Capillary action enables liquid water movement through interconnected pore structures within hygroscopic materials.
Understanding these mechanisms enables HVAC contractors to implement comprehensive moisture control strategies that address each pathway systematically. Effective vapour barrier installation must account for all three transmission modes to achieve optimal condensation prevention performance.
Types of Vapour Barriers for HVAC Applications
Contemporary vapour barrier technologies encompass diverse material compositions engineered for specific HVAC applications and environmental conditions.
Elastomeric Rubber Barriers
Elastomeric rubber systems provide exceptional vapour resistance whilst maintaining flexibility across varying temperature ranges. These closed-cell materials demonstrate superior adhesion characteristics and accommodate thermal expansion without compromising barrier integrity. Professional applications favour elastomeric solutions for their durability and installation efficiency.
K‑Flex ST Anti‑Condensation Tape exemplifies advanced elastomeric vapour barrier technology specifically engineered for pipe insulation systems. This high-performance tape creates seamless vapour barriers across joints, seams, and penetrations where traditional insulation materials cannot provide continuous protection. The elastomeric construction ensures long-term adhesion whilst accommodating thermal cycling inherent in HVAC operations.
The tape's specialised formulation addresses common condensation challenges in chilled water systems, refrigeration lines, and air conditioning installations where moisture ingress can compromise insulation performance and promote microbial growth.
Polyethylene Film Systems

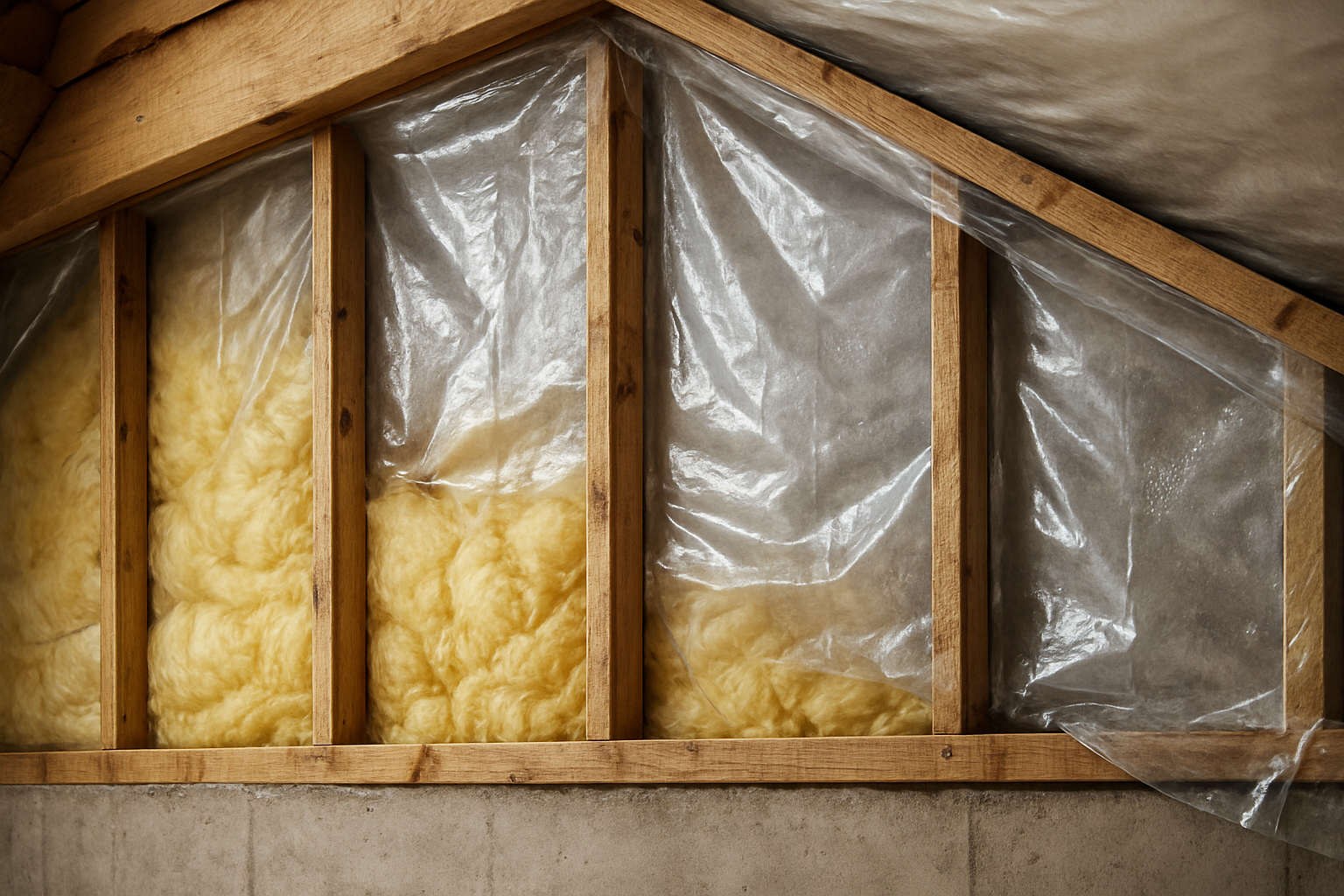

Polyethylene vapour barriers offer cost-effective moisture control for large-scale installations. These thermoplastic films demonstrate excellent chemical resistance and maintain structural integrity under moderate temperature fluctuations. However, polyethylene systems require careful sealing techniques to prevent air leakage at joints and penetrations.
Aluminium Foil Laminates
Metallic vapour barriers provide superior moisture resistance combined with radiant heat reflection properties. Aluminium foil laminates prove particularly effective in high-temperature applications where conventional polymeric barriers may degrade. The reflective surface reduces radiative heat gain, enhancing overall system efficiency.
Installation Best Practices
Proper vapour barrier installation requires meticulous attention to continuity, adhesion, and thermal bridging prevention.
Surface Preparation Requirements
Substrate surfaces must achieve cleanliness standards that ensure optimal adhesive performance. Remove oil, dust, moisture, and oxidation products that could compromise barrier adhesion. Surface temperature should remain within manufacturer-specified ranges during installation to prevent premature adhesive failure.
Primer application may be necessary for challenging substrates including galvanised steel, copper, and certain polymer surfaces. Consult technical specifications to determine primer requirements for specific material combinations.
Sealing and Joint Treatment
Vapour barrier effectiveness depends critically on continuous coverage without gaps or discontinuities. Overlap joints require minimum dimensions as specified by manufacturers, typically ranging from 50mm to 100mm depending on application requirements.
| Joint Type | Minimum Overlap | Sealing Method |
|---|---|---|
| Longitudinal Seams | 75mm | Pressure-sensitive adhesive |
| Circumferential Joints | 50mm | Tape or mastic sealant |
| Penetrations | 100mm | Conformable sealant |
Mechanical fasteners that penetrate vapour barriers must incorporate appropriate sealing techniques to maintain barrier integrity. Consider using adhesive-backed washers or sealant applications at fastener locations.
Common Installation Challenges and Solutions
HVAC contractors frequently encounter specific challenges when implementing vapour barrier systems in complex mechanical installations.
Complex Geometries
Pipe fittings, valves, and equipment connections present intricate geometries that challenge conventional vapour barrier installation techniques. Pre-formed components and conformable tapes provide solutions for these challenging applications. Pattern-making techniques enable accurate template creation for complex shapes.
Thermal Bridging Prevention
Metal supports, hangers, and penetrations can create thermal bridges that compromise insulation effectiveness and promote localised condensation. Thermal break materials interrupt heat conduction pathways whilst maintaining structural integrity.
"Effective vapour barrier systems require comprehensive design approaches that address both moisture control and thermal performance simultaneously. Neglecting either aspect compromises overall system effectiveness." - Building Services Engineering Guidelines
Performance Testing and Quality Assurance
Vapour barrier performance verification involves systematic testing protocols that confirm installation quality and long-term effectiveness.
Permeance Testing Methods
Water vapour transmission rates require measurement using standardised test methods such as ASTM E96 or BS EN 12572. These protocols quantify moisture permeability under controlled temperature and humidity conditions. Field testing may utilise portable permeance meters for installation verification.
Adhesion Verification
Peel strength testing confirms adequate bonding between vapour barriers and substrate surfaces. Minimum adhesion values prevent delamination under service conditions including thermal cycling and mechanical vibration.
- Visual inspection for gaps, wrinkles, or discontinuities
- Adhesion testing using standardised peel methods
- Infrared thermography to identify thermal bridges
- Moisture content monitoring in insulation materials
Maintenance and Long-term Performance
Vapour barrier longevity depends on appropriate maintenance protocols and periodic performance assessment.
Inspection Schedules
Regular inspection programmes should encompass visual assessment of barrier integrity, particularly at joints, penetrations, and high-stress locations. Mechanical damage, UV degradation, and adhesive failure represent common deterioration mechanisms requiring attention.
Documentation of inspection findings enables trend analysis and predictive maintenance scheduling. Photographic records provide valuable references for future assessments.
Repair Procedures
Minor vapour barrier damage requires immediate repair to prevent moisture ingress and insulation degradation. Patch materials must demonstrate compatibility with existing barrier systems whilst providing equivalent performance characteristics.
Regulatory Compliance and Standards
Vapour barrier installations must comply with relevant building codes, industry standards, and energy efficiency regulations.
Building Regulations Requirements
Part L of the Building Regulations addresses energy conservation requirements that may necessitate vapour barrier implementation. Thermal bridging calculations must account for vapour barrier thermal properties and installation methods.
Fire safety considerations under Part B may influence vapour barrier material selection, particularly regarding flame spread characteristics and smoke generation properties.
Industry Standards Compliance
CIBSE guidelines provide comprehensive recommendations for vapour barrier selection and installation in mechanical services applications. These standards address material properties, installation techniques, and performance verification methods.
BSRIA technical notes offer practical guidance for specific HVAC applications including chilled water systems, air handling units, and refrigeration installations.
Frequently Asked Questions
How do I determine the required vapour barrier permeance rating for my HVAC application?
Permeance requirements depend on system operating temperatures, ambient conditions, and insulation thickness. Calculate dewpoint conditions and select barriers with permeance ratings appropriate for preventing moisture transmission under worst-case scenarios.
Can vapour barriers be applied over existing insulation systems?
Retrofitting vapour barriers over existing installations requires assessment of substrate condition and compatibility. Ensure adequate adhesion and consider potential thermal performance impacts from additional barrier layers.
What happens if vapour barriers are installed on the wrong side of insulation?
Improper vapour barrier positioning can trap moisture within insulation systems, potentially causing material degradation and reduced thermal performance. Always position barriers on the warm side of insulation to prevent inward vapour drive.
